1. Introduction

The physical question. A single spin-1/2 is described by two complex numbers. Two spins need \(2\times2=4\) numbers, three spins \(2\times2\times2=8\), and \(N\) spins \(2^N\). The natural way to store the state of \(N\) spins is therefore not a “long vector” but an array with one index per spin, \(\psi_{s_0 s_1\dots s_{N-1}}\) with every \(s_k\in\{0,1\}\). Everything we do to such a state in this course – applying a magnetic field to spin 3, letting spins 5 and 6 interact, ignoring (“tracing out”) half of the chain, computing an expectation value – is a sum over some of these indices. For example, a \(2\times2\) matrix \(M\) acting on the middle spin of three is

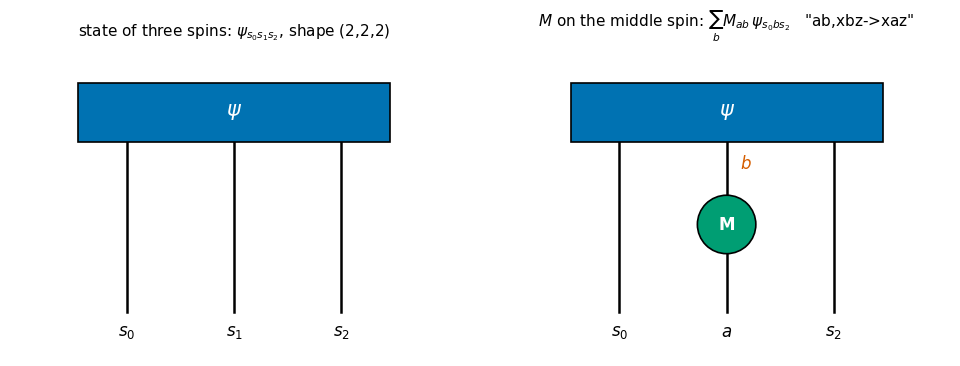

\[ \psi'_{s_0\, a\, s_2} \;=\; \sum_{b=0}^{1} M_{ab}\,\psi_{s_0\, b\, s_2}. \]

Formulas of this kind are called index notation (they were used in [1] to tame the equations of general relativity; today they are equally the working language of quantum many-body physics, tensor networks and machine learning). The function einsum (“Einstein summation”) turns such a formula into running code literally: the formula above is einsum("ab,xbz->xaz", M, psi). The core routine of the simulator built in this course is one einsum call whose string is assembled by a few lines of Python.

Why it matters. The textbook way of acting on spin \(q\) is to build the \(2^N\times2^N\) matrix \(\mathbb 1\otimes\dots\otimes M\otimes\dots\otimes\mathbb 1\) and multiply. For \(N=20\) this matrix has \(2^{40}\approx10^{12}\) entries; a complex number in double precision occupies 16 bytes, so the matrix alone would need \(1.8\times10^{13}\) bytes (18 TB), whereas the index formula above touches each of the \(2^{20}\approx10^6\) amplitudes just twice. The entire course rests on this difference, and index notation is what makes it visible.

What we will do. This notebook assumes that you know matrix multiplication and NumPy arrays – nothing more. Every new contraction is presented four times:

1. as a sum formula,
2. as explicit Python for loops (slow, but completely explicit),
3. as an einsum string,
4. checked against a NumPy built-in (@, np.dot, np.trace, np.kron, …).

Road map. Sections 2-4: the three rules of einsum, the classic vector/matrix examples, and our own 25-line implementation of einsum with loops. Sections 5-6: arrays with many indices, how they sit in memory (C-ordering), and what reshape and transpose really do. Sections 7-9: composite indices (a \(4\times4\) matrix is a \((2,2,2,2)\) tensor), the Kronecker product and partial traces. Sections 10-13: tensor-network diagrams, batched contractions, the cost of a contraction and why the order matters, einsum vs tensordot vs matmul. Section 14: building einsum strings programmatically. Section 15: einsum in JAX (jit, vmap, grad) with timings of the compiled functions. Section 16: a preview, acting on the middle spin of a three-spin state. Then summary, exercises (with self-checking asserts), references, and solutions at the very end.

Section 15 assumes jit, vmap, grad and block_until_ready from notebook 01, JAX; Sections 2-14 use plain NumPy.

What you will learn

Physics

• why the state of \(N\) spins is naturally an array with \(N\) indices, and why acting on one spin is a sum over one index;
• the Kronecker (tensor) product and the partial trace – the two operations that combine and separate subsystems – in index form.

Numerical methods

• index notation \(\leftrightarrow\) einsum: the three rules; contraction, outer product, trace, permutation;

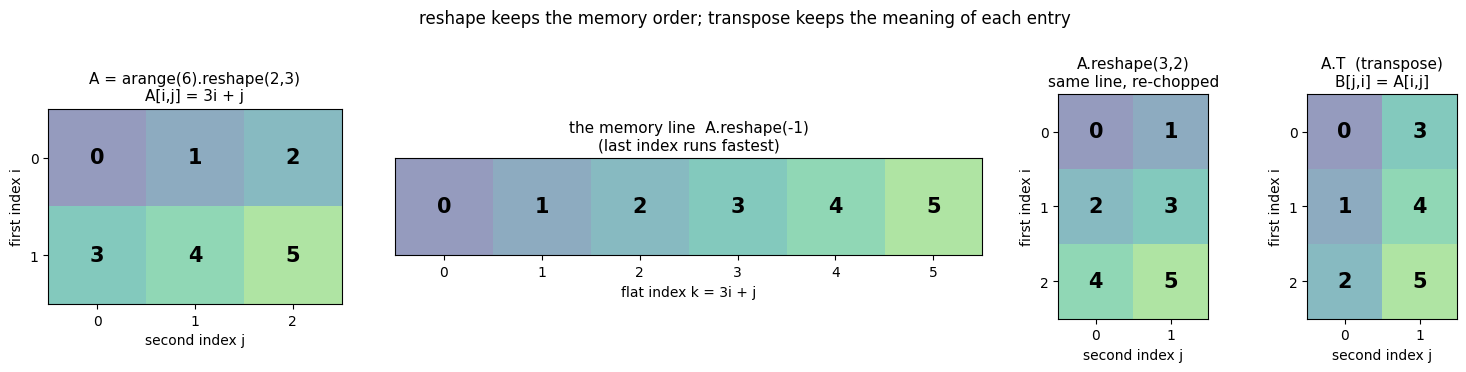

• memory layout of multi-index arrays: C-ordering, the flat-index formula, reshape vs transpose, composite indices;

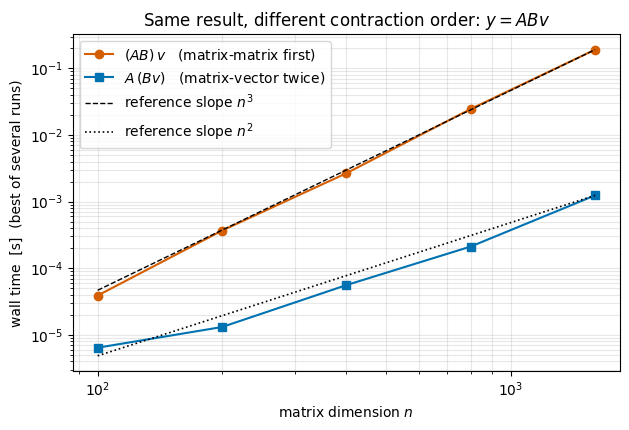

• counting the cost of a contraction, and why the order of pairwise contractions can change the cost by orders of magnitude.

Implementation practice

• verifying every new piece of code against an independent reference (assert err < TOL);
• einsum vs tensordot vs matmul; building einsum strings with Python code;
• jnp.einsum under jax.jit, jax.vmap and jax.grad; measuring compile time and run time separately.

How to read this notebook. Run it top to bottom. Whenever a new einsum string appears, cover the code, and try to write the string yourself from the sum formula. This is a skill like mental arithmetic: it comes only with repetition.

Configuration

Every notebook of this course starts with the same cell. Choose where to run (DEVICE) and the floating-point precision (PRECISION): "double" = float64/complex128 (default, recommended for physics), "single" = float32/complex64 (half the memory, faster on consumer GPUs, but watch the round-off). All code below derives its dtypes from RDTYPE/CDTYPE and its check tolerances from TOL, so nothing else needs to change.

Code

# ==============================================================================
# CONFIGURATION  -- adapt to your hardware, then run the notebook top to bottom
# ==============================================================================
DEVICE    = "auto"     # "auto": use a GPU if JAX finds one, else CPU | "cpu" | "gpu"
PRECISION = "double"   # "double": float64/complex128 | "single": float32/complex64

import os
if DEVICE == "cpu":
    os.environ["JAX_PLATFORMS"] = "cpu"          # must be set BEFORE jax is imported

import string
from functools import partial

import math
import numpy as np
import jax
import jax.numpy as jnp
from jax import lax

# Precision is configurable: "double" = float64/complex128 (default; needed for long time evolutions and
# tight validation), "single" = float32/complex64 (half the memory, faster on consumer GPUs).
jax.config.update("jax_enable_x64", PRECISION == "double")
RDTYPE = jnp.float64 if PRECISION == "double" else jnp.float32       # real dtype
CDTYPE = jnp.complex128 if PRECISION == "double" else jnp.complex64  # complex dtype of all states/operators
TOL = 1e-10 if PRECISION == "double" else 1e-4                       # tolerance for sanity checks (asserts)
_LETTERS = string.ascii_letters  # the 52 einsum index labels a-z, A-Z

import time
import matplotlib.pyplot as plt

if DEVICE == "gpu" and jax.default_backend() == "cpu":
    print("WARNING: DEVICE='gpu' requested but JAX found no GPU -- running on CPU.")
print(f"JAX {jax.__version__} | backend: {jax.default_backend()} | devices: {jax.devices()}")
print(f"precision: {PRECISION} -> real {RDTYPE.__name__}, complex {CDTYPE.__name__}, check tolerance TOL={TOL:g}")

JAX 0.11.0 | backend: cpu | devices: [CpuDevice(id=0)]
precision: double -> real float64, complex complex128, check tolerance TOL=1e-10

2. Index notation and the three rules of einsum

2.1 A first example: matrix times vector

You know the rule “row times column”. Written with indices, for a matrix \(A\) with \(n\) rows and \(m\) columns and a vector \(x\) of length \(m\):

\[ y_i \;=\; \sum_{j=0}^{m-1} A_{ij}\,x_j, \qquad i=0,\dots,n-1. \tag{1}\]

(We count from 0, as Python does.) Look at the roles of the two indices:

• \(i\) appears on both sides of the equation. It is a free index: Eq. (1) is really \(n\) equations, one for each value of \(i\).
• \(j\) appears only on the right-hand side, and it appears twice. It is a summed (or dummy, or contracted) index. Its name does not matter: \(\sum_j A_{ij}x_j=\sum_k A_{ik}x_k\).

einsum needs exactly this information and nothing else: the index names of each input and the index names of the output,

        "ij,j->i"
         |  |   |
         |  |   +-- indices of the output  y_i
         |  +------ indices of the 2nd input  x_j
         +--------- indices of the 1st input  A_ij

Let us compute Eq. (1) in these four ways. The helper check prints the largest deviation between two arrays and raises an error if it exceeds the tolerance TOL defined in the configuration cell. We will use it throughout.

Code

# ==============================================================================
# HELPERS used in the whole notebook
# ==============================================================================
import itertools                       # Cartesian products of index ranges (Section 4)

rng = np.random.default_rng(seed=0)    # NumPy random generator with a fixed seed -> reproducible numbers


def check(name, got, ref, tol=TOL):
    """Compare two arrays: print max |got - ref| and assert that it is below `tol`.

    MATH   err = max_k |got_k - ref_k|   (maximum norm over all entries)
    The habit to acquire: every new implementation is checked against an INDEPENDENT reference.
    """
    got, ref = np.asarray(got), np.asarray(ref)
    assert got.shape == ref.shape, f"{name}: shapes differ, {got.shape} vs {ref.shape}"
    err = float(np.max(np.abs(got - ref))) if got.size else 0.0
    print(f"{name:<52s} max|diff| = {err:.1e}")
    assert err < tol, f"{name}: FAILED"

Code

# ==============================================================================
# MATRIX x VECTOR   y_i = sum_j A_ij x_j     in four ways
# ==============================================================================
A = rng.normal(size=(3, 4))            # n=3 rows, m=4 columns
x = rng.normal(size=4)

# (b) explicit loops: one loop per index.  The free index i labels the output slot,
#     the summed index j accumulates into that slot.
y_loop = np.zeros(3)
for i in range(3):                     # free index
    for j in range(4):                 # summed index
        y_loop[i] += A[i, j] * x[j]

# (c) einsum: name the indices of every input, and the indices that survive
y_einsum = np.einsum("ij,j->i", A, x)

# (d) the NumPy built-in
y_numpy = A @ x

print("y =", y_numpy)
check("matvec: loops  vs  A @ x", y_loop, y_numpy)
check("matvec: einsum vs  A @ x", y_einsum, y_numpy)

y = [-1.13814771 -1.15185061  2.65935256]
matvec: loops  vs  A @ x                             max|diff| = 2.2e-16
matvec: einsum vs  A @ x                             max|diff| = 0.0e+00

All three agree to machine precision (deviations of order \(10^{-16}\) come from a different order of the floating-point additions).

2.2 The three rules

An einsum call has the form einsum("labels_1,labels_2,...->labels_out", T1, T2, ...). Each input gets one letter per axis.

	rule	in formulas
Rule 1	a letter that appears in the inputs but not in the output is summed over	\(\sum_j\)
Rule 2	a letter that appears in the output is kept: a free index; the order of the output letters fixes the order of the output axes	\(y_{i}\)
Rule 3	the same letter in two places ties those axes together: they take the same value (and must have the same length)	\(A_{i\mathbf{j}}\,x_{\mathbf{j}}\)

The value of the output entry is always the product of the input entries, summed over all summed letters:

\[ \text{out}_{\text{free}} = \sum_{\text{summed}} \;\prod_{\text{inputs } T} T_{\text{labels of } T}. \]

Everything below is an application of these three rules.

Common pitfall. Letters are case sensitive (a and A are different indices), and only letters are allowed (52 labels). NumPy also accepts strings without -> (“implicit mode”: the output consists of all letters that appear exactly once, sorted alphabetically). This is a source of silent bugs – in this course we always write the -> part explicitly.

3. The classic einsum examples

For each operation: sum formula, loops, einsum string, NumPy reference. Read the string aloud: "ij,jk->ik" = “A has indices i, j; B has indices j, k; the result has indices i, k; therefore j is summed”.

3.1 Inner product (dot product): \(s=\sum_i a_i b_i\) – no free index, the output is a scalar

Code

# ==============================================================================
# INNER PRODUCT   s = sum_i a_i b_i        einsum "i,i->"
# ==============================================================================
a = rng.normal(size=5)
b = rng.normal(size=5)

s_loop = 0.0
for i in range(5):
    s_loop += a[i] * b[i]

s_einsum = np.einsum("i,i->", a, b)    # nothing after "->": all indices summed, the result is a number
check("inner product: loops  vs np.dot", s_loop, np.dot(a, b))
check("inner product: einsum vs np.dot", s_einsum, np.dot(a, b))

# --- complex vectors: the quantum-mechanical inner product <a|b> = sum_i conj(a_i) b_i ---------
ac = rng.normal(size=5) + 1j * rng.normal(size=5)
bc = rng.normal(size=5) + 1j * rng.normal(size=5)
check("<a|b>: einsum with a.conj() vs np.vdot", np.einsum("i,i->", ac.conj(), bc), np.vdot(ac, bc))
print("without conj we would get", np.einsum("i,i->", ac, bc), " instead of", np.vdot(ac, bc))

inner product: loops  vs np.dot                      max|diff| = 0.0e+00
inner product: einsum vs np.dot                      max|diff| = 1.1e-16
<a|b>: einsum with a.conj() vs np.vdot               max|diff| = 5.0e-16
without conj we would get (2.0099610168883766-1.8940276365214594j)  instead of (1.6835692774128288-2.803134574503828j)

Common pitfall. einsum only multiplies and adds. It never complex-conjugates anything. The bra \(\langle a|\) has components \(a_i^*\), so you must pass a.conj() yourself (np.vdot does it for you, np.dot does not). The last printed line shows that forgetting the conjugate gives a different, wrong number – with no error message.

3.2 Matrix times matrix: \(C_{ik}=\sum_j A_{ij}B_{jk}\) – the triple loop

Code

# ==============================================================================
# MATRIX x MATRIX   C_ik = sum_j A_ij B_jk        einsum "ij,jk->ik"
# ==============================================================================
A = rng.normal(size=(3, 4))
B = rng.normal(size=(4, 5))

C_loop = np.zeros((3, 5))
for i in range(3):                     # free index (row of the result)
    for k in range(5):                 # free index (column of the result)
        for j in range(4):             # summed index: must have the same length in A (axis 1) and B (axis 0)
            C_loop[i, k] += A[i, j] * B[j, k]

C_einsum = np.einsum("ij,jk->ik", A, B)
check("matmul: triple loop vs A @ B", C_loop, A @ B)
check("matmul: einsum      vs A @ B", C_einsum, A @ B)

# Rule 2 in action: the ORDER of the output letters decides the order of the output axes.
check("'ij,jk->ki' is the transpose (A B)^T", np.einsum("ij,jk->ki", A, B), (A @ B).T)

# Rule 3 in action: mismatched lengths of a shared letter are an error.
try:
    np.einsum("ij,jk->ik", A, A)       # j would need length 4 (axis 1 of A) and 3 (axis 0 of A)
except ValueError as err:
    print("ValueError:", str(err)[:95], "...")

matmul: triple loop vs A @ B                         max|diff| = 6.7e-16
matmul: einsum      vs A @ B                         max|diff| = 6.7e-16
'ij,jk->ki' is the transpose (A B)^T                 max|diff| = 6.7e-16
ValueError: operands could not be broadcast together with remapped shapes [original->remapped]: (3,4)->(3,n ...

(NumPy’s error message is cryptic – “could not be broadcast together” – but its meaning is simple: the letter j was given two different lengths.) The triple loop makes the cost visible: \(3\cdot5\cdot4\) multiplications, in general \(n^3\) for \(n\times n\) matrices. We return to cost counting in Section 12.

3.3 Outer product: \(M_{ij}=a_i b_j\) – nothing is summed

If every input letter also appears in the output, Rule 1 never fires: no sum at all, just all products. This is how a product state of two spins is built from two single-spin states (Section 16), and it is the seed of the Kronecker product (Section 8).

Code

# ==============================================================================
# OUTER PRODUCT   M_ij = a_i b_j        einsum "i,j->ij"
# ==============================================================================
a = rng.normal(size=3)
b = rng.normal(size=4)

M_loop = np.zeros((3, 4))
for i in range(3):
    for j in range(4):
        M_loop[i, j] = a[i] * b[j]     # '=' not '+=' : there is no summed index

check("outer: loops  vs np.outer", M_loop, np.outer(a, b))
check("outer: einsum vs np.outer", np.einsum("i,j->ij", a, b), np.outer(a, b))

# three vectors -> an array with three indices  T_ijk = a_i b_j c_k
c = rng.normal(size=2)
T3 = np.einsum("i,j,k->ijk", a, b, c)
print("shape of 'i,j,k->ijk':", T3.shape, "| T3[2,1,0] =", T3[2, 1, 0], "= a[2]*b[1]*c[0] =", a[2] * b[1] * c[0])

outer: loops  vs np.outer                            max|diff| = 0.0e+00
outer: einsum vs np.outer                            max|diff| = 0.0e+00
shape of 'i,j,k->ijk': (3, 4, 2) | T3[2,1,0] = -0.04487140836743395 = a[2]*b[1]*c[0] = -0.04487140836743395

3.4 One input only: trace, diagonal, transpose, sums along axes

Rule 3 also applies inside a single input: "ii" means “both axes of \(A\) carry the same index”, i.e. the diagonal \(A_{ii}\).

operation	formula	einsum	NumPy
trace	\(t=\sum_i A_{ii}\)	"ii->"	np.trace(A)
diagonal	\(d_i=A_{ii}\)	"ii->i"	np.diag(A)
transpose	\(B_{ji}=A_{ij}\)	"ij->ji"	A.T
row sums	\(r_i=\sum_j A_{ij}\)	"ij->i"	A.sum(axis=1)
sum of all entries	\(s=\sum_{ij}A_{ij}\)	"ij->"	A.sum()

Code

# ==============================================================================
# ONE-INPUT EINSUMS: trace, diagonal, transpose, axis sums
# ==============================================================================
S = rng.normal(size=(4, 4))

t_loop = 0.0
for i in range(4):
    t_loop += S[i, i]                  # the same index on both axes

St_loop = np.zeros((4, 4))
for i in range(4):
    for j in range(4):
        St_loop[j, i] = S[i, j]        # output slot [j,i] receives input entry [i,j]

check("trace: loops  vs np.trace", t_loop, np.trace(S))
check("trace: 'ii->' vs np.trace", np.einsum("ii->", S), np.trace(S))
check("diagonal: 'ii->i' vs np.diag", np.einsum("ii->i", S), np.diag(S))
check("transpose: loops   vs S.T", St_loop, S.T)
check("transpose: 'ij->ji' vs S.T", np.einsum("ij->ji", S), S.T)
check("row sums: 'ij->i' vs S.sum(axis=1)", np.einsum("ij->i", S), S.sum(axis=1))
check("total sum: 'ij->' vs S.sum()", np.einsum("ij->", S), S.sum())

trace: loops  vs np.trace                            max|diff| = 0.0e+00
trace: 'ii->' vs np.trace                            max|diff| = 0.0e+00
diagonal: 'ii->i' vs np.diag                         max|diff| = 0.0e+00
transpose: loops   vs S.T                            max|diff| = 0.0e+00
transpose: 'ij->ji' vs S.T                           max|diff| = 0.0e+00
row sums: 'ij->i' vs S.sum(axis=1)                   max|diff| = 1.1e-16
total sum: 'ij->' vs S.sum()                         max|diff| = 2.2e-16

3.5 More than two inputs, and the element-wise product

Nothing new is needed for several inputs: multiply all entries, sum over the letters missing from the output.

• Trace of a product \(\;\mathrm{Tr}(ABC)=\sum_{ijk}A_{ij}B_{jk}C_{ki}\): "ij,jk,ki->". The letters chain and close into a ring – this is the cyclic property of the trace.
• Matrix element / quadratic form \(\;\langle u|A|v\rangle=\sum_{ij}u_i^*A_{ij}v_j\): "i,ij,j->" with u.conj(). This is the shape of every quantum expectation value.
• Element-wise (Hadamard) product \(\;H_{ij}=A_{ij}B_{ij}\): "ij,ij->ij". Here both letters are shared (Rule 3) and kept (Rule 2), so nothing is summed. Compare with "ij,ij->", which sums everything: \(\sum_{ij}A_{ij}B_{ij}=\mathrm{Tr}(A^TB)\).

Code

# ==============================================================================
# SEVERAL INPUTS
# ==============================================================================
n = 4
A, B, C = rng.normal(size=(3, n, n))                     # three random n x n matrices
u = rng.normal(size=n) + 1j * rng.normal(size=n)
v = rng.normal(size=n) + 1j * rng.normal(size=n)

# Tr(ABC) with a triple loop
tr_loop = 0.0
for i in range(n):
    for j in range(n):
        for k in range(n):
            tr_loop += A[i, j] * B[j, k] * C[k, i]

check("Tr(ABC): loops  vs np.trace(A@B@C)", tr_loop, np.trace(A @ B @ C))
check("Tr(ABC): einsum vs np.trace(A@B@C)", np.einsum("ij,jk,ki->", A, B, C), np.trace(A @ B @ C))
check("cyclicity: Tr(ABC) = Tr(BCA)", np.einsum("ij,jk,ki->", A, B, C), np.einsum("ij,jk,ki->", B, C, A))

# <u|A|v> = sum_ij conj(u_i) A_ij v_j
check("<u|A|v>: einsum vs np.vdot(u, A@v)", np.einsum("i,ij,j->", u.conj(), A, v), np.vdot(u, A @ v))

# element-wise product and its full sum
check("Hadamard: 'ij,ij->ij' vs A*B", np.einsum("ij,ij->ij", A, B), A * B)
check("'ij,ij->' vs Tr(A^T B)", np.einsum("ij,ij->", A, B), np.trace(A.T @ B))

Tr(ABC): loops  vs np.trace(A@B@C)                   max|diff| = 1.8e-15
Tr(ABC): einsum vs np.trace(A@B@C)                   max|diff| = 1.8e-15
cyclicity: Tr(ABC) = Tr(BCA)                         max|diff| = 1.8e-15
<u|A|v>: einsum vs np.vdot(u, A@v)                   max|diff| = 1.8e-15
Hadamard: 'ij,ij->ij' vs A*B                         max|diff| = 0.0e+00
'ij,ij->' vs Tr(A^T B)                               max|diff| = 1.1e-15

4. What einsum computes: our own implementation with for loops

The loops above all have the same structure: one loop per letter; free letters select the output slot; summed letters accumulate into it; the summand is the product of one entry from each input. So we can write a general einsum in a few lines. The only trick is that the number of nested loops is not known in advance; itertools.product(range(2), range(3)) generates all index combinations (0,0),(0,1),(0,2),(1,0),... and thereby replaces an arbitrary number of nested loops.

Code

# ==============================================================================
# A GENERAL EINSUM IN PURE PYTHON  (slow on purpose -- for understanding, not for use)
# ==============================================================================
def naive_einsum(subscripts, *operands):
    """Evaluate an explicit-mode einsum with plain Python loops.

    MATH
        out[free] = sum_{summed}  prod_T  T[labels of T]
        free   = letters after '->'            (Rule 2)
        summed = all other letters              (Rule 1)
        a letter used in several places takes the same value everywhere (Rule 3)
    IMPLEMENTATION
        1. parse the string into the label lists of the inputs and of the output;
        2. find the length of every letter from the operand shapes (and check consistency, Rule 3);
        3. loop over all values of the free letters; inside, loop over all values of the summed letters;
           the dictionary `val` maps letter -> current integer value.
    COST   (product of the lengths of ALL distinct letters) x (number of inputs) multiplications.
    """
    inputs, output = subscripts.replace(" ", "").split("->")
    inputs = inputs.split(",")
    assert len(inputs) == len(operands), "one label group per operand"

    size = {}                                            # letter -> length of that index
    for labels, T in zip(inputs, operands):
        assert len(labels) == np.ndim(T), f"'{labels}' needs an array with {len(labels)} axes"
        for letter, d in zip(labels, np.shape(T)):
            assert size.setdefault(letter, d) == d, f"index '{letter}' has inconsistent lengths"   # Rule 3

    summed = [l for l in size if l not in output]        # Rule 1
    out = np.zeros([size[l] for l in output], dtype=np.result_type(*operands))

    for free_values in itertools.product(*[range(size[l]) for l in output]):          # Rule 2
        val = dict(zip(output, free_values))
        total = 0.0
        for summed_values in itertools.product(*[range(size[l]) for l in summed]):    # Rule 1
            val.update(zip(summed, summed_values))
            term = 1.0
            for labels, T in zip(inputs, operands):
                term = term * T[tuple(val[l] for l in labels)]                        # Rule 3: shared letters, same value
            total = total + term
        out[free_values] = total
    return out


# ------------------------------------------------------------------------------
# CHECKPOINT: our einsum against np.einsum on every string met so far
# ------------------------------------------------------------------------------
tests = [("ij,j->i", (A, v.real)), ("i,i->", (a, a)), ("ij,jk->ik", (A, B)), ("ij,jk->ki", (A, B)),
         ("i,j->ij", (a, b)), ("i,j,k->ijk", (a, b, c)), ("ii->", (S,)), ("ii->i", (S,)), ("ij->ji", (S,)),
         ("ij->i", (S,)), ("ij,jk,ki->", (A, B, C)), ("i,ij,j->", (u.conj(), A, v)), ("ij,ij->ij", (A, B))]
for subscripts, ops in tests:
    check(f"naive_einsum('{subscripts}')", naive_einsum(subscripts, *ops), np.einsum(subscripts, *ops))

naive_einsum('ij,j->i')                              max|diff| = 0.0e+00
naive_einsum('i,i->')                                max|diff| = 0.0e+00
naive_einsum('ij,jk->ik')                            max|diff| = 0.0e+00
naive_einsum('ij,jk->ki')                            max|diff| = 0.0e+00
naive_einsum('i,j->ij')                              max|diff| = 0.0e+00
naive_einsum('i,j,k->ijk')                           max|diff| = 0.0e+00
naive_einsum('ii->')                                 max|diff| = 0.0e+00
naive_einsum('ii->i')                                max|diff| = 0.0e+00
naive_einsum('ij->ji')                               max|diff| = 0.0e+00
naive_einsum('ij->i')                                max|diff| = 1.1e-16
naive_einsum('ij,jk,ki->')                           max|diff| = 0.0e+00
naive_einsum('i,ij,j->')                             max|diff| = 0.0e+00
naive_einsum('ij,ij->ij')                            max|diff| = 0.0e+00

Our 25 lines reproduce np.einsum on all thirteen strings: einsum is a notation for nested loops, and what the library adds is speed: it maps the loops onto optimized compiled kernels (and, in JAX, onto whatever the XLA compiler finds best for your CPU or GPU).

Numerical practice. naive_einsum doubles as a reference implementation: whenever you are unsure about a clever string, test it on small random arrays against the plain loops. Random inputs with all dimensions different (e.g. shapes like (2,3,4)) catch index mix-ups that square or symmetric test data would hide.

5. Arrays with many indices, and how they live in memory

5.1 Tensors = multi-index arrays

In this course a tensor is simply an array of numbers with several indices, \(T_{i_0 i_1\dots i_{r-1}}\):

name	indices	NumPy ndim	example shape
scalar	none	0	()
vector	\(v_i\)	1	(4,)
matrix	\(A_{ij}\)	2	(3,4)
rank-3 tensor	\(T_{ijk}\)	3	(2,3,4)
state of \(N\) spins-1/2	\(\psi_{s_0\dots s_{N-1}}\)	\(N\)	(2,2,...,2)

The number of indices is called the rank (or order) of the tensor; NumPy calls it ndim, and calls each index position an axis. (Do not confuse this with the rank of a matrix in linear algebra – an unfortunate clash of names.) The shape lists the length of each axis, and size \(=\prod_k d_k\) is the total number of entries.

5.2 C-ordering: the flat-index formula

Computer memory is one-dimensional: an array with shape \((d_0,d_1,\dots,d_{r-1})\) is stored as one long line of size numbers. NumPy and JAX use C-ordering (“row-major”): the last index runs fastest, like the digits of an odometer. The entry \(T_{i_0 i_1 i_2}\) of an array with shape \((d_0,d_1,d_2)\) sits at the flat index

\[ k \;=\; i_0\,(d_1 d_2) \;+\; i_1\,d_2 \;+\; i_2 , \tag{2}\]

and in general \(k=\sum_{m} i_m \prod_{l>m} d_l\). Read Eq. (2) as a number system: to step \(i_0\) by one you must skip a whole \((d_1\times d_2)\) block, to step \(i_1\) by one you skip a row of length \(d_2\). The “skips” \((d_1d_2,\;d_2,\;1)\) are called strides (NumPy reports them in bytes, so the cell below divides by itemsize to get them in units of entries; Ref. [2] describes this strided memory model of NumPy arrays).

For spins all \(d_m=2\), and Eq. (2) becomes the binary representation of \(k\):

\[ k = s_0\,2^{N-1}+s_1\,2^{N-2}+\dots+s_{N-1}\,2^0 \qquad\Longleftrightarrow\qquad k=(s_0s_1\dots s_{N-1})_2 . \tag{3}\]

Spin 0 is the most significant bit. This is the convention of the whole course.

Code

# ==============================================================================
# FLAT INDEX <-> MULTI-INDEX  (C-ordering)
# ==============================================================================
def flat_from_multi(multi, shape):
    """Flat (memory) index of the entry T[multi] of a C-ordered array with the given shape.

    MATH   k = sum_m i_m * prod_{l>m} d_l      (Eq. 2), evaluated by Horner's scheme:
           k = (...((i_0) d_1 + i_1) d_2 + i_2 ...)
    """
    k = 0
    for i, d in zip(multi, shape):
        k = k * d + i                  # shift what we have by one 'digit' in base d, then add the new digit
    return k


shape = (2, 3, 4)
T = np.arange(24).reshape(shape)       # entries 0..23 in memory order  => T[i0,i1,i2] EQUALS its own flat index
print("T[1,2,3] =", T[1, 2, 3], "| Eq.(2):", 1 * (3 * 4) + 2 * 4 + 3, "| flat_from_multi:", flat_from_multi((1, 2, 3), shape))

# CHECKPOINT: all 24 entries, against the array itself and against NumPy's built-in converters
for multi in itertools.product(range(2), range(3), range(4)):
    assert flat_from_multi(multi, shape) == T[multi] == np.ravel_multi_index(multi, shape)
    assert np.unravel_index(T[multi], shape) == multi          # the inverse map: flat -> multi
print("flat-index formula verified for all", T.size, "entries of shape", shape)
print("strides in units of entries:", tuple(s // T.itemsize for s in T.strides), " = (d1*d2, d2, 1)")

# --- three spins: shape (2,2,2), the flat index is the binary number s0 s1 s2 --------------------
print("\n flat k | (s0,s1,s2) | binary")
for k in range(8):
    print(f"   {k}    | {tuple(int(s) for s in np.unravel_index(k, (2, 2, 2)))}  | {k:03b}")

T[1,2,3] = 23 | Eq.(2): 23 | flat_from_multi: 23
flat-index formula verified for all 24 entries of shape (2, 3, 4)
strides in units of entries: (12, 4, 1)  = (d1*d2, d2, 1)

 flat k | (s0,s1,s2) | binary
   0    | (0, 0, 0)  | 000
   1    | (0, 0, 1)  | 001
   2    | (0, 1, 0)  | 010
   3    | (0, 1, 1)  | 011
   4    | (1, 0, 0)  | 100
   5    | (1, 0, 1)  | 101
   6    | (1, 1, 0)  | 110
   7    | (1, 1, 1)  | 111

Example: flat index 5 = binary 101 = \((s_0,s_1,s_2)=(1,0,1)\). When basis states of \(N\) spins are labelled by bit strings like \(|101\rangle\), the position of that state in the state vector is exactly this number.

5.3 reshape: same memory line, new index grouping

T.reshape(new_shape) keeps the one-dimensional memory line untouched and merely changes how Eq. (2) chops it into indices. Consequences:

• T.reshape(-1) (or T.ravel()) is the memory line.
• Merging adjacent axes creates a composite index: reshaping \((d_0,d_1,d_2)\to(d_0d_1,\,d_2)\) gives a matrix whose row index is \(I=i_0d_1+i_1\) – precisely Eq. (2) applied to the pair \((i_0,i_1)\).
• Splitting an axis is the inverse: \((d_0d_1,\,d_2)\to(d_0,d_1,d_2)\).
• Only adjacent axes can be merged by reshape. To merge \(i_0\) with \(i_2\) you must first bring them next to each other with transpose (next subsection).

Code

# ==============================================================================
# RESHAPE = regrouping of indices; the memory line never changes
# ==============================================================================
T = np.arange(24).reshape(2, 3, 4)

M_front = T.reshape(6, 4)              # merge axes (0,1): row index I = i0*3 + i1
M_back = T.reshape(2, 12)              # merge axes (1,2): column index J = i1*4 + i2

for i0, i1, i2 in itertools.product(range(2), range(3), range(4)):
    assert M_front[i0 * 3 + i1, i2] == T[i0, i1, i2]
    assert M_back[i0, i1 * 4 + i2] == T[i0, i1, i2]
print("composite indices verified:  T[i0,i1,i2] = M_front[i0*3+i1, i2] = M_back[i0, i1*4+i2]")

for arr in (T, M_front, M_back):       # all three share the same flat sequence 0,1,2,...,23
    assert np.array_equal(arr.reshape(-1), np.arange(24))
print("T, M_front, M_back have the same memory line:", M_back.reshape(-1)[:8], "...")
check("split again: (6,4) -> (2,3,4) gives back T", M_front.reshape(2, 3, 4), T)

composite indices verified:  T[i0,i1,i2] = M_front[i0*3+i1, i2] = M_back[i0, i1*4+i2]
T, M_front, M_back have the same memory line: [0 1 2 3 4 5 6 7] ...
split again: (6,4) -> (2,3,4) gives back T           max|diff| = 0.0e+00

5.4 transpose: permuting the indices

transpose renames the axes: for a matrix, \(B_{ji}=A_{ij}\). For a tensor we must say which permutation we want. NumPy’s convention: B = T.transpose(p) means “new axis \(m\) is old axis \(p[m]\)”, so B.shape[m] == T.shape[p[m]]. In einsum notation the same operation is self-explanatory, which is one reason to prefer it:

\[ B_{kij}=T_{ijk} \quad\Longleftrightarrow\quad \texttt{einsum("ijk->kij", T)} \quad\Longleftrightarrow\quad \texttt{T.transpose(2,0,1)}.\]

(The output letters kij are input letters number 2, 0, 1: that is the tuple p.)

Code

# ==============================================================================
# TRANSPOSE = permutation of axes        B_kij = T_ijk
# ==============================================================================
T = rng.normal(size=(2, 3, 4))

B_loop = np.zeros((4, 2, 3))
for i in range(2):
    for j in range(3):
        for k in range(4):
            B_loop[k, i, j] = T[i, j, k]

B_einsum = np.einsum("ijk->kij", T)
B_numpy = T.transpose(2, 0, 1)         # new axis 0 = old axis 2, new axis 1 = old axis 0, new axis 2 = old axis 1
print("shape:", T.shape, "->", B_numpy.shape)
check("permutation: loops  vs transpose(2,0,1)", B_loop, B_numpy)
check("permutation: einsum vs transpose(2,0,1)", B_einsum, B_numpy)

# Undoing a permutation p needs the INVERSE permutation, np.argsort(p):
p = (2, 0, 1)
p_inv = tuple(int(m) for m in np.argsort(p))
print("p =", p, " inverse permutation =", p_inv)
check("transpose(p) followed by transpose(p_inv) = identity", B_numpy.transpose(p_inv), T)

# np.moveaxis: move ONE axis, keep the order of the others (handy; used again in Section 13)
check("moveaxis(T, 2, 0) = 'ijk->kij'", np.moveaxis(T, 2, 0), B_einsum)

shape: (2, 3, 4) -> (4, 2, 3)
permutation: loops  vs transpose(2,0,1)              max|diff| = 0.0e+00
permutation: einsum vs transpose(2,0,1)              max|diff| = 0.0e+00
p = (2, 0, 1)  inverse permutation = (1, 2, 0)
transpose(p) followed by transpose(p_inv) = identity max|diff| = 0.0e+00
moveaxis(T, 2, 0) = 'ijk->kij'                       max|diff| = 0.0e+00

5.5 reshape is not transpose

Both can turn a \((2,3)\) array into a \((3,2)\) array – with different results. reshape keeps the memory line and re-chops it; transpose keeps the meaning of every entry (\(B_{ji}=A_{ij}\)) and therefore changes the order in which the entries appear when we read the array row by row. The figure shows a \(2\times3\) array whose entries are their own flat indices.

Code

# ==============================================================================
# FIGURE: memory line, reshape and transpose of a (2,3) array
# ==============================================================================
def show_array(ax, arr, title, xlabel="second index j", ylabel="first index i"):
    """Draw a 2D integer array as a coloured grid with the VALUE written in each cell."""
    arr = np.atleast_2d(arr)
    ax.imshow(arr, cmap="viridis", vmin=-2, vmax=arr.max() + 2, alpha=0.55)
    for (r, c), val in np.ndenumerate(arr):
        ax.text(c, r, str(val), ha="center", va="center", fontsize=15, fontweight="bold")
    ax.set_xticks(range(arr.shape[1]))
    ax.set_yticks(range(arr.shape[0]))
    ax.set_xlabel(xlabel)
    ax.set_ylabel(ylabel)
    ax.set_title(title, fontsize=11)


A23 = np.arange(6).reshape(2, 3)
fig, axes = plt.subplots(1, 4, figsize=(15, 3.4), gridspec_kw={"width_ratios": [3, 6, 2, 2]})
show_array(axes[0], A23, "A = arange(6).reshape(2,3)\nA[i,j] = 3i + j")
show_array(axes[1], A23.reshape(1, -1), "the memory line  A.reshape(-1)\n(last index runs fastest)",
           xlabel="flat index k = 3i + j", ylabel="")
axes[1].set_yticks([])
show_array(axes[2], A23.reshape(3, 2), "A.reshape(3,2)\nsame line, re-chopped")
show_array(axes[3], A23.T, "A.T  (transpose)\nB[j,i] = A[i,j]")
fig.suptitle("reshape keeps the memory order; transpose keeps the meaning of each entry", y=1.04, fontsize=12)
plt.tight_layout()
plt.show()

print("A.reshape(3,2).ravel() =", A23.reshape(3, 2).ravel(), "  <- unchanged memory line")
print("A.T.ravel()            =", A23.T.ravel(), "  <- a different order: entries were permuted")
assert not np.array_equal(A23.reshape(3, 2), A23.T)

A.reshape(3,2).ravel() = [0 1 2 3 4 5]   <- unchanged memory line
A.T.ravel()            = [0 3 1 4 2 5]   <- a different order: entries were permuted

In the third panel the numbers still read \(0,1,2,3,4,5\) row by row (same memory line, new chopping: the entry “2” moved from position \([0,2]\) to \([1,0]\)). In the fourth panel each entry kept its pair of indices (the entry “2” went from \([0,2]\) to \([2,0]\)), and the row-by-row reading order became \(0,3,1,4,2,5\).

Common pitfall. If a shape “comes out wrong”, never fix it with reshape alone. Ask: which index is which? If indices have to change places, that is a transpose (or an einsum with permuted output letters). reshape is only for merging adjacent indices or splitting a composite one. The safe recipe for merging non-adjacent indices is always transpose first, reshape second.

Implementation note. In NumPy transpose returns a view with permuted strides (no data moved) and a later reshape silently makes the copy. JAX hides this distinction completely; the semantics – which entry ends up where – are identical, and that is all we rely on. (Fortran and MATLAB use the opposite, column-major order, in which the first index runs fastest. When you compare with code written in such languages, the flat-index convention of Eq. (3) is reversed.)

6. Warm-up with three indices: contraction of a tensor with a matrix

Before turning to composite indices, one contraction that involves a rank-3 tensor. Take \(T_{xbz}\) with shape \((2,3,4)\) and a \(5\times3\) matrix \(M_{ab}\), and contract the middle index of \(T\) with the column index of \(M\):

\[ T'_{xaz}=\sum_{b} M_{ab}\,T_{xbz}. \tag{4}\]

The einsum string is read off directly: "ab,xbz->xaz". There is no equally direct NumPy built-in – this is where einsum starts to pay off. As an independent reference we use the fact that for fixed \(x\) and \(z\) Eq. (4) is an ordinary matrix-vector product applied to the “fibre” \(T_{x\,:\,z}\).

Code

# ==============================================================================
# MATRIX ACTING ON THE MIDDLE INDEX OF A RANK-3 TENSOR     T'_xaz = sum_b M_ab T_xbz
# ==============================================================================
T = rng.normal(size=(2, 3, 4))
M = rng.normal(size=(5, 3))

Tp_loop = np.zeros((2, 5, 4))
for x_ in range(2):
    for a_ in range(5):
        for z_ in range(4):
            for b_ in range(3):                    # the only summed index
                Tp_loop[x_, a_, z_] += M[a_, b_] * T[x_, b_, z_]

Tp_einsum = np.einsum("ab,xbz->xaz", M, T)

Tp_fibres = np.zeros((2, 5, 4))                    # reference: matrix-vector product fibre by fibre
for x_ in range(2):
    for z_ in range(4):
        Tp_fibres[x_, :, z_] = M @ T[x_, :, z_]

check("middle index: loops  vs fibre-wise M @ T[x,:,z]", Tp_loop, Tp_fibres)
check("middle index: einsum vs fibre-wise M @ T[x,:,z]", Tp_einsum, Tp_fibres)
check("middle index: naive_einsum vs np.einsum", naive_einsum("ab,xbz->xaz", M, T), Tp_einsum)

middle index: loops  vs fibre-wise M @ T[x,:,z]      max|diff| = 4.4e-16
middle index: einsum vs fibre-wise M @ T[x,:,z]      max|diff| = 4.4e-16
middle index: naive_einsum vs np.einsum              max|diff| = 0.0e+00

Remember the string "ab,xbz->xaz". With \(M\) a \(2\times2\) matrix and \(T\) of shape \((2,2,2)\) this is exactly how an operator acts on the middle spin of a three-spin chain (Section 16).

7. Composite indices: a \(4\times4\) matrix is a \((2,2,2,2)\) tensor

Consider a system made of two parts \(A\) and \(B\) with dimensions \(d_A\) and \(d_B\) (two spins: \(d_A=d_B=2\)). Its basis states are labelled by pairs \((a,b)\), and a vector of the composite system has components \(v_{ab}\) – a \((d_A,d_B)\) array. To use ordinary linear algebra we number the pairs with a single composite index, and C-ordering (Eq. 2) does that for us:

\[ I=(a,b)\equiv a\,d_B+b,\qquad\qquad v_I = v_{ab}\ \ \Longleftrightarrow\ \ \texttt{v.reshape(dA*dB)} \leftrightarrow \texttt{v.reshape(dA,dB)}.\]

An operator on the composite system is a matrix \(M_{IJ}\) with a composite row index \(I=(a,b)\) and a composite column index \(J=(c,d)\). Splitting both gives a rank-4 tensor,

\[ M_{IJ}=M_{(ab),(cd)}\equiv T_{abcd},\qquad \texttt{T = M.reshape(dA, dB, dA, dB)},\qquad I=a\,d_B+b,\;\; J=c\,d_B+d. \tag{5}\]

Convention used in the whole course: in \(T_{abcd}\) the first half of the indices \((a,b)\) are the row (output) indices, the second half \((c,d)\) are the column (input) indices; within each half, the first letter belongs to subsystem \(A\) (the most significant “digit”).

Code

# ==============================================================================
# (4,4) MATRIX  <->  (2,2,2,2) TENSOR
# ==============================================================================
dA, dB = 2, 2
M = np.arange(16).reshape(4, 4)        # M[I,J] = 4I + J : every entry shows its own position
T = M.reshape(dA, dB, dA, dB)          # T[a,b,c,d] = M[a*dB+b, c*dB+d]

for a_, b_, c_, d_ in itertools.product(range(dA), range(dB), range(dA), range(dB)):
    assert T[a_, b_, c_, d_] == M[a_ * dB + b_, c_ * dB + d_]
print("Eq.(5) verified for all 16 entries;  example: T[1,0,0,1] =", T[1, 0, 0, 1], "= M[2,1] =", M[2, 1])
check("and back: T.reshape(4,4) = M", T.reshape(4, 4), M)

# ------------------------------------------------------------------------------
# FIGURE: the 4x4 matrix with its composite labels
# ------------------------------------------------------------------------------
fig, ax = plt.subplots(figsize=(7.2, 6.2))
ax.imshow(M, cmap="viridis", alpha=0.45)
for (I, J), val in np.ndenumerate(M):
    a_, b_ = divmod(I, dB)
    c_, d_ = divmod(J, dB)
    ax.text(J, I - 0.13, f"M[{I},{J}] = {val}", ha="center", va="center", fontsize=10, fontweight="bold")
    ax.text(J, I + 0.2, f"T[{a_},{b_},{c_},{d_}]", ha="center", va="center", fontsize=10, color="#7a0000")
ax.set_xticks(range(4)); ax.set_yticks(range(4))
ax.set_xticklabels([f"J={J}\n(c,d)=({J // 2},{J % 2})" for J in range(4)])
ax.set_yticklabels([f"I={I}\n(a,b)=({I // 2},{I % 2})" for I in range(4)])
ax.xaxis.tick_top()
ax.axhline(1.5, color="k", lw=2.5); ax.axvline(1.5, color="k", lw=2.5)       # 2x2 block structure: fixed (a,c)
ax.set_title("one array, two ways of indexing:  M[I,J] = T[a,b,c,d],   I = 2a+b,  J = 2c+d", fontsize=11, pad=38)
plt.tight_layout()
plt.show()

Eq.(5) verified for all 16 entries;  example: T[1,0,0,1] = 9 = M[2,1] = 9
and back: T.reshape(4,4) = M                         max|diff| = 0.0e+00

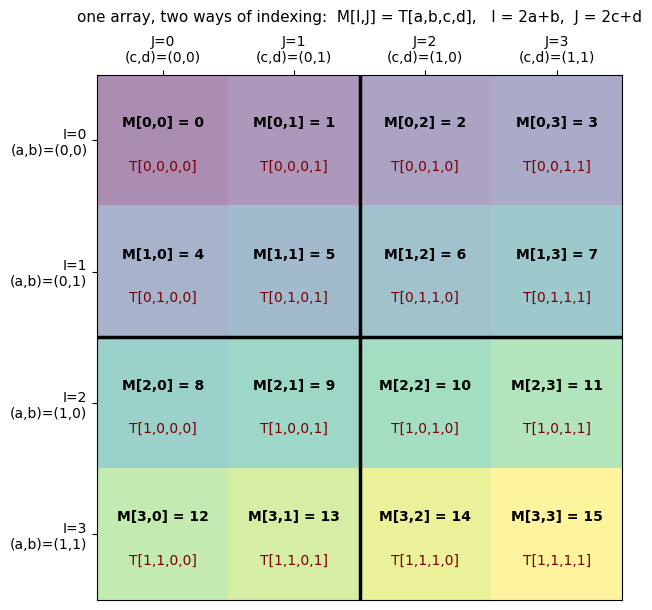

The thick lines separate the four \(2\times2\) blocks: inside a block the “slow” indices \((a,c)\) are fixed and the “fast” indices \((b,d)\) run. So T[a,:,c,:] is block \((a,c)\) of the matrix. Keep this picture in mind for the next section.

Physics insight. For two spins, \(a\) and \(c\) are the output and input states of spin 0, \(b\) and \(d\) those of spin 1. The entry \(T_{abcd}\) is the amplitude for the transition \(|c\,d\rangle\to|a\,b\rangle\). Nothing is lost or gained by the reshape – but in the tensor form we can address each spin’s indices separately, which is what locality of physical interactions demands.

8. The Kronecker product as einsum + reshape

If \(A\) acts on subsystem \(A\) and \(B\) on subsystem \(B\), the operator “\(A\) on the first and \(B\) on the second” is the Kronecker (tensor) product \(A\otimes B\) ([3], Sec. 2.1.7). Its definition in components is simply “multiply the two matrix elements”:

\[ (A\otimes B)_{(a c),(b d)} = A_{ab}\,B_{cd}. \tag{6}\]

Mind the index positions: the row index of \(A\otimes B\) is the composite of the two row indices \((a,c)\), the column index the composite of the two column indices \((b,d)\). The letters are assigned per factor here, not per half as in Eq. (5): \(a,b\) are the row and column index of \(A\), \(c,d\) those of \(B\). As a rank-4 tensor in the convention of Eq. (5) – rows first, then columns – the product is \(K_{a c b d}=A_{ab}B_{cd}\): an outer product (no summed index) with a permutation of indices, followed by a reshape that merges \((a,c)\) and \((b,d)\):

K = np.einsum("ab,cd->acbd", A, B).reshape(dA_rows * dB_rows, dA_cols * dB_cols)

Equivalently, in block form, \(A\otimes B=\begin{pmatrix}A_{00}B & A_{01}B\\ A_{10}B & A_{11}B\end{pmatrix}\): block \((a,b)\) is the whole matrix \(B\) multiplied by the number \(A_{ab}\), consistent with the block picture of Section 7. We test with rectangular matrices of all-different sizes, so that any index mix-up changes a shape or a number.

Code

# ==============================================================================
# KRONECKER PRODUCT   (A (x) B)_{(ac),(bd)} = A_ab B_cd        "ab,cd->acbd" + reshape
# ==============================================================================
A = rng.normal(size=(2, 3))            # a: 2 rows, b: 3 columns
B = rng.normal(size=(4, 5))            # c: 4 rows, d: 5 columns

# (b) four loops; the composite indices are computed by hand with Eq. (2)
K_loop = np.zeros((2 * 4, 3 * 5))
for a_ in range(2):
    for b_ in range(3):
        for c_ in range(4):
            for d_ in range(5):
                K_loop[a_ * 4 + c_, b_ * 5 + d_] = A[a_, b_] * B[c_, d_]

# (c) einsum puts the indices in the order (row_A, row_B, col_A, col_B); reshape merges the pairs
K_einsum = np.einsum("ab,cd->acbd", A, B).reshape(2 * 4, 3 * 5)

check("kron: loops  vs np.kron", K_loop, np.kron(A, B))
check("kron: einsum vs np.kron", K_einsum, np.kron(A, B))

# The WRONG index order: same numbers, same final shape, different matrix.
K_wrong = np.einsum("ab,cd->abcd", A, B).reshape(2 * 4, 3 * 5)
print("'ab,cd->abcd' + reshape equals kron?", np.allclose(K_wrong, np.kron(A, B)), "  <- no error message, just a wrong matrix")

# vectors: (u (x) w)_(ac) = u_a w_c  -> outer product + reshape
u, w = rng.normal(size=3), rng.normal(size=4)
check("kron of vectors: 'a,c->ac' + reshape vs np.kron", np.einsum("a,c->ac", u, w).reshape(-1), np.kron(u, w))

# three factors: rows (a,c,e), columns (b,d,f)
C = rng.normal(size=(2, 2))
K3 = np.einsum("ab,cd,ef->acebdf", A, B, C).reshape(2 * 4 * 2, 3 * 5 * 2)
check("kron of three: one einsum vs np.kron(np.kron(A,B),C)", K3, np.kron(np.kron(A, B), C))

kron: loops  vs np.kron                              max|diff| = 0.0e+00
kron: einsum vs np.kron                              max|diff| = 0.0e+00
'ab,cd->abcd' + reshape equals kron? False   <- no error message, just a wrong matrix
kron of vectors: 'a,c->ac' + reshape vs np.kron      max|diff| = 0.0e+00
kron of three: one einsum vs np.kron(np.kron(A,B),C) max|diff| = 0.0e+00

Code

# ==============================================================================
# FIGURE: block structure of the Kronecker product
# ==============================================================================
A_small = np.array([[1, 2], [3, -1]])
B_small = np.array([[1, 0, -1], [0, 2, 0], [-1, 0, 1]])
K_small = np.einsum("ab,cd->acbd", A_small, B_small).reshape(6, 6)
assert np.array_equal(K_small, np.kron(A_small, B_small))

fig, axes = plt.subplots(1, 3, figsize=(12, 4.3), gridspec_kw={"width_ratios": [2, 3, 6]})
for ax, mat, title in zip(axes, (A_small, B_small, K_small),
                          (r"$A$  (2$\times$2)", r"$B$  (3$\times$3)", r"$A\otimes B$ = einsum('ab,cd->acbd').reshape(6,6)")):
    ax.imshow(mat, cmap="RdBu_r", vmin=-6, vmax=6)
    for (r, c_), val in np.ndenumerate(mat):
        ax.text(c_, r, str(val), ha="center", va="center", fontsize=12, color="w" if abs(val) >= 4 else "k")
    ax.set_xticks(range(mat.shape[1])); ax.set_yticks(range(mat.shape[0]))
    ax.set_title(title, fontsize=11)
axes[2].axhline(2.5, color="k", lw=2.5); axes[2].axvline(2.5, color="k", lw=2.5)
axes[2].set_xlabel(r"column index $J = 3b + d$"); axes[2].set_ylabel(r"row index $I = 3a + c$")
plt.tight_layout()
plt.show()

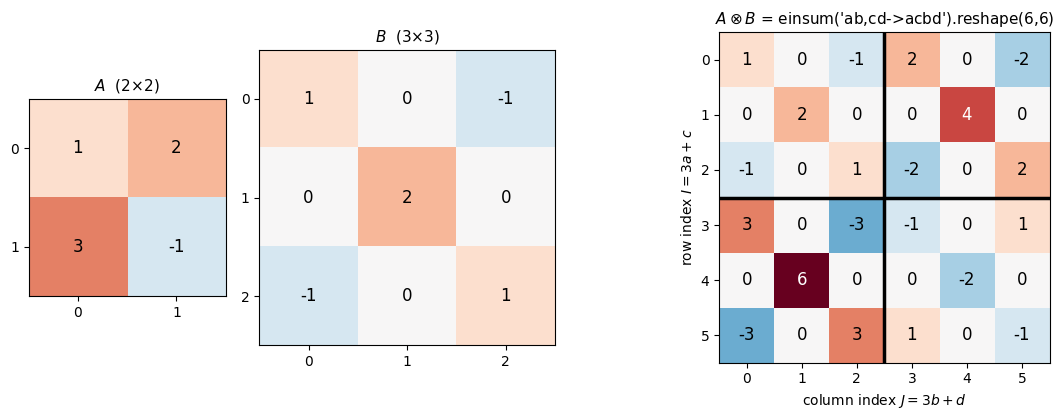

The right panel shows the block structure: the upper-left block is \(A_{00}B=1\cdot B\), the upper-right \(A_{01}B=2B\), the lower-left \(3B\) and the lower-right \(-B\). The “slow” composite digit belongs to the left factor.

8.1 The central trick of this course: never build \(A\otimes B\)

How does \(A\otimes B\) act on a vector \(v\) of the composite system? Write \(v_J=v_{bd}\) as a \((d_A,d_B)\) array \(V\). Then

\[ \big[(A\otimes B)\,v\big]_{(ac)}=\sum_{b,d}A_{ab}\,B_{cd}\,V_{bd} \qquad\Longleftrightarrow\qquad \texttt{einsum("ab,cd,bd->ac", A, B, V)}. \tag{7}\]

The big matrix never appears: \(A\) is contracted with the first index of \(V\), \(B\) with the second. In matrix language Eq. (7) is \(A\,V B^{T}\) – we use this as the independent check. For \(N\) spins the saving is the difference between \(4^N\) and \(\sim 2^N\) numbers.

Code

# ==============================================================================
# (A (x) B) v   WITHOUT building A (x) B
# ==============================================================================
A = rng.normal(size=(3, 3))
B = rng.normal(size=(4, 4))
v = rng.normal(size=3 * 4)             # a generic vector of the composite system (NOT a product u (x) w)
V = v.reshape(3, 4)                    # the same numbers with two indices  V[b,d]

w_dense = np.kron(A, B) @ v                                   # textbook: build the 12x12 matrix, multiply
w_einsum = np.einsum("ab,cd,bd->ac", A, B, V).reshape(-1)     # Eq. (7): contract each factor with "its" index
w_matrix = (A @ V @ B.T).reshape(-1)                          # the same in matrix language

check("(A(x)B)v: einsum 'ab,cd,bd->ac' vs dense kron", w_einsum, w_dense)
check("(A(x)B)v: A V B^T            vs dense kron", w_matrix, w_dense)

# special case B = identity: "A acts on the first subsystem only" -- just contract the first index
check("(A(x)1)v: einsum 'ab,bd->ad'  vs dense kron", np.einsum("ab,bd->ad", A, V).reshape(-1), np.kron(A, np.eye(4)) @ v)

(A(x)B)v: einsum 'ab,cd,bd->ac' vs dense kron        max|diff| = 1.1e-15
(A(x)B)v: A V B^T            vs dense kron           max|diff| = 1.6e-15
(A(x)1)v: einsum 'ab,bd->ad'  vs dense kron          max|diff| = 8.9e-16

Physics insight. The last line is the prototype of every local operation in a many-body simulation: an operator that acts on one subsystem is a contraction with that subsystem’s index; the identity on the rest of the system costs nothing, because indices that are not mentioned are simply left alone.

9. Traces and partial traces

The trace sums the diagonal, \(\mathrm{Tr}\,M=\sum_I M_{II}\). With composite indices \(I=(a,b)\) this reads \(\sum_{ab}T_{abab}\), i.e. "abab->": the row and column index of each subsystem are tied together.

The partial trace ties together the row and column indices of only one subsystem and leaves the other pair open:

\[ \big(\mathrm{Tr}_B M\big)_{ac}=\sum_{b} T_{a\,b\,c\,b}\quad\texttt{"abcb->ac"},\qquad\qquad \big(\mathrm{Tr}_A M\big)_{bd}=\sum_{a} T_{a\,b\,a\,d}\quad\texttt{"abad->bd"}. \tag{8}\]

The result is an operator on the remaining subsystem (\(d_A\times d_A\) or \(d_B\times d_B\)). In the block picture of Section 7, \(\mathrm{Tr}_B\) replaces each block by its trace. In quantum mechanics the partial trace is the operation of ignoring a subsystem; it produces the reduced density matrix ([3], Sec. 2.4.3). Here we treat it purely as an index operation.

Independent references: (i) np.trace(T, axis1=1, axis2=3), which sums the diagonal over a chosen pair of axes; (ii) the identities \(\mathrm{Tr}_B(A\otimes B)=A\cdot\mathrm{Tr}B\), \(\mathrm{Tr}_A(A\otimes B)=\mathrm{Tr}A\cdot B\) and \(\mathrm{Tr}(\mathrm{Tr}_B M)=\mathrm{Tr}M\).

Code

# ==============================================================================
# PARTIAL TRACES of a matrix on a (dA x dB)-dimensional composite space
# ==============================================================================
dA, dB = 2, 3                          # different dimensions on purpose
M = rng.normal(size=(dA * dB, dA * dB))
T = M.reshape(dA, dB, dA, dB)          # T[a,b,c,d]: rows (a,b), columns (c,d)

# (b) loops
trB_loop = np.zeros((dA, dA))
for a_ in range(dA):
    for c_ in range(dA):
        for b_ in range(dB):
            trB_loop[a_, c_] += T[a_, b_, c_, b_]      # same b on the row side and on the column side

trA_loop = np.zeros((dB, dB))
for b_ in range(dB):
    for d_ in range(dB):
        for a_ in range(dA):
            trA_loop[b_, d_] += T[a_, b_, a_, d_]

# (c) einsum, (d) NumPy reference
trB = np.einsum("abcb->ac", T)
trA = np.einsum("abad->bd", T)
check("Tr_B: loops  vs np.trace(T, axis1=1, axis2=3)", trB_loop, np.trace(T, axis1=1, axis2=3))
check("Tr_B: einsum vs np.trace(T, axis1=1, axis2=3)", trB, np.trace(T, axis1=1, axis2=3))
check("Tr_A: loops  vs np.trace(T, axis1=0, axis2=2)", trA_loop, np.trace(T, axis1=0, axis2=2))
check("Tr_A: einsum vs np.trace(T, axis1=0, axis2=2)", trA, np.trace(T, axis1=0, axis2=2))

# full trace three ways
check("Tr M = 'abab->'", np.einsum("abab->", T), np.trace(M))
check("Tr(Tr_B M) = Tr M", np.trace(trB), np.trace(M))
check("Tr(Tr_A M) = Tr M", np.trace(trA), np.trace(M))

# product operators: Tr_B (A (x) B) = A Tr(B),   Tr_A (A (x) B) = Tr(A) B
A = rng.normal(size=(dA, dA))
B = rng.normal(size=(dB, dB))
TK = np.kron(A, B).reshape(dA, dB, dA, dB)
check("Tr_B(A(x)B) = A Tr(B)", np.einsum("abcb->ac", TK), A * np.trace(B))
check("Tr_A(A(x)B) = Tr(A) B", np.einsum("abad->bd", TK), np.trace(A) * B)

# a string that ties a row index of B to a COLUMN index of A is caught by the length mismatch (dB=3 vs dA=2)
try:
    np.einsum("abbc->ac", T)
except ValueError as err:
    print("'abbc->ac' -> ValueError:", str(err)[:75])

Tr_B: loops  vs np.trace(T, axis1=1, axis2=3)        max|diff| = 0.0e+00
Tr_B: einsum vs np.trace(T, axis1=1, axis2=3)        max|diff| = 0.0e+00
Tr_A: loops  vs np.trace(T, axis1=0, axis2=2)        max|diff| = 0.0e+00
Tr_A: einsum vs np.trace(T, axis1=0, axis2=2)        max|diff| = 0.0e+00
Tr M = 'abab->'                                      max|diff| = 0.0e+00
Tr(Tr_B M) = Tr M                                    max|diff| = 0.0e+00
Tr(Tr_A M) = Tr M                                    max|diff| = 0.0e+00
Tr_B(A(x)B) = A Tr(B)                                max|diff| = 2.2e-16
Tr_A(A(x)B) = Tr(A) B                                max|diff| = 2.2e-16
'abbc->ac' -> ValueError: dimensions in operand 0 for collapsing index 'b' don't match (3 != 2)

All identities hold to machine precision. The choice \(d_A\neq d_B\) protects us: interchanging the strings "abcb->ac" and "abad->bd" would give a matrix of the wrong shape, and a string like "abbc->ac" (tying a row index of \(B\) to a column index of \(A\)) raises the error printed above, because the letter b is given the lengths 3 and 2 at once. With \(d_A=d_B\) both mistakes would run silently.

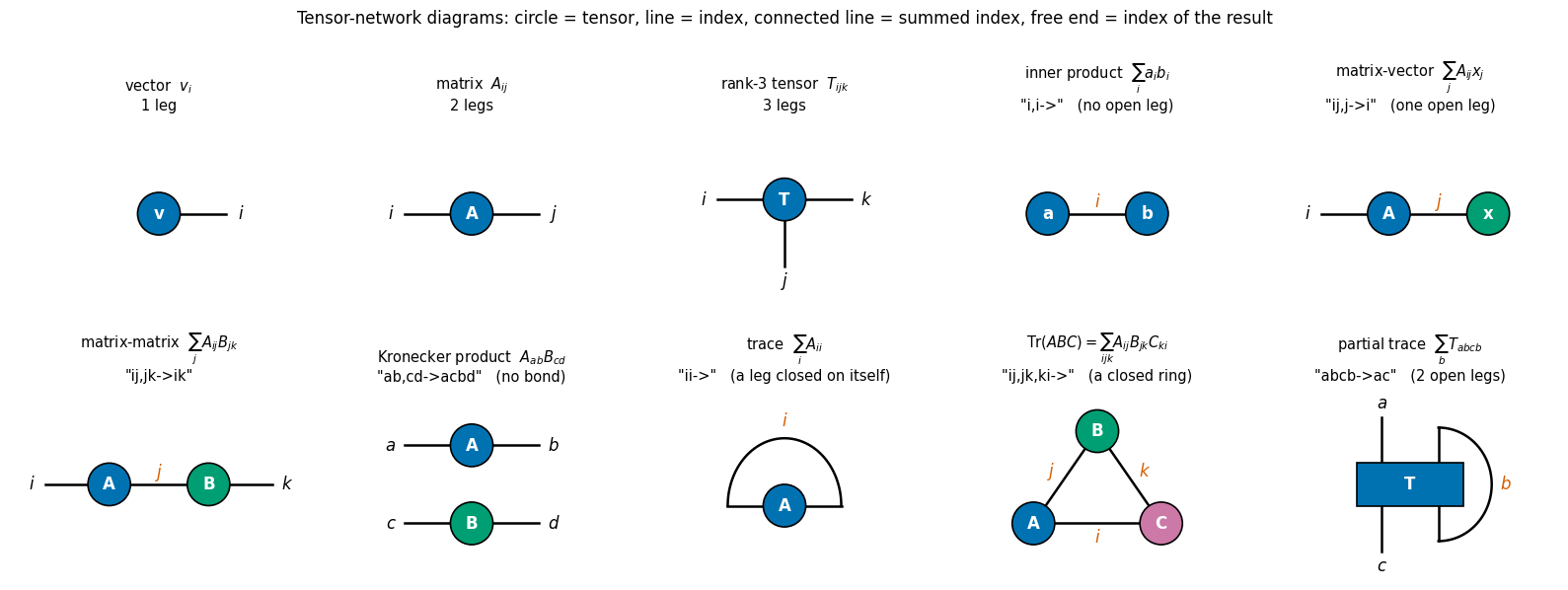

10. Tensor-network diagrams: drawing instead of writing indices

Long index expressions are hard to read. Physicists therefore draw them (the notation goes back to [4]):

• a tensor is a shape (here: a circle) with one leg per index – a vector has one leg, a matrix two, a rank-3 tensor three;
• a leg that connects two tensors is a shared, summed index (Rules 1 and 3): a contraction;
• a leg with a free end is a free index of the result (Rule 2).

So the rank of the result can be read off by counting open legs, and an einsum string is nothing but a list of the legs: each tensor lists the labels of its legs, the output lists the open ones. The figure shows the operations of this notebook as diagrams.

Code

# ==============================================================================
# FIGURE: tensor-network diagrams for the contractions of this notebook
# ==============================================================================
C_BLUE, C_ORANGE, C_GREEN, C_PINK = "#0072B2", "#D55E00", "#009E73", "#CC79A7"    # colour-blind-friendly palette


def draw_node(ax, x, y, name, color=C_BLUE, r=0.30):
    """A tensor: a filled circle with its name."""
    ax.add_patch(plt.Circle((x, y), r, facecolor=color, edgecolor="k", lw=1.2, zorder=3))
    ax.text(x, y, name, ha="center", va="center", fontsize=12, color="w", fontweight="bold", zorder=4)


def draw_leg(ax, p, q, label="", open_end=False, offset=(0.0, 0.17)):
    """A leg (index) from point p to point q.  Open legs carry their label beyond the free end q;
    contracted legs (bonds) carry it next to the midpoint."""
    ax.plot([p[0], q[0]], [p[1], q[1]], "-", color="k", lw=1.8, zorder=1)
    if open_end:
        d = np.array(q) - np.array(p)
        pos = np.array(q) + 0.2 * d / np.linalg.norm(d)
        ax.text(pos[0], pos[1], label, ha="center", va="center", fontsize=12, style="italic")
    else:
        mid = (np.array(p) + np.array(q)) / 2 + np.array(offset)
        ax.text(mid[0], mid[1], label, ha="center", va="center", fontsize=12, style="italic", color=C_ORANGE)


def new_panel(ax, title):
    ax.set_xlim(-2.1, 2.1); ax.set_ylim(-1.35, 1.35)
    ax.set_aspect("equal"); ax.axis("off")
    ax.set_title(title, fontsize=10.5)


fig, axes = plt.subplots(2, 5, figsize=(16, 6.4))
ax = axes[0, 0]; new_panel(ax, "vector  $v_i$\n1 leg")
draw_node(ax, 0, 0, "v"); draw_leg(ax, (0, 0), (0.95, 0), "i", open_end=True)

ax = axes[0, 1]; new_panel(ax, "matrix  $A_{ij}$\n2 legs")
draw_node(ax, 0, 0, "A"); draw_leg(ax, (0, 0), (-0.95, 0), "i", True); draw_leg(ax, (0, 0), (0.95, 0), "j", True)

ax = axes[0, 2]; new_panel(ax, "rank-3 tensor  $T_{ijk}$\n3 legs")
draw_node(ax, 0, 0.2, "T"); draw_leg(ax, (0, 0.2), (-0.95, 0.2), "i", True)
draw_leg(ax, (0, 0.2), (0, -0.75), "j", True); draw_leg(ax, (0, 0.2), (0.95, 0.2), "k", True)

ax = axes[0, 3]; new_panel(ax, "inner product  $\\sum_i a_i b_i$\n\"i,i->\"   (no open leg)")
draw_node(ax, -0.7, 0, "a"); draw_node(ax, 0.7, 0, "b"); draw_leg(ax, (-0.7, 0), (0.7, 0), "i")

ax = axes[0, 4]; new_panel(ax, "matrix-vector  $\\sum_j A_{ij}x_j$\n\"ij,j->i\"   (one open leg)")
draw_node(ax, -0.3, 0, "A"); draw_node(ax, 1.1, 0, "x", C_GREEN)
draw_leg(ax, (-0.3, 0), (-1.25, 0), "i", True); draw_leg(ax, (-0.3, 0), (1.1, 0), "j")

ax = axes[1, 0]; new_panel(ax, "matrix-matrix  $\\sum_j A_{ij}B_{jk}$\n\"ij,jk->ik\"")
draw_node(ax, -0.7, 0, "A"); draw_node(ax, 0.7, 0, "B", C_GREEN)
draw_leg(ax, (-0.7, 0), (-1.6, 0), "i", True); draw_leg(ax, (-0.7, 0), (0.7, 0), "j"); draw_leg(ax, (0.7, 0), (1.6, 0), "k", True)

ax = axes[1, 1]; new_panel(ax, "Kronecker product  $A_{ab}B_{cd}$\n\"ab,cd->acbd\"   (no bond)")
for y0, name, col, l1, l2 in ((0.55, "A", C_BLUE, "a", "b"), (-0.55, "B", C_GREEN, "c", "d")):
    draw_node(ax, 0, y0, name, col); draw_leg(ax, (0, y0), (-0.95, y0), l1, True); draw_leg(ax, (0, y0), (0.95, y0), l2, True)

ax = axes[1, 2]; new_panel(ax, "trace  $\\sum_i A_{ii}$\n\"ii->\"   (a leg closed on itself)")
draw_node(ax, 0, -0.3, "A")
ax.plot([-0.8, 0.8], [-0.3, -0.3], "k-", lw=1.8, zorder=1)
t_ = np.linspace(0, np.pi, 60)
ax.plot(0.8 * np.cos(t_), -0.3 + 0.95 * np.sin(t_), "k-", lw=1.8, zorder=1)
ax.text(0, 0.82, "i", ha="center", fontsize=12, style="italic", color=C_ORANGE)

ax = axes[1, 3]; new_panel(ax, "Tr$(ABC)=\\sum_{ijk} A_{ij}B_{jk}C_{ki}$\n\"ij,jk,ki->\"   (a closed ring)")
pA, pB, pC = (-0.9, -0.55), (0.0, 0.75), (0.9, -0.55)
draw_node(ax, *pA, "A"); draw_node(ax, *pB, "B", C_GREEN); draw_node(ax, *pC, "C", C_PINK)
draw_leg(ax, pA, pB, "j", offset=(-0.2, 0.08)); draw_leg(ax, pB, pC, "k", offset=(0.2, 0.08)); draw_leg(ax, pC, pA, "i", offset=(0, -0.2))

ax = axes[1, 4]; new_panel(ax, "partial trace  $\\sum_b T_{abcb}$\n\"abcb->ac\"   (2 open legs)")
ax.add_patch(plt.Rectangle((-0.75, -0.3), 1.5, 0.6, facecolor=C_BLUE, edgecolor="k", lw=1.2, zorder=3))
ax.text(0, 0, "T", ha="center", va="center", fontsize=12, color="w", fontweight="bold", zorder=4)
draw_leg(ax, (-0.4, 0.3), (-0.4, 0.95), "a", True); draw_leg(ax, (-0.4, -0.3), (-0.4, -0.95), "c", True)
ax.plot([0.4, 0.4], [0.3, 0.8], "k-", lw=1.8); ax.plot([0.4, 0.4], [-0.3, -0.8], "k-", lw=1.8)
t_ = np.linspace(-np.pi / 2, np.pi / 2, 60)
ax.plot(0.4 + 0.75 * np.cos(t_), 0.8 * np.sin(t_), "k-", lw=1.8, zorder=1)
ax.text(1.35, 0, "b", ha="center", va="center", fontsize=12, style="italic", color=C_ORANGE)

fig.suptitle("Tensor-network diagrams: circle = tensor, line = index, connected line = summed index, free end = index of the result",
             fontsize=12, y=1.0)
plt.tight_layout()
plt.show()

Reading the figure: the inner product and \(\mathrm{Tr}(ABC)\) have no open legs, so they are numbers; the matrix-vector product has one open leg (a vector); the matrix product and the partial trace have two (matrices); the Kronecker product has four open legs and no bond – it is an outer product, and only the subsequent reshape bundles the legs \((a,c)\) and \((b,d)\) into the two thick legs of a big matrix. In the partial-trace panel the upper legs of \(T\) are the row indices \((a,b)\), the lower ones the column indices \((c,d)\); the legs of subsystem \(B\) are joined.

Physics insight. Diagrams of this kind are the daily language of tensor-network methods (introductions: [5], [6]). A diagram fixes what is contracted; it says nothing about the order in which a computer should do the sums. That is a separate question with large practical consequences (Section 12).

11. Batched contractions

Often the same operation must be done for many independent inputs: many matrices, many vectors, many samples. In index notation this is one extra index that is shared by the inputs and kept in the output – by Rules 2 and 3 it is never summed; it just “rides along”:

\[ C_{\beta ik}=\sum_j A_{\beta ij}B_{\beta jk}\quad\texttt{"bij,bjk->bik"},\qquad\qquad q_\beta=\sum_{ij}x_{\beta i}\,A_{ij}\,x_{\beta j}\quad\texttt{"bi,ij,bj->b"}.\]

NumPy’s @ follows the same philosophy: for arrays with more than two axes it multiplies the matrices in the last two axes and treats all leading axes as batch axes.

Code

# ==============================================================================
# BATCHED CONTRACTIONS
# ==============================================================================
nb = 6                                                  # batch size
Ab = rng.normal(size=(nb, 3, 4))
Bb = rng.normal(size=(nb, 4, 5))

Cb_loop = np.zeros((nb, 3, 5))
for beta in range(nb):                                  # the batch index: free, never summed
    for i in range(3):
        for k in range(5):
            for j in range(4):
                Cb_loop[beta, i, k] += Ab[beta, i, j] * Bb[beta, j, k]

check("batched matmul: loops  vs Ab @ Bb", Cb_loop, Ab @ Bb)
check("batched matmul: einsum vs Ab @ Bb", np.einsum("bij,bjk->bik", Ab, Bb), Ab @ Bb)

# one matrix, a batch of vectors:  y_bi = sum_j A_ij x_bj
A = rng.normal(size=(4, 4))
Xb = rng.normal(size=(nb, 4))
check("matrix on a batch of vectors: 'ij,bj->bi' vs Xb @ A.T", np.einsum("ij,bj->bi", A, Xb), Xb @ A.T)

# a batch of quadratic forms  q_b = x_b^T A x_b
q_ref = np.array([xb @ A @ xb for xb in Xb])            # reference: Python loop over the batch
check("batch of quadratic forms: 'bi,ij,bj->b'", np.einsum("bi,ij,bj->b", Xb, A, Xb), q_ref)

# TWO different batch letters: every A_a is combined with every B_b (an outer product in the batch indices)
cross = np.einsum("aij,bjk->abik", Ab, Bb)
print("'aij,bjk->abik' ->", cross.shape, " while 'bij,bjk->bik' ->", (Ab @ Bb).shape)
check("cross[2,4] = Ab[2] @ Bb[4]", cross[2, 4], Ab[2] @ Bb[4])

# '...' stands for "any number of leading batch axes"
check("ellipsis: '...ij,...jk->...ik'", np.einsum("...ij,...jk->...ik", Ab, Bb), Ab @ Bb)

batched matmul: loops  vs Ab @ Bb                    max|diff| = 8.9e-16
batched matmul: einsum vs Ab @ Bb                    max|diff| = 8.9e-16
matrix on a batch of vectors: 'ij,bj->bi' vs Xb @ A.T max|diff| = 4.4e-16
batch of quadratic forms: 'bi,ij,bj->b'              max|diff| = 6.7e-16
'aij,bjk->abik' -> (6, 6, 3, 5)  while 'bij,bjk->bik' -> (6, 3, 5)
cross[2,4] = Ab[2] @ Bb[4]                           max|diff| = 2.2e-16
ellipsis: '...ij,...jk->...ik'                       max|diff| = 8.9e-16

Compare "bij,bjk->bik" with "aij,bjk->abik": in the second string the two batch letters are different, so every \(A_a\) is multiplied with every \(B_b\) (an outer product in the batch indices). One letter changed, a very different computation – which is why we insist on deriving strings from formulas and testing them on small examples. In JAX, batching is usually delegated to jax.vmap, which adds the batch letter for you (Section 15).

12. The cost of a contraction, and the order of operations

12.1 Counting

Our naive_einsum makes the cost obvious: there is one innermost iteration for every combination of values of all distinct letters. Hence

\[ \text{cost of one einsum}\;\sim\;\prod_{\text{distinct letters } \ell} d_\ell .\]

contraction	string	letters	cost
matrix-vector	"ij,j->i"	\(i,j\)	\(n^2\)
matrix-matrix	"ij,jk->ik"	\(i,j,k\)	\(n^3\)
outer product	"i,j->ij"	\(i,j\)	\(n^2\)
\(2\times2\) matrix on one index of a \((2,)^N\) tensor	"ab,xbz->xaz" for \(N=3\), one letter per axis in general	\(N+1\) letters of length 2	\(2^{N+1}=2\cdot 2^N\)
dense \(2^N\times2^N\) matrix on a \(2^N\) vector	"ij,j->i"	\(i,j\) of length \(2^N\)	\(4^N\)

The last two rows are the quantitative content of “matrix-free” and the reason for this whole notebook. Memory is counted the same way: an array needs the product of the lengths of its own letters.

12.2 Order of pairwise contractions

With three or more tensors one normally contracts pairwise, and the order matters. Take \(y=ABv\) for \(n\times n\) matrices and a vector:

• \((AB)\,v\): first a matrix-matrix product, cost \(n^3\), then matrix-vector, \(n^2\);
• \(A\,(Bv)\): two matrix-vector products, cost \(2n^2\).

Same result (matrix multiplication is associative), but a factor \(\sim n/2\) in work. Let us measure it. A note on timing: we repeat each measurement and keep the best time (the one least disturbed by other processes), after one warm-up call.

Code

# ==============================================================================
# TIMING HELPER (works for NumPy and for JAX functions)
# ==============================================================================
def best_time(fn, *args, repeat=5, min_total=0.2):
    """Best wall time of fn(*args) in seconds, after one warm-up call.  The call is repeated at least `repeat`
    times AND until `min_total` seconds have been spent (at most 1000 times), so that fast functions get many
    repetitions.  The minimum is the estimate least disturbed by whatever else the computer is doing.

    JAX dispatches work asynchronously: a call returns before the result is computed.  `jax.block_until_ready`
    waits for the actual result (and is a harmless no-op for NumPy arrays), so the same helper serves both.
    """
    jax.block_until_ready(fn(*args))                    # warm-up (for jitted functions this includes compilation)
    best, count, t_start = float("inf"), 0, time.perf_counter()
    while count < repeat or (time.perf_counter() - t_start < min_total and count < 1000):
        t0 = time.perf_counter()
        jax.block_until_ready(fn(*args))
        best = min(best, time.perf_counter() - t0)
        count += 1
    return best


# NumPy's matrix products run on a multi-threaded linear-algebra library (BLAS).  For clean SCALING measurements we
# restrict it to one thread (otherwise thread start-up costs and competition with other programs blur small sizes).
# `threadpoolctl` is an optional package; without it the measurements simply run multi-threaded.
try:
    from threadpoolctl import threadpool_limits

    def single_thread():
        return threadpool_limits(limits=1)
except ImportError:
    from contextlib import nullcontext as single_thread

Code

# ==============================================================================
# EXPERIMENT: (A B) v  versus  A (B v)
# ==============================================================================
# ---------------- PARAMETERS ----------------
sizes = [100, 200, 400, 800, 1600]     # matrix dimension n
# --------------------------------------------
t_left, t_right = [], []
with single_thread():
    for n in sizes:
        A, B, v = rng.normal(size=(n, n)), rng.normal(size=(n, n)), rng.normal(size=n)
        check(f"n={n:5d}: (AB)v = A(Bv)", (A @ B) @ v, A @ (B @ v), tol=1e-6 * n)  # same result up to round-off
        t_left.append(best_time(lambda: (A @ B) @ v, repeat=3))
        t_right.append(best_time(lambda: A @ (B @ v), repeat=3))

sizes_arr = np.array(sizes, dtype=float)
fig, ax = plt.subplots(figsize=(6.4, 4.4))
ax.loglog(sizes, t_left, "o-", color=C_ORANGE, label=r"$(AB)\,v$   (matrix-matrix first)")
ax.loglog(sizes, t_right, "s-", color=C_BLUE, label=r"$A\,(Bv)$   (matrix-vector twice)")
ax.loglog(sizes, t_left[-1] * (sizes_arr / sizes[-1]) ** 3, "k--", lw=1, label=r"reference slope $n^3$")
ax.loglog(sizes, t_right[-1] * (sizes_arr / sizes[-1]) ** 2, "k:", lw=1.2, label=r"reference slope $n^2$")
ax.set_xlabel(r"matrix dimension $n$"); ax.set_ylabel("wall time  [s]  (best of several runs)")
ax.set_title(r"Same result, different contraction order: $y = ABv$")
ax.grid(True, which="both", alpha=0.3); ax.legend()
plt.tight_layout()
plt.show()

# The floating-point rate actually achieved is printed as well: (AB)v does 2n^3 operations, A(Bv) does 2 x 2n^2.
for n, tl, tr in zip(sizes, t_left, t_right):
    print(f"n = {n:5d}:  (AB)v {tl * 1e3:9.3f} ms [{2 * n ** 3 / tl / 1e9:5.1f} GFLOP/s]"
          f"   A(Bv) {tr * 1e3:9.3f} ms [{4 * n ** 2 / tr / 1e9:5.2f} GFLOP/s]   time ratio {tl / tr:7.1f}   work ratio n/2 = {n / 2:6.0f}")
ratio_largest = t_left[-1] / t_right[-1]

n=  100: (AB)v = A(Bv)                               max|diff| = 1.3e-13
n=  200: (AB)v = A(Bv)                               max|diff| = 4.5e-13

n=  400: (AB)v = A(Bv)                               max|diff| = 1.3e-12

n=  800: (AB)v = A(Bv)                               max|diff| = 2.7e-12

n= 1600: (AB)v = A(Bv)                               max|diff| = 8.6e-12

n =   100:  (AB)v     0.039 ms [ 51.3 GFLOP/s]   A(Bv)     0.006 ms [ 6.23 GFLOP/s]   time ratio     6.1   work ratio n/2 =     50
n =   200:  (AB)v     0.368 ms [ 43.5 GFLOP/s]   A(Bv)     0.013 ms [12.20 GFLOP/s]   time ratio    28.0   work ratio n/2 =    100
n =   400:  (AB)v     2.671 ms [ 47.9 GFLOP/s]   A(Bv)     0.056 ms [11.45 GFLOP/s]   time ratio    47.8   work ratio n/2 =    200
n =   800:  (AB)v    24.640 ms [ 41.6 GFLOP/s]   A(Bv)     0.212 ms [12.07 GFLOP/s]   time ratio   116.2   work ratio n/2 =    400
n =  1600:  (AB)v   191.311 ms [ 42.8 GFLOP/s]   A(Bv)     1.242 ms [ 8.25 GFLOP/s]   time ratio   154.1   work ratio n/2 =    800

Over the whole range the two curves roughly follow the predicted slopes \(n^3\) and \(n^2\). Between neighbouring points the deviations can be large: the printed floating-point rates show that neither kernel is equally efficient at all sizes (fixed call overheads at small \(n\), cache blocking and memory traffic at large \(n\), competition with other programs). The ratio of the two times grows from a few at \(n=100\) to one or two orders of magnitude at the largest sizes; the exact numbers depend on the machine and on what else it is doing.

The time ratio is the work ratio \(n/2\) divided by the ratio of the two printed floating-point rates. A matrix-matrix product reads each matrix entry once and then uses it \(n\) times, so on an otherwise idle processor it reaches a large fraction of the peak rate; a matrix-vector product uses each entry exactly once and is limited by how fast the matrix can be streamed from memory. On a quiet machine the first rate is therefore several times the second and the time ratio stays well below \(n/2\); when other programs compete for the processor and its caches, both rates drop and their ratio shifts. The result itself does not reveal the wasted factor; counting the operations does.

12.3 einsum with three operands

np.einsum("ij,jk,k->i", A, B, v) by default (optimize=False) evaluates the formula literally as one triple loop: cost \(n^3\), although no \(n\times n\) intermediate is ever stored. With optimize=True NumPy first searches for a good sequence of pairwise contractions – True selects a greedy search, optimize="optimal" an exhaustive one; np.einsum_path reports what it found. This path search is the core of the opt_einsum package [7], contributed to NumPy in version 1.12. jnp.einsum always searches for a path, calling opt_einsum directly: its default is optimize="auto", which runs the exhaustive optimal search for up to four operands and cheaper heuristics beyond that. Under jit the search happens once, while the function is traced, because the string is ordinary Python data.

Code

# ==============================================================================
# einsum WITH THREE OPERANDS: literal evaluation vs optimized contraction path
# ==============================================================================
n = 300
A, B, v = rng.normal(size=(n, n)), rng.normal(size=(n, n)), rng.normal(size=n)

path, report = np.einsum_path("ij,jk,k->i", A, B, v, optimize="optimal")
print(report)

with single_thread():
    t_literal = best_time(lambda: np.einsum("ij,jk,k->i", A, B, v), repeat=3)
    t_optimal = best_time(lambda: np.einsum("ij,jk,k->i", A, B, v, optimize=True), repeat=3)
    t_manual = best_time(lambda: A @ (B @ v), repeat=3)
print(f"np.einsum, literal triple loop : {t_literal * 1e3:9.3f} ms")
print(f"np.einsum, optimize=True       : {t_optimal * 1e3:9.3f} ms")
print(f"A @ (B @ v) by hand            : {t_manual * 1e3:9.3f} ms")
check("all three agree", np.einsum("ij,jk,k->i", A, B, v, optimize=True), A @ (B @ v), tol=1e-8)
check("jnp.einsum agrees too", jnp.einsum("ij,jk,k->i", A, B, v), A @ (B @ v), tol=1e-8 if PRECISION == "double" else 1e-1)

  Complete contraction:  ij,jk,k->i
         Naive scaling:  3
     Optimized scaling:  2
      Naive FLOP count:  8.100e+07
  Optimized FLOP count:  3.600e+05
   Theoretical speedup:  224.999
  Largest intermediate:  3.000e+02 elements
--------------------------------------------------------------------------
scaling                  current                                remaining
--------------------------------------------------------------------------
   2                     k,jk->j                                  ij,j->i
   2                     j,ij->i                                     i->i

np.einsum, literal triple loop :    42.661 ms
np.einsum, optimize=True       :     0.089 ms
A @ (B @ v) by hand            :     0.031 ms
all three agree                                      max|diff| = 0.0e+00
jnp.einsum agrees too                                max|diff| = 5.7e-14

The report reads: naive scaling 3 (three letters \(\Rightarrow n^3\)), optimized scaling 2; the optimizer found exactly our order – first k,jk->j (that is \(Bv\)), then j,ij->i. The measured times confirm that the literal evaluation is slower by orders of magnitude. (The report above was produced with optimize="optimal" and the timing with optimize=True; for three operands the greedy and the exhaustive search return the same path.)

Numerical practice. (i) Before running a big contraction, count letters: the cost is the product of the lengths of all distinct letters in each pairwise step, the memory is the size of the largest intermediate. (ii) With NumPy, pass optimize=True for three or more operands, or split the contraction by hand. (iii) Finding the optimal order for a large network is a hard combinatorial problem in general – for the small, chain-like contractions of this course the choice is obvious: always keep the big state tensor as one operand and contract small matrices into it, one after the other.

13. einsum vs tensordot vs matmul

There are three standard tools for contractions. They compute the same sums, and differ in convenience:

tool	what you specify	order of the output axes	batch indices	traces / repeated letters
A @ B (matmul)	nothing: last axis of A with second-to-last of B	fixed	leading axes (broadcast)	no
tensordot(A, B, axes=([..],[..]))	which axes of A are summed against which axes of B	fixed: free axes of A, then free axes of B	no	no
einsum	a name for every index	any (you write it)	yes	yes

Because tensordot always puts the remaining axes of the first operand first, applying a matrix to the middle index of a tensor needs an extra moveaxis to put the new index back in place. A third route uses Section 5: merge everything to the left and everything to the right of the target index into two composite indices, T.reshape(left, d, right), and let batched matmul do the work. All three are compared on a rank-5 tensor, target axis 2.

Code

# ==============================================================================
# THREE WAYS to apply a matrix to axis q of a tensor:   T'_{x y a z w} = sum_b M_ab T_{x y b z w}
# ==============================================================================
dims = (3, 4, 5, 6, 7)
q = 2                                                   # target axis (length 5)
T = rng.normal(size=dims)
M = rng.normal(size=(5, 5))

# (1) einsum: write down the formula
out_einsum = np.einsum("ab,xybzw->xyazw", M, T)

# (2) tensordot: sum axis 1 of M against axis q of T.  Result axes: (a, x, y, z, w)  -> move axis 0 back to position q
out_tensordot = np.moveaxis(np.tensordot(M, T, axes=([1], [q])), 0, q)

# (3) reshape + matmul: (x,y) -> one composite 'left' index, (z,w) -> one composite 'right' index
left, right = int(np.prod(dims[:q])), int(np.prod(dims[q + 1:]))
out_matmul = (M @ T.reshape(left, dims[q], right)).reshape(dims)     # M broadcasts over the leading 'left' axis

check("tensordot + moveaxis  vs einsum", out_tensordot, out_einsum)
check("reshape + matmul      vs einsum", out_matmul, out_einsum)
check("naive_einsum (loops)  vs einsum", naive_einsum("ab,xybzw->xyazw", M, T), out_einsum)

# a quick speed comparison on a larger tensor (about 10^6 entries)
T_big = rng.normal(size=(16,) * 5)
M_big = rng.normal(size=(16, 16))
with single_thread():
    for name, fn in [("einsum", lambda: np.einsum("ab,xybzw->xyazw", M_big, T_big)),
                     ("einsum, optimize=True", lambda: np.einsum("ab,xybzw->xyazw", M_big, T_big, optimize=True)),
                     ("tensordot + moveaxis", lambda: np.moveaxis(np.tensordot(M_big, T_big, axes=([1], [2])), 0, 2)),
                     ("reshape + matmul", lambda: (M_big @ T_big.reshape(256, 16, 256)).reshape((16,) * 5))]:
        print(f"{name:<24s} {best_time(fn, repeat=3) * 1e3:8.2f} ms   (one thread)")

tensordot + moveaxis  vs einsum                      max|diff| = 1.3e-15
reshape + matmul      vs einsum                      max|diff| = 1.3e-15
naive_einsum (loops)  vs einsum                      max|diff| = 0.0e+00

einsum                      13.08 ms   (one thread)

einsum, optimize=True        2.76 ms   (one thread)

tensordot + moveaxis         2.19 ms   (one thread)

reshape + matmul             1.02 ms   (one thread)

All routes give the same numbers to round-off. Plain np.einsum is the slowest by a wide margin, because the routes use different kernels: plain np.einsum runs its own generic loops, whereas tensordot, matmul and einsum(..., optimize=True) hand the work to the optimized matrix-multiplication library (BLAS) after suitable transposes and reshapes. (In JAX these differences largely disappear, because all of them are lowered to the same XLA operation and compiled.)

Our choice for this course is einsum: the string is the formula, any index order and any number of target indices are handled uniformly, traces and batch indices come for free, and – as the next section shows – the strings can be generated by a program.

14. Building einsum strings programmatically

So far we typed every string by hand. A simulator must apply a matrix to index \(q\) of a rank-\(n\) tensor for any \(n\) and \(q\): the string has to be built by code. A string is just text, so this is ordinary Python string manipulation. The configuration cell provides the pool of labels _LETTERS = "abc...xyzABC...XYZ" (52 letters).

14.1 Outer product of \(n\) vectors

Target: \(T_{ab c\dots}=u^{(0)}_a u^{(1)}_b u^{(2)}_c\cdots\), i.e. the strings "a,b->ab", "a,b,c->abc", …

Code

# ==============================================================================
# STRING BUILDER 1: outer product of n vectors      "a,b,c->abc"
# ==============================================================================
def outer_string(n):
    """einsum string for the outer product of n vectors.

    MATH   T[a,b,c,...] = u0[a] u1[b] u2[c] ...      (no summed index)
    IMPLEMENTATION   inputs = the first n letters separated by commas, output = the same letters joined.
    """
    letters = _LETTERS[:n]
    return ",".join(letters) + "->" + letters


for n in (2, 3, 5):
    print(f"n = {n}:  '{outer_string(n)}'")

vecs = [rng.normal(size=d) for d in (2, 3, 4, 5)]
T_outer = np.einsum(outer_string(4), *vecs)             # '*vecs' unpacks the list into separate arguments
ref = np.kron(np.kron(np.kron(vecs[0], vecs[1]), vecs[2]), vecs[3]).reshape(2, 3, 4, 5)
check("outer product of 4 vectors vs chained np.kron", T_outer, ref)

n = 2:  'a,b->ab'
n = 3:  'a,b,c->abc'
n = 5:  'a,b,c,d,e->abcde'
outer product of 4 vectors vs chained np.kron        max|diff| = 0.0e+00

14.2 A matrix acting on axis \(q\) of a rank-\(n\) tensor

Target: \(T'_{\dots a\dots}=\sum_b M_{ab}T_{\dots b\dots}\) with \(b\) at position \(q\). The recipe, in words:

1. label the axes of \(T\) with the first \(n\) letters: inp = ['a','b','c',...];
2. take one fresh letter new (the next unused one) for the output index of \(M\);
3. \(M\) carries new (row = output) followed by inp[q] (column = input, shared with \(T\) \(\Rightarrow\) summed);
4. the output is inp with the letter at position \(q\) replaced by new – so the new index sits where the old one was.

For \(n=3\), \(q=1\) this produces "db,abc->adc", which is the string "ab,xbz->xaz" of Section 6 with renamed letters.

Code

# ==============================================================================
# STRING BUILDER 2: matrix on axis q of a rank-n tensor
# ==============================================================================
def axis_string(n, q):
    """einsum string for  T'[.., a, ..] = sum_b M[a, b] T[.., b, ..]   (b = axis q of a rank-n tensor)."""
    inp = list(_LETTERS[:n])           # step 1: labels of T
    new = _LETTERS[n]                  # step 2: a fresh label for the new index
    out = inp.copy()
    out[q] = new                       # step 4: replace the target letter in the output
    return f"{new}{inp[q]},{''.join(inp)}->{''.join(out)}"          # step 3: M = (new, old)


def apply_matrix_to_axis(T, M, q):
    """Contract the column index of the matrix M with axis q of the tensor T; the row index of M takes its place.

    MATH   T'[i_0,..,a,..,i_{n-1}] = sum_b M[a,b] T[i_0,..,b,..,i_{n-1}]
    COST   (number of entries of T) x (number of rows of M);  no large matrix is formed.
    """
    return np.einsum(axis_string(T.ndim, q), M, T)


for q in range(3):
    print(f"n = 3, q = {q}:  '{axis_string(3, q)}'")
print(f"n = 6, q = 4:  '{axis_string(6, 4)}'")

# CHECKPOINT: every axis of a tensor with all-different dimensions, against tensordot + moveaxis AND the loop version
T = rng.normal(size=(2, 3, 4, 5))
for q, d in enumerate(T.shape):
    M = rng.normal(size=(d + 1, d))    # rectangular on purpose: the target axis changes its length d -> d+1
    ref = np.moveaxis(np.tensordot(M, T, axes=([1], [q])), 0, q)
    check(f"apply_matrix_to_axis, q={q}: vs tensordot+moveaxis", apply_matrix_to_axis(T, M, q), ref)
    check(f"                      q={q}: vs naive loops", naive_einsum(axis_string(4, q), M, T), ref)

n = 3, q = 0:  'da,abc->dbc'
n = 3, q = 1:  'db,abc->adc'
n = 3, q = 2:  'dc,abc->abd'
n = 6, q = 4:  'ge,abcdef->abcdgf'
apply_matrix_to_axis, q=0: vs tensordot+moveaxis     max|diff| = 4.4e-16
                      q=0: vs naive loops            max|diff| = 4.4e-16
apply_matrix_to_axis, q=1: vs tensordot+moveaxis     max|diff| = 8.9e-16
                      q=1: vs naive loops            max|diff| = 8.9e-16
apply_matrix_to_axis, q=2: vs tensordot+moveaxis     max|diff| = 8.9e-16
                      q=2: vs naive loops            max|diff| = 8.9e-16
apply_matrix_to_axis, q=3: vs tensordot+moveaxis     max|diff| = 8.9e-16
                      q=3: vs naive loops            max|diff| = 8.9e-16

14.3 Partial trace over an arbitrary set of subsystems

Target: an operator on \(n\) subsystems stored as a rank-\(2n\) tensor \(T_{r_0\dots r_{n-1}\,c_0\dots c_{n-1}}\) (row indices first, then column indices, as in Eq. 5). For every subsystem that is traced out the column letter is made equal to the row letter (Rule 3 inside one operand) and both are dropped from the output (Rule 1); for every subsystem that is kept row and column letters stay different and appear in the output. For \(n=2\), keeping subsystem 0: "abcb->ac" – Eq. (8).

Code

# ==============================================================================
# STRING BUILDER 3: partial trace, keeping the subsystems in `keep`
# ==============================================================================
def partial_trace_string(n, keep):
    """einsum string for the partial trace of a rank-2n operator tensor T[rows..., cols...]."""
    rows = list(_LETTERS[:n])
    cols = [_LETTERS[n + s] if s in keep else rows[s] for s in range(n)]      # traced subsystems: same letter twice
    out = [rows[s] for s in keep] + [cols[s] for s in keep]
    return f"{''.join(rows)}{''.join(cols)}->{''.join(out)}"


def partial_trace(M, dims, keep):
    """Partial trace of the matrix M acting on a composite space with subsystem dimensions `dims`.

    MATH   (Tr_rest M)[(r_keep),(c_keep)] = sum_{t in rest} T[.., t, .. ; .., t, ..]
    IMPLEMENTATION   matrix -> rank-2n tensor (reshape), one einsum, -> matrix (reshape).
    NOTE   `keep` must list the kept subsystems in INCREASING order; the composite row/column index of the
           result is then C-ordered in exactly those subsystems (Eq. 2).
    """
    n = len(dims)
    T = M.reshape(tuple(dims) + tuple(dims))
    d_keep = int(np.prod([dims[s] for s in keep]))
    return np.einsum(partial_trace_string(n, keep), T).reshape(d_keep, d_keep)


print("n=2, keep (0,)  :", partial_trace_string(2, (0,)))
print("n=2, keep (1,)  :", partial_trace_string(2, (1,)))
print("n=3, keep (0,2) :", partial_trace_string(3, (0, 2)))

# CHECKPOINT: product operators  Tr_B (A (x) B (x) C) = Tr(B) * (A (x) C), and linearity for a sum of two products
dims = (2, 3, 4)
A1, B1, C1 = (rng.normal(size=(d, d)) for d in dims)
A2, B2, C2 = (rng.normal(size=(d, d)) for d in dims)
M3 = np.kron(np.kron(A1, B1), C1) + np.kron(np.kron(A2, B2), C2)              # NOT a product operator
ref = np.trace(B1) * np.kron(A1, C1) + np.trace(B2) * np.kron(A2, C2)
check("Tr_B of a 3-subsystem operator, keep=(0,2)", partial_trace(M3, dims, (0, 2)), ref)
ref = np.trace(A1) * np.trace(C1) * B1 + np.trace(A2) * np.trace(C2) * B2
check("Tr_AC of a 3-subsystem operator, keep=(1,)", partial_trace(M3, dims, (1,)), ref)
check("keep nothing = full trace", partial_trace(M3, dims, ()), np.trace(M3).reshape(1, 1))

n=2, keep (0,)  : abcb->ac
n=2, keep (1,)  : abad->bd
n=3, keep (0,2) : abcdbf->acdf
Tr_B of a 3-subsystem operator, keep=(0,2)           max|diff| = 1.8e-15
Tr_AC of a 3-subsystem operator, keep=(1,)           max|diff| = 8.9e-16
keep nothing = full trace                            max|diff| = 4.4e-16

The three builders share one pattern that you will see again and again in the engine of this course: (1) give every axis a letter, (2) introduce fresh letters for new indices, (3) edit lists of letters with ordinary Python, (4) join them into the string. The index bookkeeping happens once, in Python, before any number is touched – an important point for JAX, as we see next.

15. einsum in JAX: jit, vmap, grad

jnp.einsum (JAX [8]) has the same interface as np.einsum. Three differences matter in practice:

• JAX arrays are immutable, so the loop-and-accumulate style of step (b) (y[i] += ...) is not even available: whole-array operations like einsum are the way to express index formulas in JAX (see notebook 01, JAX).
• The einsum string is static: it is ordinary Python data that exists while JAX traces the function. Only the arrays are traced. Building strings programmatically (Section 14) therefore costs nothing at run time – under jit it happens once, during compilation.
• jnp.einsum always searches for a contraction path (optimize="auto", Section 12.3), whereas np.einsum does not unless you ask.

As a test problem we take a rank-\(n\) tensor of shape \((2,2,\dots,2)\) with \(n=18\) (\(2^{18}=262\,144\) entries) and apply a \(2\times2\) matrix to every axis in turn – 18 einsum calls with 18 different strings. Such a tensor is the state of 18 spins. We compare NumPy, JAX without jit (“eager”: each einsum is dispatched separately) and JAX with the whole sweep compiled into one XLA program.

Code

# ==============================================================================
# THE SAME SWEEP IN NUMPY AND IN JAX
# ==============================================================================
def sweep_numpy(T, M):
    """Apply the matrix M to every axis of T, one after the other (NumPy)."""
    for q in range(T.ndim):
        T = np.einsum(axis_string(T.ndim, q), M, T)
    return T


def sweep_jax(T, M):
    """The same with jnp.einsum.  The Python loop and the strings are STATIC: under jit the loop is unrolled at
    trace time into T.ndim einsum operations, which XLA compiles into a single program."""
    for q in range(T.ndim):
        T = jnp.einsum(axis_string(T.ndim, q), M, T)
    return T


sweep_jit = jax.jit(sweep_jax)

# ---------------- PARAMETERS ----------------
n_axes = 18                            # rank of the tensor: 2**18 = 262144 entries
theta = 0.3                            # M = rotation matrix (orthogonal => the norm of T is conserved)
# --------------------------------------------
M_np = np.array([[np.cos(theta), -np.sin(theta)], [np.sin(theta), np.cos(theta)]])
T_np = rng.normal(size=(2,) * n_axes)
T_np /= np.linalg.norm(T_np)
M_j, T_j = jnp.asarray(M_np, dtype=RDTYPE), jnp.asarray(T_np, dtype=RDTYPE)

# correctness first, speed second
out_np = sweep_numpy(T_np, M_np)
check("sweep: jnp (eager) vs NumPy", sweep_jax(T_j, M_j), out_np, tol=max(TOL, 1e-12))
t0 = time.perf_counter()
out_jit = jax.block_until_ready(sweep_jit(T_j, M_j))    # first call = tracing + compilation + run
t_compile = time.perf_counter() - t0
check("sweep: jnp (jit)   vs NumPy", out_jit, out_np, tol=max(TOL, 1e-12))
print(f"norm before/after the sweep: {np.linalg.norm(T_np):.12f} / {float(jnp.linalg.norm(out_jit)):.12f}")

t_np = best_time(sweep_numpy, T_np, M_np, repeat=3)
t_eager = best_time(sweep_jax, T_j, M_j, repeat=3)
t_jit = best_time(sweep_jit, T_j, M_j, repeat=5)
print(f"\nrank-{n_axes} tensor, {n_axes} single-axis contractions, backend: {jax.default_backend()}")
print(f"  NumPy  np.einsum                : {t_np * 1e3:9.2f} ms")
print(f"  JAX    jnp.einsum, eager        : {t_eager * 1e3:9.2f} ms")
print(f"  JAX    jit, first call (compile): {t_compile * 1e3:9.2f} ms")
print(f"  JAX    jit, later calls         : {t_jit * 1e3:9.2f} ms     speed-up vs NumPy: {t_np / t_jit:.1f}x")

sweep: jnp (eager) vs NumPy                          max|diff| = 4.3e-18
sweep: jnp (jit)   vs NumPy                          max|diff| = 4.3e-18
norm before/after the sweep: 1.000000000000 / 1.000000000000

rank-18 tensor, 18 single-axis contractions, backend: cpu
  NumPy  np.einsum                :     22.21 ms
  JAX    jnp.einsum, eager        :      4.30 ms
  JAX    jit, first call (compile):    121.96 ms
  JAX    jit, later calls         :      3.95 ms     speed-up vs NumPy: 5.6x

The results agree, and the orthogonal matrix conserves the norm, as it must. The timings depend strongly on the machine and on how busy it is. Plain np.einsum runs its generic loops on one core and copes badly with many axes of length 2 (optimize=True, or the tensordot route of Section 13, narrows the gap); JAX lowers each einsum to a compiled tensor-contraction kernel, which XLA may spread over several cores. On an otherwise idle laptop the compiled sweep is typically several times to twenty times faster than np.einsum; on a machine whose cores are busy with other work the advantage shrinks and can vanish, so compare the printed numbers. jit additionally removes the per-call Python and dispatch overhead and lets XLA plan all 18 steps together; on a CPU, where the 18 kernels dominate the run time, that last gain is small, and the eager and the compiled numbers can come out equal. (Eager JAX compiles too, only piecewise: each of the 18 distinct einsum strings is compiled the first time it is met – the warm-up call inside best_time absorbs that cost, which on a GPU can amount to several seconds.) The price is the compile time of the first call, which is paid once per combination of input shapes and dtypes. For a time evolution with thousands of identical steps it is negligible; for a one-off calculation it may dominate. Always report the two numbers separately.

JAX practice. jax.jit(f) traces f once with abstract arrays, records the array operations and compiles them with XLA. Python code that does not involve traced arrays – our loop over q and the string building – runs only during tracing. This is why axis numbers must be plain Python integers, never traced values.

15.1 vmap adds the batch letter for you

jax.vmap(f) turns a function written for one input into a function for a batch of inputs. For an einsum this is equivalent to adding a batch letter by hand (Section 11), but without touching the code of f – a big advantage when f is a whole simulation. Below, a batch of 16 rotation angles is pushed through the compiled sweep in one call.

Code

# ==============================================================================
# vmap = a batch index without rewriting the einsum string
# ==============================================================================
A_j = jnp.asarray(rng.normal(size=(4, 4)), dtype=RDTYPE)
X_j = jnp.asarray(rng.normal(size=(6, 4)), dtype=RDTYPE)                    # batch of 6 vectors


def matvec(x):
    return jnp.einsum("ij,j->i", A_j, x)               # written for ONE vector


check("vmap(matvec) = 'ij,bj->bi'", jax.vmap(matvec)(X_j), jnp.einsum("ij,bj->bi", A_j, X_j), tol=TOL * 10)


# a batch over the MATRIX: 16 rotation angles, the same tensor T
def rotation(theta):
    return jnp.array([[jnp.cos(theta), -jnp.sin(theta)], [jnp.sin(theta), jnp.cos(theta)]], dtype=RDTYPE)


def sweep_angle(theta, T):
    return sweep_jax(T, rotation(theta))


thetas = jnp.linspace(0.0, 1.5, 16, dtype=RDTYPE)
sweep_batch = jax.jit(jax.vmap(sweep_angle, in_axes=(0, None)))             # batch over argument 0, share argument 1
sweep_single = jax.jit(sweep_angle)

out_batch = sweep_batch(thetas, T_j)
print("shape of the batched result:", out_batch.shape)
check("vmap result, angle #2, vs single run", out_batch[2], sweep_single(thetas[2], T_j), tol=TOL * 10)

t_loop = best_time(lambda: [sweep_single(th, T_j) for th in thetas], repeat=3)
t_vmap = best_time(sweep_batch, thetas, T_j, repeat=3)
print(f"16 angles: Python loop over jitted sweeps {t_loop * 1e3:8.2f} ms | one vmapped call {t_vmap * 1e3:8.2f} ms")

vmap(matvec) = 'ij,bj->bi'                           max|diff| = 0.0e+00
shape of the batched result: (16, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2)

vmap result, angle #2, vs single run                 max|diff| = 0.0e+00

16 angles: Python loop over jitted sweeps    58.59 ms | one vmapped call    92.85 ms

in_axes=(0, None) says: the first argument carries the batch along its axis 0, the second is shared. Whether the vmapped call beats the Python loop depends on the hardware: on a GPU batching is usually a large gain, because one big kernel keeps the device busy; on a CPU, as used to build this notebook, the gain can be small or even negative – a single sweep already uses all cores, and the batched contraction works on a \(16\times\) larger array, which fits the caches less well. Compare the two numbers printed above on your own machine. We will use vmap heavily for trajectories, measurement shots and parameter sweeps, where the batch elements are small.

15.2 grad: the derivative of an einsum is an einsum

A contraction is linear in each of its inputs, so its derivative is again a contraction. Example: \(f(A)=\sum_{ij}x_iA_{ij}y_j\) has \(\partial f/\partial A_{ij}=x_iy_j\), an outer product. jax.grad finds this automatically – the basis of variational algorithms.

Code

# ==============================================================================
# grad of a contraction
# ==============================================================================
x_j = jnp.asarray(rng.normal(size=4), dtype=RDTYPE)
y_j = jnp.asarray(rng.normal(size=4), dtype=RDTYPE)


def bilinear(A):
    """f(A) = sum_ij x_i A_ij y_j"""
    return jnp.einsum("i,ij,j->", x_j, A, y_j)


check("grad of 'i,ij,j->' w.r.t. A  =  outer product 'i,j->ij'", jax.grad(bilinear)(A_j), jnp.einsum("i,j->ij", x_j, y_j), tol=TOL * 10)

grad of 'i,ij,j->' w.r.t. A  =  outer product 'i,j->ij' max|diff| = 0.0e+00

16. Preview: three spins and “acting on the middle index”

The tools above are enough to act on a three-spin state.

States. From your quantum-mechanics course: a spin-1/2 has the basis states \(|{\uparrow}\rangle\equiv|0\rangle=(1,0)^T\) and \(|{\downarrow}\rangle\equiv|1\rangle=(0,1)^T\). A state of three spins is

\[|\psi\rangle=\sum_{s_0,s_1,s_2\in\{0,1\}}\psi_{s_0s_1s_2}\,|s_0s_1s_2\rangle ,\]

so its amplitudes form a \((2,2,2)\) array, one axis per spin. The familiar column vector with 8 entries is psi.reshape(8), and by Eq. (3) the amplitude of \(|s_0s_1s_2\rangle\) sits at position \(k=4s_0+2s_1+s_2\). A product state \(|\phi_0\rangle|\phi_1\rangle|\phi_2\rangle\) has amplitudes \(\psi_{abc}=\phi^{(0)}_a\phi^{(1)}_b\phi^{(2)}_c\): an outer product, "a,b,c->abc" – exactly what outer_string(3) builds.

Operators. The Pauli matrix \(\sigma^x=\begin{pmatrix}0&1\\1&0\end{pmatrix}\) flips a spin. “Flip the middle spin” is, in the textbook, the \(8\times8\) matrix \(\mathbb 1\otimes\sigma^x\otimes\mathbb 1\). In index notation it is the contraction of Section 6,

\[\psi'_{s_0\,a\,s_2}=\sum_b \sigma^x_{ab}\,\psi_{s_0\,b\,s_2}\qquad\Longleftrightarrow\qquad\texttt{einsum("ab,xbz->xaz", sx, psi)},\]

and apply_matrix_to_axis(psi, sx, 1) builds that string for us.

Code

# ==============================================================================
# FIGURE: a 3-spin state as a tensor with three legs; a 2x2 matrix attached to the middle leg
# ==============================================================================
fig, axes = plt.subplots(1, 2, figsize=(10, 3.6))
for ax, with_M in zip(axes, (False, True)):
    ax.set_xlim(-2.3, 2.3); ax.set_ylim(-2.2, 1.0); ax.set_aspect("equal"); ax.axis("off")
    ax.add_patch(plt.Rectangle((-1.6, 0.0), 3.2, 0.6, facecolor=C_BLUE, edgecolor="k", lw=1.2, zorder=3))
    ax.text(0, 0.3, r"$\psi$", ha="center", va="center", fontsize=15, color="w", zorder=4)
    for xq, lab in ((-1.1, "$s_0$"), (1.1, "$s_2$")):
        draw_leg(ax, (xq, 0.0), (xq, -1.75), lab, open_end=True)
    if with_M:
        draw_leg(ax, (0, 0.0), (0, -0.55), "b", offset=(0.2, 0.05))
        draw_node(ax, 0, -0.85, "M", C_GREEN)
        draw_leg(ax, (0, -1.15), (0, -1.75), "a", open_end=True)
    else:
        draw_leg(ax, (0, 0.0), (0, -1.75), "$s_1$", open_end=True)
axes[0].set_title(r"state of three spins: $\psi_{s_0 s_1 s_2}$, shape (2,2,2)", fontsize=11)
axes[1].set_title(r'$M$ on the middle spin: $\sum_b M_{ab}\,\psi_{s_0 b s_2}$   "ab,xbz->xaz"', fontsize=11)
plt.tight_layout()
plt.show()

Code

# ==============================================================================
# THREE SPINS: flip the middle one -- index contraction vs the textbook 8x8 matrix
# ==============================================================================
up, down = np.array([1.0, 0.0]), np.array([0.0, 1.0])
sx = np.array([[0.0, 1.0], [1.0, 0.0]])                 # Pauli sigma^x
id2 = np.eye(2)

# --- a basis state: |up, up, down> = |0 0 1> ------------------------------------------------------
psi = np.einsum(outer_string(3), up, up, down)          # product state = outer product, shape (2,2,2)
print("|001>: non-zero amplitude at multi-index", tuple(int(s[0]) for s in np.nonzero(psi)),
      "= flat index", int(np.flatnonzero(psi.reshape(-1))[0]))
psi_flipped = apply_matrix_to_axis(psi, sx, 1)          # builds and uses 'db,abc->adc'
print("after sigma^x on spin 1:              ", tuple(int(s[0]) for s in np.nonzero(psi_flipped)),
      "= flat index", int(np.flatnonzero(psi_flipped.reshape(-1))[0]), " i.e. |011>")

# --- a generic (random complex, normalized) state: all three positions against the dense Kronecker product ---
psi = rng.normal(size=(2, 2, 2)) + 1j * rng.normal(size=(2, 2, 2))
psi /= np.linalg.norm(psi)
dense = {0: np.kron(np.kron(sx, id2), id2), 1: np.kron(np.kron(id2, sx), id2), 2: np.kron(np.kron(id2, id2), sx)}
for q in range(3):
    matrix_free = apply_matrix_to_axis(psi, sx, q).reshape(8)       # one small contraction
    textbook = dense[q] @ psi.reshape(8)                            # 8x8 matrix times 8-vector
    check(f"sigma^x on spin {q}: '{axis_string(3, q)}' vs kron chain", matrix_free, textbook)

|001>: non-zero amplitude at multi-index (0, 0, 1) = flat index 1
after sigma^x on spin 1:               (0, 1, 1) = flat index 3  i.e. |011>
sigma^x on spin 0: 'da,abc->dbc' vs kron chain       max|diff| = 0.0e+00
sigma^x on spin 1: 'db,abc->adc' vs kron chain       max|diff| = 0.0e+00
sigma^x on spin 2: 'dc,abc->abd' vs kron chain       max|diff| = 0.0e+00

The basis state \(|001\rangle\) (flat index \(1\)) became \(|011\rangle\) (flat index \(3=(011)_2\)): the middle bit was flipped. For a generic state and for each of the three positions, the small contraction reproduces the \(8\times8\) Kronecker-product matrix exactly. For 3 spins the saving is irrelevant; for 30 spins the dense matrix would need \(4^{30}\approx10^{18}\) entries, while the contraction still touches each of the \(2^{30}\) amplitudes only twice.

Finally, here is the first function of the course’s simulation engine that you can now read in full. It builds product states exactly the way we did, with a programmatically assembled outer-product string (the characters '0', '1' denote \(|{\uparrow}\rangle\), \(|{\downarrow}\rangle\); '+', '-' are the eigenstates of \(\sigma^x\), and 'r', 'l' those of \(\sigma^y\)):

Code

# ==============================================================================
# Functions of quantum_engine.py derived in this notebook
# ==============================================================================
# ----------------------------------------------------------------------------
# State preparation
# ----------------------------------------------------------------------------
_KETS = {"0": [1, 0], "1": [0, 1], "+": [1, 1], "-": [1, -1], "r": [1, 1j], "l": [1, -1j]}
def product_state(spec):
    """Product state from a string, one character per qubit:  product_state('01+-') = |0>|1>|+>|->.
    ('r','l' = the +1/-1 eigenstates of Y.)

    MATH    psi[s_0,...,s_{N-1}] = v0[s_0] v1[s_1] ... v_{N-1}[s_{N-1}]
    EINSUM  an outer product = einsum with NO summed index:  "a,b,c->abc".
    A product state needs only 2N numbers; entanglement is what makes all 2^N necessary.
    """
    vecs = [jnp.array(_KETS[c], dtype=CDTYPE) / jnp.linalg.norm(jnp.array(_KETS[c], dtype=CDTYPE))
            for c in spec]
    n = len(vecs)
    sub = ",".join(_LETTERS[i] for i in range(n)) + "->" + _LETTERS[:n]
    return jnp.einsum(sub, *vecs)


# ------------------------------------------------------------------------------
# CHECKPOINT: the engine function against our own outer product
# ------------------------------------------------------------------------------
plus = np.array([1.0, 1.0]) / np.sqrt(2)                # |+> = (|0> + |1>)/sqrt(2)
check("engine product_state('0+1') vs einsum(outer_string(3), up, plus, down)",
      product_state("0+1"), np.einsum(outer_string(3), up, plus, down), tol=TOL * 10)
print("shape:", product_state("0+1").shape, "| dtype:", product_state("0+1").dtype)

engine product_state('0+1') vs einsum(outer_string(3), up, plus, down) max|diff| = 0.0e+00

shape: (2, 2, 2) | dtype: complex128

The function apply_matrix_to_axis generalises to operators acting on one or several spins at once; Exercise 7 takes that step.

17. Summary – key takeaways

• einsum = index notation that runs. Three rules: a letter missing from the output is summed; a letter in the output is a free index (and the output order is yours to choose); the same letter in several places ties those axes together. All of it is nested loops: our naive_einsum does the same job in 25 lines.
• einsum never conjugates. Bras need an explicit .conj().
• C-ordering: the last index runs fastest, flat index \(k=\sum_m i_m\prod_{l>m}d_l\). For spins, the multi-index is the binary representation of \(k\) with spin 0 as the most significant bit.
• reshape regroups, transpose permutes. Reshape merges adjacent indices into a composite index (or splits one) and never moves data; to merge non-adjacent indices, transpose first.
• A matrix on a composite system is a tensor: \(M_{(ab),(cd)}=T_{abcd}\) (rows first, then columns). Kronecker product = outer product + index permutation + reshape, "ab,cd->acbd"; partial trace = repeated letter inside one operand, "abcb->ac".
• Never build \(A\otimes\mathbb 1\): an operator on one subsystem is a contraction with that subsystem’s index, cost \(\sim 2\cdot2^N\) instead of \(4^N\).
• Cost of a contraction = product of the lengths of all distinct letters. With several tensors the order of pairwise contractions matters (\(n^3\) vs \(n^2\) for \(ABv\)); keep the big tensor as one operand and feed small matrices into it.
• Strings can be built by code (letters in lists, fresh letters for new indices). In JAX the string is static, the arrays are traced: jit compiles a whole sequence of contractions, vmap adds batch indices, grad differentiates through them.

operation	formula	einsum string
matrix-vector	\(y_i=\sum_jA_{ij}x_j\)	"ij,j->i"
matrix-matrix	\(C_{ik}=\sum_jA_{ij}B_{jk}\)	"ij,jk->ik"
inner product	\(\sum_ia_i^*b_i\)	"i,i->" with a.conj()
outer product	\(a_ib_j\)	"i,j->ij"
trace / diagonal	\(\sum_iA_{ii}\) / \(A_{ii}\)	"ii->" / "ii->i"
transpose / permutation	\(B_{kij}=T_{ijk}\)	"ijk->kij"
Hadamard product	\(A_{ij}B_{ij}\)	"ij,ij->ij"
\(\mathrm{Tr}(ABC)\)	\(\sum_{ijk}A_{ij}B_{jk}C_{ki}\)	"ij,jk,ki->"
batched matmul	\(\sum_jA_{\beta ij}B_{\beta jk}\)	"bij,bjk->bik"
Kronecker product	\(A_{ab}B_{cd}\)	"ab,cd->acbd" + reshape
\((A\otimes B)v\) without \(A\otimes B\)	\(\sum_{bd}A_{ab}B_{cd}V_{bd}\)	"ab,cd,bd->ac"
partial traces	\(\sum_bT_{abcb}\), \(\sum_aT_{abad}\)	"abcb->ac", "abad->bd"
matrix on the middle index	\(\sum_bM_{ab}T_{xbz}\)	"ab,xbz->xaz"

18. Exercises

Each exercise comes with a checker that tests your answer with asserts on random data. Replace None by your answer and run the cell: it prints PASSED or raises an AssertionError telling you what went wrong. As long as the answer is None, the cell only reports “not attempted”, so the notebook still runs from top to bottom. Solutions are collected in Section 20 at the very end – try each exercise yourself before you look. Difficulty: ★ warm-up, ★★ requires thought, ★★★ a small project.

Code

# ==============================================================================
# EXERCISE RUNNER
# ==============================================================================
def run_exercise(number, answer, checker):
    """Run `checker(answer)` (which asserts correctness) unless the exercise has not been attempted yet."""
    if answer is None:
        print(f"Exercise {number}: not attempted yet (replace None by your answer).")
        return
    checker(answer)
    print(f"Exercise {number}: PASSED")

Exercise 1 (★) – five strings. For \(n\times n\) matrices \(A,B\) and a batch of vectors \(X_{\beta i}\) write the einsum strings for (a) the column sums \(c_j=\sum_iA_{ij}\); (b) the product \(A^TB\), i.e. \(\sum_kA_{ki}B_{kj}\); (c) the squared Frobenius norm \(\sum_{ij}A_{ij}^2\) (two operands, both A); (d) the diagonal of the product, \(d_i=\sum_jA_{ij}B_{ji}\), without computing the off-diagonal entries of \(AB\); (e) the squared norms of all vectors in the batch, \(n_\beta=\sum_iX_{\beta i}^2\) (two operands, both X). What is the cost of (d) compared with np.diag(A @ B)?

Code

def check_ex1(strings):
    A_, B_, X_ = rng.normal(size=(5, 5)), rng.normal(size=(5, 5)), rng.normal(size=(7, 5))
    refs = {"a": ((A_,), A_.sum(axis=0)), "b": ((A_, B_), A_.T @ B_), "c": ((A_, A_), np.linalg.norm(A_) ** 2),
            "d": ((A_, B_), np.diag(A_ @ B_)), "e": ((X_, X_), np.linalg.norm(X_, axis=1) ** 2)}
    for key, (ops, ref) in refs.items():
        got = np.einsum(strings[key], *ops)
        assert got.shape == np.shape(ref), f"({key}): wrong output shape {got.shape}"
        assert np.allclose(got, ref), f"({key}): wrong numbers"
        if key == "d":
            assert len(set(strings[key]) - set(",->")) == 2, "(d): use only two distinct letters -> cost n^2, not n^3"


ex1_answer = None      # e.g. {"a": "ij->j", "b": "...", "c": "...", "d": "...", "e": "..."}
run_exercise(1, ex1_answer, check_ex1)

Exercise 1: not attempted yet (replace None by your answer).

Exercise 2 (★) – from the flat index back to the multi-index. Write multi_from_flat(k, shape), the inverse of flat_from_multi of Section 5.2, using only integer division and remainder (divmod). Hint: the last index is k % d_last. For shape (2,)*N your function converts a number to its \(N\) binary digits.

Code

def check_ex2(multi_from_flat):
    for shape_ in [(2, 3, 4), (5, 1, 3, 2), (2,) * 6]:
        for k_ in range(int(np.prod(shape_))):
            got = tuple(int(i) for i in multi_from_flat(k_, shape_))
            assert got == tuple(int(i) for i in np.unravel_index(k_, shape_)), f"shape {shape_}, k={k_}: got {got}"
            assert flat_from_multi(got, shape_) == k_


ex2_answer = None      # a function:  def multi_from_flat(k, shape): ...
run_exercise(2, ex2_answer, check_ex2)

Exercise 2: not attempted yet (replace None by your answer).

Exercise 3 (★★) – reshape or transpose? A tensor T has shape (2,3,4) with indices \((i,j,k)\). Write a function that returns the \((8,3)\) matrix \(Q_{(ik),j}=T_{ijk}\) whose row index is the composite of the first and the last index, \(I=4i+k\). (Which of the two operations of Section 5 do you need first?)

Code

def check_ex3(merge_first_last):
    T_ = rng.normal(size=(2, 3, 4))
    Q = merge_first_last(T_)
    assert Q.shape == (8, 3), f"wrong shape {Q.shape}"
    for i_, j_, k_ in itertools.product(range(2), range(3), range(4)):
        assert Q[4 * i_ + k_, j_] == T_[i_, j_, k_], "wrong entry: a bare reshape does not bring i and k together"


ex3_answer = None      # a function:  def merge_first_last(T): ...
run_exercise(3, ex3_answer, check_ex3)

Exercise 3: not attempted yet (replace None by your answer).

Exercise 4 (★★) – partial transpose. For a matrix \(M\) on a composite space \((d_A,d_B)\) the partial transpose with respect to \(B\) swaps the row and column index of subsystem \(B\) only: \(\big(M^{T_B}\big)_{(ab),(cd)}=M_{(ad),(cb)}\). Implement partial_transpose_B(M, dA, dB) with one reshape, one einsum and one reshape. For product operators it must give \((A\otimes B)^{T_B}=A\otimes B^T\). (The partial transpose is the key to detecting entanglement in mixed states, as shown in [9], [10].)

Code

def check_ex4(partial_transpose_B):
    dA_, dB_ = 2, 3
    A1_, A2_ = rng.normal(size=(2, dA_, dA_))
    B1_, B2_ = rng.normal(size=(2, dB_, dB_))
    M_ = np.kron(A1_, B1_) + np.kron(A2_, B2_)
    ref = np.kron(A1_, B1_.T) + np.kron(A2_, B2_.T)
    got = partial_transpose_B(M_, dA_, dB_)
    assert got.shape == ref.shape and np.allclose(got, ref), "wrong result (did you transpose A as well?)"
    assert np.allclose(partial_transpose_B(got, dA_, dB_), M_), "applying it twice must give back M"


ex4_answer = None      # a function:  def partial_transpose_B(M, dA, dB): ...
run_exercise(4, ex4_answer, check_ex4)

Exercise 4: not attempted yet (replace None by your answer).

Exercise 5 (★★) – cost counter. Write contraction_cost(subscripts, *shapes) that returns the number of innermost loop iterations of naive_einsum: the product of the lengths of all distinct letters. Then use it to answer: for "ij,jk,kl,l->i" with \(n=100\), what is the cost of the literal evaluation, and what is the total cost of the best sequence of pairwise contractions?

Code

def check_ex5(contraction_cost):
    assert contraction_cost("ij,j->i", (10, 20), (20,)) == 200
    assert contraction_cost("ij,jk->ik", (10, 20), (20, 30)) == 6000
    assert contraction_cost("abcb->ac", (2, 3, 2, 3)) == 12
    assert contraction_cost("ab,xbz->xaz", (2, 2), (2, 2, 2)) == 16
    assert contraction_cost("ij,jk,kl,l->i", *[(100, 100)] * 3, (100,)) == 100 ** 4


ex5_answer = None      # a function:  def contraction_cost(subscripts, *shapes): ...
run_exercise(5, ex5_answer, check_ex5)

Exercise 5: not attempted yet (replace None by your answer).

Exercise 6 (★★, physics) – the singlet. Two spins-1/2 in the state \(\psi_{s_0s_1}\) (a \((2,2)\) array). (a) Write expect_op_spin0(psi, O) that returns \(\langle\psi|\,O\otimes\mathbb 1\,|\psi\rangle=\sum_{a,c,b}\psi^*_{ab}\,O_{ac}\,\psi_{cb}\) as one einsum, without np.kron. (b) Write reduced_matrix_spin0(psi) that returns the \(2\times2\) matrix \(\rho_{ac}=\sum_b\psi_{ab}\psi^*_{cb}\). Evaluate both for the singlet \((|{\uparrow\downarrow}\rangle-|{\downarrow\uparrow}\rangle)/\sqrt2\) and for the product state \(|{\uparrow\downarrow}\rangle\), with \(O=\sigma^z\). Interpret: what does spin 0 “look like” if spin 1 is ignored? (The matrix \(\rho\) is the reduced density matrix, and \(\langle O\rangle=\mathrm{Tr}(\rho\,O)\).)

Code

def check_ex6(functions):
    expect_op_spin0, reduced_matrix_spin0 = functions
    psi_ = rng.normal(size=(2, 2)) + 1j * rng.normal(size=(2, 2))
    psi_ /= np.linalg.norm(psi_)
    O_ = rng.normal(size=(2, 2)) + 1j * rng.normal(size=(2, 2))
    ref = np.vdot(psi_.reshape(4), np.kron(O_, np.eye(2)) @ psi_.reshape(4))
    assert np.allclose(expect_op_spin0(psi_, O_), ref), "expectation value differs from the dense <psi|O(x)1|psi> (conjugate?)"
    rho_ = reduced_matrix_spin0(psi_)
    assert rho_.shape == (2, 2) and np.allclose(rho_, rho_.conj().T) and np.isclose(np.trace(rho_), 1.0)
    assert np.allclose(np.trace(rho_ @ O_), ref), "Tr(rho O) must reproduce the expectation value"
    singlet_ = np.array([[0, 1], [-1, 0]]) / np.sqrt(2)
    assert np.allclose(reduced_matrix_spin0(singlet_), np.eye(2) / 2)


ex6_answer = None      # a tuple of two functions: (expect_op_spin0, reduced_matrix_spin0)
run_exercise(6, ex6_answer, check_ex6)

Exercise 6: not attempted yet (replace None by your answer).

Exercise 7 (★★★, extend the code) – a matrix on two axes. Generalize Section 14.2: write two_axis_string(n, q1, q2) and apply_matrix_to_two_axes(T, M4, q1, q2) for a \(4\times4\) matrix acting on the (not necessarily adjacent) axes \(q_1,q_2\) of a tensor of shape \((2,)^n\). Steps: reshape M4 to \(U_{a_1a_2b_1b_2}\) (Section 7: rows first, then columns; \(q_1\) belongs to the more significant digit); take two fresh letters; \(U\) carries (new\(_1\), new\(_2\), old\(_{q_1}\), old\(_{q_2}\)); in the output the letters at positions \(q_1,q_2\) are replaced by the new ones. For \(n=4\), \((q_1,q_2)=(1,3)\) you should obtain "efbd,abcd->aecf". The checker compares with an independent route (move the two axes to the front, reshape to a \((4,\text{rest})\) matrix, multiply, undo), including \(q_1>q_2\).

Code

def check_ex7(apply_matrix_to_two_axes):
    n_ = 4
    T_ = rng.normal(size=(2,) * n_)
    M4_ = rng.normal(size=(4, 4))
    for q1_, q2_ in [(0, 1), (1, 2), (1, 3), (0, 3), (3, 1), (2, 0)]:
        moved = np.moveaxis(T_, (q1_, q2_), (0, 1))                       # reference: bring q1,q2 to the front ...
        ref = (M4_ @ moved.reshape(4, -1)).reshape((2,) * n_)             # ... composite index (q1,q2), ordinary matmul ...
        ref = np.moveaxis(ref, (0, 1), (q1_, q2_))                        # ... and put the axes back
        got = apply_matrix_to_two_axes(T_, M4_, q1_, q2_)
        assert got.shape == ref.shape and np.allclose(got, ref), f"wrong result for (q1,q2)=({q1_},{q2_})"


ex7_answer = None      # a function:  def apply_matrix_to_two_axes(T, M4, q1, q2): ...
run_exercise(7, ex7_answer, check_ex7)

Exercise 7: not attempted yet (replace None by your answer).

Exercise 8 (★★, JAX) – one compiled contraction instead of a Python loop. The “average magnetization along \(x\)” of a real, normalized tensor \(T\) of shape \((2,)^n\) (\(n\) spins) is \(m=\frac1n\sum_{q}\langle T|\sigma^x_q|T\rangle\), where \(\sigma^x_q\) acts on axis \(q\). Write mean_sx(T) with jnp.einsum, reusing axis_string, decorate it with jax.jit, and measure compile time and run time separately for \(n=16\) as in Section 15. (No checker for the timing; the checker tests the value for the uniform tensor \(T\propto1\), for which \(m=1\), and for a basis state, for which \(m=0\).)

Code

def check_ex8(mean_sx):
    n_ = 6
    uniform = jnp.ones((2,) * n_, dtype=RDTYPE) / jnp.sqrt(2.0 ** n_)
    basis = jnp.zeros((2,) * n_, dtype=RDTYPE).at[(0,) * n_].set(1.0)
    assert abs(float(mean_sx(uniform)) - 1.0) < 10 * TOL, "uniform tensor: every spin points along +x, m must be 1"
    assert abs(float(mean_sx(basis))) < 10 * TOL, "basis state |00..0>: <sigma^x> = 0 on every spin"


ex8_answer = None      # a function:  def mean_sx(T): ...
run_exercise(8, ex8_answer, check_ex8)

Exercise 8: not attempted yet (replace None by your answer).

19. References

[1] A. Einstein, Die Grundlage der allgemeinen Relativitätstheorie, Annalen der Physik (4th series) 49, 769-822 (1916); in the publisher’s continuous numbering vol. 354, DOI 10.1002/andp.19163540702 – the paper that introduced the summation convention.

[2] C. R. Harris et al., Array programming with NumPy, Nature 585, 357 (2020) – arrays, strides, views, broadcasting.

[3] M. A. Nielsen and I. L. Chuang, Quantum Computation and Quantum Information (Cambridge University Press, 2000; 10th anniversary edition 2010, DOI 10.1017/CBO9780511976667) – tensor products (Sec. 2.1.7) and the reduced density operator / partial trace (Sec. 2.4.3).

[4] R. Penrose, Applications of negative dimensional tensors, in Combinatorial Mathematics and its Applications, ed. D. J. A. Welsh (Academic Press, 1971), pp. 221-244 – the origin of the diagrammatic notation.

[5] J. C. Bridgeman and C. T. Chubb, Hand-waving and interpretive dance: an introductory course on tensor networks, J. Phys. A: Math. Theor. 50, 223001 (2017) – tensor diagrams and contraction costs for beginners.

[6] R. Orús, A practical introduction to tensor networks: Matrix product states and projected entangled pair states, Annals of Physics 349, 117 (2014).

[7] D. G. A. Smith and J. Gray, opt_einsum – A Python package for optimizing contraction order for einsum-like expressions, Journal of Open Source Software 3(26), 753 (2018) – the contraction-path optimizer used by jnp.einsum; the same optimization was contributed upstream to NumPy, where optimize=True selects its greedy variant.

[8] J. Bradbury et al., JAX: composable transformations of Python+NumPy programs (2018), software available at https://github.com/jax-ml/jax ; see the jax.numpy.einsum documentation.

[9] A. Peres, Separability criterion for density matrices, Phys. Rev. Lett. 77, 1413 (1996) – the partial-transpose criterion of Exercise 4.

[10] M. Horodecki, P. Horodecki and R. Horodecki, Separability of mixed states: necessary and sufficient conditions, Phys. Lett. A 223, 1 (1996).

20. Solutions to the exercises

Every solution is passed through the same checker as above, so this section doubles as a test of the checkers.

Code

# ==============================================================================
# SOLUTIONS 1-3
# ==============================================================================
# --- Exercise 1 ---  (d) uses two letters only: cost n^2, whereas np.diag(A @ B) computes all n^2 entries of AB at cost n^3
sol1 = {"a": "ij->j", "b": "ki,kj->ij", "c": "ij,ij->", "d": "ij,ji->i", "e": "bi,bi->b"}
run_exercise(1, sol1, check_ex1)


# --- Exercise 2 ---  peel off the digits from the right: the last index is the remainder modulo the last dimension
def multi_from_flat_solution(k, shape):
    multi = []
    for d in reversed(shape):
        k, i = divmod(k, d)            # k <- k // d,  i <- k % d
        multi.append(i)
    return tuple(reversed(multi))


run_exercise(2, multi_from_flat_solution, check_ex2)
print("   example: 45 in binary with 6 digits ->", multi_from_flat_solution(45, (2,) * 6), f"= {45:06b}")


# --- Exercise 3 ---  transpose first (bring i and k next to each other), reshape second
def merge_first_last_solution(T):
    return np.einsum("ijk->ikj", T).reshape(T.shape[0] * T.shape[2], T.shape[1])


run_exercise(3, merge_first_last_solution, check_ex3)

Exercise 1: PASSED
Exercise 2: PASSED
   example: 45 in binary with 6 digits -> (1, 0, 1, 1, 0, 1) = 101101
Exercise 3: PASSED

Code

# ==============================================================================
# SOLUTIONS 4-6
# ==============================================================================
# --- Exercise 4 ---  T[a,b,c,d] -> T[a,d,c,b]: swap the two B-letters, leave the A-letters alone
def partial_transpose_B_solution(M, dA, dB):
    T = M.reshape(dA, dB, dA, dB)
    return np.einsum("abcd->adcb", T).reshape(dA * dB, dA * dB)


run_exercise(4, partial_transpose_B_solution, check_ex4)


# --- Exercise 5 ---
def contraction_cost_solution(subscripts, *shapes):
    inputs = subscripts.split("->")[0].split(",")
    size = {}
    for labels, shape_ in zip(inputs, shapes):
        size.update(zip(labels, shape_))
    return int(np.prod([size[l] for l in size]))


run_exercise(5, contraction_cost_solution, check_ex5)
n_ = 100
literal = contraction_cost_solution("ij,jk,kl,l->i", *[(n_, n_)] * 3, (n_,))
pairwise = 3 * contraction_cost_solution("kl,l->k", (n_, n_), (n_,))      # right to left: three matrix-vector products
print(f"   'ij,jk,kl,l->i', n={n_}: literal {literal:.1e} iterations, best pairwise order (right to left) {pairwise:.1e}")


# --- Exercise 6 ---
def expect_op_spin0_solution(psi, O):
    return np.einsum("ab,ac,cb->", psi.conj(), O, psi)


def reduced_matrix_spin0_solution(psi):
    return np.einsum("ab,cb->ac", psi, psi.conj())


run_exercise(6, (expect_op_spin0_solution, reduced_matrix_spin0_solution), check_ex6)
sz = np.diag([1.0, -1.0])
singlet = np.array([[0.0, 1.0], [-1.0, 0.0]]) / np.sqrt(2)               # psi[0,1] = 1/sqrt2, psi[1,0] = -1/sqrt2
up_down = np.einsum("a,b->ab", up, down)
for name, state in (("singlet", singlet), ("|up,down>", up_down)):
    print(f"   {name:<10s}: <sigma^z_0> = {expect_op_spin0_solution(state, sz).real:+.3f},  rho =",
          np.round(reduced_matrix_spin0_solution(state).real, 3).tolist())

Exercise 4: PASSED
Exercise 5: PASSED
   'ij,jk,kl,l->i', n=100: literal 1.0e+08 iterations, best pairwise order (right to left) 3.0e+04
Exercise 6: PASSED
   singlet   : <sigma^z_0> = +0.000,  rho = [[0.5, 0.0], [0.0, 0.5]]
   |up,down> : <sigma^z_0> = +1.000,  rho = [[1.0, 0.0], [0.0, 0.0]]

Interpretation of Exercise 6. In the product state spin 0 simply points up: \(\rho=|{\uparrow}\rangle\langle{\uparrow}|\) and \(\langle\sigma^z_0\rangle=+1\). In the singlet \(\rho=\mathbb 1/2\): looked at alone, spin 0 is completely random – every measurement direction gives \(\pm1\) with probability \(1/2\) – although the two-spin state is perfectly well defined. All the information sits in the correlations between the spins. This is the hallmark of entanglement.

Code

# ==============================================================================
# SOLUTIONS 7-8
# ==============================================================================
# --- Exercise 7 ---
def two_axis_string(n, q1, q2):
    inp = list(_LETTERS[:n])
    new1, new2 = _LETTERS[n], _LETTERS[n + 1]
    out = inp.copy()
    out[q1], out[q2] = new1, new2
    return f"{new1}{new2}{inp[q1]}{inp[q2]},{''.join(inp)}->{''.join(out)}"


def apply_matrix_to_two_axes_solution(T, M4, q1, q2):
    U = M4.reshape(2, 2, 2, 2)                          # U[a1,a2,b1,b2]: rows (a1,a2), columns (b1,b2)
    return np.einsum(two_axis_string(T.ndim, q1, q2), U, T)


print("   n=4, (q1,q2)=(1,3):", two_axis_string(4, 1, 3))
assert two_axis_string(4, 1, 3) == "efbd,abcd->aecf"
run_exercise(7, apply_matrix_to_two_axes_solution, check_ex7)


# --- Exercise 8 ---
@jax.jit
def mean_sx_solution(T):
    sx_j = jnp.array([[0.0, 1.0], [1.0, 0.0]], dtype=T.dtype)
    n = T.ndim
    total = 0.0
    for q in range(n):                                  # static Python loop, unrolled at trace time
        total = total + jnp.vdot(T, jnp.einsum(axis_string(n, q), sx_j, T))
    return total / n


run_exercise(8, mean_sx_solution, check_ex8)
T16 = jnp.asarray(rng.normal(size=(2,) * 16), dtype=RDTYPE)
T16 = T16 / jnp.linalg.norm(T16)
t0 = time.perf_counter()
m16 = float(mean_sx_solution(T16))
t_first = time.perf_counter() - t0
print(f"   n=16, random tensor: m = {m16:+.5f} | first call (compile+run) {t_first * 1e3:.1f} ms | later calls "
      f"{best_time(mean_sx_solution, T16) * 1e3:.2f} ms")

   n=4, (q1,q2)=(1,3): efbd,abcd->aecf
Exercise 7: PASSED

Exercise 8: PASSED

   n=16, random tensor: m = -0.00010 | first call (compile+run) 282.8 ms | later calls 2.21 ms

---

Marcin Płodzień, PhD

Citation: M. Płodzień, Quantum Many-Body Simulation: from a single spin to quantum machine learning (2026), https://marcinplodzien.github.io/quantum-many-body-simulation/
