The central computational problem of quantum many-body physics is the ground state: the eigenvector of the Hamiltonian with the lowest eigenvalue. Magnetic order, superconductivity, the binding energy of a molecule and the phase diagram of a spin chain are all read off from it. Exact diagonalisation gives it for \(N\lesssim20\) spins and then stops, because the Hilbert-space dimension is \(2^N\).
The variational quantum eigensolver (VQE) is one answer to that wall. It replaces the eigenvalue problem by a minimisation: pick a family of states \(\vert\psi(\boldsymbol\theta)\rangle\) that a quantum device can prepare, measure the energy \(E(\boldsymbol\theta)=\langle\psi(\boldsymbol\theta)\vert H\vert\psi(\boldsymbol\theta)\rangle\), and let a classical optimiser push \(\boldsymbol\theta\) downhill. The variational principle guarantees that whatever the optimiser finds is an upper bound on the true ground energy \(E_0\), so the method cannot lie in the dangerous direction: it can only be too high.
The algorithm was introduced in [1], where it was demonstrated on a photonic chip; it was run on up to six superconducting qubits for small molecules and a quantum magnet with a hardware-efficient circuit [2], and is one of the most studied applications of noisy intermediate-scale devices [3].
What this notebook does. We run the complete algorithm on a simulator, where the exact answer is available from Lanczos, and we ask the questions that only a simulator can answer:
the energy converges — but does the state? We derive and then measure the two inequalities that connect the energy error to the fidelity, and find that the energy error is second order in the state error while being bounded below by (gap) \(\times\) (infidelity) when the ground state is unique;
the Hamiltonians have a symmetry; the ansatz does not. We measure how much symmetry the optimised state leaks;

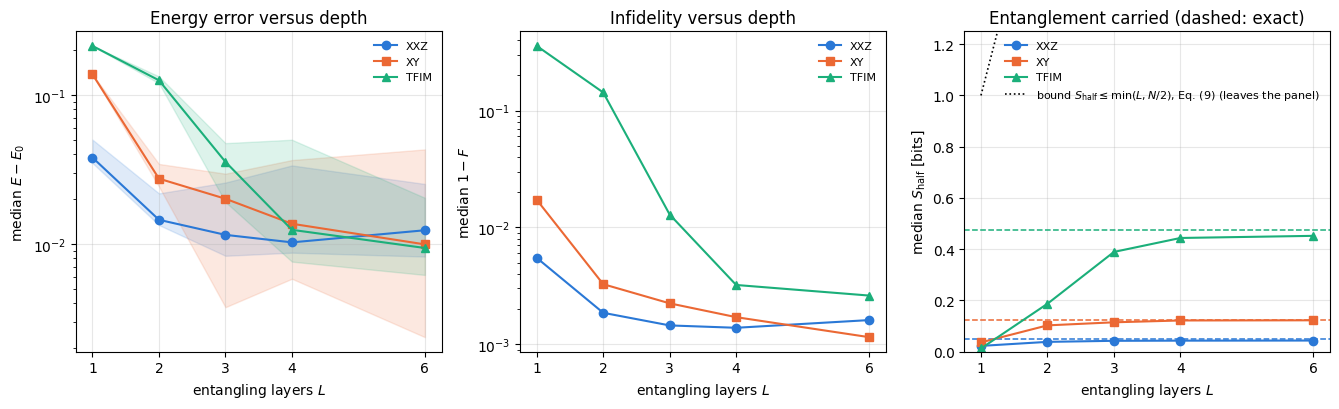

how does the error depend on the number of layers, and is the limit expressivity or trainability?

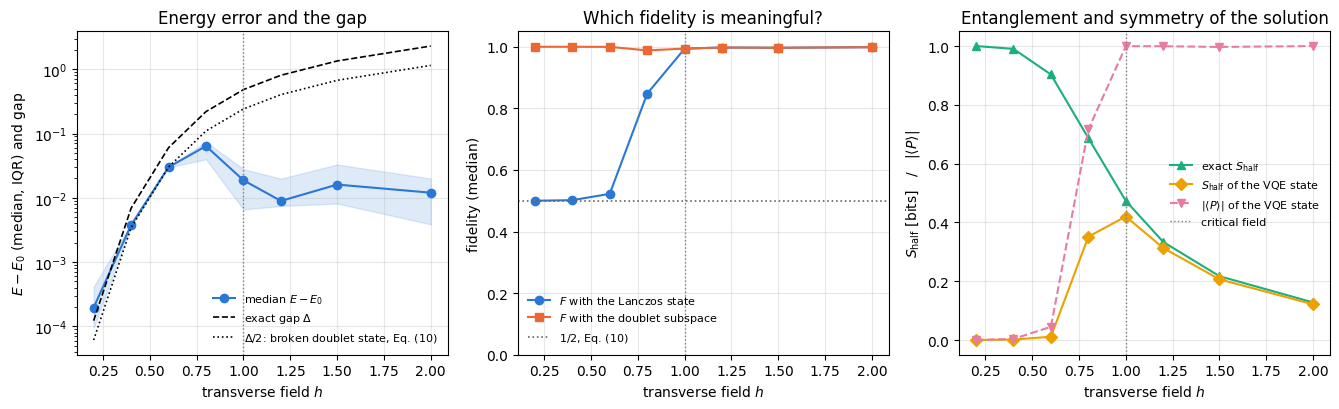

across the phase diagram of the transverse-field Ising chain, where is VQE hard — and what does “fidelity” even mean in a phase with a nearly degenerate ground doublet?

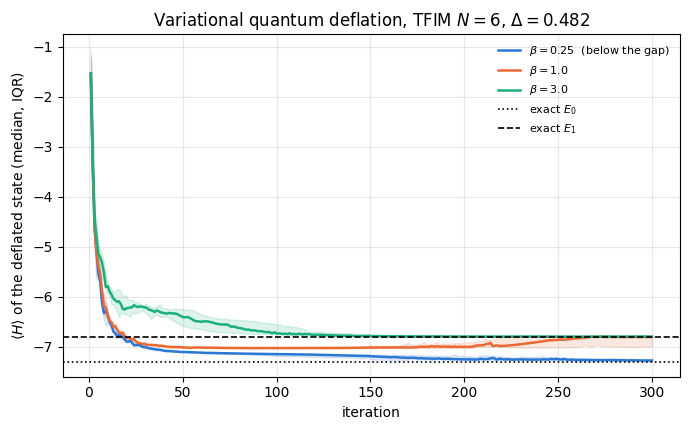

how does one get an excited state out of a method built to minimise?

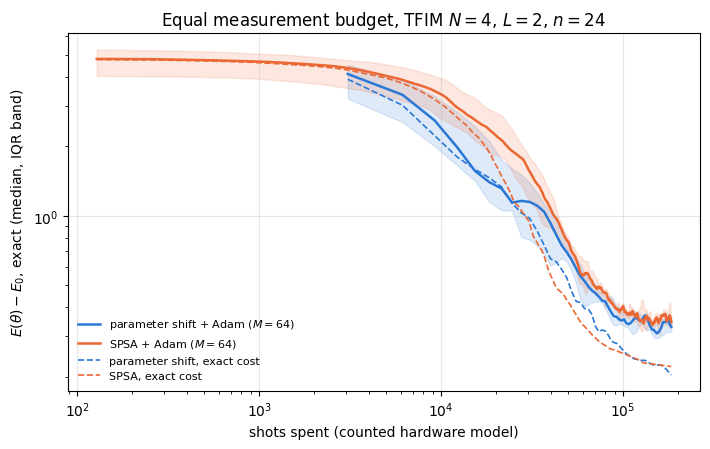

with a finite measurement budget, which optimiser gets further per shot?
Road map. Section 3 proves the variational principle and the two error relations, and measures them. Section 4 fixes the three Hamiltonians and their exact references. Section 5 treats symmetry. Sections 6 to 8 build and run the VQE loop and produce the nine-panel metric comparison against the exact ground state. Sections 9 to 13 are the studies: symmetry leakage, depth, the phase diagram, deflation for the first excited state, and shot noise at equal budget. Section 14 lists the limits of what was shown.
What you will learn
Physics
the Rayleigh-Ritz variational principle with its proof, and why it makes an upper bound on \(E_0\) free;
why the energy error is quadratic in the state error, and why a small energy error certifies a high fidelity only through the spectral gap \(\Delta\): \(E-E_0\ge\Delta\,(1-F)\) for a unique ground state, so that near a degeneracy an energy error of \(2\cdot10^{-4}\) coexists with a fidelity of \(1/2\);
what a \(\mathbb Z_2\) symmetry of a spin chain is, why the hardware-efficient ansatz breaks it, and what symmetry breaking means for a finite chain with an exponentially small gap;
the physics of the transverse-field Ising chain across its transition at \(N=6\): the doublet splitting closes exponentially in the ordered phase, the half-chain entropy of a short open chain is largest in the ordered phase (one bit of cat-state entanglement) rather than at the critical point, and a variational state can have a tiny energy error and fidelity \(\approx1/2\).
Numerical methods
the VQE loop as a compiled lax.scan with statistics over random initialisations, never a single run;
variational quantum deflation: an orthogonality penalty that turns a minimiser into an excited-state solver, and the condition on the penalty strength;
the entanglement a depth-\(L\) nearest-neighbour circuit can carry across a cut, derived as a bound and measured;
a fair comparison of gradient methods at equal measurement budget rather than at equal iteration count.
Implementation practice
making the Hamiltonian coefficients traced arguments so that one compiled program serves three models, or a whole magnetic-field sweep;
a vector-valued monitor inside the training scan, so that nine physical observables are recorded per iteration at the cost of one compilation;
validating every reference: Lanczos against dense diagonalisation, matrix-free energies against explicit matrix elements, and a symmetry against a matrix-free commutator.
Conventions and sizes. Qubit \(q\) is tensor axis \(q\); \(\vert0\rangle\) is the \(+1\) eigenstate of \(Z\). Hamiltonians are written in the Pauli convention (Section 4.1), never with spin-\(1/2\) operators. The main studies use \(N=6\) spins so that twelve random restarts times three models times three hundred iterations fit into one compiled program; the shot-noise study uses \(N=4\).
Configuration
Every notebook of this course starts with the same cell. Choose where to run (DEVICE) and the floating-point precision (PRECISION): "double" = float64/complex128 (default, recommended for physics), "single" = float32/complex64 (half the memory, faster on consumer GPUs, but watch the round-off). All code below derives its dtypes from RDTYPE/CDTYPE and its check tolerances from TOL, so nothing else needs to change.
Code
# ==============================================================================# CONFIGURATION -- adapt to your hardware, then run the notebook top to bottom# ==============================================================================DEVICE ="auto"# "auto": use a GPU if JAX finds one, else CPU | "cpu" | "gpu"PRECISION ="double"# "double": float64/complex128 | "single": float32/complex64import osif DEVICE =="cpu": os.environ["JAX_PLATFORMS"] ="cpu"# must be set BEFORE jax is importedimport stringfrom functools import partialimport mathimport numpy as npimport jaximport jax.numpy as jnpfrom jax import lax# Precision is configurable: "double" = float64/complex128 (default; needed for long time evolutions and# tight validation), "single" = float32/complex64 (half the memory, faster on consumer GPUs).jax.config.update("jax_enable_x64", PRECISION =="double")RDTYPE = jnp.float64 if PRECISION =="double"else jnp.float32 # real dtypeCDTYPE = jnp.complex128 if PRECISION =="double"else jnp.complex64 # complex dtype of all states/operatorsTOL =1e-10if PRECISION =="double"else1e-4# tolerance for sanity checks (asserts)_LETTERS = string.ascii_letters # the 52 einsum index labels a-z, A-Zimport timeimport matplotlib.pyplot as pltif DEVICE =="gpu"and jax.default_backend() =="cpu":print("WARNING: DEVICE='gpu' requested but JAX found no GPU -- running on CPU.")print(f"JAX {jax.__version__} | backend: {jax.default_backend()} | devices: {jax.devices()}")print(f"precision: {PRECISION} -> real {RDTYPE.__name__}, complex {CDTYPE.__name__}, check tolerance TOL={TOL:g}")
JAX 0.11.0 | backend: cpu | devices: [CpuDevice(id=0)]
precision: double -> real float64, complex complex128, check tolerance TOL=1e-10
2. Engine recap and notebook helpers
From the engine we take the gate application and rotations, the hardware-efficient ansatz with its parameter count, the Hamiltonian machinery (heisenberg_terms, energy, dense_hamiltonian, lanczos_ground_state), the state characteristics (entanglement_entropy, fidelity_pure, all_local_expectations, expect_pauli_string) and sample_bitstrings for the shot-noise section. The optimiser and training-loop helpers are the ones derived in notebook 41, optimisers and are repeated here so that this notebook runs on its own.
Engine recap — the simulator primitives used in this notebook (click to expand)
# ==============================================================================# ENGINE RECAP: the functions of quantum_engine.py (SmoQ.jax) used in this notebook.# All of them are collected, with their mathematics, in the notebook# 'Building the quantum simulator engine'.# States are rank-N tensors of shape (2,)*N; every operator acts through ONE einsum.# ==============================================================================# ----------------------------------------------------------------------------# Elementary matrices: Paulis, Clifford generators, rotations# ----------------------------------------------------------------------------I2 = jnp.eye(2, dtype=CDTYPE)X = jnp.array([[0, 1], [1, 0]], dtype=CDTYPE)Y = jnp.array([[0, -1j], [1j, 0]], dtype=CDTYPE)Z = jnp.array([[1, 0], [0, -1]], dtype=CDTYPE)H = jnp.array([[1, 1], [1, -1]], dtype=CDTYPE) / jnp.sqrt(2.0) # Hadamard: Z-basis <-> X-basisS = jnp.array([[1, 0], [0, 1j]], dtype=CDTYPE) # phase gate, S^2 = ZSDG = S.conj().TPAULI = {"I": I2, "X": X, "Y": Y, "Z": Z}CZ = jnp.diag(jnp.array([1, 1, 1, -1], dtype=CDTYPE))XX = jnp.kron(X, X)YY = jnp.kron(Y, Y)ZZ = jnp.kron(Z, Z)def rx(theta):"""Rotation about x: Rx(theta) = exp(-i theta X/2) = cos(theta/2) 1 - i sin(theta/2) X. Derivation: for any operator with P^2 = 1 the exponential series splits into even/odd parts, exp(-i a P) = cos(a) 1 - i sin(a) P. Here a = theta/2. `theta` may be a traced JAX scalar, so the gate is differentiable (jax.grad) and jit-able. """ c, s = jnp.cos(theta /2), jnp.sin(theta /2)return jnp.array([[c, -1j* s], [-1j* s, c]], dtype=CDTYPE)def ry(theta):"""Rotation about y: Ry(theta) = exp(-i theta Y/2) = [[cos, -sin], [sin, cos]](theta/2) (real matrix).""" c, s = jnp.cos(theta /2), jnp.sin(theta /2)return jnp.array([[c, -s], [s, c]], dtype=CDTYPE)def rz(theta):"""Rotation about z: Rz(theta) = exp(-i theta Z/2) = diag(e^{-i theta/2}, e^{+i theta/2}).""" e = jnp.exp(-0.5j* theta)return jnp.array([[e, 0], [0, jnp.conj(e)]], dtype=CDTYPE)def rpp(theta, PP):"""Two-qubit Pauli rotation exp(-i theta PP/2) for any product PP of two Pauli matrices (XX, YY, ZZ, XY, ...). Because (P x Q)^2 = 1 the same closed form as for single-qubit rotations holds: exp(-i theta PP/2) = cos(theta/2) 1_4 - i sin(theta/2) PP. These are the native entangling gates of trapped ions (XX) and the building blocks of Trotterised spin-chain evolution. """return jnp.cos(theta /2) * jnp.eye(4, dtype=CDTYPE) -1j* jnp.sin(theta /2) * PPdef rxx(theta):"""exp(-i theta X(x)X / 2)."""return rpp(theta, XX)def rzz(theta):"""exp(-i theta Z(x)Z / 2) -- diagonal: diag(e^{-i t/2}, e^{+i t/2}, e^{+i t/2}, e^{-i t/2})."""return rpp(theta, ZZ)# ----------------------------------------------------------------------------# THE core primitive: a k-qubit operator acting on a tensor through ONE einsum# ----------------------------------------------------------------------------def apply_gate(psi, U, qubits):"""Apply a k-qubit operator U to the axes `qubits` of the tensor `psi`. MATH ---- One qubit (k=1), target q: psi'[s_0,..,a,..,s_{N-1}] = sum_b U[a,b] psi[s_0,..,b,..,s_{N-1}] Two qubits (k=2), targets (q1,q2); the 4x4 matrix is reshaped to U[a1,a2,b1,b2]: psi'[.., a1, .., a2, ..] = sum_{b1,b2} U[a1,a2,b1,b2] psi[.., b1, .., b2, ..] This IS the action of (1 x .. x U x .. x 1) -- written without ever building it. EINSUM TRANSLATION (generated automatically below) ------------------ N=3, q=1 : "db,abc->adc" d = new (output) index of qubit 1 N=4, q=(1,3) : "efbd,abcd->aecf" e,f = new indices of qubits 1 and 3 Recipe: label the axes of psi with letters a,b,c,...; give every target qubit a NEW letter (the next unused ones); U carries (new letters)+(old letters of the targets); the output is psi's labels with the target letters replaced by the new ones. IMPLEMENTATION NOTES -------------------- * reshape of U: (2^k,2^k) -> (2,)*2k. Row index = (a1..ak), column = (b1..bk), and the FIRST qubit in `qubits` is the most significant bit of the small matrix, i.e. it corresponds to the LEFT factor of kron(A,B). * `qubits` may be any distinct axes in any order: non-neighbouring gates cost the same. * U need not be unitary: projectors, Kraus operators and Hamiltonian terms reuse this. * psi may be ANY tensor with those axes of size 2: a state (rank N), a density tensor (rank 2N: ket axes 0..N-1, bra axes N..2N-1), ... COST O(2^k * 2^N) operations, O(2^N) memory (dense matrix: O(4^N) both). JAX `qubits` must be static Python ints (they define the einsum string); psi and U are traced, so the function can sit inside jit / grad / vmap / scan. """ qubits =tuple(int(q) for q in qubits) k, n =len(qubits), psi.ndim U = jnp.asarray(U, dtype=psi.dtype).reshape((2,) * (2* k)) # matrix -> rank-2k tensor inp =list(_LETTERS[:n]) # labels of psi's axes new = _LETTERS[n:n + k] # fresh labels for the outputs out = inp.copy()for a, q inzip(new, qubits): out[q] = a # target axes get the new labels sub =f"{''.join(new)}{''.join(inp[q] for q in qubits)},{''.join(inp)}->{''.join(out)}"return jnp.einsum(sub, U, psi)# ----------------------------------------------------------------------------# State preparation# ----------------------------------------------------------------------------def zero_state(N):"""|00...0>: a rank-N tensor of zeros with a single 1 at index (0,0,...,0). JAX arrays are immutable: `.at[idx].set(v)` returns an updated COPY (functional style)."""return jnp.zeros((2,) * N, dtype=CDTYPE).at[(0,) * N].set(1.0)def haar_state(key, N):"""Haar-random pure state: a complex Gaussian vector, normalised. (The Gaussian measure is unitarily invariant, so the direction is uniformly distributed.) `key` is an explicit JAX PRNG key -- same key, same state: reproducible science.""" k1, k2 = jax.random.split(key) v = jax.random.normal(k1, (2,) * N) +1j* jax.random.normal(k2, (2,) * N)return (v / jnp.linalg.norm(v)).astype(CDTYPE)# ----------------------------------------------------------------------------# Reduced density matrices & observables (matrix-free)# ----------------------------------------------------------------------------def rdm(psi, keep):"""Reduced density matrix of the qubits `keep` from a PURE state: rho_A = Tr_B |psi><psi|. MATH rho_A[a, a'] = sum_{b} psi[a, b] psi^*[a', b] (a: indices of A, b: of the rest B) EINSUM TRANSLATION N=3, keep=(0,): "abc,Abc->aA" with operands psi, psi^* * letters of B (b,c) appear in BOTH operands and not in the output -> summed = traced out * the kept axis gets a different letter in the second operand -> stays open (a and A) The full |psi><psi| (4^N numbers) is never formed; cost O(2^N 2^|A|). Returns a (2^|A|, 2^|A|) matrix with row/column order following `keep`. """ keep =tuple(int(q) for q in keep) n, k = psi.ndim, len(keep) a =list(_LETTERS[:n]) b = a.copy()for new, q inzip(_LETTERS[n:n + k], keep): b[q] = new sub =f"{''.join(a)},{''.join(b)}->{''.join(a[q] for q in keep)}{''.join(b[q] for q in keep)}"return jnp.einsum(sub, psi, jnp.conj(psi)).reshape(2** k, 2** k)def expect_local(psi, O, qubits):"""<psi| O_qubits |psi> for a k-local operator O (2^k x 2^k matrix). MATH <O> = Tr(rho_A O) with A = `qubits`: a local observable only sees the local state. Cost O(2^N) for the RDM + O(4^k) for the small trace. One RDM serves ALL observables on A (e.g. <X>,<Y>,<Z> from a single 2x2 matrix). """return jnp.real(jnp.trace(rdm(psi, qubits) @ jnp.asarray(O, dtype=CDTYPE)))def apply_pauli_string(psi, ops):"""Apply a Pauli string P = P_0 x P_1 x ... to psi. `ops` is a dict {qubit: 'X'|'Y'|'Z'} or a string like 'XIZY' (one letter per qubit; 'I' skipped). N single-qubit einsums -- cost O(N 2^N) -- instead of one 2^N x 2^N matrix."""ifisinstance(ops, str): ops = {q: p for q, p inenumerate(ops) if p !="I"}for q, p in ops.items(): psi = apply_gate(psi, PAULI[p], [q])return psidef expect_pauli_string(psi, ops):"""<psi|P|psi> = <psi | (P psi)> : apply the string, then ONE inner product (jnp.vdot conjugates its first argument). Works for strings of any weight, e.g. the N-body correlator <X X ... X>."""return jnp.real(jnp.vdot(psi, apply_pauli_string(psi, ops)))def all_local_expectations(psi):"""Bloch vectors of all qubits: array (N,3) with rows (<X_q>, <Y_q>, <Z_q>), from the 1-qubit RDMs.""" out = []for q inrange(psi.ndim): r = rdm(psi, [q]) out.append(jnp.stack([jnp.real(jnp.trace(r @ P)) for P in (X, Y, Z)]))return jnp.stack(out)# ----------------------------------------------------------------------------# State characteristics: entropies, fidelity, negativity# ----------------------------------------------------------------------------def schmidt_values(psi, subsystem):"""Schmidt coefficients of the bipartition A|B with A = `subsystem`. MATH Group the tensor axes into a matrix M[(a),(b)] = psi[a,b] of shape (2^|A|, 2^|B|). Its SVD M = U diag(lambda) V^dag IS the Schmidt decomposition |psi> = sum_k lambda_k |u_k>_A |v_k>_B , rho_A has eigenvalues lambda_k^2. IMPLEMENTATION transpose (A axes first) -> reshape -> svd. No density matrix needed. """ A =tuple(int(q) for q in subsystem) B =tuple(q for q inrange(psi.ndim) if q notin A) M = jnp.transpose(psi, A + B).reshape(2**len(A), -1)return jnp.linalg.svd(M, compute_uv=False)def entanglement_entropy(psi, subsystem, base=2.0):"""Entanglement entropy S_A = -sum_k p_k log p_k with p_k = lambda_k^2 (squared Schmidt values). Product state: 0. Bell/GHZ across any cut: 1 bit. Random state: ~ |A| - 1/(2 ln2) 2^{|A|-|B|} (Page).""" p = jnp.clip(schmidt_values(psi, subsystem) **2, 1e-16, None)return-jnp.sum(p * jnp.log(p)) / jnp.log(base)def fidelity_pure(psi, phi):"""F = |<psi|phi>|^2 between two pure states."""return jnp.abs(jnp.vdot(psi, phi)) **2# ----------------------------------------------------------------------------# Measurements (Born rule, collapse, sampling)# ----------------------------------------------------------------------------_BASIS_ROT = {"Z": I2, "X": H, "Y": H @ SDG} # U maps the eigenbasis of the Pauli to |0>,|1>: P = U^dag Z Udef sample_bitstrings(key, psi, shots, bases=None):"""Sample `shots` outcomes of measuring ALL qubits (no collapse bookkeeping needed). MATH p(s) = |psi[s]|^2 ; optional per-qubit bases string like 'XZY' rotates first. IMPLEMENTATION `jax.random.categorical` draws flat indices from log-probabilities; the bits are unpacked with shifts: s_q = (i >> (N-1-q)) & 1 (qubit 0 = most significant bit). Returns an int array of shape (shots, N). """ N = psi.ndimif bases isnotNone:for q, b inenumerate(bases): psi = apply_gate(psi, _BASIS_ROT[b], [q]) logp = jnp.log(jnp.clip(jnp.abs(psi.reshape(-1)) **2, 1e-300, None)) idx = jax.random.categorical(key, logp, shape=(shots,))return (idx[:, None] >> jnp.arange(N -1, -1, -1)[None, :]) &1# ----------------------------------------------------------------------------# Hamiltonians as lists of local terms; H|psi> matrix-free# ----------------------------------------------------------------------------def heisenberg_terms(N, Jxx=1.0, Jyy=1.0, Jzz=1.0, hx=0.0, hy=0.0, hz=0.0, periodic=False, bonds=None):"""Spin-1/2 Hamiltonian in Pauli convention H = sum_<ij> (Jxx X_i X_j + Jyy Y_i Y_j + Jzz Z_i Z_j) + sum_i (hx X_i + hy Y_i + hz Z_i) returned as a LIST of local terms [(qubits, small_matrix), ...] -- this list *is* our Hamiltonian. Heisenberg: Jxx=Jyy=Jzz XXZ: Jxx=Jyy!=Jzz XY: Jzz=0 TFIM: only Jzz and hx. `bonds` overrides the default open chain (any graph: ladders, 2D lattices, all-to-all, ...)."""if bonds isNone: bonds = [(i, i +1) for i inrange(N -1)] + ([(N -1, 0)] if periodic and N >2else []) terms = [((i, j), Jxx * XX + Jyy * YY + Jzz * ZZ) for (i, j) in bonds]if hx !=0or hy !=0or hz !=0: terms += [((i,), hx * X + hy * Y + hz * Z) for i inrange(N)]return termsdef apply_hamiltonian(terms, psi):"""H|psi> = sum_k h_k|psi>, every term applied with `apply_gate` (h_k is Hermitian, not unitary -- the einsum does not care). Cost O(#terms * 2^N). This matrix-vector product is ALL that Lanczos, Chebyshev and Krylov methods need, which is why they scale to N ~ 25-30.""" out = jnp.zeros_like(psi)for qubits, h in terms: out = out + apply_gate(psi, h, qubits)return outdef energy(terms, psi):"""<psi|H|psi> = Re <psi | (H psi)>."""return jnp.real(jnp.vdot(psi, apply_hamiltonian(terms, psi)))def dense_hamiltonian(terms, N):"""Dense 2^N x 2^N matrix for VALIDATION on small N -- built from the matrix-free action: column j of H is H|e_j>. `jax.vmap` applies H to all basis vectors at once.""" eye = jnp.eye(2** N, dtype=CDTYPE).reshape((2** N,) + (2,) * N) cols = jax.vmap(lambda e: apply_hamiltonian(terms, e).reshape(-1))(eye)return cols.T# ----------------------------------------------------------------------------# Time evolution: TEBD / Trotter-Suzuki, Chebyshev, Krylov, exact# ----------------------------------------------------------------------------def lanczos(matvec, v0, m=60, reorth=True):"""m-step Lanczos iteration: orthonormal basis V of the Krylov space span{v, Hv, H^2 v, ...} in which H is TRIDIAGONAL: T = V^dag H V = tridiag(beta, alpha, beta). Recurrence w = H v_j - alpha_j v_j - beta_{j-1} v_{j-1}, alpha_j = <v_j|H|v_j>, beta_j = ||w||. `reorth=True` re-orthogonalises against all previous vectors (cures the loss of orthogonality of floating-point Lanczos at the price of O(m^2) inner products). Only `matvec` (H|psi>) is needed -> matrix-free. Returns (alphas, betas, V[m, 2,..,2]). """ v = v0 / jnp.linalg.norm(v0) V, alphas, betas = [v], [], [] w = matvec(v)for j inrange(m): a = jnp.real(jnp.vdot(V[j], w)) alphas.append(a) w = w - a * V[j] - (betas[-1] * V[j -1] if j >0else0.0)if reorth:for u in V: w = w - jnp.vdot(u, w) * u b = jnp.linalg.norm(w)if j == m -1orfloat(b) <1e-12:break betas.append(b) V.append(w / b) w = matvec(V[-1])return np.array(alphas, dtype=float), np.array(betas, dtype=float), jnp.stack(V)def lanczos_ground_state(terms, N, m=80, key=None, restarts=3):"""Ground state (E_0, |psi_0>) from restarted Lanczos: diagonalise the small T, map its lowest eigenvector back with V, use it as the next start vector. Extremal eigenvalues converge first.""" key = jax.random.PRNGKey(0) if key isNoneelse key v = haar_state(key, N) mv = jax.jit(lambda p: apply_hamiltonian(terms, p)) E =Nonefor _ inrange(restarts): a, b, V = lanczos(mv, v, m) w, S_ = np.linalg.eigh(np.diag(a) + np.diag(b, 1) + np.diag(b, -1)) v = jnp.tensordot(jnp.asarray(S_[:, 0], dtype=CDTYPE), V, axes=1) v = v / jnp.linalg.norm(v) E = w[0]returnfloat(E), v# ----------------------------------------------------------------------------# Variational circuits: ansatz, gradients, optimizers# ----------------------------------------------------------------------------def hea_num_params(N, layers):"""Number of angles of `hardware_efficient_ansatz`: (layers+1) rotation blocks x N qubits x 2 angles."""return2* N * (layers +1)def hardware_efficient_ansatz(theta, N, layers, entangler=CZ, periodic=False):"""Hardware-efficient ansatz |psi(theta)> = R(theta_L) * prod_{l<L} [ ENT * R(theta_l) ] |0...0>, R = prod_q Rz(.) Ry(.), ENT = a chain of CZ (or any 2-qubit gate). `theta` is a flat vector of length 2N(L+1). The function is a pure map theta -> state, hence jit-able and differentiable end to end.""" theta = theta.reshape(layers +1, N, 2) psi = zero_state(N)for l inrange(layers +1):for q inrange(N): psi = apply_gate(psi, ry(theta[l, q, 0]), [q]) psi = apply_gate(psi, rz(theta[l, q, 1]), [q])if l < layers:for q inrange(N -1): psi = apply_gate(psi, entangler, [q, q +1])if periodic and N >2: psi = apply_gate(psi, entangler, [N -1, 0])return psidef parameter_shift_grad(f, theta, shift=jnp.pi /2):"""Parameter-shift rule: for gates exp(-i theta_k P/2) with P^2 = 1 the cost is a sinusoid in theta_k, f = a + b cos(theta_k) + c sin(theta_k), so for any shift s with sin(s) != 0 d f / d theta_k = [ f(theta + s e_k) - f(theta - s e_k) ] / (2 sin s) (EXACT, not finite differences) and the default s = pi/2 gives the familiar [ f(+pi/2) - f(-pi/2) ] / 2. -- the gradient a real quantum computer can measure: 2 circuit evaluations per parameter. JAX: vmap over the unit vectors e_k evaluates all shifted circuits in one batched call.""" eye = jnp.eye(theta.size).reshape((theta.size,) + theta.shape) denom =2* jnp.sin(shift)return jax.vmap(lambda e: (f(theta + shift * e) - f(theta - shift * e)) / denom)(eye).reshape(theta.shape)def spsa_grad(key, f, theta, c=0.1):"""SPSA gradient estimate (simultaneous perturbation): perturb ALL parameters at once along a random +-1 direction Delta, g = [f(theta + c Delta) - f(theta - c Delta)] / (2c) * Delta (Delta_k^{-1} = Delta_k) Two evaluations regardless of the number of parameters; unbiased up to O(c^2); noisy but cheap -- the method of choice for shot-noise-limited / stochastic cost functions.""" delta = jax.random.rademacher(key, theta.shape).astype(theta.dtype)return (f(theta + c * delta) - f(theta - c * delta)) / (2* c) * deltadef adam_init(theta):"""Adam state: (first moment m, second moment v, step counter t)."""return (jnp.zeros_like(theta), jnp.zeros_like(theta), 0)def adam_update(theta, g, state, lr=0.05, b1=0.9, b2=0.999, eps=1e-8):"""One Adam step: m <- b1 m + (1-b1) g, v <- b2 v + (1-b2) g^2, theta <- theta - lr * m_hat / (sqrt(v_hat) + eps), hats = bias-corrected moments. Momentum (m) averages noisy gradients (great with SPSA); v gives a per-parameter step size.""" m, v, t = state t = t +1 m = b1 * m + (1- b1) * g v = b2 * v + (1- b2) * g **2 theta = theta - lr * (m / (1- b1 ** t)) / (jnp.sqrt(v / (1- b2 ** t)) + eps)return theta, (m, v, t)
Code
# ==============================================================================# PLOT STYLE + the optimiser / training helpers of 'Optimisers for variational circuits'# ==============================================================================PALETTE = ["#2a78d6", "#eb6834", "#1baf7a", "#eda100", "#e87ba4", "#4a3aa7"] # colour-blind-friendly, fixed orderMARKERS = ["o", "s", "^", "D", "v", "P"]plt.rcParams.update({"axes.prop_cycle": plt.cycler(color=PALETTE), "axes.grid": True,"grid.alpha": 0.3, "font.size": 10, "legend.frameon": False})def max_abs(a):"""Largest absolute entry of an array, as a Python float."""returnfloat(jnp.max(jnp.abs(jnp.asarray(a))))def bands(hist):"""Median and interquartile band of a batch of histories, shape (n_runs, n_steps) -> three curves.""" h = np.asarray(hist)return np.percentile(h, 25, axis=0), np.median(h, axis=0), np.percentile(h, 75, axis=0)def iterations_to(hist, target):"""First iteration (1-based) at which the monitored quantity falls below `target`; -1 if it never does.""" h = np.asarray(hist) below = h < target first = np.argmax(below, axis=1) +1return np.where(below.any(axis=1), first, -1)def summarise(name, hist, target, evals_per_iter):"""One row of a benchmark table: success rate, median iterations and median circuit evaluations to `target`.""" it = iterations_to(hist, target) ok = it >0 med =float(np.median(it[ok])) if ok.any() elsefloat("nan")returndict(name=name, success=float(ok.mean()), iters=med, evals=med * evals_per_iter, best=float(np.min(np.asarray(hist)[:, -1])), median_final=float(np.median(np.asarray(hist)[:, -1])))def wilson_interval(k, n, z=1.0):"""Wilson score interval for a success fraction k/n (z = 1: the 68% band). MATH centre = (p + z^2/2n) / (1 + z^2/n), half-width = z sqrt(p(1-p)/n + z^2/4n^2) / (1 + z^2/n), p = k/n. """ p = k / n den =1+ z * z / n c = (p + z * z / (2* n)) / den hw = z * np.sqrt(p * (1- p) / n + z * z / (4* n * n)) / denreturn c - hw, c + hwdef perm_pvalue(a, b, n_perm=20000, seed=0):"""Two-sided permutation p-value for a difference in the MEDIANS of log(a) and log(b) (a, b > 0). MATH T = |median log a - median log b|; p = fraction of random relabellings of the pooled sample with T' >= T. USE small samples (8-12 restarts) whose spread covers decades: no normality assumption is made. """ x, y = np.log(np.asarray(a)), np.log(np.asarray(b)) pooled, na = np.concatenate([x, y]), len(x) t_obs =abs(np.median(x) - np.median(y)) rng = np.random.default_rng(seed) hits =0for _ inrange(n_perm): perm = rng.permutation(pooled) hits +=abs(np.median(perm[:na]) - np.median(perm[na:])) >= t_obs -1e-15return (hits +1) / (n_perm +1)def opt_adam(lr, b1=0.9, b2=0.999, eps=1e-8):"""Adam as an (init, update) pair -- the optimiser interface of 'Optimisers for variational circuits'. State: (m, v)."""def init(theta):return (jnp.zeros_like(theta), jnp.zeros_like(theta))def update(theta, state, g, k): m, v = state m = b1 * m + (1- b1) * g v = b2 * v + (1- b2) * g **2return theta - lr * (m / (1- b1 ** k)) / (jnp.sqrt(v / (1- b2 ** k)) + eps), (m, v)return init, updatedef train(theta0, key, grad_rule, opt, monitor, n_steps):"""One training run compiled as a single `lax.scan`. ARGUMENTS --------- grad_rule(theta, key, k) -> gradient estimate (exact AD, SPSA, parameter shift with shots, ...) opt = (init(theta), update(theta, state, g, k)) -> (theta, state) monitor(theta) -> ANY pytree recorded after every update; here a vector of nine physical observables. JAX the loop counter is the scan's `xs`, so Adam's bias correction and Spall's gain schedules compile into the body instead of forcing a Python loop. """ init_fn, update_fn = optdef body(carry, k): theta, state, key = carry key, sub = jax.random.split(key) g = grad_rule(theta, sub, k) theta, state = update_fn(theta, state, g, k)return (theta, state, key), monitor(theta) (theta, _, _), hist = lax.scan(body, (theta0, init_fn(theta0), key), jnp.arange(1, n_steps +1))return theta, histdef train_many(thetas, keys, grad_rule, opt, monitor, n_steps):"""`train` vmapped over a batch of initial parameter vectors and keys -> (thetas, histories)."""return jax.jit(jax.vmap(lambda t, k: train(t, k, grad_rule, opt, monitor, n_steps)))(thetas, keys)def random_starts(n_runs, n_params, seed, scale=jnp.pi):"""`n_runs` independent parameter vectors drawn uniformly from [-scale, scale]^n, plus one PRNG key each.""" k1, k2 = jax.random.split(jax.random.PRNGKey(seed))return (jax.random.uniform(k1, (n_runs, n_params), minval=-scale, maxval=scale), jax.random.split(k2, n_runs))def grad_exact(cost):"""Exact gradient rule: reverse-mode AD, ignoring the key and the iteration counter.""" gfn = jax.grad(cost)returnlambda theta, key, k: gfn(theta)def grad_spsa(cost, c=0.2, gamma=0.101):"""SPSA gradient rule with Spall's probe radius c_k = c / k^gamma."""def rule(theta, key, k): c_k = c / k ** gamma delta = jax.random.rademacher(key, theta.shape).astype(theta.dtype)return (cost(theta + c_k * delta) - cost(theta - c_k * delta)) / (2* c_k) * deltareturn rule
3. The variational principle, and how energy error relates to state error
3.1 The Rayleigh-Ritz bound
Let \(H\) be Hermitian with eigenvalues \(E_0\le E_1\le\dots\le E_{d-1}\) and orthonormal eigenvectors \(\vert n\rangle\), \(d=2^N\). Take any normalised state and expand it in that basis,
because \(E_n\ge E_0\) for every \(n\) and the weights \(\lvert c_n\rvert^2\) are non-negative and sum to one. Equality requires \(\lvert c_n\rvert^2(E_n-E_0)=0\) for every \(n\), i.e. all the weight sits on the ground eigenspace. This is the Rayleigh-Ritz principle: the energy of any trial state is an upper bound on \(E_0\), saturated exactly on a ground state. Nothing in the argument used that the trial state comes from a circuit, so it applies to every ansatz, every optimiser and every stage of the optimisation. It also gives a free correctness test for the whole implementation: a measured \(E(\boldsymbol\theta)<E_0\) is a bug, never a discovery.
3.2 The energy error is second order in the state error
Write the trial state as the exact ground state plus a small orthogonal admixture,
The state error is first order in \(\varepsilon\) (the distance \(\lVert\psi-\psi_0\rVert\) is \(\varepsilon\) to leading order); the energy error is second order. With \(\langle\delta\vert H\vert\delta\rangle-E_0=O(1)\), an energy error of \(10^{-8}\) corresponds to \(\varepsilon\approx10^{-4}\), so an energy correct to eight digits may come from a state whose amplitudes are wrong in the fourth. Energies converge fast, everything else more slowly.
The same statement for every trial state, with its constant. The special form above is not needed. Take any normalised \(\vert\psi\rangle\), choose the global phase of \(\vert\psi_0\rangle\) so that \(\langle\psi_0\vert\psi\rangle=\sqrt F\ge0\), and call the difference \(\vert\phi\rangle=\vert\psi\rangle-\vert\psi_0\rangle\). Because \((H-E_0)\vert\psi_0\rangle=0\), the terms of \(\langle\psi_0+\phi\vert(H-E_0)\vert\psi_0+\phi\rangle\) that contain \(\vert\psi_0\rangle\) vanish, and
The first equality is exact; the inequality uses that \(H-E_0\) has eigenvalues between \(0\) and \(E_{\max}-E_0\). The energy error is therefore bounded by the square of the state error with the constant \(E_{\max}-E_0\), for every state and without any assumption on the spectrum. Since \(1-F\le2(1-\sqrt F)\le2(1-F)\) for \(0\le F\le1\), the squared distance and the infidelity agree up to a factor of two, which is why the infidelity \(1-F\) is itself a “squared” error and the bounds below are linear in it.
3.3 Two-sided bounds in terms of the fidelity
Equations (2) and (2a) are upper bounds. A lower bound needs one assumption: the ground state is unique, \(E_0<E_1\). Define the fidelity with it, \(F=\lvert\langle\psi_0\vert\psi\rangle\rvert^2=\lvert c_0\rvert^2\). Then the weights of Eq. (1) give
Every term of Eq. (3) has \(E_n-E_0\ge E_1-E_0\equiv\Delta\), the spectral gap, and \(\sum_{n\ge1}\lvert c_n\rvert^2=1-F\). Bounding the bracket from below by \(\Delta\) and from above by \(E_{\max}-E_0\) gives
Read the left inequality as a guarantee: an energy error below \(\Delta(1-F)\) is impossible, so
\[1-F\;\le\;\frac{E-E_0}{\Delta} \tag{5}\]
converts a measured energy error into a certified bound on the infidelity — the only way to say anything about the state when the exact state is unknown, which on hardware it always is. Read the right inequality as a warning: the same infidelity is compatible with an energy error larger by the factor \((E_{\max}-E_0)/\Delta\), which for a critical chain is large.
Two remarks on the assumptions. If the ground level is \(g\)-fold degenerate, the left inequality survives with \(F\) replaced by the total weight on the ground eigenspace and \(\Delta\) by the distance to the next distinct level; with \(F\) defined as the overlap with one chosen ground state it is false (a different ground state has \(E-E_0=0\) and \(F=0\)). And nothing in Eqs. (3)–(5) requires a pure state: for a density matrix, \(E-E_0=\sum_{n\ge1}\rho_{nn}(E_n-E_0)\) with \(F=\rho_{00}\), so the same bounds hold for the mixed state a noisy device prepares.
Equation (4) also explains why a small gap is doubly bad. A gapless (or nearly degenerate) system has \(\Delta\to0\), so Eq. (5) certifies nothing: the energy can be converged to machine precision while the state is anything at all inside the near-degenerate subspace. Section 11 shows exactly that happening.

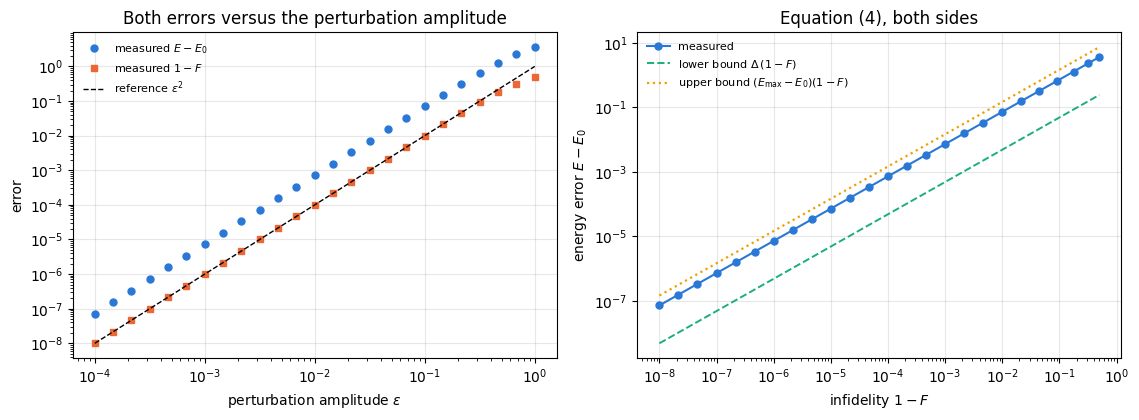

3.4 Measuring Eqs. (2) and (4)
We take the exact ground state of a test Hamiltonian, mix in a fixed random orthogonal direction with amplitude \(\varepsilon\), and plot the energy error against the infidelity \(1-F\) over eight decades, together with both bounds of Eq. (4). Equation (2) and \(1-F=\varepsilon^2/(1+\varepsilon^2)\) combine into the exact prediction \(E-E_0=(1-F)\,(\langle\delta\vert H\vert\delta\rangle-E_0)\), whose constant we compute separately from \(\vert\delta\rangle\) alone and compare with the measured ratio. Equation (2a) is checked on every point as well.
Code
# ==============================================================================# STEP 1: the energy error versus the state error, for a controlled perturbation# ==============================================================================N_PERT =6terms_pert = heisenberg_terms(N_PERT, Jxx=0.0, Jyy=0.0, Jzz=-1.0, hx=1.0) # TFIM at its critical fieldH_dense = np.asarray(dense_hamiltonian(terms_pert, N_PERT))w_pert, V_pert = np.linalg.eigh(H_dense)E0_pert, E1_pert, Emax_pert =float(w_pert[0]), float(w_pert[1]), float(w_pert[-1])gap_pert = E1_pert - E0_pertpsi0_pert = jnp.asarray(V_pert[:, 0], dtype=CDTYPE).reshape((2,) * N_PERT)# a normalised direction orthogonal to the ground state: project a Haar-random statedelta = haar_state(jax.random.PRNGKey(3), N_PERT)delta = delta - jnp.vdot(psi0_pert, delta) * psi0_pertdelta = delta / jnp.linalg.norm(delta)print(f"TFIM N={N_PERT}, h=1: E_0 = {E0_pert:.6f}, gap Delta = {gap_pert:.6f}, E_max - E_0 = {Emax_pert - E0_pert:.6f}")print(f"orthogonality of the perturbation direction: |<psi_0|delta>| = {float(jnp.abs(jnp.vdot(psi0_pert, delta))):.2e}")# the constant of Eq. (2), computed from the direction alone: <delta|H|delta> - E_0K_pert =float(energy(terms_pert, delta)) - E0_pertprint(f"<delta|H|delta> - E_0 = {K_pert:.6f} (the predicted constant of Eq. (2))")eps_grid = np.logspace(-4, 0, 25)rows_pert = []for eps in eps_grid: psi = (psi0_pert + eps * delta) / jnp.sqrt(1.0+ eps **2) dE =float(energy(terms_pert, psi)) - E0_pert inf =1.0-float(fidelity_pure(psi0_pert, psi)) rows_pert.append((eps, inf, dE))rows_pert = np.array(rows_pert)# --- CHECKPOINT: Eq. (2) exactly, E - E_0 = (1 - F) K, and Eq. (2a) on every point ---------------------------------dev_2 = np.max(np.abs(rows_pert[:, 2] - K_pert * rows_pert[:, 1]))bound_2a = (Emax_pert - E0_pert) *2* (1- np.sqrt(1- rows_pert[:, 1]))print(f"max |(E - E_0) - (1 - F) K| over the {len(eps_grid)} points = {dev_2:.1e}")print(f"Eq. (2a): largest ratio (E - E_0) / [(E_max - E_0) * 2(1 - sqrt F)] = {np.max(rows_pert[:, 2] / bound_2a):.4f} (<= 1)")assert dev_2 <1e3* TOL and np.all(rows_pert[:, 2] <= bound_2a +1e-12)print(f"\n{'epsilon':>10s}{'1 - F':>12s}{'E - E_0':>12s}{'lower bound':>13s}{'upper bound':>13s}{'(E-E0)/eps^2':>14s}")for r in rows_pert[::6]:print(f"{r[0]:10.2e}{r[1]:12.3e}{r[2]:12.3e}{gap_pert * r[1]:13.3e} "f"{(Emax_pert - E0_pert) * r[1]:13.3e}{r[2] / r[0] **2:14.6f}")assert np.all(rows_pert[:, 2] >= gap_pert * rows_pert[:, 1] -1e-12)assert np.all(rows_pert[:, 2] <= (Emax_pert - E0_pert) * rows_pert[:, 1] +1e-12)fig, axes = plt.subplots(1, 2, figsize=(11.5, 4.3))axes[0].loglog(rows_pert[:, 0], rows_pert[:, 2], MARKERS[0], ms=5, color=PALETTE[0], label=r"measured $E-E_0$")axes[0].loglog(rows_pert[:, 0], rows_pert[:, 1], MARKERS[1], ms=4, color=PALETTE[1], label=r"measured $1-F$")axes[0].loglog(rows_pert[:, 0], rows_pert[:, 0] **2, "k--", lw=1, label=r"reference $\varepsilon^2$")axes[0].set_xlabel(r"perturbation amplitude $\varepsilon$"); axes[0].set_ylabel("error")axes[0].set_title("Both errors versus the perturbation amplitude"); axes[0].legend(fontsize=8)axes[1].loglog(rows_pert[:, 1], rows_pert[:, 2], MARKERS[0] +"-", ms=5, color=PALETTE[0], label=r"measured")axes[1].loglog(rows_pert[:, 1], gap_pert * rows_pert[:, 1], "--", color=PALETTE[2], lw=1.4, label=r"lower bound $\Delta\,(1-F)$")axes[1].loglog(rows_pert[:, 1], (Emax_pert - E0_pert) * rows_pert[:, 1], ":", color=PALETTE[3], lw=1.6, label=r"upper bound $(E_{\max}-E_0)(1-F)$")axes[1].set_xlabel(r"infidelity $1-F$"); axes[1].set_ylabel(r"energy error $E-E_0$")axes[1].set_title("Equation (4), both sides"); axes[1].legend(fontsize=8)fig.tight_layout(); plt.show()# --- control: the SAME Haar direction without the projection (it has a component along psi_0) ------------------raw = haar_state(jax.random.PRNGKey(3), N_PERT)print(f"\nunprojected direction: |<psi_0|raw>| = {float(jnp.abs(jnp.vdot(psi0_pert, raw))):.4f}")print(f"{'epsilon':>10s}{'(E-E0)/eps^2':>14s}{'(E-E0)/(1-F)':>14s}")for eps in (1e-4, 1e-3, 1e-2, 1e-1): psi = psi0_pert + eps * raw psi = psi / jnp.linalg.norm(psi) dE =float(energy(terms_pert, psi)) - E0_pertprint(f"{eps:10.0e}{dE / eps **2:14.6f}{dE / (1.0-float(fidelity_pure(psi0_pert, psi))):14.6f}")
TFIM N=6, h=1: E_0 = -7.296230, gap Delta = 0.482147, E_max - E_0 = 14.592460
orthogonality of the perturbation direction: |<psi_0|delta>| = 2.50e-17
<delta|H|delta> - E_0 = 7.209637 (the predicted constant of Eq. (2))
max |(E - E_0) - (1 - F) K| over the 25 points = 1.3e-14
Eq. (2a): largest ratio (E - E_0) / [(E_max - E_0) * 2(1 - sqrt F)] = 0.4941 (<= 1)
epsilon 1 - F E - E_0 lower bound upper bound (E-E0)/eps^2
1.00e-04 1.000e-08 7.210e-08 4.821e-09 1.459e-07 7.209637
1.00e-03 1.000e-06 7.210e-06 4.821e-07 1.459e-05 7.209630
1.00e-02 9.999e-05 7.209e-04 4.821e-05 1.459e-03 7.208916
1.00e-01 9.901e-03 7.138e-02 4.774e-03 1.445e-01 7.138254
1.00e+00 5.000e-01 3.605e+00 2.411e-01 7.296e+00 3.604818
The measurement reproduces both derivations exactly.
Equation (2). The last column is \((E-E_0)/\varepsilon^2\). Equation (2) predicts \(K/(1+\varepsilon^2)\) with \(K=\langle\delta\vert H\vert\delta\rangle-E_0=7.2096\), computed above from the direction alone: \(7.2096\) at \(\varepsilon=10^{-4}\) and \(10^{-3}\), \(7.2089\) at \(10^{-2}\), \(7.1383\) at \(10^{-1}\) and \(3.6048=K/2\) at \(\varepsilon=1\). The infidelity is \(1-F=\varepsilon^2/(1+\varepsilon^2)\), from \(10^{-8}\) to \(0.5\), so the relation \(E-E_0=K\,(1-F)\) holds at every point; the checkpoint confirms it to round-off over all 25 points. Equation (2a) holds as well, with the largest ratio to its right-hand side printed above.
The practical consequence. At \(\varepsilon=10^{-2}\) the state has infidelity \(10^{-4}\) and the energy error is \(7.2\cdot10^{-4}\) out of a total energy of \(-7.296\), a relative energy error of \(10^{-4}\), while the amplitudes are wrong at the \(1\%\) level. An energy correct to four digits says nothing about the state having four correct digits.
Equation (4). The right panel shows the measured relation \(E-E_0=7.2096\,(1-F)\) as a straight line of slope one, lying between the two bounds at every point: the lower bound \(\Delta(1-F)=0.482\,(1-F)\) and the upper bound \((E_{\max}-E_0)(1-F)=14.59\,(1-F)\). The two bounds differ by a factor \((E_{\max}-E_0)/\Delta=30\) here, which is the width of the window that a measured energy error leaves for the infidelity. A gapless system would make that window infinite; Section 11 measures one.
Numerical practice. The perturbation direction was built by projecting a Haar-random state onto the orthogonal complement of \(\vert\psi_0\rangle\) (residual overlap \(2.5\cdot10^{-17}\)), so that \(\varepsilon\) is exactly the amplitude of Eq. (2) and \(K\) is known in advance. The projection is a convenience; the quadratic law does not depend on it. The control run with the unprojected direction (overlap \(0.036\) with \(\vert\psi_0\rangle\)) still gives \((E-E_0)/\varepsilon^2\approx7.20\) at small \(\varepsilon\), and \((E-E_0)/(1-F)=7.2096=K\) exactly, as Eq. (2a) requires: a component along \(\vert\psi_0\rangle\) only changes the normalisation, and the orthogonal part is the same direction \(\vert\delta\rangle\) as before. Only the relation between \(\varepsilon\) and the amplitude of the orthogonal part changes.
4. The Hamiltonians
4.1 The Pauli convention, and what the signs mean
Throughout these notes a spin chain is written with Pauli matrices, not spin-\(1/2\) operators \(S^a=\tfrac12\sigma^a\):
with \(\langle ij\rangle\) the bonds of an open chain, \(j=i+1\). The three models of this notebook are
model
\(J_{xx}\)
\(J_{yy}\)
\(J_{zz}\)
\(h_x\)
XXZ
\(-1\)
\(-1\)
\(-1/2\)
\(1\)
XY
\(-1\)
\(-1\)
\(0\)
\(1\)
TFIM
\(0\)
\(0\)
\(-1\)
\(1\)
The signs are worth one sentence each, because they are the commonest source of confusion in this subject. A bond term \(J_{xx}X_iX_j\) contributes \(J_{xx}\langle X_iX_j\rangle\) to the energy. With \(J_{xx}=-1\) the energy is lowered by \(\langle X_iX_j\rangle=+1\), i.e. by neighbouring spins aligned along \(x\): the coupling is ferromagnetic in \(x\). Likewise \(J_{zz}=-1\) in the TFIM is a ferromagnetic Ising coupling along \(z\). A positive \(J\) would be antiferromagnetic. The field term \(h_x\sum_iX_i\) with \(h_x=+1\) is minimised by \(\langle X_i\rangle=-1\), i.e. every spin pointing along \(-x\); for the TFIM, where the coupling acts along \(z\), that field competes with the Ising order and drives the quantum phase transition at \(\lvert h_x\rvert=\lvert J_{zz}\rvert\). Section 4.3 checks these statements against the measured correlators instead of trusting them.
4.2 From formula to code: traced coefficients
heisenberg_terms builds the list \([(\text{qubits},h_k)]\) from Python floats. We need something slightly more flexible: the same compiled program must serve three different models (Section 8) and a whole field sweep (Section 11). The fix is to build the local matrices from a traced coefficient vector \(\mathbf c=(J_{xx},J_{yy},J_{zz},h_x)\), so that JAX treats the couplings as data rather than as constants. The bond matrix is then \(c_0\,XX+c_1\,YY+c_2\,ZZ\), a \(4\times4\) array, and the field matrix is \(c_3X\).
Everything downstream (apply_hamiltonian, energy) is einsum-based and does not care whether the small matrices are constants or traced values.
Code
# ==============================================================================# STEP 2: the model Hamiltonians, with traced coefficients# ==============================================================================MODELS = {"XXZ": (-1.0, -1.0, -0.5, 1.0), # (Jxx, Jyy, Jzz, hx), Eq. (6)"XY": (-1.0, -1.0, 0.0, 1.0),"TFIM": (0.0, 0.0, -1.0, 1.0)}MODEL_NAMES =list(MODELS)N_SITES =6# the chain length of Sections 4-12def model_terms(N, c):"""Hamiltonian of Eq. (6) as a list of local terms, with c = (Jxx, Jyy, Jzz, hx) possibly TRACED. MATH H = sum_{i} (c0 X_i X_{i+1} + c1 Y_i Y_{i+1} + c2 Z_i Z_{i+1}) + c3 sum_i X_i IMPL one 4x4 bond matrix (identical on every bond) and one 2x2 field matrix; the qubit indices are static Python ints, the matrix ENTRIES may be traced -> one compilation serves every coupling. """ bond = c[0] * XX + c[1] * YY + c[2] * ZZ field = c[3] * Xreturn [((i, i +1), bond) for i inrange(N -1)] + [((i,), field) for i inrange(N)]# --- CHECKPOINT: the traced construction reproduces the engine's, and Lanczos reproduces dense eigh ------print(f"{'model':>6s}{'E_0 (Lanczos)':>15s}{'E_0 (dense eigh)':>17s}{'difference':>12s} "f"{'gap':>9s}{'E_max - E_0':>12s}{'terms vs engine':>16s}")EXACT = {}for name in MODEL_NAMES: c = jnp.asarray(MODELS[name], dtype=RDTYPE) terms = model_terms(N_SITES, c) terms_engine = heisenberg_terms(N_SITES, Jxx=MODELS[name][0], Jyy=MODELS[name][1], Jzz=MODELS[name][2], hx=MODELS[name][3]) d_terms =max(max_abs(a[1] - b[1]) for a, b inzip(terms, terms_engine)) w, V = np.linalg.eigh(np.asarray(dense_hamiltonian(terms, N_SITES))) E0_l, psi0_l = lanczos_ground_state(terms, N_SITES) psi0_l = psi0_l / jnp.linalg.norm(psi0_l) EXACT[name] =dict(E0=float(w[0]), E1=float(w[1]), Emax=float(w[-1]), psi0=psi0_l, psi1=jnp.asarray(V[:, 1], dtype=CDTYPE).reshape((2,) * N_SITES))print(f"{name:>6s}{E0_l:15.9f}{float(w[0]):17.9f}{abs(E0_l -float(w[0])):12.2e} "f"{float(w[1] - w[0]):9.4f}{float(w[-1] - w[0]):12.4f}{d_terms:16.1e}")assertabs(E0_l -float(w[0])) <1e-8and d_terms < TOLassertabs(float(fidelity_pure(psi0_l, jnp.asarray(V[:, 0], dtype=CDTYPE).reshape((2,) * N_SITES))) -1) <1e-8
model E_0 (Lanczos) E_0 (dense eigh) difference gap E_max - E_0 terms vs engine
Before optimising anything we measure the nine quantities that Section 8 will track, on the exact ground states. They are the targets, and they also settle the sign question of Section 4.1: a ferromagnetic \(x\) coupling must show \(\langle X_iX_{i+1}\rangle>0\).
the three mean magnetisations \(\langle X\rangle=\frac1N\sum_q\langle X_q\rangle\) (and likewise \(Y\), \(Z\)), the three mean nearest-neighbour correlators \(\langle XX\rangle=\frac1{N-1}\sum_q\langle X_qX_{q+1}\rangle\) (and likewise), and the energy and the fidelity, which are trivial on the exact state.
Code
# ==============================================================================# STEP 3: the nine tracked observables, as one jit-able function of the state# ==============================================================================METRIC_KEYS = ["E - E_0", "S_half", "F", "<X>", "<Y>", "<Z>", "<XX>", "<YY>", "<ZZ>"] # for printed tablesMETRIC_TEX = [r"$E-E_0$", r"$S_{\rm half}$ [bits]", r"$F$", r"$\langle X\rangle$", r"$\langle Y\rangle$",r"$\langle Z\rangle$", r"$\langle XX\rangle$", r"$\langle YY\rangle$", r"$\langle ZZ\rangle$"]def state_observables(psi):"""(S_half, <X>, <Y>, <Z>, <XX>, <YY>, <ZZ>) of a state tensor -- seven of the nine tracked numbers. MATH S_half = entanglement entropy of the first N/2 qubits (base 2) <X> = (1/N) sum_q <X_q> (and the same for Y, Z) <XX> = (1/(N-1)) sum_q <X_q X_{q+1}> (and the same for YY, ZZ) IMPL `all_local_expectations` returns the (N,3) array of Bloch vectors from the N single-qubit RDMs; each bond correlator is one `expect_pauli_string`, i.e. two einsums and an inner product. COST O(N 2^N). """ N = psi.ndim S = entanglement_entropy(psi, range(N //2)) loc = all_local_expectations(psi) # (N, 3): <X_q>, <Y_q>, <Z_q> corr = [jnp.mean(jnp.stack([expect_pauli_string(psi, {q: p, q +1: p}) for q inrange(N -1)]))for p in ("X", "Y", "Z")]return jnp.stack([S, loc[:, 0].mean(), loc[:, 1].mean(), loc[:, 2].mean()] + corr)def parity(psi):"""<P> with P = prod_q X_q, the Z_2 symmetry operator of Eq. (7)."""return expect_pauli_string(psi, "X"* psi.ndim)print(f"{'model':>6s}{'E_0':>10s}{'S_half':>8s}{'<X>':>8s}{'<Y>':>8s}{'<Z>':>8s} "f"{'<XX>':>8s}{'<YY>':>8s}{'<ZZ>':>8s}{'parity':>8s}")for name in MODEL_NAMES: o = np.asarray(state_observables(EXACT[name]["psi0"])) EXACT[name]["obs"] = oprint(f"{name:>6s}{EXACT[name]['E0']:10.5f}{o[0]:8.4f}{o[1]:+8.4f}{o[2]:+8.4f}{o[3]:+8.4f} "f"{o[4]:+8.4f}{o[5]:+8.4f}{o[6]:+8.4f}{float(parity(EXACT[name]['psi0'])):+8.4f}")
model E_0 S_half <X> <Y> <Z> <XX> <YY> <ZZ> parity
Lanczos and dense diagonalisation agree to \(10^{-14}\) in all three models, and the traced term list is bit-identical to the engine’s. The physics in the table is worth reading carefully, because it decides what the rest of the notebook is about.
The signs mean what Section 4.1 said. For the XXZ chain \(\langle X_iX_{i+1}\rangle=+0.980\): neighbouring spins are aligned along \(x\). A coupling \(J_{xx}=-1\) is ferromagnetic in the Pauli convention, and reading “\(J<0\)” as “antiferromagnetic” — a habit carried over from Hamiltonians written with an explicit minus sign in front of the sum — would have been wrong by a sign here.
The XXZ and XY chains at these couplings are nearly polarised product states.\(\langle X_q\rangle=-0.979\) and \(-0.932\) respectively: the transverse field \(h_x=+1\) has aligned every spin along \(-x\), and the ferromagnetic \(xx\) coupling agrees with it. The half-chain entanglement is \(0.050\) and \(0.125\) bits, so these two states are barely entangled at all, and their gaps, \(2.76\) and \(3.35\), are large. They are easy targets, and the results of Section 8 should be read with that in mind.
The Ising chain at \(h_x=1\) is the interesting one. Its field equals its coupling in magnitude, which is the critical point of the model: the entanglement is \(0.473\) bits, an order of magnitude above the other two, and the gap \(0.482\) is smaller by a factor of six. Everything hard in this notebook happens there.
\(\langle Y\rangle\) and \(\langle Z\rangle\) vanish identically, and that is the symmetry. If \(P\vert\psi\rangle=\pm\vert\psi\rangle\) with \(P=\prod_qX_q\), then for any operator \(A\), \(\langle A\rangle=\langle\psi\vert P A P\vert\psi\rangle\). Since \(X_qY_qX_q=-Y_q\) and the \(X\) factors on the other qubits commute through, \(PY_qP=-Y_q\) and likewise \(PZ_qP=-Z_q\), so \(\langle Y_q\rangle=-\langle Y_q\rangle=0\) and \(\langle Z_q\rangle=0\). A pair\(Y_iY_j\) picks up two signs and survives, which is why \(\langle YY\rangle\) and \(\langle ZZ\rangle\) are non-zero. The printed parity is \(+1\) for all three ground states. Section 5 proves \([H,P]=0\); the table already shows its fingerprints.
A measured coupling effect. The only difference between XXZ and XY is \(J_{zz}\): \(-1/2\) against \(0\). The ferromagnetic \(zz\) coupling pulls \(\langle ZZ\rangle\) from \(-0.261\) (XY) up to \(-0.147\) (XXZ), as a ferromagnetic term should, without managing to make it positive against the dominant \(x\) polarisation.
5. Symmetry: what the Hamiltonian has and the ansatz has not
Does it commute with \(H\)? Check term by term, using that two Pauli operators on the same qubit either commute (equal operators) or anticommute (different operators), and that operators on different qubits always commute.
\(h_xX_i\): \(P\) contains \(X_i\), which commutes with \(X_i\); all other factors act on other qubits. Commutes.
\(J_{xx}X_iX_j\): same argument twice. Commutes.
\(J_{yy}Y_iY_j\): \(P\) contains \(X_i\) and \(X_j\), each of which anticommutes with the \(Y\) on its own qubit. Two sign flips multiply to \(+1\). Commutes.
\(J_{zz}Z_iZ_j\): identical argument with \(Z\). Commutes.
So \([H,P]=0\) for all three models. The eigenvectors of \(H\) can be labelled by \(P=\pm1\), and the ground state has a definite parity. (A term with an odd number of \(Y\) or \(Z\) operators, for instance a longitudinal field \(h_zZ_i\), would break it — which is exactly how one destroys the symmetry in a simulation.)
5.2 The \(U(1)\) symmetry that the transverse field destroys
The XXZ chain is famous for conserving the total magnetisation \(S^z_{\text{tot}}=\sum_qZ_q\), which follows from \([X_iX_j+Y_iY_j,\,Z_i+Z_j]=0\): the \(XX+YY\) term only moves a spin flip from one site to the next. That conservation law is the reason the XXZ chain can be diagonalised block by block. It does not survive the transverse field.\([X_i,Z_i]=-2iY_i\neq0\), so the \(h_x\sum_iX_i\) term of Eq. (6) does not commute with \(S^z_{\text{tot}}\), and with \(h_x=1\) there is no \(U(1)\) symmetry to protect. The numbers below verify both statements matrix-free: we apply the commutator to a random state and measure its norm,
The hardware-efficient ansatz starts from \(\vert0\rangle^{\otimes N}\) and applies \(R_y,R_z\) rotations and \(CZ\) gates. The starting state is not an eigenstate of \(P\) (\(P\vert0\cdots0\rangle=\vert1\cdots1\rangle\)), and \(R_y(\theta)\) does not commute with \(X\), so \(\vert\psi(\boldsymbol\theta)\rangle\) has no definite parity for generic angles.
Figure 1. The ansatz of Sections 5 to 8 on the \(N=6\) chain of this notebook. Each dashed layer applies \(R_y\) and then \(R_z\), each with its own angle, on every qubit, followed by \(CZ\) on the bonds \((0,1),\dots,(4,5)\) in that order; a final rotation block closes the circuit. With \(L=4\) layers there are \(2N(L+1)=60\) angles. Section 10 varies \(L\), and Section 9.2 compares it with the Hamiltonian-variational ansatz.
the amount by which the variational state fails to be a parity eigenstate; it is \(0\) for an eigenstate of \(P\) and \(1\) for a state with \(\langle P\rangle=0\), such as a random one. A symmetry-preserving ansatz would fix the leakage at zero by construction and search a smaller space; the hardware-efficient family must instead learn the symmetry, and whether it does is an empirical question answered in Section 9.
Code
# ==============================================================================# STEP 4: commutators, matrix-free, and the parity of random ansatz states# ==============================================================================def commutator_norm(terms, op_fn, psi):"""|| [H, A] |psi> || with A applied by `op_fn` -- two Hamiltonian applications, no big matrix."""returnfloat(jnp.linalg.norm(apply_hamiltonian(terms, op_fn(psi)) - op_fn(apply_hamiltonian(terms, psi))))def apply_parity(psi):"""P|psi> with P = prod_q X_q."""return apply_pauli_string(psi, "X"* psi.ndim)def apply_sz_total(psi):"""S^z_tot |psi> = sum_q Z_q |psi> (a sum of N single-qubit einsums)."""returnsum(apply_gate(psi, Z, [q]) for q inrange(psi.ndim))phi_rand = haar_state(jax.random.PRNGKey(11), N_SITES)print(f"{'model':>6s}{'|| [H,P] phi ||':>16s}{'|| [H,S^z] phi ||':>18s} (phi = Haar random, norm 1)")for name in MODEL_NAMES: terms = model_terms(N_SITES, jnp.asarray(MODELS[name], dtype=RDTYPE)) cp = commutator_norm(terms, apply_parity, phi_rand) cz = commutator_norm(terms, apply_sz_total, phi_rand)print(f"{name:>6s}{cp:16.2e}{cz:18.4f}")assert cp <1e3* TOL# the same XXZ model WITHOUT the transverse field does conserve S^zterms_nofield = model_terms(N_SITES, jnp.asarray((-1.0, -1.0, -0.5, 0.0), dtype=RDTYPE))print(f"{'XXZ, h_x=0':>12s}{commutator_norm(terms_nofield, apply_parity, phi_rand):10.2e} "f"{commutator_norm(terms_nofield, apply_sz_total, phi_rand):18.2e}")assert commutator_norm(terms_nofield, apply_sz_total, phi_rand) <1e3* TOL# parity of ansatz states at random anglesL_MAIN =4n_main = hea_num_params(N_SITES, L_MAIN)th_rand, _ = random_starts(200, n_main, seed=12)par_rand = np.asarray(jax.jit(jax.vmap(lambda t: parity(hardware_efficient_ansatz(t, N_SITES, L_MAIN))))(th_rand))print(f"\nhardware-efficient ansatz, N={N_SITES}, L={L_MAIN}, n={n_main} angles, 200 random parameter vectors:")print(f" <P>: mean {par_rand.mean():+.4f}, standard deviation {par_rand.std():.4f}, "f"largest |<P>| {np.abs(par_rand).max():.4f}")print(f" median symmetry leakage 1 - |<P>| = {np.median(1- np.abs(par_rand)):.4f}")
hardware-efficient ansatz, N=6, L=4, n=60 angles, 200 random parameter vectors:
<P>: mean -0.0042, standard deviation 0.0994, largest |<P>| 0.2784
median symmetry leakage 1 - |<P>| = 0.9403
The commutator with the parity operator is exactly zero in floating point. \(P\) only permutes the amplitudes (it flips every bit of the index), and each local term maps the permuted array to the permutation of its own output with the same arithmetic on the same numbers, so the two orders of application agree bit for bit. The commutator with \(S^z_{\text{tot}}\) is \(4.41\) for all three models, and the fact that it is the same number three times is itself informative: the \(XX+YY\) and \(ZZ\) bond terms all commute with \(S^z_{\text{tot}}\), so the entire commutator comes from the field, \([H,S^z_{\text{tot}}]=h_x[\sum_iX_i,\sum_qZ_q]\), which does not depend on the couplings at all. Switching the field off restores the conservation law to machine precision (\(8.5\cdot10^{-16}\)), confirming that the transverse field, and nothing else, is what destroys the \(U(1)\) symmetry of the XXZ chain.
The ansatz has no such structure. Over 200 random parameter vectors the parity of the hardware-efficient state is centred on zero with a standard deviation of \(0.099\) and never exceeds \(0.28\) in magnitude; the median symmetry leakage of Eq. (8) is \(0.94\). Since \(\langle P\rangle=w_+-w_-\) with \(w_\pm\) the weights in the two sectors, the optimiser starts in a state with nearly equal weight in both sectors, and half of the Hilbert space it explores is orthogonal to the answer.
Physics insight. A symmetry of \(H\) block-diagonalises it. Working inside one block is both cheaper (half the dimension) and safer (the answer cannot leak into the wrong sector). An ansatz that respects the symmetry gets that for free; a hardware-efficient ansatz has to spend parameters on rediscovering it. Section 9 measures how well it succeeds, and builds an ansatz that cannot fail.
6. The VQE loop
Everything is now in place. The algorithm is four lines of mathematics:
choose an ansatz \(\vert\psi(\boldsymbol\theta)\rangle=U(\boldsymbol\theta)\vert0\rangle^{\otimes N}\) and a random starting point \(\boldsymbol\theta^{(0)}\);
evaluate \(E(\boldsymbol\theta)=\langle\psi(\boldsymbol\theta)\vert H\vert\psi(\boldsymbol\theta)\rangle\) and its gradient (here by reverse-mode automatic differentiation; on hardware by the parameter-shift rule derived in notebook 40, parametrised gates and gradients);
update \(\boldsymbol\theta\) with Adam;
repeat, and restart from many random initialisations, because the landscape has many minima.
The only implementation subtlety is the diagnostic. The optimiser minimises the energy, but we want to watch nine physical quantities. train records whatever monitor returns, and lax.scan is happy to stack a vector, so one compiled program produces an array of shape (runs, iterations, 9) at essentially the cost of the training itself.
JAX practice. The Hamiltonian coefficients, the reference energy and the reference state enter vqe_metrics as ordinary arguments. Mapping vmap over them therefore lets us train on all three models in one compilation instead of three: the circuit graph is identical, only the numbers differ. Compilation dominates the wall time of short variational runs (Section 8 times the two separately: about \(4\) s of compilation against \(2\) s of execution for \(3\times12\times300\) iterations), so this is worth more than any micro-optimisation inside the loop.
Code
# ==============================================================================# STEP 5: the cost, the nine-component monitor, and one batched run over models# ==============================================================================def ansatz_state(theta, N=N_SITES, layers=L_MAIN):"""The hardware-efficient ansatz as a pure function theta -> state tensor."""return hardware_efficient_ansatz(theta, N, layers)def vqe_cost(theta, c, N=N_SITES, layers=L_MAIN):"""C(theta) = <psi(theta)| H(c) |psi(theta)>, the VQE objective."""return energy(model_terms(N, c), ansatz_state(theta, N, layers))def vqe_metrics(theta, c, psi_ref, E_ref, N=N_SITES, layers=L_MAIN):"""The nine tracked numbers of Section 4.3 for the current angles, as one stacked vector. Order: (E - E_ref, S_half, F, <X>, <Y>, <Z>, <XX>, <YY>, <ZZ>) -- METRIC_KEYS. """ psi = ansatz_state(theta, N, layers) E = energy(model_terms(N, c), psi) F = fidelity_pure(psi_ref, psi) obs = state_observables(psi)return jnp.concatenate([jnp.stack([E - E_ref, obs[0], F]), obs[1:]])def vqe_run(c, psi_ref, E_ref, thetas, keys, lr, n_steps, N=N_SITES, layers=L_MAIN):"""Train `thetas.shape[0]` independent restarts on the Hamiltonian H(c). Returns (final angles of every restart, histories of shape (runs, steps, 9)). """ cost =lambda t: vqe_cost(t, c, N, layers) monitor =lambda t: vqe_metrics(t, c, psi_ref, E_ref, N, layers)return jax.vmap(lambda t, k: train(t, k, grad_exact(cost), opt_adam(lr), monitor, n_steps))(thetas, keys)
7. Choosing the step size by measurement
The learning-rate sweeps of notebook 41, optimisers showed that Adam’s best learning rate on an energy landscape is not the one that works on an infidelity landscape, and that every optimiser’s result varies over orders of magnitude across the grid. We therefore tune here too, on the hardest of the three models (the critical Ising chain), with a short run. The learning rate is passed as a traced scalar so that the whole sweep is one compilation.
learning-rate sweep: 5 rates x 6 restarts x 200 iterations in 4.5 s (one compilation)
learning rate median final E - E_0 best final
0.05 0.15524 0.12860
0.1 0.11591 0.01847
0.2 0.03116 0.00942
0.4 0.01915 0.00561
0.8 0.03792 0.00795
best learning rate on this landscape: 0.4
The median final energy error varies by a factor of eight across the grid — \(0.155\) at \(\eta=0.05\), \(0.019\) at \(\eta=0.4\), back up to \(0.038\) at \(\eta=0.8\) — with the smallest median at \(\eta=0.4\). With six restarts per rate the neighbours \(0.2\) and \(0.8\) are not cleanly separated from it (their medians are within a factor of two), so the grid fixes the order of magnitude of the step rather than its exact value. That is close to the \(0.45\) measured in notebook 41, optimisers for Adam on the energy landscape of an antiferromagnetic Ising chain (\(N=6\), \(h=0.8\), \(L=3\)), and far from the \(0.13\) found best there on an infidelity landscape. Adam’s update \(\eta\,\hat m/(\sqrt{\hat v}+\epsilon)\) is unchanged when the cost is multiplied by a constant, so \(\eta\) is a step length in angle space, and its best value is set by the angular width of the valleys of the particular landscape; those widths differ between cost functions, so step sizes do not transfer. All the hardware-efficient runs below use \(\eta=0.4\).

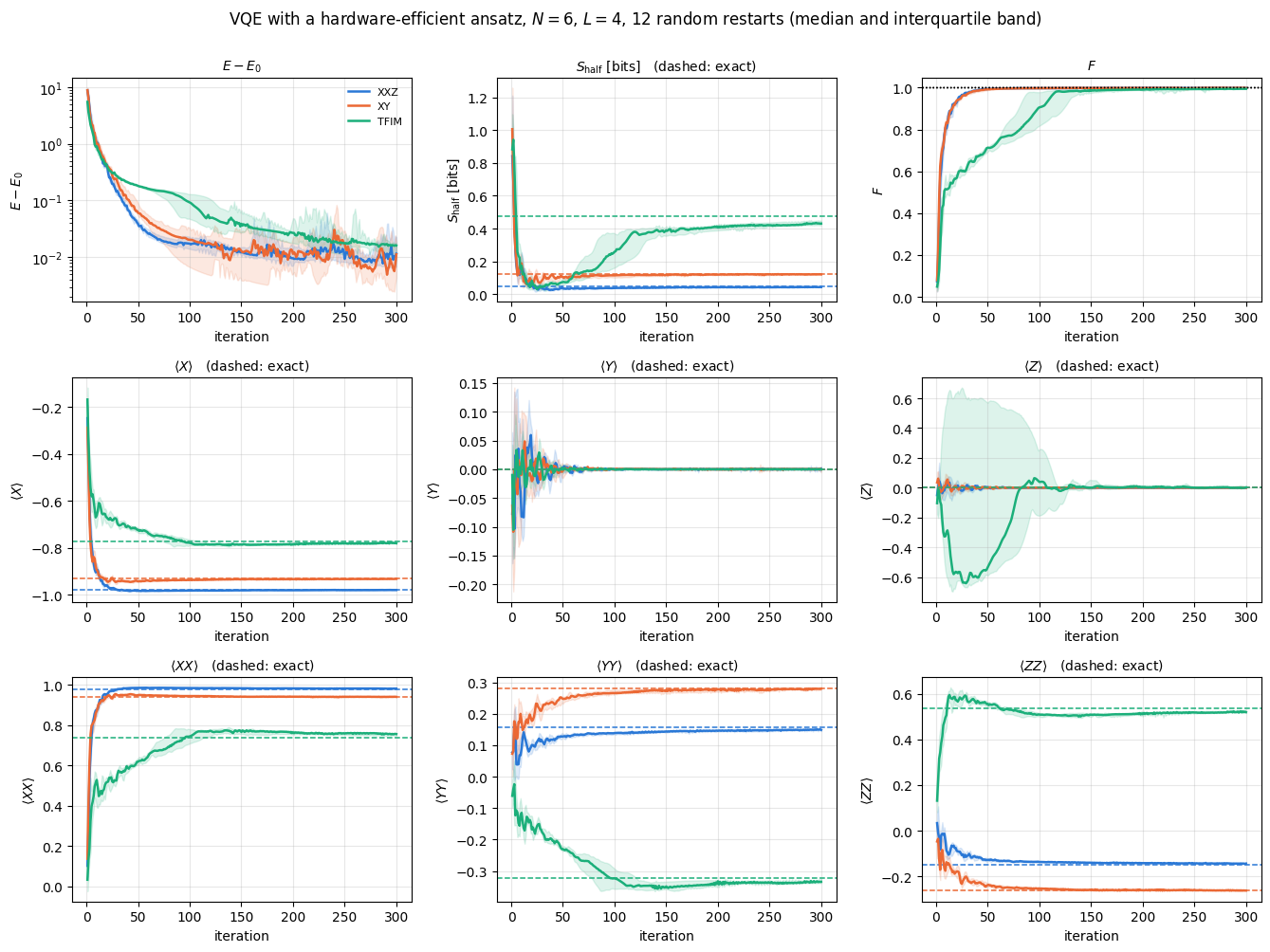

8. VQE for the three models: nine metrics against the exact ground state
The main experiment. For each of the three Hamiltonians we train twelve independent random restarts for 300 Adam iterations with exact gradients, and record all nine observables at every iteration. The figure shows the median over restarts as a line and the interquartile range as a band; the dashed horizontal line in each panel is the exact value computed in Section 4.3. A single training curve would say nothing: final results of one configuration can span ten orders of magnitude across restarts (notebook 41, optimisers).
Code
# ==============================================================================# STEP 7: train all three models in one compiled, batched program# ==============================================================================R_MAIN, T_MAIN =12, 300th_main, ks_main = random_starts(R_MAIN, n_main, seed=31)C_STACK = jnp.stack([jnp.asarray(MODELS[k], dtype=RDTYPE) for k in MODEL_NAMES])PSI_STACK = jnp.stack([EXACT[k]["psi0"] for k in MODEL_NAMES])E0_STACK = jnp.asarray([EXACT[k]["E0"] for k in MODEL_NAMES], dtype=RDTYPE)run_all = jax.jit(jax.vmap(lambda c, p, e: vqe_run(c, p, e, th_main, ks_main, LR_BEST, T_MAIN)))t0 = time.perf_counter()run_all_compiled = run_all.lower(C_STACK, PSI_STACK, E0_STACK).compile() # trace + XLA compilation onlyt_compile = time.perf_counter() - t0t0 = time.perf_counter()TH_FINAL, HIST = jax.block_until_ready(run_all_compiled(C_STACK, PSI_STACK, E0_STACK)) # (3, runs, n), (3, runs, steps, 9)t_run = time.perf_counter() - t0HIST = np.asarray(HIST)print(f"3 models x {R_MAIN} restarts x {T_MAIN} iterations, N={N_SITES}, L={L_MAIN}, n={n_main} angles: "f"compilation {t_compile:.1f} s, execution {t_run:.1f} s")TARGET_E =1e-2print(f"\n{'model':>6s}{'median E-E_0':>14s}{'best E-E_0':>12s}{'median F':>10s}{'best F':>9s} "f"{'median S_half':>14s}{'exact S_half':>13s}{'success rate':>13s}{'median iters':>13s}")for i, name inenumerate(MODEL_NAMES): h = HIST[i] s = summarise(name, h[:, :, 0], TARGET_E, 2* n_main)print(f"{name:>6s}{np.median(h[:, -1, 0]):14.6f}{h[:, -1, 0].min():12.6f}{np.median(h[:, -1, 2]):10.4f} "f"{h[:, -1, 2].max():9.4f}{np.median(h[:, -1, 1]):14.4f}{EXACT[name]['obs'][0]:13.4f} "f"{s['success']:13.2f}{s['iters']:13.1f}")print(f"(success = fraction of the {R_MAIN} restarts reaching E - E_0 < {TARGET_E:g}; "f"median iterations over the successful ones)")# --- how significant are the differences between the models? 12 restarts each ---------------------------------print("\n68% Wilson intervals of the success rates: "+", ".join(f"{name} [{wilson_interval(int((iterations_to(HIST[i, :, :, 0], TARGET_E) >0).sum()), R_MAIN)[0]:.2f}, "f"{wilson_interval(int((iterations_to(HIST[i, :, :, 0], TARGET_E) >0).sum()), R_MAIN)[1]:.2f}]"for i, name inenumerate(MODEL_NAMES)))i_xxz, i_xy, i_tf = (MODEL_NAMES.index(k) for k in ("XXZ", "XY", "TFIM"))p_dE = perm_pvalue(HIST[i_xxz, :, -1, 0], HIST[i_tf, :, -1, 0], seed=1)p_inf = perm_pvalue(1- HIST[i_xy, :, -1, 2], 1- HIST[i_tf, :, -1, 2], seed=2)p_null = perm_pvalue(1- HIST[i_tf, ::2, -1, 2], 1- HIST[i_tf, 1::2, -1, 2], seed=3)print(f"permutation p-values (medians of log values): final E - E_0, XXZ vs TFIM: {p_dE:.3f}; "f"final 1 - F, XY vs TFIM: {p_inf:.4f}")print(f"control (two halves of the SAME TFIM restarts, no real difference): 1 - F p-value {p_null:.3f}")assert p_inf <0.01and p_null >0.05for i, name inenumerate(MODEL_NAMES): it = iterations_to(HIST[i, :, :, 0], TARGET_E)print(f"{name:>6s}: iterations of the successful restarts {sorted(int(v) for v in it[it >0])}; "f"restarts ending below the exact S_half: {int(np.sum(HIST[i, :, -1, 1] < EXACT[name]['obs'][0]))}/{R_MAIN}")assert HIST[:, :, :, 0].min() >-1e-9, "variational principle violated -- check the Hamiltonian or the reference"print("\nCHECKPOINT the variational principle held in all "f"{HIST.shape[0] * HIST.shape[1] * HIST.shape[2]} recorded energies: E - E_0 >= 0 "f"(smallest value {HIST[:, :, :, 0].min():.3e}).")
3 models x 12 restarts x 300 iterations, N=6, L=4, n=60 angles: compilation 3.6 s, execution 1.7 s
model median E-E_0 best E-E_0 median F best F median S_half exact S_half success rate median iters
XXZ 0.011549 0.002572 0.9985 0.9997 0.0428 0.0498 0.83 166.0
XY 0.011276 0.002356 0.9984 0.9998 0.1203 0.1248 0.83 129.5
TFIM 0.016147 0.004487 0.9946 0.9987 0.4304 0.4732 0.50 273.5
(success = fraction of the 12 restarts reaching E - E_0 < 0.01; median iterations over the successful ones)
68% Wilson intervals of the success rates: XXZ [0.70, 0.91], XY [0.70, 0.91], TFIM [0.36, 0.64]
permutation p-values (medians of log values): final E - E_0, XXZ vs TFIM: 0.423; final 1 - F, XY vs TFIM: 0.0033
control (two halves of the SAME TFIM restarts, no real difference): 1 - F p-value 0.339
XXZ: iterations of the successful restarts [70, 74, 132, 133, 165, 167, 188, 197, 224, 250]; restarts ending below the exact S_half: 12/12
XY: iterations of the successful restarts [65, 66, 76, 91, 129, 130, 133, 182, 226, 252]; restarts ending below the exact S_half: 10/12
TFIM: iterations of the successful restarts [148, 181, 257, 290, 292, 294]; restarts ending below the exact S_half: 12/12
CHECKPOINT the variational principle held in all 10800 recorded energies: E - E_0 >= 0 (smallest value 1.636e-03).
Code
# ==============================================================================# STEP 8: the 3 x 3 panel of metrics -- median and interquartile band, per model# ==============================================================================fig, axes = plt.subplots(3, 3, figsize=(13.5, 10.0))it_axis = np.arange(1, T_MAIN +1)for m, ax inenumerate(axes.ravel()):for i, name inenumerate(MODEL_NAMES): lo, med, hi = bands(HIST[i, :, :, m])if m ==0: lo, med, hi = (np.maximum(a, 1e-12) for a in (lo, med, hi)) ax.fill_between(it_axis, lo, hi, color=PALETTE[i], alpha=0.15) ax.plot(it_axis, med, "-", lw=1.8, color=PALETTE[i], label=name)if m ==0: ax.set_yscale("log")elif m ==2: ax.axhline(1.0, color="k", ls=":", lw=1)else: ref = EXACT[name]["obs"][m -2] if m >=3else EXACT[name]["obs"][0] ax.axhline(ref, color=PALETTE[i], ls="--", lw=1.1) ax.set_xlabel("iteration") ax.set_ylabel(METRIC_TEX[m]) ax.set_title(METRIC_TEX[m] + (""if m in (0, 2) else" (dashed: exact)"), fontsize=10)axes[0, 0].legend(fontsize=8)fig.suptitle(f"VQE with a hardware-efficient ansatz, $N={N_SITES}$, $L={L_MAIN}$, "f"{R_MAIN} random restarts (median and interquartile band)", y=1.0)fig.tight_layout(); plt.show()print(f"{'model':>6s}{'observable':>12s}{'exact':>9s}{'VQE median':>11s}{'VQE IQR':>17s}{'median error':>13s}")for i, name inenumerate(MODEL_NAMES):for m inrange(3, 9): vals = HIST[i, :, -1, m] ref = EXACT[name]["obs"][m -2]print(f"{name:>6s}{METRIC_KEYS[m]:>12s}{ref:+9.4f}{np.median(vals):+11.4f} "f"[{np.percentile(vals, 25):+.4f},{np.percentile(vals, 75):+.4f}] {np.median(vals) - ref:+13.4f}")
The variational principle is a free unit test, and it passed. Across \(3\times12\times300=10800\) recorded energies the error \(E-E_0\) never went negative; its smallest value over the whole experiment was \(1.6\cdot10^{-3}\). Had the term list, the ansatz convention or the Lanczos reference been inconsistent, this is where it would have shown.
The energies converge and the states nearly do. The median final energy error is \(0.0115\) (XXZ), \(0.0113\) (XY) and \(0.0161\) (TFIM), a relative error of \(1\) to \(2\cdot10^{-3}\); the median fidelities are \(0.9985\), \(0.9984\) and \(0.9946\). Twelve restarts per model are enough to separate some of these numbers and not others, and the permutation tests printed above say which. The energy errors of the three models are statistically indistinguishable (XXZ against TFIM: \(p=0.42\)), and so are the success rates: \(10/12\) against \(6/12\) reach \(E-E_0<10^{-2}\), with 68% intervals \([0.70,0.91]\) and \([0.36,0.64]\) that nearly touch (a Fisher exact test gives \(p=0.19\)). The infidelities do differ: the Ising chain is further from its ground state than the XY chain (\(p=0.003\)), while the control comparison of two halves of the same Ising runs shows no difference (\(p=0.34\)), as it must. That is the expected ordering by gap: by Eq. (5) a similar energy error certifies \(1-F\le(E-E_0)/\Delta\), and the Ising gap is six times smaller. The successful Ising runs also arrive later (median \(274\) iterations against \(166\) and \(130\)), but three of its six successes cross the threshold within the last ten iterations of the budget, so this number mostly says that the budget was just long enough.
The entanglement ends below the exact value. The median \(S_{\mathrm{half}}\) is \(0.043\) against an exact \(0.050\), \(0.120\) against \(0.125\), and \(0.430\) against \(0.473\). Restart by restart, all twelve XXZ and all twelve Ising states end below the exact entropy and ten of the twelve XY states do. The trajectory in the second panel is not monotonic: the random starting states carry close to one bit, the first few dozen iterations remove almost all of it while the optimiser aligns the spins with the field, and only then does the Ising run build its correlations up again, from below. The circuit’s capacity is not the limit here: Section 10.1 shows that four entangling layers allow up to three bits across the central cut (the number of qubits on each side), six times the target. The shortfall is the incompletely converged correlation, the same shortfall that makes the fidelity \(0.995\) rather than \(1\).
The local observables.\(\langle X\rangle\), \(\langle XX\rangle\), \(\langle YY\rangle\) and \(\langle ZZ\rangle\) are reproduced with median errors from \(4\cdot10^{-4}\) to \(9\cdot10^{-3}\) for the XXZ and XY chains and from \(10^{-2}\) to \(1.7\cdot10^{-2}\) for the critical Ising chain. The comparison to keep in mind is relative: the Ising energy is off by \(0.016\) out of \(7.30\), two parts in a thousand, while \(\langle XX\rangle\) is off by \(0.017\) out of \(0.74\), more than two parts in a hundred. The reason is Eq. (2): the first-order term \(2\varepsilon\,\mathrm{Re}\langle\psi_0\vert A\vert\delta\rangle\) vanishes for \(A=H\) because \(\vert\psi_0\rangle\) is an eigenvector of \(H\), and it does not vanish for a generic observable \(A\). A correlator therefore carries an error linear in the state error, the energy a quadratic one. An energy that looks converged does not certify the observables one actually wants.
The symmetry shows up as a residue.\(\langle Y\rangle\) and \(\langle Z\rangle\) are exactly zero in the true ground states (Section 4.3), but the variational states return medians up to \(1.7\cdot10^{-3}\) and interquartile ranges reaching \(8.3\cdot10^{-3}\) (Ising, \(\langle Z\rangle\)). These are exact expectation values of definite states, not sampling noise: the residue is the broken parity of the ansatz, quantified in the next section.
8.1 The ansatz or the optimiser? The plateau near \(10^{-2}\)
All three median energy errors stop near \(10^{-2}\), and the first panel shows them fluctuating there for the last hundred iterations instead of decreasing. Two explanations predict the same picture: the circuit family cannot do better (an ansatz floor), or Adam with a constant step \(\eta=0.4\) cannot settle into a minimum narrower than its step (an optimiser floor). They are told apart by continuing the same runs from their final angles, once with the same \(\eta=0.4\) and once with \(\eta=0.1\), for \(600\) more iterations each (Adam’s moment estimates restart from zero). An ansatz floor would leave both continuations where they are; an optimiser floor would drop with the smaller step only.
Code
# ==============================================================================# STEP 8b: continue the Section 8 runs with the same and with a smaller step size# ==============================================================================T_MORE =600cont = {}t0 = time.perf_counter()for lr2 in (LR_BEST, 0.1): f_cont = jax.jit(jax.vmap(lambda c, p, e, th: vqe_run(c, p, e, th, ks_main, lr2, T_MORE)[1])) cont[lr2] = np.asarray(jax.block_until_ready(f_cont(C_STACK, PSI_STACK, E0_STACK, TH_FINAL)))print(f"two continuations of {T_MORE} iterations in {time.perf_counter() - t0:.1f} s (compilation included)")print(f"\n{'model':>6s} | {'after 300 at 0.4':>17s} | {'+600 at 0.4':>12s} | {'+600 at 0.1':>12s}{'median F':>9s} "f"{'median S_half':>14s}{'exact S_half':>13s}")for i, name inenumerate(MODEL_NAMES): a, b = cont[LR_BEST][i], cont[0.1][i]print(f"{name:>6s} | {np.median(HIST[i, :, -1, 0]):17.5f} | {np.median(a[:, -1, 0]):12.5f} | "f"{np.median(b[:, -1, 0]):12.5f}{np.median(b[:, -1, 2]):9.5f}{np.median(b[:, -1, 1]):14.4f} "f"{EXACT[name]['obs'][0]:13.4f}")assertall(np.median(cont[0.1][i][:, -1, 0]) <0.5* np.median(cont[LR_BEST][i][:, -1, 0]) for i inrange(3))
two continuations of 600 iterations in 14.6 s (compilation included)
model | after 300 at 0.4 | +600 at 0.4 | +600 at 0.1 median F median S_half exact S_half
XXZ | 0.01155 | 0.01201 | 0.00311 0.99963 0.0454 0.0498
XY | 0.01128 | 0.01558 | 0.00144 0.99985 0.1226 0.1248
TFIM | 0.01615 | 0.01530 | 0.00415 0.99895 0.4561 0.4732
The plateau belongs to the optimiser. Six hundred more iterations at \(\eta=0.4\) leave the median errors at \(0.012\) to \(0.016\), no better than after \(300\); the same six hundred iterations at \(\eta=0.1\) bring them down to \(0.003\) (XXZ), \(0.0014\) (XY) and \(0.004\) (TFIM), a factor of four to eight, with median fidelities of \(0.9996\), \(0.9999\) and \(0.9990\). The step size that was best for getting down the landscape in Section 7 is too large for the bottom of it, which is why practical schedules decrease \(\eta\) during training. The final half-chain entropies stay below the exact values (\(0.456\) against \(0.473\) for the Ising chain), so the entanglement deficit of Section 8 shrinks with the energy error but does not close. Every study below keeps the constant \(\eta\) of Section 7 and is therefore read against this optimiser floor of roughly \(10^{-2}\): differences below it are not resolved.
9. Symmetry leakage, and an ansatz that cannot leak

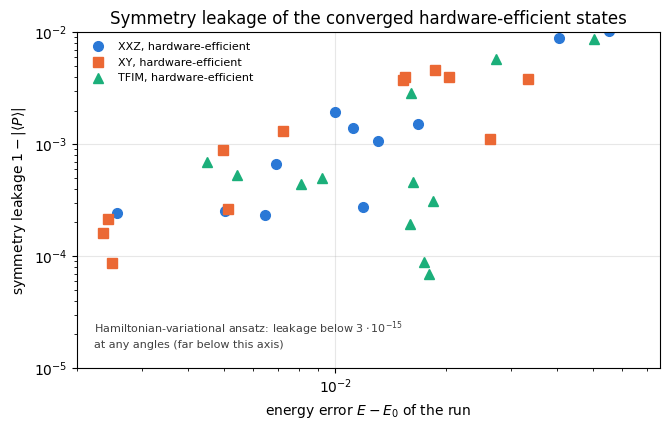

9.1 What the hardware-efficient ansatz did with the symmetry
Section 5 established that the exact ground states are parity eigenstates with \(\langle P\rangle=+1\) and that the hardware-efficient family has no reason to respect that. Now we can ask what the optimiser did: does minimising the energy recover the symmetry as a by-product? The variational principle suggests it should, because the exact minimiser is symmetric — but only to the extent that the minimum is actually reached, and that extent can be made quantitative. Split the trial state into its two parity sectors with weights \(w_\pm\), \(w_++w_-=1\). Then \(\langle P\rangle=w_+-w_-\), and because the ground state lies in the \(P=+1\) sector, all of \(w_-\) is infidelity, \(w_-\le1-F\). Hence
the last step by Eq. (5) (unique ground state). Small energy error forces small leakage; the converse does not hold, because a state can be perfectly symmetric and still have an energy error inside its own sector.

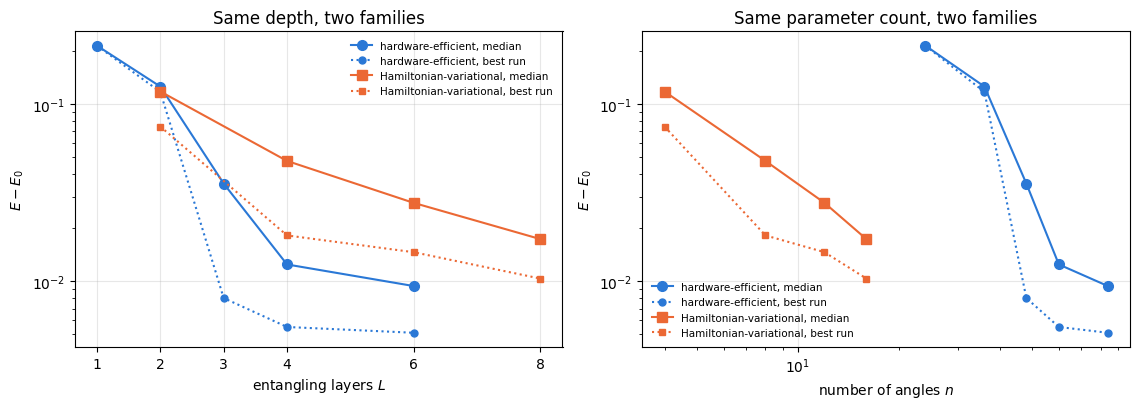

9.2 A problem-inspired ansatz that respects the symmetry by construction
The Hamiltonian-variational ansatz[4] is built from the Hamiltonian’s own terms. For the transverse-field Ising model,
with \(J=J_{zz}=-1\) and \(h=h_x=+1\): a Trotterised adiabatic path (product formula introduced in [5]) with the angles left free. Ref. [6] found numerically that on a periodic chain at the critical point \(N/2\) such layers reach the ground state exactly. The path must start in the ground state of the field term alone, and for \(h_x=+1\) that is \(\vert-\rangle^{\otimes N}\), \(X\vert-\rangle=-\vert-\rangle\). (The ansatz is often written with \(\vert+\rangle^{\otimes N}\), which is the ground state for \(h<0\); for our sign it is the highest state of the field term, and an ansatz started there needs many more layers before it competes.) It has \(2L\) angles — independent of \(N\) — against \(2N(L+1)\) for the hardware-efficient family.
It also cannot break the parity of Eq. (7), and the proof is three lines:
the initial state satisfies \(X\vert-\rangle=-\vert-\rangle\) on every qubit, so \(P\vert-\rangle^{\otimes N} =(-1)^N\vert-\rangle^{\otimes N}\): for our even \(N=6\) it is already in the \(P=+1\) sector (for odd \(N\) the whole family would sit in the \(P=-1\) sector, and a different start would be needed);
\(R_x(\alpha)=e^{-i\alpha X/2}\) is a function of \(X\) alone, so it commutes with \(P\);
\(R_{ZZ}(\alpha)=e^{-i\alpha Z_qZ_{q'}/2}\) is a function of \(Z_qZ_{q'}\), which commutes with \(P\) by the two-sign-flip argument of Section 5.1.
Hence \(P\vert\psi(\boldsymbol\gamma,\boldsymbol\beta)\rangle=\vert\psi(\boldsymbol\gamma,\boldsymbol\beta)\rangle\) for every choice of angles, and the symmetry leakage of Eq. (8) is exactly zero. The variational search is confined to the sector that contains the answer. We measure both claims.
Code
# ==============================================================================# STEP 9: the Hamiltonian-variational ansatz, and the parity of every converged state# ==============================================================================def hva_num_params(layers):"""Number of angles of the Hamiltonian-variational ansatz, Eq. (13): 2 per layer."""return2* layersdef hva_tfim(theta, N, layers, J=-1.0, h=1.0):"""Hamiltonian-variational ansatz for the transverse-field Ising model, Eq. (13). MATH |psi> = prod_l [ prod_q Rx(2 h beta_l) ] [ prod_bonds Rzz(2 J gamma_l) ] |->^N |->^N is the ground state of h sum_q X_q for h > 0 (the start of the adiabatic path). The gates inside one factor commute, so each exponential is exact; the two factors of a layer do not commute with each other, which is what makes the family expressive. IMPL |->^N is Ry(-pi/2) on every qubit of |0..0>: Ry(-pi/2)|0> = (|0>-|1>)/sqrt(2). COST O(L N 2^N). """ theta = theta.reshape(layers, 2) psi = zero_state(N)for q inrange(N): # |0..0> -> |-..-> psi = apply_gate(psi, ry(-jnp.pi /2), [q])for l inrange(layers): gamma, beta = theta[l, 0], theta[l, 1]for q inrange(N -1): psi = apply_gate(psi, rzz(2.0* J * gamma), [q, q +1])for q inrange(N): psi = apply_gate(psi, rx(2.0* h * beta), [q])return psi# --- CHECKPOINT: the HVA sits in the P = +1 sector at ANY angles -----------------------------------th_hva_rand = jax.random.uniform(jax.random.PRNGKey(91), (64, hva_num_params(3)), minval=-jnp.pi, maxval=jnp.pi)par_hva = np.asarray(jax.jit(jax.vmap(lambda t: parity(hva_tfim(t, N_SITES, 3))))(th_hva_rand))print(f"HVA, 64 random parameter vectors: <P> in [{par_hva.min():.12f}, {par_hva.max():.12f}] "f"-> max leakage {np.max(1- np.abs(par_hva)):.2e}")assert np.max(1- np.abs(par_hva)) <1e3* TOLpsi_hva0 = hva_tfim(jnp.zeros(hva_num_params(1)), N_SITES, 1) # zero angles: the start |->^N itselfx_hva0 = np.asarray(all_local_expectations(psi_hva0))[:, 0]print(f"HVA at zero angles: <X_q> = {x_hva0.min():+.12f} ... {x_hva0.max():+.12f} (|->^N, the ground state of h_x sum X)")assert np.max(np.abs(x_hva0 +1)) < TOL# --- parity of the hardware-efficient states that Section 8 converged to ---------------------------print(f"\n{'model':>6s}{'median <P>':>11s}{'best-run <P>':>13s}{'median leakage':>15s} "f"{'best-run leakage':>17s}{'exact <P>':>10s}")leak_tab = {}for i, name inenumerate(MODEL_NAMES): pars = np.asarray(jax.jit(jax.vmap(lambda t: parity(ansatz_state(t))))(TH_FINAL[i])) errs = HIST[i, :, -1, 0] leak_tab[name] = (pars, errs) j =int(np.argmin(errs))print(f"{name:>6s}{np.median(pars):+11.4f}{pars[j]:+13.4f}{np.median(1- np.abs(pars)):15.4f} "f"{1-abs(pars[j]):17.2e}{float(parity(EXACT[name]['psi0'])):+10.4f}")def spearman(a, b):"""Spearman rank correlation (no ties): Pearson correlation of the ranks.""" ra, rb = np.argsort(np.argsort(a)), np.argsort(np.argsort(b))returnfloat(np.corrcoef(ra, rb)[0, 1])# --- CHECKPOINT: leakage <= 2 (1 - F) <= 2 (E - E_0) / Delta for every run (Section 9.1) -------------------------print(f"\n{'model':>6s}{'rank corr(E-E_0, leakage)':>26s}{'max leak / 2(1-F)':>18s}{'max leak / [2(E-E_0)/Delta]':>28s}")for i, name inenumerate(MODEL_NAMES): pars, errs = leak_tab[name] leak, F_run =1- np.abs(pars), HIST[i, :, -1, 2] gap = EXACT[name]["E1"] - EXACT[name]["E0"] r1, r2 = np.max(leak / (2* (1- F_run))), np.max(leak / (2* errs / gap))print(f"{name:>6s}{spearman(errs, leak):26.2f}{r1:18.3f}{r2:28.4f}")assert r1 <=1+1e-9and r2 <=1+1e-9fig, ax = plt.subplots(figsize=(6.8, 4.4))for i, name inenumerate(MODEL_NAMES): pars, errs = leak_tab[name] ax.loglog(np.maximum(errs, 1e-12), np.maximum(1- np.abs(pars), 1e-16), MARKERS[i], ms=7, color=PALETTE[i], label=f"{name}, hardware-efficient")ax.set_ylim(1e-5, 1e-2)ax.text(0.03, 0.06, "Hamiltonian-variational ansatz: leakage below $3\\cdot10^{-15}$\nat any angles (far below this axis)", transform=ax.transAxes, fontsize=8, color="0.25")ax.set_xlabel(r"energy error $E-E_0$ of the run")ax.set_ylabel(r"symmetry leakage $1-\vert\langle P\rangle\vert$")ax.set_title("Symmetry leakage of the converged hardware-efficient states")ax.legend(fontsize=8, loc="upper left")fig.tight_layout(); plt.show()
HVA, 64 random parameter vectors: <P> in [1.000000000000, 1.000000000000] -> max leakage 2.78e-15
HVA at zero angles: <X_q> = -1.000000000000 ... -1.000000000000 (|->^N, the ground state of h_x sum X)
model median <P> best-run <P> median leakage best-run leakage exact <P>
XXZ +0.9988 +0.9998 0.0012 2.42e-04 +1.0000
XY +0.9988 +0.9998 0.0012 1.61e-04 +1.0000
TFIM +0.9995 +0.9993 0.0005 6.94e-04 +1.0000
model rank corr(E-E_0, leakage) max leak / 2(1-F) max leak / [2(E-E_0)/Delta]
XXZ 0.87 0.868 0.3065
XY 0.78 0.888 0.4317
TFIM 0.06 0.428 0.0509
The Hamiltonian-variational ansatz is exactly symmetric. Over 64 random parameter vectors its parity is \(1.000000000000\) to twelve printed digits, with a largest leakage of \(2.8\cdot10^{-15}\), which is round-off. The three-line proof above is confirmed: the family never leaves the \(P=+1\) sector, so half of the Hilbert space is removed from the search before the optimiser starts.
The hardware-efficient ansatz learns the symmetry, approximately. The converged states have a median leakage of \(1.2\cdot10^{-3}\) (XXZ and XY) and \(5\cdot10^{-4}\) (TFIM), against the median of \(0.94\) at random angles measured in Section 5.3: minimising the energy has brought \(\lvert\langle P\rangle\rvert\) to within \(10^{-3}\) of one, for a symmetry that the circuit has no structural reason to possess. The inequality chain above holds for every run (the printed ratios are below one), but it is far from tight for the Ising chain: there the leakage is at most \(0.43\) of \(2(1-F)\), so most of the infidelity of those states lies inside the even sector. That is also why the scatter plot shows two different behaviours. For the XXZ and XY chains, leakage and energy error track each other (rank correlations \(0.87\) and \(0.78\) over twelve runs); for the Ising chain they are uncorrelated (rank correlation \(0.06\)), and its best run, with \(E-E_0=4.5\cdot10^{-3}\), has a leakage of \(6.9\cdot10^{-4}\), above the median. For the Ising chain the energy error is dominated by the even-sector part of the error, which parity cannot see.
The leakage is a diagnostic that costs nothing and needs no exact solution: \(\langle P\rangle\) is the expectation value of one Pauli string, measurable on hardware in a single setting. A converged VQE run whose state has \(\lvert\langle P\rangle\rvert\) far from \(1\) is announcing that it has not converged, without any reference state being available.
Common pitfall. “The ansatz respects the symmetry” is a claim about the circuit; a symmetric trained state does not establish it. The right check is the one above: evaluate the symmetry generator at random angles. If it is not conserved there, the family does not respect the symmetry, however symmetric a converged state happens to look.
10. Depth: expressivity, entanglement and trainability
10.1 Entanglement capacity of a depth-\(L\) circuit
Cut the chain in the middle, between qubits \(N/2-1\) and \(N/2\), and write the state in Schmidt form \(\vert\psi\rangle=\sum_{k=1}^{r}s_k\vert a_k\rangle\vert b_k\rangle\) with Schmidt rank \(r\). The entropy of \(s_k^2\) is at most that of the uniform distribution on \(r\) values, \(S_{\mathrm{half}}\le\log_2r\). Now count how gates change \(r\). A single-qubit rotation acts on one side only and maps \(\vert a_k\rangle\vert b_k\rangle\) to another product of the same form: \(r\) is unchanged. A \(CZ\) on a pair that does not straddle the cut is likewise a one-sided unitary. The one \(CZ\) per entangling layer that straddles the cut can be written as
\[CZ=\vert0\rangle\langle0\vert\otimes\mathbb 1+\vert1\rangle\langle1\vert\otimes Z ,\]
a sum of two products of one-sided operators, so it maps each Schmidt term to at most two product terms: \(r\) at most doubles. The start \(\vert0\rangle^{\otimes N}\) has \(r=1\), so after \(L\) entangling layers \(r\le2^L\), and since \(r\) also cannot exceed the dimension \(2^{N/2}\) of either half,
The count uses that \(CZ\) has two terms in this decomposition (operator Schmidt rank two). A general two-qubit gate has up to four, and a SWAP across the cut can raise the entropy by two bits, so the “one bit per gate” rule is a property of controlled gates such as \(CZ\) and CNOT and does not extend to every two-qubit gate.
This is a hard constraint on the family, independent of any optimiser. If the target ground state has \(S_{\mathrm{half}}>\min(L,N/2)\), no choice of angles can reach it. Equation (9) is the elementary version of the entanglement-area-law argument that also underlies matrix-product states (notebook 18, matrix product states), where the bond dimension \(\chi\) plays the role of \(2^L\).
10.2 Counting parameters
The second constraint is dimensional. A general \(N\)-qubit pure state has \(2\cdot2^N-2\) real parameters (complex amplitudes minus normalisation and global phase); for \(N=6\) that is \(126\), while the ansatz has \(n=2N(L+1)=12(L+1)\), so \(n\ge126\) requires \(L\ge10\). For a Haar-random target state at \(N=4\) the success rate rises sharply where \(n\) crosses \(2\cdot2^N-2=30\), the overparametrisation threshold [7] (notebook 41, optimisers, Section 14). A ground state is not a random state: it is weakly entangled, symmetric and structured, so the relevant count may be far smaller. The depth scan below measures which of the two constraints binds.
Code
# ==============================================================================# STEP 10: energy error, fidelity and entanglement versus the number of layers# ==============================================================================DEPTHS = (1, 2, 3, 4, 6)R_DEPTH, T_DEPTH, R_DEPTH_HVA =8, 250, 12depth_rows = []t0 = time.perf_counter()for L in DEPTHS: n_L = hea_num_params(N_SITES, L) th_L, ks_L = random_starts(R_DEPTH, n_L, seed=41+ L) run_L = jax.jit(jax.vmap(lambda c, p, e: vqe_run(c, p, e, th_L, ks_L, LR_BEST, T_DEPTH, layers=L)[1])) h = np.asarray(jax.block_until_ready(run_L(C_STACK, PSI_STACK, E0_STACK))) # (3, runs, steps, 9) depth_rows.append(h)print(f"depth scan: {len(DEPTHS)} depths x 3 models x {R_DEPTH} restarts x {T_DEPTH} iterations "f"in {time.perf_counter() - t0:.1f} s")print(f"\n{'L':>3s}{'n':>4s}{'Eq.(9) bound':>12s} | "+" | ".join(f"{k +' dE/F/S':>22s}"for k in MODEL_NAMES))for j, L inenumerate(DEPTHS): cells = []for i, name inenumerate(MODEL_NAMES): h = depth_rows[j][i] cells.append(f"{np.median(h[:, -1, 0]):7.4f}{np.median(h[:, -1, 2]):6.3f}{np.median(h[:, -1, 1]):7.4f}")print(f"{L:3d}{hea_num_params(N_SITES, L):4d}{min(L, N_SITES //2):12d} | "+" | ".join(f"{c:>22s}"for c in cells))print("\nexact half-chain entropies: "+", ".join(f"{k}{EXACT[k]['obs'][0]:.4f}"for k in MODEL_NAMES))print("permutation p-values, final E - E_0 at L=4 against L=6 (8 restarts each): "+", ".join(f"{k}{perm_pvalue(depth_rows[DEPTHS.index(4)][i][:, -1, 0], depth_rows[DEPTHS.index(6)][i][:, -1, 0], seed=4+ i):.2f}"for i, k inenumerate(MODEL_NAMES)))print("control, L=1 against L=4 for the Ising chain (a real difference): "f"{perm_pvalue(depth_rows[0][MODEL_NAMES.index('TFIM')][:, -1, 0], depth_rows[DEPTHS.index(4)][MODEL_NAMES.index('TFIM')][:, -1, 0], seed=9):.4f}")fig, axes = plt.subplots(1, 3, figsize=(13.5, 4.2))ns = [hea_num_params(N_SITES, L) for L in DEPTHS]for i, name inenumerate(MODEL_NAMES): med_dE = [np.median(depth_rows[j][i][:, -1, 0]) for j inrange(len(DEPTHS))] lo_dE = [np.percentile(depth_rows[j][i][:, -1, 0], 25) for j inrange(len(DEPTHS))] hi_dE = [np.percentile(depth_rows[j][i][:, -1, 0], 75) for j inrange(len(DEPTHS))] med_F = [np.median(depth_rows[j][i][:, -1, 2]) for j inrange(len(DEPTHS))] med_S = [np.median(depth_rows[j][i][:, -1, 1]) for j inrange(len(DEPTHS))] axes[0].semilogy(DEPTHS, med_dE, MARKERS[i] +"-", ms=6, color=PALETTE[i], label=name) axes[0].fill_between(DEPTHS, lo_dE, hi_dE, color=PALETTE[i], alpha=0.15) axes[1].semilogy(DEPTHS, np.maximum(1- np.array(med_F), 1e-6), MARKERS[i] +"-", ms=6, color=PALETTE[i], label=name) axes[2].plot(DEPTHS, med_S, MARKERS[i] +"-", ms=6, color=PALETTE[i], label=name) axes[2].axhline(EXACT[name]["obs"][0], color=PALETTE[i], ls="--", lw=1.1)axes[2].plot(DEPTHS, [min(L, N_SITES //2) for L in DEPTHS], "k:", lw=1.2, label=r"bound $S_{\rm half}\leq \min(L,N/2)$, Eq. (9) (leaves the panel)")axes[2].set_ylim(0, 1.25)axes[0].set_xlabel("entangling layers $L$"); axes[0].set_ylabel(r"median $E-E_0$")axes[0].set_title("Energy error versus depth"); axes[0].legend(fontsize=8)axes[1].set_xlabel("entangling layers $L$"); axes[1].set_ylabel(r"median $1-F$")axes[1].set_title("Infidelity versus depth"); axes[1].legend(fontsize=8)axes[2].set_xlabel("entangling layers $L$"); axes[2].set_ylabel(r"median $S_{\rm half}$ [bits]")axes[2].set_title("Entanglement carried (dashed: exact)"); axes[2].legend(fontsize=8)for a in axes: a.set_xticks(DEPTHS)fig.tight_layout(); plt.show()
permutation p-values, final E - E_0 at L=4 against L=6 (8 restarts each): XXZ 0.95, XY 0.66, TFIM 0.75
control, L=1 against L=4 for the Ising chain (a real difference): 0.0037
Depth helps until the optimiser floor is reached. For the critical Ising chain the median energy error falls from \(0.213\) at \(L=1\) through \(0.125\) and \(0.036\) to \(0.0124\) at \(L=4\) and \(0.0094\) at \(L=6\), and the median fidelity rises from \(0.64\) to \(0.997\). The first three steps are large and robust: at \(L=1\) all eight restarts end at the same \(0.2130\), at \(L=2\) the best of eight is \(0.117\). From \(L=3\) on, every model sits near the \(10^{-2}\) floor that Section 8.1 traced to the constant Adam step, and the remaining differences are not significant with eight restarts: XXZ goes \(0.0115\to0.0102\to0.0123\) for \(L=3,4,6\), but the eight final errors at \(L=4\) and at \(L=6\) interleave (the permutation test printed above gives \(p=0.95\)), and the same holds for the other two models (\(p=0.66\) and \(0.75\)), whereas the same test separates the Ising chain at \(L=1\) from \(L=4\) with \(p=0.004\). What the table shows for the two nearly polarised chains is that two entangling layers already bring them to the optimiser floor; it does not show that more depth hurts.
The entanglement bound of Eq. (9) is not what limits the accuracy here. The bound allows \(\min(L,3)\) bits; the targets need \(0.05\), \(0.12\) and \(0.47\) bits, so even \(L=1\) has enough capacity for all three. Yet at \(L=1\) the optimised Ising state carries only \(0.013\) bits and misses the energy by \(0.21\). With a single \(CZ\) layer the entangling gates are fixed and only the rotations before them can tune how much entanglement is made, and the restarts all find the same nearly unentangled compromise. The entanglement produced climbs with depth — \(0.013\), \(0.187\), \(0.389\), \(0.444\), \(0.452\) bits against the exact \(0.473\) — always below the target and always far below the ceiling. Equation (9) is a necessary condition only: what limits a shallow hardware-efficient circuit is the shape of the reachable set, and its entanglement capacity is not the binding constraint.
The parameter count tells the same story. All the depths here have \(n=24\) to \(84\) angles, and a general six-qubit state needs \(2\cdot2^N-2=126\): the counting threshold of Section 10.2 for a Haar-random target (at \(N=4\) it is \(30\)) is never crossed, and yet the median fidelity reaches \(0.997\). A ground state is not a random state. It is weakly entangled, symmetric and structured, and a circuit with far fewer than \(2\cdot2^N-2\) parameters can approximate it well. The counting threshold is the right criterion for the worst case and a pessimistic one for these ground states.
10.3 The same study with the Hamiltonian-variational ansatz
The hardware-efficient family buys its expressivity with parameters: \(12(L+1)\) of them at \(N=6\). The Hamiltonian-variational ansatz of Eq. (13) has \(2L\) — at \(L=6\) that is twelve angles against eighty-four. If a problem-inspired structure is worth anything, it should show here: the same critical Ising ground state, the same optimiser, a small fraction of the parameters.
The two families live on landscapes with different curvature scales, so re-using the step size tuned in Section 7 would be a mistake: step sizes do not transfer between landscapes (Section 7). Each depth therefore gets its own sweep over four step sizes — a nested vmap, one compilation per depth — and we report the step with the smallest median. We also report the best run next to the median, as a measure of how much the restarts disagree.
Code
# ==============================================================================# STEP 11: HVA depth scan on the critical Ising chain, each depth at its own best step size# ==============================================================================HVA_DEPTHS = (2, 4, 6, 8)LR_GRID_HVA = jnp.asarray([0.05, 0.1, 0.2, 0.4], dtype=RDTYPE)hva_rows, hva_lr = [], []t0 = time.perf_counter()for L in HVA_DEPTHS: nL = hva_num_params(L) th_L, ks_L = random_starts(R_DEPTH_HVA, nL, seed=71+ L)def cost_hva(t, L=L):return energy(model_terms(N_SITES, c_tfim), hva_tfim(t, N_SITES, L))def mon_hva(t, L=L): psi = hva_tfim(t, N_SITES, L)return jnp.stack([energy(model_terms(N_SITES, c_tfim), psi) - E0_tfim, entanglement_entropy(psi, range(N_SITES //2)), fidelity_pure(psi0_tfim, psi)])# nested vmap: one compilation for the whole (step size x restart) grid at this depth h = np.asarray(jax.block_until_ready(jax.jit(jax.vmap(lambda lr: jax.vmap(lambda t, k: train( t, k, grad_exact(cost_hva), opt_adam(lr), mon_hva, T_DEPTH)[1])(th_L, ks_L)))(LR_GRID_HVA))) j_best =int(np.argmin(np.median(h[:, :, -1, 0], axis=1))) hva_rows.append(h[j_best]); hva_lr.append(float(np.asarray(LR_GRID_HVA)[j_best]))print(f"HVA depth scan ({len(LR_GRID_HVA)} step sizes per depth) in {time.perf_counter() - t0:.1f} s")i_tfim = MODEL_NAMES.index("TFIM")print(f"\ncritical Ising chain, N={N_SITES}: two ansatz families")print(f"{'L':>3s} | {'HEA n':>6s}{'median E-E_0':>13s}{'best':>9s}{'median F':>9s} | "f"{'HVA n':>6s}{'best lr':>8s}{'median E-E_0':>13s}{'best':>9s}{'median F':>9s}")for L insorted(set(DEPTHS) |set(HVA_DEPTHS)): hea_cell =" - - - -"if L in DEPTHS: hh = depth_rows[DEPTHS.index(L)][i_tfim] hea_cell = (f"{hea_num_params(N_SITES, L):6d}{np.median(hh[:, -1, 0]):13.5f}{hh[:, -1, 0].min():9.5f} "f"{np.median(hh[:, -1, 2]):9.4f}") hva_cell =" - - - - -"if L in HVA_DEPTHS: hv = hva_rows[HVA_DEPTHS.index(L)] hva_cell = (f"{hva_num_params(L):6d}{hva_lr[HVA_DEPTHS.index(L)]:8.2f}{np.median(hv[:, -1, 0]):13.5f} "f"{hv[:, -1, 0].min():9.5f}{np.median(hv[:, -1, 2]):9.4f}")print(f"{L:3d} | {hea_cell} | {hva_cell}")fig, axes = plt.subplots(1, 2, figsize=(11.5, 4.2))med_hea = [np.median(depth_rows[j][i_tfim][:, -1, 0]) for j inrange(len(DEPTHS))]med_hva = [np.median(hva_rows[j][:, -1, 0]) for j inrange(len(HVA_DEPTHS))]best_hea = [depth_rows[j][i_tfim][:, -1, 0].min() for j inrange(len(DEPTHS))]best_hva = [hva_rows[j][:, -1, 0].min() for j inrange(len(HVA_DEPTHS))]axes[0].semilogy(DEPTHS, med_hea, MARKERS[0] +"-", ms=7, color=PALETTE[0], label="hardware-efficient, median")axes[0].semilogy(DEPTHS, best_hea, MARKERS[0] +":", ms=5, color=PALETTE[0], label="hardware-efficient, best run")axes[0].semilogy(HVA_DEPTHS, med_hva, MARKERS[1] +"-", ms=7, color=PALETTE[1], label="Hamiltonian-variational, median")axes[0].semilogy(HVA_DEPTHS, best_hva, MARKERS[1] +":", ms=5, color=PALETTE[1], label="Hamiltonian-variational, best run")axes[0].set_xlabel("entangling layers $L$"); axes[0].set_ylabel(r"$E-E_0$")axes[0].set_xticks(sorted(set(DEPTHS) |set(HVA_DEPTHS)))axes[0].set_title("Same depth, two families"); axes[0].legend(fontsize=7.5)axes[1].loglog([hea_num_params(N_SITES, L) for L in DEPTHS], med_hea, MARKERS[0] +"-", ms=7, color=PALETTE[0], label="hardware-efficient, median")axes[1].loglog([hea_num_params(N_SITES, L) for L in DEPTHS], best_hea, MARKERS[0] +":", ms=5, color=PALETTE[0], label="hardware-efficient, best run")axes[1].loglog([hva_num_params(L) for L in HVA_DEPTHS], med_hva, MARKERS[1] +"-", ms=7, color=PALETTE[1], label="Hamiltonian-variational, median")axes[1].loglog([hva_num_params(L) for L in HVA_DEPTHS], best_hva, MARKERS[1] +":", ms=5, color=PALETTE[1], label="Hamiltonian-variational, best run")axes[1].set_xlabel("number of angles $n$"); axes[1].set_ylabel(r"$E-E_0$")axes[1].set_title("Same parameter count, two families"); axes[1].legend(fontsize=7.5)fig.tight_layout(); plt.show()
HVA depth scan (4 step sizes per depth) in 18.7 s
critical Ising chain, N=6: two ansatz families
L | HEA n median E-E_0 best median F | HVA n best lr median E-E_0 best median F
1 | 24 0.21307 0.21304 0.6420 | - - - - -
2 | 36 0.12523 0.11679 0.8571 | 4 0.20 0.11746 0.07450 0.9522
3 | 48 0.03550 0.00802 0.9871 | - - - - -
4 | 60 0.01242 0.00551 0.9968 | 8 0.10 0.04766 0.01811 0.9812
6 | 84 0.00938 0.00511 0.9974 | 12 0.10 0.02763 0.01456 0.9892
8 | - - - - | 16 0.10 0.01726 0.01033 0.9936
The two families answer two different questions, and the two panels separate them.
At equal depth the hardware-efficient ansatz wins from \(L=3\) on. At \(L=2\) the two medians are equal within the scatter (\(0.125\) against \(0.117\)); at \(L=4\) and \(L=6\) the hardware-efficient circuit reaches \(0.0124\) and \(0.0094\) against \(0.048\) and \(0.028\) for the Hamiltonian-variational one. That is expected: at \(L=6\) the one family has \(84\) free angles and the other has \(12\).
At equal parameter count the ranking reverses, by an order of magnitude. With \(16\) angles (\(L=8\)) the Hamiltonian-variational ansatz reaches a median error of \(0.017\) and a median fidelity of \(0.994\); the hardware-efficient circuit with the comparable \(24\) angles (\(L=1\)) is stuck at \(0.213\) in every restart, with fidelity \(0.642\), a factor of twelve worse. Even the four-angle Hamiltonian-variational circuit (\(L=2\), median \(0.117\)) beats the \(24\)-angle hardware-efficient one. The structure taken from the Hamiltonian is worth a large factor in parameters, which on hardware is a large factor in parameter-shift circuits per iteration.
Both landscapes are benign at these sizes. The best run is within a factor of three of the median for every Hamiltonian-variational depth and within a factor of two and a half for the hardware-efficient family at \(L=4\) and \(6\), so neither family is dominated by bad local minima at \(N=6\). The comparison does depend on the initial state of Eq. (13): Exercise 4 repeats the scan from \(\vert+\rangle^{\otimes N}\), the highest state of the field term, where the problem-inspired circuit is far worse at every depth up to \(L=6\). A problem-inspired ansatz is only as good as the physics put into it.
Numerical practice. The step sizes were re-tuned per depth and per family (the chosen values are printed in the table). Carrying over the \(\eta=0.4\) of Section 7 would have made the Hamiltonian-variational family look worse than it is (at \(L=8\) the median at \(\eta=0.4\) is about three times the median at the selected step), and would have been a statement about the step size rather than about the ansatz.
11. Across the phase diagram of the transverse-field Ising chain
11.1 The physics
Take the TFIM of Eq. (6), \(H=-\sum_qZ_qZ_{q+1}+h\sum_qX_q\), and vary \(h\). The two limits are elementary:
\(h=0\): the Hamiltonian is diagonal in the \(Z\) basis and the two ground states are \(\vert0\cdots0\rangle\) and \(\vert1\cdots1\rangle\) — ferromagnetic order, twofold degenerate;
\(h\to\infty\): the field wins, and the unique ground state is the product state \(\vert-\rangle^{\otimes N}\) with \(\langle X_q\rangle=-1\) — the paramagnetic phase.
In the thermodynamic limit these are separated by a quantum critical point at \(\lvert h\rvert=1\)[8], where the gap closes as \(1/N\) and the half-chain entanglement grows logarithmically with \(N\)[9]. On a finite open chain there is no true degeneracy: tunnelling between the two ordered configurations splits the doublet by an amount that vanishes exponentially in \(N\), and the two lowest eigenvectors are, deep in the ordered phase, close to the symmetric and antisymmetric combinations
cat states with one bit of half-chain entanglement. The parity labels are exact at every \(h\) (Section 5.1); the printed table below confirms that the ground state is the even one, \(\vert C_+\rangle\), and the first excited state the odd one.
11.2 What that does to the fidelity
Deep in the ordered phase the exact ground state returned by Lanczos is the cat state \(\vert C_+\rangle\). Consider any state inside the two-dimensional doublet, \(\vert\psi\rangle=a\vert C_+\rangle+b\vert C_-\rangle\). Its parity is \(\langle P\rangle=\lvert a\rvert^2-\lvert b\rvert^2\) and its energy error is \(\lvert b\rvert^2\Delta\), so
The symmetry-broken member \((\vert C_+\rangle+\vert C_-\rangle)/\sqrt2\simeq\vert0\cdots0\rangle\) has \(\langle P\rangle=0\): energy error \(\Delta/2\), invisible when the splitting is exponentially small, and fidelity exactly \(1/2\). So we should expect, and will measure, a region of the phase diagram where the energy error is essentially zero while the fidelity sits at \(1/2\). It signals neither an optimiser failure nor a bug: when the ground level is (nearly) degenerate, fidelity with one particular member of it is the wrong figure of merit, as Section 3.3 noted. The physically meaningful quantities there are observables (the order parameter, the correlators) and the fidelity with the whole doublet, \(F_{\text{sub}}=\lvert\langle C_+\vert\psi\rangle\rvert^2+\lvert\langle C_-\vert\psi\rangle\rvert^2\), which we also measure; Eq. (10) also predicts the energy error from the measured parity alone.
The field sweep is one compiled program: the coefficient vector \(\mathbf c(h)=(0,0,-1,h)\) is traced, and vmap runs over its values.
Code
# ==============================================================================# STEP 12: exact references across the field sweep# ==============================================================================H_GRID = np.array([0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0])ref_h = {"E0": [], "E1": [], "gap": [], "S": [], "psi0": [], "psi1": []}for h in H_GRID: terms_h = model_terms(N_SITES, jnp.asarray((0.0, 0.0, -1.0, float(h)), dtype=RDTYPE)) w, V = np.linalg.eigh(np.asarray(dense_hamiltonian(terms_h, N_SITES))) p0 = jnp.asarray(V[:, 0], dtype=CDTYPE).reshape((2,) * N_SITES) p1 = jnp.asarray(V[:, 1], dtype=CDTYPE).reshape((2,) * N_SITES) ref_h["E0"].append(float(w[0])); ref_h["E1"].append(float(w[1])) ref_h["gap"].append(float(w[1] - w[0])); ref_h["S"].append(float(entanglement_entropy(p0, range(N_SITES //2)))) ref_h["psi0"].append(p0); ref_h["psi1"].append(p1)print(f"{'h':>5s}{'E_0':>10s}{'E_1 - E_0':>12s}{'S_half':>8s}{'parity of |0>':>14s}{'parity of |1>':>14s}")for j, h inenumerate(H_GRID):print(f"{h:5.2f}{ref_h['E0'][j]:10.5f}{ref_h['gap'][j]:12.3e}{ref_h['S'][j]:8.4f} "f"{float(parity(ref_h['psi0'][j])):+14.3f}{float(parity(ref_h['psi1'][j])):+14.3f}")
# ==============================================================================# STEP 13: VQE across the sweep -- one compilation, vmapped over the field# ==============================================================================R_SWEEP, T_SWEEP, L_SWEEP =8, 250, 4n_sweep = hea_num_params(N_SITES, L_SWEEP)th_sw, ks_sw = random_starts(R_SWEEP, n_sweep, seed=51)C_H = jnp.stack([jnp.asarray((0.0, 0.0, -1.0, float(h)), dtype=RDTYPE) for h in H_GRID])PSI0_H = jnp.stack(ref_h["psi0"])PSI1_H = jnp.stack(ref_h["psi1"])E0_H = jnp.asarray(ref_h["E0"], dtype=RDTYPE)def sweep_one(c, p0, p1, e0):"""Train R_SWEEP restarts at one field. Monitor: (E - E_0, fidelity with the Lanczos state, fidelity with the doublet subspace, half-chain entropy, parity) -- five numbers per iteration per restart. """ cost =lambda t: vqe_cost(t, c, layers=L_SWEEP)def monitor(t): psi = ansatz_state(t, layers=L_SWEEP) f0, f1 = fidelity_pure(p0, psi), fidelity_pure(p1, psi)return jnp.stack([energy(model_terms(N_SITES, c), psi) - e0, f0, f0 + f1, entanglement_entropy(psi, range(N_SITES //2)), parity(psi)])return jax.vmap(lambda t, k: train(t, k, grad_exact(cost), opt_adam(LR_BEST), monitor, T_SWEEP)[1])(th_sw, ks_sw)t0 = time.perf_counter()H_SW = np.asarray(jax.block_until_ready(jax.jit(jax.vmap(sweep_one))(C_H, PSI0_H, PSI1_H, E0_H)))print(f"field sweep: {len(H_GRID)} fields x {R_SWEEP} restarts x {T_SWEEP} iterations "f"in {time.perf_counter() - t0:.1f} s")print(f"\n{'h':>5s}{'gap':>10s}{'S_exact':>8s}{'median E-E_0':>13s}{'Eq.(10)':>9s}{'best E-E_0':>11s} "f"{'median F':>9s}{'median F_sub':>12s}{'median S_vqe':>12s}{'median <P>':>11s}{'1-F bound':>10s}")for j, h inenumerate(H_GRID): med_dE = np.median(H_SW[j, :, -1, 0]) pred_10 = np.median((1- H_SW[j, :, -1, 4]) /2* ref_h["gap"][j]) # doublet prediction from the parityprint(f"{h:5.2f}{ref_h['gap'][j]:10.3e}{ref_h['S'][j]:8.4f}{med_dE:13.5f}{pred_10:9.5f} "f"{H_SW[j, :, -1, 0].min():11.5f} "f"{np.median(H_SW[j, :, -1, 1]):9.4f}{np.median(H_SW[j, :, -1, 2]):12.4f} "f"{np.median(H_SW[j, :, -1, 3]):12.4f}{np.median(H_SW[j, :, -1, 4]):+11.4f} "f"{min(1.0, med_dE / ref_h['gap'][j]):10.3f}")print("(Eq.(10) column: median over restarts of (1 - <P>) Delta / 2, the energy error of a doublet state with that parity)")# --- CHECKPOINT: Eq. (10) in the ordered phase, h <= 0.6, run by run ----------------------------------------------for j in np.where(H_GRID <=0.6)[0]: pred = (1- H_SW[j, :, -1, 4]) /2* ref_h["gap"][j] rel = np.median(np.abs(H_SW[j, :, -1, 0] - pred) / H_SW[j, :, -1, 0])print(f"h = {H_GRID[j]:.1f}: median relative deviation of E - E_0 from Eq. (10): {rel:.3f}; "f"wrong control 'E - E_0 = Delta': {np.median(np.abs(H_SW[j, :, -1, 0] - ref_h['gap'][j]) / H_SW[j, :, -1, 0]):.2f}")if H_GRID[j] >=0.4: # at h = 0.2 the splitting is below the ansatz error itself (see text)assert rel <0.15and np.median(np.abs(H_SW[j, :, -1, 0] - ref_h["gap"][j]) / H_SW[j, :, -1, 0]) >0.5fig, axes = plt.subplots(1, 3, figsize=(13.5, 4.2))axes[0].semilogy(H_GRID, [np.median(H_SW[j, :, -1, 0]) for j inrange(len(H_GRID))], MARKERS[0] +"-", ms=6, color=PALETTE[0], label=r"median $E-E_0$")axes[0].fill_between(H_GRID, [np.percentile(H_SW[j, :, -1, 0], 25) for j inrange(len(H_GRID))], [np.percentile(H_SW[j, :, -1, 0], 75) for j inrange(len(H_GRID))], color=PALETTE[0], alpha=0.15)axes[0].semilogy(H_GRID, ref_h["gap"], "k--", lw=1.2, label=r"exact gap $\Delta$")axes[0].semilogy(H_GRID, np.asarray(ref_h["gap"]) /2, "k:", lw=1.2, label=r"$\Delta/2$: broken doublet state, Eq. (10)")axes[0].axvline(1.0, color="0.5", lw=1, ls=":")axes[0].set_xlabel("transverse field $h$"); axes[0].set_ylabel(r"$E-E_0$ (median, IQR) and gap")axes[0].set_title("Energy error and the gap"); axes[0].legend(fontsize=8)axes[1].plot(H_GRID, [np.median(H_SW[j, :, -1, 1]) for j inrange(len(H_GRID))], MARKERS[0] +"-", ms=6, color=PALETTE[0], label=r"$F$ with the Lanczos state")axes[1].plot(H_GRID, [np.median(H_SW[j, :, -1, 2]) for j inrange(len(H_GRID))], MARKERS[1] +"-", ms=6, color=PALETTE[1], label=r"$F$ with the doublet subspace")axes[1].axhline(0.5, color="0.4", ls=":", lw=1.2, label=r"$1/2$, Eq. (10)")axes[1].axvline(1.0, color="0.5", lw=1, ls=":")axes[1].set_ylim(0, 1.05)axes[1].set_xlabel("transverse field $h$"); axes[1].set_ylabel("fidelity (median)")axes[1].set_title("Which fidelity is meaningful?"); axes[1].legend(fontsize=8)axes[2].plot(H_GRID, ref_h["S"], MARKERS[2] +"-", ms=6, color=PALETTE[2], label=r"exact $S_{\rm half}$")axes[2].plot(H_GRID, [np.median(H_SW[j, :, -1, 3]) for j inrange(len(H_GRID))], MARKERS[3] +"-", ms=6, color=PALETTE[3], label=r"$S_{\rm half}$ of the VQE state")axes[2].plot(H_GRID, [np.median(np.abs(H_SW[j, :, -1, 4])) for j inrange(len(H_GRID))], MARKERS[4] +"--", ms=6, color=PALETTE[4], label=r"$\vert\langle P\rangle\vert$ of the VQE state")axes[2].axvline(1.0, color="0.5", lw=1, ls=":", label="critical field")axes[2].set_xlabel("transverse field $h$"); axes[2].set_ylabel(r"$S_{\rm half}$ [bits] / $\vert\langle P\rangle\vert$")axes[2].set_title("Entanglement and symmetry of the solution"); axes[2].legend(fontsize=8)fig.tight_layout(); plt.show()
field sweep: 8 fields x 8 restarts x 250 iterations in 6.1 s
h gap S_exact median E-E_0 Eq.(10) best E-E_0 median F median F_sub median S_vqe median <P> 1-F bound
0.20 1.229e-04 0.9999 0.00020 0.00006 0.00007 0.5000 0.9999 0.0001 +0.0000 1.000
0.40 6.882e-03 0.9903 0.00377 0.00343 0.00359 0.5018 0.9999 0.0015 +0.0037 0.548
0.60 6.018e-02 0.9031 0.02999 0.02874 0.02951 0.5222 0.9996 0.0112 +0.0449 0.498
0.80 2.194e-01 0.6868 0.06367 0.03109 0.00854 0.8477 0.9881 0.3515 +0.7165 0.290
1.00 4.821e-01 0.4732 0.01873 0.00016 0.00251 0.9939 0.9939 0.4200 +0.9994 0.039
1.20 8.055e-01 0.3334 0.00894 0.00031 0.00597 0.9975 0.9975 0.3130 +0.9992 0.011
1.50 1.343e+00 0.2171 0.01607 0.00211 0.00557 0.9967 0.9968 0.2064 +0.9969 0.012
2.00 2.293e+00 0.1278 0.01202 0.00028 0.00358 0.9985 0.9985 0.1215 +0.9998 0.005
(Eq.(10) column: median over restarts of (1 - <P>) Delta / 2, the energy error of a doublet state with that parity)
h = 0.2: median relative deviation of E - E_0 from Eq. (10): 0.686; wrong control 'E - E_0 = Delta': 0.66
h = 0.4: median relative deviation of E - E_0 from Eq. (10): 0.091; wrong control 'E - E_0 = Delta': 0.82
h = 0.6: median relative deviation of E - E_0 from Eq. (10): 0.043; wrong control 'E - E_0 = Delta': 1.01
11.3 Reading the sweep
Equation (10) in the ordered phase. At \(h=0.2\) the median fidelity with the Lanczos ground state is \(0.5000\) while the fidelity with the two-dimensional doublet is \(0.9999\), and the median energy error is \(2.0\cdot10^{-4}\). The variational state is an essentially perfect member of the doublet with \(\langle P\rangle=0.000\), the symmetry-broken combination of Eq. (10). Quoting \(F=0.5\) as a failure would be a misreading; \(F_{\text{sub}}=0.9999\) is the meaningful number. At this field the splitting is so small (\(\Delta/2=6\cdot10^{-5}\)) that the energy error is dominated by the part of the state outside the doublet, and Eq. (10) accounts for only a third of it. At \(h=0.4\) and \(h=0.6\) the doublet term dominates, and Eq. (10) predicts the measured energy error from the measured parity alone, run by run, to \(9\%\) and \(4\%\) (median relative deviation), while the control “\(E-E_0=\Delta\)” misses by \(80\) to \(100\%\).
The extra columns identify what the optimiser found. At \(h\le0.6\) the half-chain entropy of the variational state is \(0.0001\), \(0.0015\), \(0.011\) bits while the exact ground state has \(1.00\), \(0.99\), \(0.90\) bits, and the variational parity is \(0.000\), \(0.004\), \(0.045\) against the exact \(+1\). The optimiser found a symmetry-broken, essentially unentangled state, one of the two ferromagnetic configurations, rather than their cat-like superposition. At \(h=0.2\) that costs only \(\Delta/2=6\cdot10^{-5}\) in energy, less than the error the ansatz makes anyway. At \(h=0.6\) it costs \(\Delta/2=0.030\), three times the optimiser floor of Section 8.1 and the largest part of the measured error \(0.030\), and still every restart stays in the broken state: a nearly product state is easy to reach from random angles, and a shallow circuit started there does not find the one-bit cat state. Between \(h=0.6\) and \(h=1.0\) the parity climbs \(0.045\to0.72\to0.9994\) and the entropy \(0.011\to0.35\to0.42\), as the splitting grows to \(0.22\) and \(0.48\).
The hardest field is \(h=0.8\), below the critical point. The median energy error peaks there at \(0.064\), against \(0.019\) at \(h=1\) and \(0.0002\) at \(h=0.2\), and the spread across restarts is largest there too (best run \(0.0085\)). That is the crossover region: the doublet splitting, \(0.22\), is large enough that the symmetry-broken solution costs \(0.11\), but the true ground state still carries \(0.69\) bits of entanglement, more than at criticality.
A correction to a common expectation. “Entanglement peaks at the critical point” refers to the scaling with \(N\) rather than to the value at a given \(N\). Here the exact half-chain entropy decreases monotonically with \(h\), from \(1.00\) bit deep in the ordered phase to \(0.13\) at \(h=2\), and the critical value \(0.47\) is in between. The ordered phase of a finite open chain has a cat-state ground state whose entanglement approaches one bit independently of \(N\), while the critical entropy of an open chain grows like \(\tfrac{c}{6}\log_2N\) with central charge \(c=\tfrac12\), i.e. \(\tfrac1{12}\log_2N\)[10]: \(1/12\) of a bit per doubling of \(N\), so the critical value overtakes the cat-state bit only for very long chains. What distinguishes the critical point is the scaling with \(N\) of both the entropy and the gap, which closes as \(1/N\) there and exponentially in the ordered phase; a single size \(N=6\) cannot show either.
The certificate of Eq. (5) degrades as the gap closes. The last column is \((E-E_0)/\Delta\), the bound on the infidelity that a practitioner could quote without knowing the exact state. At \(h=2\) it reads \(0.005\) against a true infidelity of \(0.0015\), a usable certificate. At \(h=0.2\) it reads \(1.000\), i.e. nothing at all, because the gap is \(1.2\cdot10^{-4}\). Where the gap closes, the energy stops saying anything about the state.
12. An excited state: variational quantum deflation
VQE minimises. To get the first excited state one changes the cost so that its minimum is the first excited state. Variational quantum deflation[11] adds an orthogonality penalty: having found an approximation \(\vert\psi_\star\rangle\) to the ground state, minimise
This is again a weighted average, now of the shifted spectrum \(\{E_0+\beta,E_1,E_2,\dots\}\), so by exactly the argument of Eq. (1) its minimum is the smallest element of that set. The minimiser is \(\vert\psi_1\rangle\) with value \(E_1\) if and only if
A \(\beta\) below the gap leaves the ground state as the minimiser and the method returns it again; a \(\beta\) far above the gap is safe but makes the landscape stiffer. We take \(\beta\) a few times the gap. Equation (12) needs the gap, which is what we are trying to compute; in practice one runs with an increasing \(\beta\) until the result stops changing, and the converged\(E_1\) can then be checked against Eq. (12) a posteriori.
12.2 Measurability
The penalty is an overlap with a state prepared by a known circuit \(U(\boldsymbol\theta_\star)\), so on hardware it is measured as \(\lvert\langle0^{\otimes N}\vert U^\dagger(\boldsymbol\theta_\star)U(\boldsymbol\theta)\vert0^{\otimes N}\rangle\rvert^2\) — the probability of the all-zeros outcome after running one circuit followed by the inverse of the other. It costs one extra circuit of twice the depth per evaluation, and it is a global cost, with the barren-plateau exposure of global costs (notebook 40, parametrised gates and gradients, Section 13.2).
We deflate the critical Ising chain, using as \(\vert\psi_\star\rangle\) the best variational ground state of Section 8 — not the exact one, because on hardware the exact one is unavailable — and validate against the exact \(E_1\).
Code
# ==============================================================================# STEP 14: deflation for the first excited state of the critical Ising chain# ==============================================================================i_best =int(np.argmin(HIST[i_tfim, :, -1, 0]))theta_star = TH_FINAL[i_tfim][i_best]psi_star = ansatz_state(theta_star)E_star =float(energy(model_terms(N_SITES, c_tfim), psi_star))print(f"deflation anchor: best VQE ground state of the TFIM, E = {E_star:.6f} "f"(exact E_0 = {EXACT['TFIM']['E0']:.6f}, error {E_star - EXACT['TFIM']['E0']:.2e}), "f"F = {float(fidelity_pure(psi0_tfim, psi_star)):.4f}")gap_tfim = EXACT["TFIM"]["E1"] - EXACT["TFIM"]["E0"]print(f"exact gap Delta = {gap_tfim:.6f}; Eq. (12) requires beta > Delta")R_VQD, T_VQD =12, 300th_v, ks_v = random_starts(R_VQD, n_main, seed=61)BETAS = (0.25, 1.0, 3.0)def vqd_run(beta):"""Train R_VQD restarts on the deflated cost, Eq. (11); monitor (E of the state, overlap with psi_star)."""def cost(t): psi = ansatz_state(t)return energy(model_terms(N_SITES, c_tfim), psi) + beta * fidelity_pure(psi_star, psi)def monitor(t): psi = ansatz_state(t)return jnp.stack([energy(model_terms(N_SITES, c_tfim), psi), fidelity_pure(psi_star, psi), fidelity_pure(EXACT["TFIM"]["psi1"], psi), parity(psi)])return jax.vmap(lambda t, k: train(t, k, grad_exact(cost), opt_adam(LR_BEST), monitor, T_VQD)[1])(th_v, ks_v)print(f"\n{'beta':>6s}{'beta > gap?':>12s}{'median E':>10s}{'best E':>10s}{'exact E_1':>10s} "f"{'median overlap':>15s}{'median F with |1>':>18s}{'median parity':>14s}")vqd_hist = {}for beta in BETAS: h = np.asarray(jax.block_until_ready(jax.jit(vqd_run)(beta))) vqd_hist[beta] = hprint(f"{beta:6.2f}{str(beta > gap_tfim):>12s}{np.median(h[:, -1, 0]):10.5f}{h[:, -1, 0].min():10.5f} "f"{EXACT['TFIM']['E1']:10.5f}{np.median(h[:, -1, 1]):15.2e}{np.median(h[:, -1, 2]):18.4f} "f"{np.median(h[:, -1, 3]):+14.4f}")# --- per-run view: the deflated cost C_1 = E + beta * overlap, and a parity lower bound on E ---------------------# For any state, E >= w_+ E_0 + w_- E_1 with w_+ = (1 + <P>)/2, because the lowest P = -1 level is E_1 (Section 11's# table). This bound uses only the measured parity and holds for every run, converged or not.E1_tf, E0_tf = EXACT["TFIM"]["E1"], EXACT["TFIM"]["E0"]print(f"\n{'beta':>6s}{'runs with overlap > 0.1':>24s} | best-energy run: {'E':>9s}{'C_1':>9s}{'overlap':>8s} "f"{'<P>':>7s}{'parity bound on E':>18s}")for beta in BETAS: fin = vqd_hist[beta][:, -1, :] C1 = fin[:, 0] + beta * fin[:, 1] w_plus = (1+ fin[:, 3]) /2 bound = w_plus * E0_tf + (1- w_plus) * E1_tfassert np.all(fin[:, 0] >= bound -1e-9), "parity bound violated" r =int(np.argmin(fin[:, 0]))print(f"{beta:6.2f}{int(np.sum(fin[:, 1] >0.1)):>18d} / {R_VQD} | {'':>16s}{fin[r, 0]:9.4f}{C1[r]:9.4f} "f"{fin[r, 1]:8.3f}{fin[r, 3]:+7.3f}{bound[r]:18.4f}")fig, ax = plt.subplots(figsize=(7.0, 4.4))for j, beta inenumerate(BETAS): lo, med, hi = bands(vqd_hist[beta][:, :, 0]) ax.fill_between(np.arange(1, T_VQD +1), lo, hi, color=PALETTE[j], alpha=0.15) ax.plot(np.arange(1, T_VQD +1), med, "-", lw=1.8, color=PALETTE[j], label=fr"$\beta={beta}$"+ (""if beta > gap_tfim else" (below the gap)"))ax.axhline(EXACT["TFIM"]["E0"], color="k", ls=":", lw=1.2, label=r"exact $E_0$")ax.axhline(EXACT["TFIM"]["E1"], color="k", ls="--", lw=1.2, label=r"exact $E_1$")ax.set_xlabel("iteration"); ax.set_ylabel(r"$\langle H\rangle$ of the deflated state (median, IQR)")ax.set_title(f"Variational quantum deflation, TFIM $N={N_SITES}$, $\\Delta={gap_tfim:.3f}$")ax.legend(fontsize=8)fig.tight_layout(); plt.show()
deflation anchor: best VQE ground state of the TFIM, E = -7.291743 (exact E_0 = -7.296230, error 4.49e-03), F = 0.9987
exact gap Delta = 0.482147; Eq. (12) requires beta > Delta
beta beta > gap? median E best E exact E_1 median overlap median F with |1> median parity
Below the threshold of Eq. (12) the method fails in the predicted way. With \(\beta=0.25<\Delta\) the deflated minimisation returns the ground state again: median energy \(-7.276\), median overlap with the anchor \(0.994\), fidelity with the exact first excited state \(0.0003\), parity \(+0.998\). The penalty is simply not large enough to lift \(E_0+\beta\) above \(E_1\), so the minimiser of Eq. (11) is still the ground state, exactly as the derivation says.
Above the threshold it works. With \(\beta=3\) the median energy is \(-6.7998\) against the exact \(E_1=-6.81408\) — an error of \(0.014\) — the median overlap with the anchor has fallen to \(1.1\cdot10^{-3}\), the median fidelity with the true first excited state is \(0.993\), and the parity is \(-0.9925\). The method has not only found the first excited energy, it has found it in the odd parity sector, which is where the exact \(\vert\psi_1\rangle\) lives (Section 11’s table). Nothing in the algorithm was told about parity.
Just above the threshold the deflated landscape is shallow. At \(\beta=1\approx2\Delta\) the median run finds the excited state (median energy \(-6.807\), fidelity \(0.90\) with \(\vert\psi_1\rangle\), parity \(-0.91\)), but the best energy among the twelve runs, \(E=-7.024\), lies \(0.21\) below \(E_1\). The per-run table identifies that run: its overlap with the anchor is \(0.50\) and its parity \(+0.08\), so its deflated cost \(C_1=E+\beta\times\text{overlap}=-6.52\) is \(0.29\)above the minimum \(E_1\) of Eq. (11). It is an unconverged run of the deflated minimisation, roughly an equal mixture of the two parity sectors, and it is one of five runs at \(\beta=1\) that end with an overlap above \(0.1\) with the anchor. Its energy is consistent with the parity bound \(E\ge w_+E_0+w_-E_1\) printed next to it, as every run’s is. The anchor itself is not the problem: it has fidelity \(0.9987\) with \(\vert\psi_0\rangle\), which can shift the minimum of \(C_1\) by an amount of order \(\beta(1-F)\approx10^{-3}\), far below \(0.2\). The driving term that pushes a run out of the ground-state sector is the excess \(\beta-\Delta\) of Eq. (12): \(0.52\) at \(\beta=1\) against \(2.52\) at \(\beta=3\), where no run ends with an overlap above \(0.1\), the median overlap with the anchor drops a further factor of \(30\), and the best run, \(-6.81085\), sits just above \(E_1\). Equation (12) is necessary; a penalty well above the gap is what makes the deflated minimisation converge in a fixed budget. On hardware, where neither \(E_1\) nor \(\vert\psi_0\rangle\) is known, the measured \(C_1\) and the measured overlap are the quantities to report, because a low energy with a large overlap is not an excited state.
13. Shot noise: SPSA against parameter shift at equal measurement budget
On hardware the energy is not evaluated, it is estimated from a finite number of projective measurements. For the transverse-field Ising Hamiltonian two measurement settings suffice, because the \(Z\)-type terms all commute with one another and so do the \(X\)-type terms: measure every qubit in \(Z\) to get all \(\langle Z_qZ_{q+1}\rangle\) at once, and every qubit in \(X\) to get all \(\langle X_q\rangle\) at once. With \(M\) shots split evenly, the estimator is unbiased with variance \(\propto1/M\).
The comparison that matters on hardware is at equal total number of shots. At equal iteration count parameter shift is ahead of SPSA (notebook 41, optimisers), which does not answer the budget question. Here we compare at equal budget, each rule at its own step size from a five-point scan. With \(n\) angles,
a parameter-shift iteration costs \(2n\) circuits, hence \(2nM\) shots;
an SPSA iteration costs \(2\) circuits, hence \(2M\) shots.
At a fixed total budget \(B\) the parameter-shift method may take \(T_{\text{PS}}=B/(2nM)\) iterations and SPSA may take \(T_{\text{SPSA}}=n\,T_{\text{PS}}\) — a factor \(n\) more steps with the same shots. The question is whether many cheap noisy steps beat few accurate ones. The diagnostic plotted is always the exact energy error of the current angles, which the optimiser never sees.
Code
# ==============================================================================# STEP 15: shot-noise estimators for the Ising energy (N = 4)# ==============================================================================N_SN, L_SN, H_SN, JZZ_SN =4, 2, 1.0, -1.0n_sn = hea_num_params(N_SN, L_SN)c_sn = jnp.asarray((0.0, 0.0, JZZ_SN, H_SN), dtype=RDTYPE)terms_sn = model_terms(N_SN, c_sn)E0_SN, _ = lanczos_ground_state(terms_sn, N_SN)E0_SN_dense =float(np.min(np.linalg.eigvalsh(np.asarray(dense_hamiltonian(terms_sn, N_SN)))))print(f"TFIM N={N_SN}, h={H_SN}: E_0 = {E0_SN:.9f} (Lanczos) vs {E0_SN_dense:.9f} (dense), "f"difference {abs(E0_SN - E0_SN_dense):.1e}")assertabs(E0_SN - E0_SN_dense) <1e-8def energy_shots(key, psi, shots):"""Unbiased estimate of <H_TFIM> from `shots` projective measurements, Eq. (6) with Jxx=Jyy=0. PROTOCOL half the shots measure every qubit in Z (all Z_q Z_{q+1} at once), half in X (all X_q at once). IMPL `sample_bitstrings` returns bits of shape (shots, N); z = 1 - 2*bit are the +-1 eigenvalues. COST 2 circuit executions of shots/2 repetitions each. """ kz, kx = jax.random.split(key) half = shots //2 z =1.0-2.0* sample_bitstrings(kz, psi, half, bases="Z"* N_SN).astype(RDTYPE) x =1.0-2.0* sample_bitstrings(kx, psi, half, bases="X"* N_SN).astype(RDTYPE)return JZZ_SN * jnp.mean(jnp.sum(z[:, :-1] * z[:, 1:], axis=1)) + H_SN * jnp.mean(jnp.sum(x, axis=1))# --- CHECKPOINT: the shot estimator is unbiased and its spread falls as M^{-1/2} -------------------theta_chk = random_starts(1, n_sn, seed=71)[0][0]psi_chk = hardware_efficient_ansatz(theta_chk, N_SN, L_SN)E_chk =float(energy(terms_sn, psi_chk))# predicted single-shot constant sigma = sqrt(M Var) = sqrt(2 [Var(A) + Var(B)]), computed# EXACTLY from the outcome distributions of the two settings -- no sampling involvedbits = (np.arange(2** N_SN)[:, None] >> (N_SN -1- np.arange(N_SN))) &1# C order: qubit 0 = top bitzv =1-2* bits # +-1 eigenvalues per outcomeA_val = JZZ_SN * np.sum(zv[:, :-1] * zv[:, 1:], axis=1) # Z setting: sum of Z Z bondsB_val = H_SN * np.sum(zv, axis=1) # X setting: sum of X_qpz = np.abs(np.asarray(psi_chk).reshape(-1)) **2psi_x = psi_chkfor q inrange(N_SN): psi_x = apply_gate(psi_x, jnp.asarray([[1, 1], [1, -1]], dtype=CDTYPE) / np.sqrt(2), [q]) # rotate to X basispx = np.abs(np.asarray(psi_x).reshape(-1)) **2var_A, var_B = pz @ A_val **2- (pz @ A_val) **2, px @ B_val **2- (px @ B_val) **2sigma_pred = np.sqrt(2* (var_A + var_B))print(f"\nexact <H> at a random parameter vector = {E_chk:.6f}; from the two outcome distributions: "f"{pz @ A_val + px @ B_val:.6f}")print(f"predicted std x sqrt(M) = sqrt(2 [Var A + Var B]) = {sigma_pred:.4f}; "f"wrong control without the factor 2 (all M shots in each setting): {np.sqrt(var_A + var_B):.4f}")assertabs(pz @ A_val + px @ B_val - E_chk) <1e3* TOLN_REP =300print(f"{'shots M':>9s}{'mean of 300 estimates':>23s}{'z of mean':>10s}{'std x sqrt(M)':>15s} "f"{'z vs prediction':>16s}{'z vs control':>13s}")for M in (32, 128, 512, 2048): ests = np.asarray(jax.vmap(lambda k: energy_shots(k, psi_chk, M))(jax.random.split(jax.random.PRNGKey(73), N_REP))) s_hat = ests.std(ddof=1) * np.sqrt(M) se_s = s_hat / np.sqrt(2* (N_REP -1)) # standard error of a sample std (Gaussian approx.) z_mean = (ests.mean() - E_chk) / (sigma_pred / np.sqrt(M * N_REP)) z_pred, z_ctrl = (s_hat - sigma_pred) / se_s, (s_hat - np.sqrt(var_A + var_B)) / se_sprint(f"{M:9d}{ests.mean():23.5f}{z_mean:+10.2f}{s_hat:15.4f}{z_pred:+16.2f}{z_ctrl:+13.2f}")assertabs(z_mean) <3.5andabs(z_pred) <3.5andabs(z_ctrl) >3.5
exact <H> at a random parameter vector = 0.723708; from the two outcome distributions: 0.723708
predicted std x sqrt(M) = sqrt(2 [Var A + Var B]) = 3.2679; wrong control without the factor 2 (all M shots in each setting): 2.3108
shots M mean of 300 estimates z of mean std x sqrt(M) z vs prediction z vs control
32 0.73792 +0.43 3.2474 -0.15 +7.05
128 0.71198 -0.70 3.1821 -0.66 +6.70
512 0.70852 -1.82 3.3814 +0.82 +7.74
2048 0.72068 -0.73 3.2505 -0.13 +7.07
Code
# ==============================================================================# STEP 16: the two gradient rules with shots, and the equal-budget comparison# ==============================================================================def grad_ps_shots(M):"""Parameter-shift gradient in which each of the 2n circuits is estimated from M shots.""" eye = jnp.eye(n_sn)def rule(theta, key, k): kp, km = jax.random.split(key)def one(e, k1, k2): cp = energy_shots(k1, hardware_efficient_ansatz(theta + (jnp.pi /2) * e, N_SN, L_SN), M) cm = energy_shots(k2, hardware_efficient_ansatz(theta - (jnp.pi /2) * e, N_SN, L_SN), M)return (cp - cm) /2return jax.vmap(one)(eye, jax.random.split(kp, n_sn), jax.random.split(km, n_sn))return ruledef grad_spsa_shots(M, c=0.2, gamma=0.101):"""SPSA gradient rule with both circuits estimated from M shots."""def rule(theta, key, k): c_k = c / k ** gamma kd, kp, km = jax.random.split(key, 3) delta = jax.random.rademacher(kd, theta.shape).astype(theta.dtype) cp = energy_shots(kp, hardware_efficient_ansatz(theta + c_k * delta, N_SN, L_SN), M) cm = energy_shots(km, hardware_efficient_ansatz(theta - c_k * delta, N_SN, L_SN), M)return (cp - cm) / (2* c_k) * deltareturn ruleerr_sn = jax.jit(lambda t: energy(terms_sn, hardware_efficient_ansatz(t, N_SN, L_SN)) - E0_SN)R_SN, M_SN, T_PS =8, 64, 60T_SPSA = n_sn * T_PS # same total shots: 2 n M T_PS = 2 M T_SPSABUDGET =2* n_sn * M_SN * T_PSth_sn, ks_sn = random_starts(R_SN, n_sn, seed=81)print(f"equal budget B = {BUDGET} shots per run:")print(f" parameter shift + Adam : {T_PS} iterations x {2* n_sn} circuits x {M_SN} shots")print(f" SPSA + Adam : {T_SPSA} iterations x 2 circuits x {M_SN} shots")# each gradient rule gets its own step size, chosen on the noisy runs from a three-point grid (Section 7's lesson)cost_sn =lambda t: energy(terms_sn, hardware_efficient_ansatz(t, N_SN, L_SN))LR_SN = (0.003, 0.01, 0.03, 0.1, 0.3)t0 = time.perf_counter()noisy = {}for lr in LR_SN: noisy[("ps", lr)] = np.asarray(train_many(th_sn, ks_sn, grad_ps_shots(M_SN), opt_adam(lr), err_sn, T_PS)[1]) noisy[("spsa", lr)] = np.asarray(train_many(th_sn, ks_sn, grad_spsa_shots(M_SN), opt_adam(lr), err_sn, T_SPSA)[1])print(f"\n{'step size':>10s}{'parameter shift, median final':>30s}{'SPSA, median final':>20s}")for lr in LR_SN:print(f"{lr:10.3g}{np.median(noisy[('ps', lr)][:, -1]):30.4f}{np.median(noisy[('spsa', lr)][:, -1]):20.4f}")LR_PS =min(LR_SN, key=lambda lr: np.median(noisy[("ps", lr)][:, -1]))LR_SP =min(LR_SN, key=lambda lr: np.median(noisy[("spsa", lr)][:, -1]))print(f"selected step sizes: parameter shift {LR_PS}, SPSA {LR_SP}")h_ps, h_sp = noisy[("ps", LR_PS)], noisy[("spsa", LR_SP)]h_ps_ex = np.asarray(train_many(th_sn, ks_sn, grad_exact(cost_sn), opt_adam(LR_PS), err_sn, T_PS)[1])h_sp_ex = np.asarray(train_many(th_sn, ks_sn, grad_spsa(cost_sn, c=0.2), opt_adam(LR_SP), err_sn, T_SPSA)[1])print(f" ({2*len(LR_SN) +2} training batches in {time.perf_counter() - t0:.1f} s, compilation included)")_, h_floor = train_many(th_sn, ks_sn, grad_exact(lambda t: energy(terms_sn, hardware_efficient_ansatz(t, N_SN, L_SN))), opt_adam(0.1), err_sn, 2000)h_floor = np.asarray(h_floor)print(f"\n{'method':>28s}{'iterations':>11s}{'shots used':>12s}{'median final E-E_0':>20s}{'best':>10s}")for lab, h, T, sh in (("parameter shift + Adam", h_ps, T_PS, BUDGET), ("SPSA + Adam", h_sp, T_SPSA, BUDGET), ("parameter shift, exact cost", h_ps_ex, T_PS, 0), ("SPSA, exact cost", h_sp_ex, T_SPSA, 0), ("exact gradient, 2000 iters", h_floor, 2000, 0)):print(f"{lab:>28s}{T:11d}{sh if sh else0:12d}{np.median(h[:, -1]):20.5f}{h[:, -1].min():10.5f}")print(f"(the last row is the ansatz floor: what this circuit family can do at N={N_SN}, L={L_SN} with no budget limit)")print(f"\nrestarts: parameter shift worst {h_ps[:, -1].max():.4f}, SPSA best {h_sp[:, -1].min():.4f}; "f"permutation p-value {perm_pvalue(h_ps[:, -1], h_sp[:, -1], seed=5):.4f}")p_ctrl = perm_pvalue(h_ps[:, -1], noisy[("spsa", 0.1)][:, -1], seed=6)print(f"control (the same test against SPSA at the untuned step 0.1, a real difference): p-value {p_ctrl:.4f}")assert p_ctrl <0.01fig, ax = plt.subplots(figsize=(7.2, 4.6))for j, (lab, h, T) inenumerate((("parameter shift + Adam", h_ps, T_PS), ("SPSA + Adam", h_sp, T_SPSA))): shots_axis = np.arange(1, T +1) * (2* n_sn * M_SN if j ==0else2* M_SN) lo, med, hi = bands(np.maximum(h, 1e-12)) ax.fill_between(shots_axis, lo, hi, color=PALETTE[j], alpha=0.15) ax.loglog(shots_axis, med, "-", lw=1.8, color=PALETTE[j], label=lab +f" ($M={M_SN}$)")for j, (lab, h, T) inenumerate((("parameter shift, exact cost", h_ps_ex, T_PS), ("SPSA, exact cost", h_sp_ex, T_SPSA))): shots_axis = np.arange(1, T +1) * (2* n_sn * M_SN if j ==0else2* M_SN) _, med, _ = bands(np.maximum(h, 1e-12)) ax.loglog(shots_axis, med, "--", lw=1.2, color=PALETTE[j], label=lab)ax.set_xlabel("shots spent (counted hardware model)")ax.set_ylabel(r"$E(\theta)-E_0$, exact (median, IQR band)")ax.set_title(f"Equal measurement budget, TFIM $N={N_SN}$, $L={L_SN}$, $n={n_sn}$")ax.legend(fontsize=8)fig.tight_layout(); plt.show()
equal budget B = 184320 shots per run:
parameter shift + Adam : 60 iterations x 48 circuits x 64 shots
SPSA + Adam : 1440 iterations x 2 circuits x 64 shots
step size parameter shift, median final SPSA, median final
0.003 3.4366 0.6072
0.01 1.2109 0.3453
0.03 0.3371 0.5641
0.1 0.3295 1.2970
0.3 0.5110 3.2958
selected step sizes: parameter shift 0.1, SPSA 0.01
(12 training batches in 27.0 s, compilation included)
method iterations shots used median final E-E_0 best
parameter shift + Adam 60 184320 0.32949 0.20756
SPSA + Adam 1440 184320 0.34528 0.26284
parameter shift, exact cost 60 0 0.20385 0.06694
SPSA, exact cost 1440 0 0.22156 0.01926
exact gradient, 2000 iters 2000 0 0.00149 0.00148
(the last row is the ansatz floor: what this circuit family can do at N=4, L=2 with no budget limit)
control (the same test against SPSA at the untuned step 0.1, a real difference): p-value 0.0030
The estimator behaves as derived. The exact single-shot constant of Eq. (27) of notebook 40, parametrised gates and gradients, computed from the two outcome distributions without sampling, is \(\sqrt{2[\mathrm{Var}A+\mathrm{Var}B]}=3.268\), and the measured std \(\times\sqrt M\) agrees with it within \(0.9\) standard errors at all four budgets, a factor of \(64\) in \(M\). The means agree with the exact energy within \(1.9\) standard errors. The wrong control, a protocol that forgets that each setting receives only half the shots (\(2.311\)), is rejected at \(6.7\) to \(7.7\) standard errors.
At equal measurement budget and tuned step sizes, the two gradient rules tie. With \(B=184320\) shots per run, spent either as \(60\) parameter-shift iterations or as \(1440\) SPSA iterations, the step-size scan matters more than the choice of method: SPSA is best at \(\eta=0.01\) and parameter shift at \(\eta=0.1\), and at a common \(\eta=0.1\) SPSA would have looked four times worse (\(1.297\) against \(0.329\)). At their own best step sizes the median final errors are \(0.329\) (parameter shift) and \(0.345\) (SPSA); the eight restarts interleave and the permutation test finds no difference (\(p=0.51\)), while the same test does detect the untuned comparison (\(p<0.01\), the control). SPSA wants a step ten times smaller than parameter shift; it takes \(24\) times as many steps, each along a single random direction.
Shot noise costs both methods about the same. The noise-free references, run with the same optimisers, step sizes and iteration counts, give \(0.204\) and \(0.222\). Shot noise at \(M=64\) adds about \(0.12\) to both medians. Neither the optimiser nor the estimator separates the two rules at this budget.
Both are far from the ansatz floor. With an exact gradient and \(2000\) iterations the same circuit reaches \(1.5\cdot10^{-3}\), two orders of magnitude below what either method achieved with \(1.8\cdot10^{5}\) shots. Most of that gap is already present without shot noise: it is the price of being allowed only \(60\) parameter-shift (or the equivalent \(1440\) SPSA) iterations. The budget limits the number of steps first and their accuracy second, so the cost per energy estimate is what has to fall.
Numerical practice. Every curve here is the exact energy error of the current angles, a quantity the optimiser never sees. On hardware only noisy estimates exist, and reporting the lowest estimate seen during training selects the most favourable fluctuation, which is biased low. A real experiment must re-measure its final answer with a much larger budget than it used during training.
14. Limits
Everything above was run on a simulator with \(N\le6\) spins, where the exact answer is one Lanczos call away. Four limits decide whether any of it scales.
Barren plateaus. The variance of one gradient component of a hardware-efficient circuit over random angles falls by a factor of about \(2^{1.6}\) to \(2^{1.8}\) per added qubit for a global cost, and only as \(1/N^2\) for a local cost at fixed depth (notebook 40, parametrised gates and gradients, Section 13.2). An energy is a sum of \(O(N)\) local terms, so it is on the favourable side: its gradient variance shows no decay at fixed depth (notebook 42a, VQE: Hamiltonians, ansätze and training, Section 9), but a circuit whose depth grows with \(N\) approaches the exponential 2-design value, and a gradient that is exponentially small must be resolved above shot noise that falls only as \(M^{-1/2}\). The remedy has to change the ansatz or the cost; a better optimiser does not help [12], [13]. The random-angle initialisation used throughout this notebook is precisely the distribution the plateau theorems assume.
Measurement cost. Every energy evaluation here was exact and free. On hardware, an accuracy \(\varepsilon\) on \(\langle H\rangle\) costs \(O(\lVert\mathbf c\rVert_1^2/\varepsilon^2)\) shots, and chemistry-scale Hamiltonians have \(O(N^4)\) terms. A single Adam iteration with a parameter-shift gradient costs \(2n\) circuit families, each needing that many shots. This is the dominant practical obstacle.
Noise. Real gates are imperfect, which biases the energy upwards and deforms the landscape. The variational principle and Eqs. (4)–(5) still hold for the mixed state the device actually prepares (Section 3.3), so a measured energy still certifies the fidelity of that state with the ground state; what noise destroys is the link between the measured energy and the ideal circuit, and on top of it the finite-shot estimate of \(E\) itself fluctuates and can fall below \(E_0\) by a few standard errors.
What classical methods do better for these problems. For a one-dimensional gapped chain the ground state obeys an area law, and a matrix-product state with modest bond dimension represents it to machine precision; DMRG finds it in seconds for hundreds of sites, far beyond anything demonstrated variationally on hardware (notebook 18, matrix product states). VQE on a one-dimensional spin chain is therefore a benchmark rather than an application: it is the setting in which the algorithm can be validated against an exact answer, which is exactly what this notebook did. The regimes where no good classical method exists — frustrated two-dimensional magnets, real-time dynamics, strongly correlated chemistry — are also the regimes where the ansatz design and the measurement cost are hardest.
15. Key takeaways
The variational principle is proved in three lines and works as a unit test. Every trial state satisfies \(\langle H\rangle\ge E_0\), Eq. (1). Across the \(10800\) energies recorded in Section 8 the error never went negative, its smallest value being \(1.6\cdot10^{-3}\).
The energy error is second order in the state error. For every state \(E-E_0=\langle\phi\vert(H-E_0)\vert\phi\rangle\le(E_{\max}-E_0)\lVert\phi\rVert^2\), Eq. (2a); for the controlled perturbation \(E-E_0=K(1-F)\) held to \(10^{-14}\) with \(K=7.2096\) computed in advance. A state wrong at the \(1\%\) level in amplitude gave an energy right to four digits.
For a unique ground state the gap converts an energy error into a certificate on the state, \(1-F\le(E-E_0)/\Delta\), Eq. (5), with the companion upper bound \((E_{\max}-E_0)(1-F)\); the two differ by a factor \(30\) for the critical Ising chain, and both hold for mixed states. Where the gap closes the certificate says nothing: at \(h=0.2\) it degenerates to \(1-F\le1\).
Signs in the Pauli convention must be read off the correlators. With \(J_{xx}=-1\) the measured \(\langle X_iX_{i+1}\rangle=+0.98\): the coupling is ferromagnetic along \(x\). The XXZ and XY parameters put those chains in a nearly polarised phase with \(0.05\) and \(0.12\) bits of entanglement, while the ferromagnetic Ising chain at \(h_x=1\) sits at its critical point with \(0.47\) bits and a six times smaller gap.
The Hamiltonians have a \(\mathbb Z_2\) parity \(P=\prod_qX_q\) and no \(U(1)\). The measured \(\lVert[H,P]\vert\phi\rangle\rVert\) was exactly zero, and \(\lVert[H,S^z_{\text{tot}}]\vert\phi\rangle\rVert=4.41\) for all three models, because the whole commutator comes from the transverse field.
The hardware-efficient ansatz breaks the symmetry and then largely relearns it. At random angles the median symmetry leakage was \(0.94\); after training \(5\cdot10^{-4}\) to \(1.2\cdot10^{-3}\), always below the bound \(2(1-F)\le2(E-E_0)/\Delta\). Leakage tracks the energy error for the XXZ and XY chains and not for the Ising chain, whose residual error lies mostly inside the right sector. The Hamiltonian-variational ansatz has leakage \(3\cdot10^{-15}\) at any angles, by construction.
The \(10^{-2}\) plateau of the main runs is the optimiser’s. Continuing at the same Adam step left it in place; continuing at \(\eta=0.1\) lowered the median errors four- to eightfold. Depth studies read against that floor: the critical Ising error fell from \(0.213\) (\(L=1\)) to \(0.012\) (\(L=4\)), and beyond \(L=3\) no difference was significant.
The entanglement bound \(S_{\text{half}}\le\min(L,N/2)\) follows from the Schmidt rank and is only a necessary condition. At \(L=1\) the circuit may carry one bit and the target needs \(0.47\), yet the optimised state carried \(0.013\) bits and missed the energy by \(0.21\). The optimised states end slightly below the exact entanglement, far below the capacity, and \(n\le84\) angles against \(126\) for a general state sufficed for fidelity \(0.997\).
Problem-inspired structure is worth an order of magnitude in parameters. Started from the ground state of the field term, the Hamiltonian-variational ansatz reached a median of \(0.017\) with \(16\) angles where a \(24\)-angle hardware-efficient circuit managed \(0.213\); at equal depth the hardware-efficient family wins.
Near a degeneracy, fidelity with “the” ground state is the wrong question. At \(h=0.2\) the VQE reached an energy error of \(2\cdot10^{-4}\) with fidelity \(0.5000\) and fidelity \(0.9999\) with the doublet; parity \(0.000\) and entropy \(0.0001\) bits identify a symmetry-broken state, and Eq. (10) predicts the energy error from the parity at \(h=0.4\) and \(0.6\). The hardest field of the sweep was \(h=0.8\), in the crossover below the critical point.
Deflation turns a minimiser into an excited-state solver above \(\beta=\Delta\), and converges reliably well above it. At \(\beta=0.25<\Delta=0.482\) the ground state came back; at \(\beta=1\) five of twelve runs stalled with an overlap above \(0.1\) with the anchor (one at an energy below \(E_1\), with \(C_1\) far above it); at \(\beta=3\) all runs reached the odd-parity first excited state, median fidelity \(0.993\).
At equal measurement budget and tuned step sizes, parameter shift and SPSA tied (\(0.329\) against \(0.345\), \(p=0.51\)); an untuned common step would have reported a factor of four. Both remain two orders of magnitude above the \(1.5\cdot10^{-3}\) that the same circuit reaches without a budget.
16. Exercises
★ The bound in action. Take the converged TFIM run of Section 8 and compute the certified infidelity bound \(1-F\le(E-E_0)/\Delta\) of Eq. (5) from the measured energy error alone. Compare with the true infidelity. By what factor is the certificate loose, and why?
★ Antiferromagnetic couplings. Flip the sign of \(J_{xx}\) and \(J_{yy}\) in the XXZ model. Predict the sign of \(\langle X_iX_{i+1}\rangle\) in the exact ground state before you run it, then check. Does the VQE find it as easily?
★★ A symmetry-preserving hardware-style ansatz (extend the code). Build a layered circuit from \(R_x\) rotations on every qubit and \(R_{ZZ}\) and \(R_{YY}\) gates on every bond, started from \(\vert-\rangle^{\otimes N}\). Show analytically that every gate commutes with \(P=\prod_qX_q\), so the symmetry leakage of Eq. (8) is zero by construction, and explain why \(R_x\) and \(R_{XX}\) alone would be useless (they all commute with each other and leave \(\vert-\rangle^{\otimes N}\) unchanged up to a phase). Measure the energy error for the three models at a parameter count comparable to the hardware-efficient \(L=4\) circuit.
★★ The initial state of the Hamiltonian-variational ansatz. Repeat the scan of Section 10.3 with the circuit started from \(\vert+\rangle^{\otimes N}\) instead of \(\vert-\rangle^{\otimes N}\). Compute the energy of the two starting states first, then compare the median errors depth by depth, and explain the difference from the role of the initial state in adiabatic state preparation.
★★ Deflation to the second excited state. Extend Eq. (11) with a second penalty term \(\beta_1\lvert\langle\psi_1^\star\vert\psi\rangle\rvert^2\) and find \(E_2\). Derive the condition on the two penalties analogous to Eq. (12) and verify it numerically by scanning \(\beta\).
★★ The hardest field at larger \(N\) (physics). Repeat Section 11 for \(N=8\) and \(N=10\) at fixed \(L\). Does the peak of the energy error follow the critical point, and does the width of the difficult region shrink with \(N\)?
★★★ Order parameter without symmetry breaking (physics). In the ordered phase the magnetisation \(\langle Z_q\rangle\) vanishes in the exact finite-\(N\) ground state even though the system is ordered. Compute the correlator \(\langle Z_0Z_{N-1}\rangle\) instead, for the exact state and for the VQE states of Section 11, and explain why it is the right diagnostic there.
★★★ The shot budget of the whole calculation (physics). From Section 13, extrapolate the number of shots needed to reach a chemical-accuracy energy error (\(1.6\cdot10^{-3}\) Hartree, here read as \(10^{-3}\) in units of \(J\)) for \(N=6\) with \(L=4\). Combine with the gradient-variance measurements of notebook 40, parametrised gates and gradients (Section 13.2) and of notebook 42a, VQE: Hamiltonians, ansätze and training (Section 9), to estimate how that budget grows with \(N\), and say at which \(N\) it exceeds a day of machine time.
References
[1] A. Peruzzo, J. McClean, P. Shadbolt, M.-H. Yung, X.-Q. Zhou, P. J. Love, A. Aspuru-Guzik and J. L. O’Brien, A variational eigenvalue solver on a photonic quantum processor, Nat. Commun. 5, 4213 (2014) — the first VQE experiment.
[2] A. Kandala, A. Mezzacapo, K. Temme, M. Takita, M. Brink, J. M. Chow and J. M. Gambetta, Hardware-efficient variational quantum eigensolver for small molecules and quantum magnets, Nature 549, 242 (2017) — the hardware-efficient ansatz family (layers of single-qubit Euler rotations and a fixed entangler); the circuit used here is a variant with \(R_yR_z\) rotations and \(CZ\) entanglers.
[3] J. Tilly, H. Chen, S. Cao, D. Picozzi, K. Setia, Y. Li, E. Grant, L. Wossnig, I. Rungger, G. H. Booth and J. Tennyson, The variational quantum eigensolver: a review of methods and best practices, Phys. Rep. 986, 1 (2022) — the comprehensive review.
[4] D. Wecker, M. B. Hastings and M. Troyer, Progress towards practical quantum variational algorithms, Phys. Rev. A 92, 042303 (2015) — the Hamiltonian-variational ansatz.
[5] H. F. Trotter, On the product of semi-groups of operators, Proc. Amer. Math. Soc. 10, 545 (1959) — the product formula behind Trotterised time evolution.
[6] W. W. Ho and T. H. Hsieh, Efficient variational simulation of non-trivial quantum states, SciPost Phys. 6, 029 (2019) — alternating Ising and field evolutions, the ansatz family of Eq. (13), prepare the GHZ state and the critical transverse-field Ising ground state of an \(N\)-site ring exactly with \(N/2\) layers.
[7] M. Larocca, N. Ju, D. García-Martín, P. J. Coles and M. Cerezo, Theory of overparametrization in quantum neural networks, Nat. Comput. Sci. 3, 542 (2023) — overparametrisation sets in when the rank of the quantum Fisher information saturates, at most at the dimension of the dynamical Lie algebra and, for a pure state, at \(2\cdot2^N-2\); the threshold used in Section 10.2.
[8] P. Pfeuty, The one-dimensional Ising model with a transverse field, Ann. Phys. 57, 79 (1970) — the exact solution of the transverse-field Ising chain and its critical point.
[9] C. Holzhey, F. Larsen and F. Wilczek, Geometric and renormalized entropy in conformal field theory, Nucl. Phys. B 424, 443 (1994) — the logarithmic entanglement entropy of a critical system.
[10] P. Calabrese and J. Cardy, Entanglement entropy and quantum field theory, J. Stat. Mech. (2004) P06002 — the logarithmic growth of the entanglement entropy at a critical point, \((c/6)\log\) for an open chain.
[11] O. Higgott, D. Wang and S. Brierley, Variational quantum computation of excited states, Quantum 3, 156 (2019) — variational quantum deflation: the penalised cost of our Eq. (11) (their Eq. (2)) and the sufficient condition \(\beta_i>E_k-E_i\) on the penalty weights, our Eq. (12).
[12] J. R. McClean, S. Boixo, V. N. Smelyanskiy, R. Babbush and H. Neven, Barren plateaus in quantum neural network training landscapes, Nat. Commun. 9, 4812 (2018) — the exponential concentration of gradients.
[13] M. Cerezo, A. Arrasmith, R. Babbush, S. C. Benjamin, S. Endo, K. Fujii, J. R. McClean, K. Mitarai, X. Yuan, L. Cincio and P. J. Coles, Variational quantum algorithms, Nat. Rev. Phys. 3, 625 (2021) — ansatz design, trainability and barren plateaus.
[14] J. R. McClean, J. Romero, R. Babbush and A. Aspuru-Guzik, The theory of variational hybrid quantum-classical algorithms, New J. Phys. 18, 023023 (2016) — the general framework, and the variational principle in this setting.
[15] S. Sachdev, Quantum Phase Transitions, 2nd ed., Cambridge University Press (2011) — the transverse-field Ising chain, its critical point and the symmetry-broken doublet of Section 11.
Marcin Płodzień, PhD
Citation: M. Płodzień, Quantum Many-Body Simulation: from a single spin to quantum machine learning (2026), https://marcinplodzien.github.io/quantum-many-body-simulation/
