Quantum Many-Body Simulation — Chapter 12 — Quantum communication and cryptography
1. Introduction
With classical signals, bits sent through a noisy channel can be protected by error correction, and a message can be made perfectly secret with a one-time pad, but only if Alice and Bob already share a secret random key as long as the message. On a classical line Eve can copy every signal without leaving a trace, so Alice and Bob have no way of bounding what she knows. This notebook asks what changes when the signals are quantum states. Can Eve still copy them? Can she learn something about them without being noticed? And how much classical or quantum information can a noisy quantum channel carry at all?
An eavesdropper on a quantum channel couples a probe to the qubit with a unitary; she cannot keep a copy, and the information she gains shows up as errors at Bob. Every channel is a coupling to an environment and has a Kraus form
Figure 1. What quantum mechanics changes. (a) Eve can only let Alice’s qubit interact with a probe of her own, with some unitary \(U\), and measure the probe later. She cannot turn a blank probe into a copy of an unknown state (Section 4), and if Alice’s signal states are nonorthogonal, any information that Eve’s probe acquires shows up as errors in Bob’s results (Section 5). (b) Every physical channel arises in the same way: the signal interacts with an environment, which is then discarded. The result is the Kraus form of the channel (Section 8). In cryptography the environment is assumed to be in Eve’s hands, and the capacities of Section 9 count what reaches Bob.
The idea. Quantum mechanics places three limits on everybody, Eve included. Nonorthogonal states cannot be distinguished with certainty, so a single copy of an unknown state reveals only part of its identity. Unknown states cannot be copied. And information about which of two nonorthogonal states was sent can be gained only at the price of disturbing them. The third limit turns into a security guarantee: Alice and Bob compare part of their data, measure the error rate, and infer an upper bound on what Eve can know. Entanglement adds a fourth rule with the same effect: a pair that is maximally entangled cannot be correlated with anything else. The second half of the notebook turns from eavesdroppers to noise. A quantum channel is described by its Kraus operators, and its usefulness is measured by capacities, the quantum counterparts of Shannon’s capacity, introduced in [1]: how many classical bits, and how many qubits, it carries reliably per use.
1.1 Road map
Section 3 proves that nonorthogonal states cannot be distinguished with certainty and derives the Helstrom bound on the best probability of success, checked by optimising over measurements for \(\vert0\rangle\) against \(\vert+\rangle\).
Section 4 states the no-cloning theorem and adds its consequences for communication, with a measure-and-prepare copier applied to the four BB84 states.
Section 5 proves that information gain implies disturbance and simulates a probe attack of tunable strength on BB84 states: Eve’s information against the error rate seen by Bob.
Section 6 recalls the Bell states, local operations and classical communication, and no-signalling, and proves and checks the monogamy of entanglement.
Section 7 summarises the resource accounting of teleportation and superdense coding.
Section 8 introduces quantum channels and four examples: depolarising, dephasing, amplitude damping and erasure.
Section 9 defines the classical capacity with the Holevo bound, the quantum capacity with the coherent information, and the entanglement-assisted capacity, and computes them for these channels.
Section 10 collects what quantum key distribution takes from these results.
why a measurement cannot tell nonorthogonal states apart with certainty, and the Helstrom bound \(P_{\rm succ}=(1+D)/2\) with the trace distance \(D\);
why Eve cannot copy a qubit in transit, and why a quantum signal cannot be amplified;
the theorem that information gain implies disturbance, and the trade-off curve of a concrete probe attack;
monogamy: a pure entangled pair is uncorrelated with every third system, and a pair close to a Bell state is nearly so;
quantum channels in Kraus form and their action on the Bloch ball;
the Holevo quantity \(\chi\) and why one qubit carries at most one classical bit; the coherent information and the quantum capacities of the erasure and dephasing channels; the entanglement-assisted capacity.
Numerical methods
scans over measurement directions and over input ensembles as numerical checks of optimality statements;
von Neumann entropies of reduced density matrices from density tensors, with a reference system that purifies the channel input;
sampling of protocol rounds from exact joint outcome distributions.
Implementation practice
states as tensors, gates with apply_gate, channels with apply_kraus_dm, partial traces with rdm and rdm_dm;
wrong controls that must fail: a measurement in the wrong basis, orthogonal signals that Eve can copy without disturbance, a classically correlated pair that Eve shares completely, and inputs that do not reach a capacity.
Configuration
Every notebook of this course starts with the same cell. Choose where to run (DEVICE) and the floating-point precision (PRECISION): "double" = float64/complex128 (default, recommended for physics), "single" = float32/complex64 (half the memory, faster on consumer GPUs, but watch the round-off). All code below derives its dtypes from RDTYPE/CDTYPE and its check tolerances from TOL, so nothing else needs to change.
Code
# ==============================================================================# CONFIGURATION -- adapt to your hardware, then run the notebook top to bottom# ==============================================================================DEVICE ="auto"# "auto": use a GPU if JAX finds one, else CPU | "cpu" | "gpu"PRECISION ="double"# "double": float64/complex128 | "single": float32/complex64import osif DEVICE =="cpu": os.environ["JAX_PLATFORMS"] ="cpu"# must be set BEFORE jax is importedimport stringfrom functools import partialimport mathimport numpy as npimport jaximport jax.numpy as jnpfrom jax import lax# Precision is configurable: "double" = float64/complex128 (default; needed for long time evolutions and# tight validation), "single" = float32/complex64 (half the memory, faster on consumer GPUs).jax.config.update("jax_enable_x64", PRECISION =="double")RDTYPE = jnp.float64 if PRECISION =="double"else jnp.float32 # real dtypeCDTYPE = jnp.complex128 if PRECISION =="double"else jnp.complex64 # complex dtype of all states/operatorsTOL =1e-10if PRECISION =="double"else1e-4# tolerance for sanity checks (asserts)_LETTERS = string.ascii_letters # the 52 einsum index labels a-z, A-Zimport timeimport matplotlib.pyplot as pltif DEVICE =="gpu"and jax.default_backend() =="cpu":print("WARNING: DEVICE='gpu' requested but JAX found no GPU -- running on CPU.")print(f"JAX {jax.__version__} | backend: {jax.default_backend()} | devices: {jax.devices()}")print(f"precision: {PRECISION} -> real {RDTYPE.__name__}, complex {CDTYPE.__name__}, check tolerance TOL={TOL:g}")
JAX 0.11.0 | backend: cpu | devices: [CpuDevice(id=0)]
precision: double -> real float64, complex complex128, check tolerance TOL=1e-10
2. Engine recap and helpers
States are tensors of shape \((2,)^N\) and density matrices are tensors of shape \((2,)^{2N}\). Gates act with apply_gate, channels with apply_kraus_dm, and partial traces are taken with rdm (from a pure state) or rdm_dm (from a density tensor). The channel and the entropy are called thousands of times in the scans below, so they are compiled once with jax.jit (kraus_apply is apply_kraus_dm compiled). Entropies are in bits throughout. Every random experiment draws its numbers from its own key jax.random.fold_in(MASTER, i), so the experiments are reproducible one by one.
Engine recap — the simulator primitives used in this notebook (click to expand)
# ==============================================================================# ENGINE RECAP: the functions of quantum_engine.py (SmoQ.jax) used in this notebook.# All of them are collected, with their mathematics, in the notebook# 'Building the quantum simulator engine'.# States are rank-N tensors of shape (2,)*N; every operator acts through ONE einsum.# ==============================================================================# ----------------------------------------------------------------------------# Elementary matrices: Paulis, Clifford generators, rotations# ----------------------------------------------------------------------------I2 = jnp.eye(2, dtype=CDTYPE)X = jnp.array([[0, 1], [1, 0]], dtype=CDTYPE)Y = jnp.array([[0, -1j], [1j, 0]], dtype=CDTYPE)Z = jnp.array([[1, 0], [0, -1]], dtype=CDTYPE)CNOT = jnp.array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 0, 1], [0, 0, 1, 0]], dtype=CDTYPE)def ry(theta):"""Rotation about y: Ry(theta) = exp(-i theta Y/2) = [[cos, -sin], [sin, cos]](theta/2) (real matrix).""" c, s = jnp.cos(theta /2), jnp.sin(theta /2)return jnp.array([[c, -s], [s, c]], dtype=CDTYPE)def controlled(U):"""Controlled-U = |0><0| (x) 1 + |1><1| (x) U as a 4x4 block matrix (control = first qubit)."""return jnp.block([[jnp.eye(2, dtype=CDTYPE), jnp.zeros((2, 2), CDTYPE)], [jnp.zeros((2, 2), CDTYPE), U]])# ----------------------------------------------------------------------------# THE core primitive: a k-qubit operator acting on a tensor through ONE einsum# ----------------------------------------------------------------------------def apply_gate(psi, U, qubits):"""Apply a k-qubit operator U to the axes `qubits` of the tensor `psi`. MATH ---- One qubit (k=1), target q: psi'[s_0,..,a,..,s_{N-1}] = sum_b U[a,b] psi[s_0,..,b,..,s_{N-1}] Two qubits (k=2), targets (q1,q2); the 4x4 matrix is reshaped to U[a1,a2,b1,b2]: psi'[.., a1, .., a2, ..] = sum_{b1,b2} U[a1,a2,b1,b2] psi[.., b1, .., b2, ..] This IS the action of (1 x .. x U x .. x 1) -- written without ever building it. EINSUM TRANSLATION (generated automatically below) ------------------ N=3, q=1 : "db,abc->adc" d = new (output) index of qubit 1 N=4, q=(1,3) : "efbd,abcd->aecf" e,f = new indices of qubits 1 and 3 Recipe: label the axes of psi with letters a,b,c,...; give every target qubit a NEW letter (the next unused ones); U carries (new letters)+(old letters of the targets); the output is psi's labels with the target letters replaced by the new ones. IMPLEMENTATION NOTES -------------------- * reshape of U: (2^k,2^k) -> (2,)*2k. Row index = (a1..ak), column = (b1..bk), and the FIRST qubit in `qubits` is the most significant bit of the small matrix, i.e. it corresponds to the LEFT factor of kron(A,B). * `qubits` may be any distinct axes in any order: non-neighbouring gates cost the same. * U need not be unitary: projectors, Kraus operators and Hamiltonian terms reuse this. * psi may be ANY tensor with those axes of size 2: a state (rank N), a density tensor (rank 2N: ket axes 0..N-1, bra axes N..2N-1), ... COST O(2^k * 2^N) operations, O(2^N) memory (dense matrix: O(4^N) both). JAX `qubits` must be static Python ints (they define the einsum string); psi and U are traced, so the function can sit inside jit / grad / vmap / scan. """ qubits =tuple(int(q) for q in qubits) k, n =len(qubits), psi.ndim U = jnp.asarray(U, dtype=psi.dtype).reshape((2,) * (2* k)) # matrix -> rank-2k tensor inp =list(_LETTERS[:n]) # labels of psi's axes new = _LETTERS[n:n + k] # fresh labels for the outputs out = inp.copy()for a, q inzip(new, qubits): out[q] = a # target axes get the new labels sub =f"{''.join(new)}{''.join(inp[q] for q in qubits)},{''.join(inp)}->{''.join(out)}"return jnp.einsum(sub, U, psi)def apply_kraus_dm(rho, kraus, qubits):"""Quantum channel in Kraus form: rho -> sum_m K_m rho K_m^dagger, sum_m K_m^dag K_m = 1. EINSUM TRANSLATION (N=2, channel on qubit 0; g = Kraus index, summed!) "gea,gfc,abcd->ebfd" with operands K, K^*, rho [a=ket0, b=ket1, c=bra0, d=bra1; e, f = new ket0, bra0] All Kraus branches are summed INSIDE one einsum -- no Python loop over m. `kraus` has shape (M, 2^k, 2^k). """ qubits =tuple(int(q) for q in qubits) k, N =len(qubits), rho.ndim //2 K = jnp.asarray(kraus, dtype=rho.dtype).reshape((-1,) + (2,) * (2* k)) n = rho.ndim inp =list(_LETTERS[:n]) new_k, new_b, m = _LETTERS[n:n + k], _LETTERS[n + k:n +2* k], _LETTERS[n +2* k] out = inp.copy()for a, b, q inzip(new_k, new_b, qubits): out[q], out[N + q] = a, b ket_old ="".join(inp[q] for q in qubits) bra_old ="".join(inp[N + q] for q in qubits) sub =f"{m}{new_k}{ket_old},{m}{new_b}{bra_old},{''.join(inp)}->{''.join(out)}"return jnp.einsum(sub, K, jnp.conj(K), rho)# ----------------------------------------------------------------------------# State preparation# ----------------------------------------------------------------------------_KETS = {"0": [1, 0], "1": [0, 1], "+": [1, 1], "-": [1, -1], "r": [1, 1j], "l": [1, -1j]}def product_state(spec):"""Product state from a string, one character per qubit: product_state('01+-') = |0>|1>|+>|->. ('r','l' = the +1/-1 eigenstates of Y.) MATH psi[s_0,...,s_{N-1}] = v0[s_0] v1[s_1] ... v_{N-1}[s_{N-1}] EINSUM an outer product = einsum with NO summed index: "a,b,c->abc". A product state needs only 2N numbers; entanglement is what makes all 2^N necessary. """ vecs = [jnp.array(_KETS[c], dtype=CDTYPE) / jnp.linalg.norm(jnp.array(_KETS[c], dtype=CDTYPE))for c in spec] n =len(vecs) sub =",".join(_LETTERS[i] for i inrange(n)) +"->"+ _LETTERS[:n]return jnp.einsum(sub, *vecs)def bell_state(kind="phi+"):"""The four Bell states as (2,2) tensors: phi+- = (|00> +- |11>)/sqrt2, psi+- = (|01> +- |10>)/sqrt2.""" a =1/ np.sqrt(2) v = {"phi+": [a, 0, 0, a], "phi-": [a, 0, 0, -a], "psi+": [0, a, a, 0], "psi-": [0, a, -a, 0]}[kind]return jnp.array(v, dtype=CDTYPE).reshape(2, 2)def haar_state(key, N):"""Haar-random pure state: a complex Gaussian vector, normalised. (The Gaussian measure is unitarily invariant, so the direction is uniformly distributed.) `key` is an explicit JAX PRNG key -- same key, same state: reproducible science.""" k1, k2 = jax.random.split(key) v = jax.random.normal(k1, (2,) * N) +1j* jax.random.normal(k2, (2,) * N)return (v / jnp.linalg.norm(v)).astype(CDTYPE)def to_dm(psi):"""Pure state -> density TENSOR rho[s..; s'..] = psi[s..] psi^*[s'..] (rank 2N). An outer product: einsum "ab,AB->abAB" -- here via the equivalent tensordot(axes=0)."""return jnp.tensordot(psi, jnp.conj(psi), axes=0)def dm_matrix(rho):"""View a rank-2N density tensor as an ordinary 2^N x 2^N matrix (a reshape, no copy of meaning).""" d =int(round(np.sqrt(rho.size)))return rho.reshape(d, d)# ----------------------------------------------------------------------------# Reduced density matrices & observables (matrix-free)# ----------------------------------------------------------------------------def rdm(psi, keep):"""Reduced density matrix of the qubits `keep` from a PURE state: rho_A = Tr_B |psi><psi|. MATH rho_A[a, a'] = sum_{b} psi[a, b] psi^*[a', b] (a: indices of A, b: of the rest B) EINSUM TRANSLATION N=3, keep=(0,): "abc,Abc->aA" with operands psi, psi^* * letters of B (b,c) appear in BOTH operands and not in the output -> summed = traced out * the kept axis gets a different letter in the second operand -> stays open (a and A) The full |psi><psi| (4^N numbers) is never formed; cost O(2^N 2^|A|). Returns a (2^|A|, 2^|A|) matrix with row/column order following `keep`. """ keep =tuple(int(q) for q in keep) n, k = psi.ndim, len(keep) a =list(_LETTERS[:n]) b = a.copy()for new, q inzip(_LETTERS[n:n + k], keep): b[q] = new sub =f"{''.join(a)},{''.join(b)}->{''.join(a[q] for q in keep)}{''.join(b[q] for q in keep)}"return jnp.einsum(sub, psi, jnp.conj(psi)).reshape(2** k, 2** k)def rdm_dm(rho, keep):"""Partial trace of a density TENSOR (rank 2N), keeping the qubits `keep`. MATH rho_A[a,a'] = sum_b rho[a,b ; a',b] EINSUM N=2, keep=(0,): "abAb->aA" -- the letter b is REPEATED inside one operand and absent from the output: that is a trace over that pair of axes. """ keep =tuple(int(q) for q in keep) N = rho.ndim //2 ket =list(_LETTERS[:N]) bra = [(_LETTERS[N + q] if q in keep else ket[q]) for q inrange(N)] sub =f"{''.join(ket)}{''.join(bra)}->{''.join(ket[q] for q in keep)}{''.join(bra[q] for q in keep)}"return jnp.einsum(sub, rho).reshape(2**len(keep), 2**len(keep))# ----------------------------------------------------------------------------# State characteristics: entropies, fidelity, negativity# ----------------------------------------------------------------------------def von_neumann_entropy(rho_mat, base=2.0):"""S(rho) = -Tr(rho log rho) = -sum_i lambda_i log lambda_i (in bits for base=2). Eigenvalues are clipped at 1e-16 because 0*log(0) := 0 but log(0) = -inf numerically.""" lam = jnp.clip(jnp.linalg.eigvalsh(rho_mat), 1e-16, None)return-jnp.sum(lam * jnp.log(lam)) / jnp.log(base)def trace_distance(rho, sigma):"""D = (1/2)||rho - sigma||_1 = (1/2) sum_i |eigenvalue_i(rho - sigma)| (Hermitian difference)."""return0.5* jnp.sum(jnp.abs(jnp.linalg.eigvalsh(rho - sigma)))# ----------------------------------------------------------------------------# Noise channels (Kraus operators): density matrix and quantum-trajectory forms# ----------------------------------------------------------------------------def kraus_depolarizing(p):"""Depolarising channel rho -> (1-p) rho + (p/3)(X rho X + Y rho Y + Z rho Z). Kraus: sqrt(1-p) 1, sqrt(p/3) X, sqrt(p/3) Y, sqrt(p/3) Z. Bloch vector shrinks by 1 - 4p/3."""return jnp.stack([jnp.sqrt(1- p) * I2, jnp.sqrt(p /3) * X, jnp.sqrt(p /3) * Y, jnp.sqrt(p /3) * Z])def kraus_dephasing(p):"""Dephasing (phase-flip) channel rho -> (1-p) rho + p Z rho Z : coherences rho_01 -> (1-2p) rho_01."""return jnp.stack([jnp.sqrt(1- p) * I2, jnp.sqrt(p) * Z])
Code
# ==============================================================================# PLOT STYLE + small helpers used throughout this notebook# ==============================================================================PALETTE = ["#2a78d6", "#eb6834", "#1baf7a", "#eda100", "#e87ba4", "#4a3aa7"] # colour-blind-friendly, fixed orderMARKERS = ["o", "s", "^", "D", "v", "P"]plt.rcParams.update({"axes.prop_cycle": plt.cycler(color=PALETTE), "axes.grid": True,"grid.alpha": 0.3, "font.size": 10, "legend.frameon": False})MASTER = jax.random.PRNGKey(52) # one master key per run; experiment i uses fold_in(MASTER, i)def key_for(i):"""Independent key for experiment number i."""return jax.random.fold_in(MASTER, i)def h2(q):"""Binary entropy h(q) in bits; scalars and arrays, 0 log 0 = 0.""" q = np.asarray(q, dtype=float)with np.errstate(divide="ignore", invalid="ignore"): out =-q * np.log2(np.where(q >0, q, 1.0)) - (1- q) * np.log2(np.where(q <1, 1- q, 1.0))return out if out.ndim elsefloat(out)def shannon(probs):"""Shannon entropy in bits of a probability vector.""" p = np.asarray(probs, dtype=float).ravel() p = p[p >1e-15]returnfloat(-(p * np.log2(p)).sum()) +0.0_vn_entropy = jax.jit(von_neumann_entropy)_kraus_jit = jax.jit(apply_kraus_dm, static_argnums=2)def S_vn(rho_mat):"""Von Neumann entropy S(rho) = -Tr rho log2 rho of a density MATRIX, as a Python float."""returnfloat(_vn_entropy(jnp.asarray(rho_mat, dtype=CDTYPE))) +0.0def kraus_apply(rho, kraus, qubits):"""apply_kraus_dm compiled with jax.jit (one compilation per shape and qubit list)."""return _kraus_jit(jnp.asarray(rho, dtype=CDTYPE), jnp.asarray(kraus, dtype=CDTYPE), tuple(qubits))def mutual_info(pxy):"""Mutual information I(X:Y) in bits of a joint probability table.""" pxy = np.asarray(pxy, dtype=float)return shannon(pxy.sum(1)) + shannon(pxy.sum(0)) - shannon(pxy)def bloch(rho_mat):"""Bloch vector (r_x, r_y, r_z) = (Tr rho X, Tr rho Y, Tr rho Z) of a one-qubit density matrix."""return np.array([float(jnp.real(jnp.trace(rho_mat @ P))) for P in (X, Y, Z)])def ket(theta, phi=0.0):"""One qubit on the Bloch sphere: cos(theta/2)|0> + e^{i phi} sin(theta/2)|1>."""return jnp.array([np.cos(theta /2), np.exp(1j* phi) * np.sin(theta /2)], dtype=CDTYPE)def proj(v):"""Projector |v><v| onto a normalised vector v.""" v = jnp.asarray(v, dtype=CDTYPE).reshape(-1)return jnp.outer(v, jnp.conj(v))KET0, KET1 = product_state("0"), product_state("1")KETP, KETM = product_state("+"), product_state("-")BB84 = {"0": (KET0, "Z"), "1": (KET1, "Z"), "+": (KETP, "X"), "-": (KETM, "X")} # state, basis
3. Distinguishing quantum states
3.1 Orthogonal states can be told apart, nonorthogonal states cannot
Suppose Bob receives one of two known states, \(\vert\psi\rangle\) or \(\vert\varphi\rangle\), and has to say which. If the two are orthogonal, he measures in a basis that contains both and is always right; this is the situation of classical bits, which are just orthogonal states. If they are not orthogonal, no measurement succeeds with certainty.
Proof. A perfect two-outcome measurement would have projectors \(P_\psi\) and \(P_\varphi=\mathbb 1-P_\psi\) with \(P_\varphi\vert\psi\rangle=0\), so that \(\vert\psi\rangle\) never gives the answer “\(\varphi\)”. Decompose \(\vert\varphi\rangle=\alpha\vert\psi\rangle+\beta\vert\psi^\perp\rangle\) with \(\vert\psi^\perp\rangle\) orthogonal to \(\vert\psi\rangle\) and \(\alpha=\langle\psi\vert\varphi\rangle\neq0\). Then \(P_\varphi\vert\varphi\rangle= \beta P_\varphi\vert\psi^\perp\rangle\), and the probability that \(\vert\varphi\rangle\) gives the correct answer is
A measurement that never errs on \(\vert\psi\rangle\) must err on \(\vert\varphi\rangle\) with probability at least \(\vert\langle\psi\vert\varphi\rangle\vert^2\). One copy of a quantum state therefore does not reveal which of several nonorthogonal states it is. The BB84 protocol, introduced in [2], sends exactly such states: \(\vert0\rangle\), \(\vert1\rangle\), \(\vert+\rangle\) and \(\vert-\rangle\), where every state of one basis has overlap \(\vert\langle0\vert+\rangle\vert^2=1/2\) with both states of the other.
3.2 The Helstrom bound
Equation (1) says that perfect discrimination is impossible; the next question is how well Bob can do. Let the two possibilities be density matrices \(\rho\) and \(\sigma\), each sent with probability \(1/2\), and let Bob’s measurement answer “\(\rho\)” with the operator \(\Pi\) and “\(\sigma\)” with \(\mathbb 1-\Pi\), where \(0\leq\Pi\leq\mathbb 1\) means that \(\Pi\) is Hermitian with all eigenvalues between \(0\) and \(1\). This includes general measurements: for measurement operators \(M_k\) as in notebook 08, measurements, Section 3.1, \(\Pi=M_0^\dagger M_0\), and the answer “\(\rho\)” has probability \({\rm Tr}[\rho\,\Pi]\). His probability of success is
Write the Hermitian difference in its eigenbasis, \(\rho-\sigma=\sum_i\lambda_i\vert i\rangle\langle i\vert\). Then \({\rm Tr}[\Pi(\rho-\sigma)]=\sum_i\lambda_i\langle i\vert\Pi\vert i\rangle\), and since \(0\leq\langle i\vert\Pi\vert i\rangle\leq1\) the sum is largest when \(\Pi\) projects onto the eigenvectors with positive \(\lambda_i\). The maximum is the sum of the positive eigenvalues, which equals \(\tfrac12\sum_i\vert\lambda_i\vert\) because \({\rm Tr}(\rho-\sigma)=0\). That number is the trace distance\(D(\rho,\sigma)\) defined in notebook 06, states, observables and entanglement, Section 5, so the best probability of success is the Helstrom bound[3]
For two pure states \(\rho-\sigma\) has rank two and trace zero, so its eigenvalues are \(\pm\lambda\), and \({\rm Tr}[(\rho-\sigma)^2]=2-2\vert\langle\psi\vert\varphi\rangle\vert^2=2\lambda^2\) gives
For \(\vert0\rangle\) against \(\vert+\rangle\) the overlap is \(1/2\), so \(D=1/\sqrt2\) and \(P_{\rm succ}^{\max}=(1+1/\sqrt2)/2=0.854\). The optimal projector points along the Bloch direction of \(\rho-\sigma\), halfway between \(+z\) and \(-x\). The next cell computes \(D\) with the engine, scans all projective measurements over the Bloch sphere, tries \(5000\) random two-outcome general measurements, and simulates \(10^5\) guesses with the optimal measurement. The wrong control measures in the \(Z\) basis, which identifies \(\vert0\rangle\) perfectly but \(\vert+\rangle\) only half of the time.
Code
# ==============================================================================# Eqs. (2)-(4): Helstrom bound for |0> vs |+>, checked against all measurements# ==============================================================================rho_a, rho_b = proj(KET0), proj(KETP)D_ab =float(trace_distance(rho_a, rho_b))P_helstrom = (1+ D_ab) /2# Eq. (3)ov2 =float(jnp.abs(jnp.vdot(KET0, KETP)) **2)assertabs(D_ab - np.sqrt(1- ov2)) < TOL # Eq. (4)def p_succ(Pi):"""Eq. (2): success probability of the measurement {Pi, 1 - Pi} for equiprobable rho_a, rho_b. Pi may carry leading batch axes, (..., 2, 2)."""return0.5+0.5* np.asarray(jnp.real(jnp.einsum("...ij,ji->...", Pi, rho_a - rho_b)))# all projective measurements: Pi = |n><n| for Bloch directions n on a (theta, phi) grid, one batched callthetas, phis = np.linspace(0, np.pi, 61), np.linspace(0, 2* np.pi, 121)T_, F_ = np.meshgrid(thetas, phis, indexing="ij")n_vec = jnp.stack([jnp.cos(T_ /2), jnp.exp(1j* F_) * jnp.sin(T_ /2)], axis=-1).astype(CDTYPE) # ket(theta, phi)grid = p_succ(jnp.einsum("...i,...j->...ij", n_vec, jnp.conj(n_vec)))i_best, j_best = np.unravel_index(grid.argmax(), grid.shape)print(f"trace distance D = {D_ab:.6f} = sqrt(1 - |<0|+>|^2) = {np.sqrt(1- ov2):.6f}")print(f"Helstrom bound (1 + D)/2 = {P_helstrom:.6f}")print(f"best projective measurement on the grid: P = {grid.max():.6f} at theta = {thetas[i_best]:.3f}, "f"phi = {phis[j_best]:.3f} (optimum theta = pi/4 = {np.pi /4:.3f}, phi = pi)")assert grid.max() <= P_helstrom + TOL and P_helstrom - grid.max() <1e-3# random general measurements 0 <= Pi <= 1: Pi = V diag(u) V^dag with random unitary V and u in [0, 1]rng = np.random.default_rng(int(jax.random.randint(key_for(1), (), 0, 2**31-1)))A = rng.normal(size=(5_000, 2, 2)) +1j* rng.normal(size=(5_000, 2, 2))V, _r = np.linalg.qr(A) # 5000 random unitariesPi_rand = jnp.asarray(np.einsum("nij,nj,nkj->nik", V, rng.uniform(0, 1, (5_000, 2)), V.conj()), dtype=CDTYPE)best_random =float(p_succ(Pi_rand).max())print(f"best of 5000 random general measurements: P = {best_random:.6f}")assert best_random <= P_helstrom + TOL# simulation: 10^5 rounds, Alice sends |0> or |+> at random, Bob uses the optimal projectorw, v = jnp.linalg.eigh(rho_a - rho_b)Pi_opt = proj(v[:, 1]) # eigenvector of the positive eigenvalueN_SHOTS =100_000k1, k2 = jax.random.split(key_for(2))sent = np.asarray(jax.random.bernoulli(k1, 0.5, (N_SHOTS,))) # 0 -> |0>, 1 -> |+>p_say_a = np.array([float(jnp.real(jnp.trace(Pi_opt @ r))) for r in (rho_a, rho_b)]) # P(answer "|0>" | sent)u = np.asarray(jax.random.uniform(k2, (N_SHOTS,)))says_a = u < p_say_a[sent.astype(int)]rate =float(np.mean(says_a == (sent ==0)))se = np.sqrt(P_helstrom * (1- P_helstrom) / N_SHOTS)print(f"simulated success rate with the optimal measurement: {rate:.4f} +- {se:.4f}")assertabs(rate - P_helstrom) <5* se# wrong control: measure in the Z basis and answer |0> for outcome 0P_Z =float(p_succ(proj(KET0)))print(f"wrong control, Z-basis measurement: P = {P_Z:.4f}")assertabs(P_Z -0.75) < TOL and P_Z < P_helstrom -0.1
trace distance D = 0.707107 = sqrt(1 - |<0|+>|^2) = 0.707107
Helstrom bound (1 + D)/2 = 0.853553
best projective measurement on the grid: P = 0.853553 at theta = 0.785, phi = 3.142 (optimum theta = pi/4 = 0.785, phi = pi)
best of 5000 random general measurements: P = 0.838113
simulated success rate with the optimal measurement: 0.8529 +- 0.0011
wrong control, Z-basis measurement: P = 0.7500
The trace distance is \(0.7071\), and no projective measurement on the grid and none of the \(5000\) random general measurements beats \((1+D)/2=0.8536\); the best grid point sits at \(\theta=\pi/4\), \(\varphi=\pi\), the direction halfway between the Bloch vectors of \(\vert0\rangle\) and \(\vert-\rangle\). A simulation of \(10^5\) rounds with this measurement is right in \(85.3\,\%\) of them, within one standard error of the bound. The \(Z\) measurement reaches only \(3/4\): it is always right on \(\vert0\rangle\) and guesses at random on \(\vert+\rangle\). Whatever the receiver does, one copy of \(\vert0\rangle\) or \(\vert+\rangle\) is misidentified with probability at least \(14.6\,\%\), and this applies to Eve as much as to Bob.
4. No-cloning and its consequences for communication
The theorem. No unitary \(U\) and no blank state \(\vert e\rangle\) satisfy \(U\vert\psi\rangle\vert e\rangle= \vert\psi\rangle\vert\psi\rangle\) for every \(\vert\psi\rangle\)[4], [5]. Unitaries preserve inner products, so cloning two states would require \(\langle\psi\vert\varphi\rangle=\langle\psi\vert \varphi\rangle^2\), which allows only orthogonal or identical states. The theorem is proved by linearity and by inner products in notebook 20, quantum teleportation, Section 3.
For communication the theorem has three direct consequences.
Eve cannot keep a copy. She cannot copy a qubit in transit, keep the copy for later and forward the original. Whatever she keeps is correlated with the signal only as far as Section 5 allows.
A quantum signal cannot be amplified. An ideal amplifier would turn one photon in an unknown state into many photons in the same state, which is a cloner. Losses in an optical fibre therefore cannot be compensated by amplifiers as in classical telecommunication. Long-distance quantum communication needs other tools, entanglement swapping and purification in quantum repeaters, which are the subject of the last part of this chapter.
Classical information can be copied. Orthogonal states can be measured in their basis and prepared again as often as desired. This is what Eve does to classical bits, and it is the reason why classical key distribution gives no way of detecting her.
4.1 A measure-and-prepare copier on the BB84 states
Eve can always produce many approximate copies by measuring and preparing: she measures the signal along some Bloch direction \(\mathbf n\) and prepares as many qubits as she wants in the state indicated by the outcome. How good are the copies when the input is one of the four BB84 states? A one-qubit state with Bloch vector \(\mathbf r_{\rm in}\) gives outcome \(\pm\) with probability \((1\pm\mathbf n\cdot\mathbf r_{\rm in})/2\), and if Eve prepares the Bloch vector \(\pm\mathbf m\) after outcome \(\pm\), the fidelity of each copy with the input, \(F=\langle\psi\vert\rho_{\rm out} \vert\psi\rangle=\tfrac12(1+\mathbf r_{\rm in}\cdot\mathbf r_{\rm out})\) (insert \(\rho_{\rm out}=\tfrac12(\mathbb 1+ \mathbf r_{\rm out}\cdot\boldsymbol\sigma)\) and use \(\langle\psi\vert\boldsymbol\sigma\vert\psi\rangle=\mathbf r_{\rm in}\)), averages to
where the bar is the average over \(\mathbf r_{\rm in}\in\{\pm\hat z,\pm\hat x\}\). The maximum \(3/4\) is reached for every measurement direction in the \(x\)–\(z\) plane, provided Eve prepares along the same direction (\(\mathbf m= \mathbf n\)). Measuring in the \(Z\) basis copies \(\vert0\rangle\) and \(\vert1\rangle\) perfectly and \(\vert\pm\rangle\) with fidelity \(1/2\); measuring in the basis halfway between \(Z\) and \(X\) spreads the same average evenly. Averaged over the whole Bloch sphere instead of the four BB84 states, the best measure-and-prepare fidelity is \(2/3\), the classical benchmark derived in notebook 20, quantum teleportation, Section 8. The next cell runs the copier with the engine: the measurement is a projector, the preparation is a fresh qubit, and the fidelity is computed for two output copies.
Code
# ==============================================================================# Eq. (5): measure-and-prepare copying of the four BB84 states# ==============================================================================def measure_prepare_copies(psi_in, theta_meas, phi_meas=0.0, n_copies=2):"""Measure psi_in along the Bloch direction (theta_meas, phi_meas), prepare n_copies qubits in the eigenstate found. Returns the density matrix of the first copy (all copies are identical).""" up, down = ket(theta_meas, phi_meas), ket(np.pi - theta_meas, phi_meas + np.pi) # eigenstates of n.sigma rho_copy = jnp.zeros((2, 2), dtype=CDTYPE)for outcome in (up, down): p =float(jnp.abs(jnp.vdot(outcome, psi_in)) **2) # Born rule prepared = outcomefor _ inrange(n_copies -1): prepared = jnp.kron(prepared, outcome) # n identical copies, product state rho_copy = rho_copy + p * rdm(prepared.reshape((2,) * n_copies), [0])return rho_copydef mean_copy_fidelity(theta_meas, phi_meas=0.0):return np.mean([float(jnp.real(jnp.vdot(s, measure_prepare_copies(s, theta_meas, phi_meas) @ s)))for s, _b in BB84.values()])for th, name in [(0.0, "Z basis"), (np.pi /4, "intermediate basis"), (np.pi /2, "X basis")]: per_state = [float(jnp.real(jnp.vdot(s, measure_prepare_copies(s, th) @ s))) for s, _b in BB84.values()]print(f"measure in the {name:19s}: fidelity per state (0, 1, +, -) = {np.round(per_state, 4)}, "f"mean = {np.mean(per_state):.4f}")scan = np.array([mean_copy_fidelity(t) for t in np.linspace(0, 2* np.pi, 25)])print(f"mean copy fidelity for 25 measurement directions in the x-z plane: min {scan.min():.6f}, "f"max {scan.max():.6f} (Eq. (5): 3/4)")assert np.all(np.abs(scan -0.75) < TOL)# a measurement out of the x-z plane (along y) learns nothing about BB84 statesF_y = mean_copy_fidelity(np.pi /2, np.pi /2)print(f"wrong control, measure along y and prepare the y eigenstate: mean fidelity {F_y:.4f}")assertabs(F_y -0.5) < TOL
measure in the Z basis : fidelity per state (0, 1, +, -) = [1. 1. 0.5 0.5], mean = 0.7500
measure in the intermediate basis : fidelity per state (0, 1, +, -) = [0.75 0.75 0.75 0.75], mean = 0.7500
measure in the X basis : fidelity per state (0, 1, +, -) = [0.5 0.5 1. 1. ], mean = 0.7500
mean copy fidelity for 25 measurement directions in the x-z plane: min 0.750000, max 0.750000 (Eq. (5): 3/4)
wrong control, measure along y and prepare the y eigenstate: mean fidelity 0.5000
Every measurement direction in the \(x\)–\(z\) plane gives an average copy fidelity of exactly \(0.75\), as Eq. (5) predicts, and Eve can make as many such copies as she likes. Measuring in the \(Z\) basis puts all the error on the \(X\)-basis states, and the intermediate basis spreads it evenly (\(0.854\) and \(0.146\) fidelity for the two outcomes of each state, \(0.75\) on average). A measurement along \(y\), which carries no information about any BB84 state, leaves copies with fidelity \(1/2\), no better than a random guess. A copy of quality \(3/4\) is far from a copy: measuring the signal has already disturbed it, and the original that Eve forwards is one of her copies. The next section turns this observation into a theorem.
5. Information gain implies disturbance
5.1 The theorem
Let Alice send one of two nonorthogonal states \(\vert\psi\rangle\) and \(\vert\varphi\rangle\). Eve’s most general attack is to let the qubit interact with a probe of her own, prepared in a state \(\vert e\rangle\), through some unitary \(U\), to forward the qubit to Bob, and to measure the probe whenever she likes (Figure 1a). A measurement on the signal itself is a special case, in which the probe records the outcome.
Theorem. If the interaction leaves both signal states undisturbed, Eve’s probe ends in the same state for both, and she learns nothing.
Unitaries preserve inner products. The inner product of the two left-hand sides is \(\langle\psi\vert\varphi\rangle \langle e\vert e\rangle=\langle\psi\vert\varphi\rangle\), and that of the right-hand sides is \(\langle\psi\vert \varphi\rangle\langle e_\psi\vert e_\varphi\rangle\). Since \(\langle\psi\vert\varphi\rangle\neq0\), it follows that \(\langle e_\psi\vert e_\varphi\rangle=1\): the two probe states are identical, and by Section 3 no measurement on the probe distinguishes them. \(\square\)
The proof is the same calculation as the inner-product proof of no-cloning, applied to a probe that is allowed to end in any state. For orthogonal states, \(\langle\psi\vert\varphi\rangle=0\), the argument gives nothing, and indeed Eve can then read the signal completely without changing it. This is why quantum key distribution uses nonorthogonal states; Ref. [6] showed that any two of them suffice. The theorem is qualitative: zero disturbance means zero information. The quantitative question, how much information a given disturbance allows, was studied in [7], which found the optimal trade-off for two equiprobable nonorthogonal states. The rest of this section computes the trade-off for one concrete family of attacks on the four BB84 states.
5.2 A probe attack of tunable strength
Eve’s probe starts in \(\vert0\rangle_E\) and is coupled to the signal by a controlled rotation: if the signal is \(\vert1\rangle\), the probe is rotated by \(R_y(\theta)\). The strength \(\theta\) runs from \(0\) (no interaction) to \(\pi\) (a CNOT, which writes the \(Z\) bit of the signal into the probe):
The overlap of the two probe states is \(c=\langle e_0\vert e_1\rangle=\cos(\theta/2)\). In the BB84 protocol, Alice sends one of the four states \(\vert0\rangle,\vert1\rangle,\vert\pm\rangle\) at random, Bob measures in the \(Z\) or the \(X\) basis at random, and afterwards they announce their bases and keep only the rounds in which the bases agree. This step is called sifting, and only the sifted rounds count below.
\(Z\)-basis rounds. The signal is not changed at all, so Bob makes no error. Eve’s probe is in \(\vert e_0\rangle\) or \(\vert e_1\rangle\), and by Eqs. (3)–(4) her best guess of Alice’s bit is right with probability \(\tfrac12(1+\sqrt{1-c^2})\).
\(X\)-basis rounds. The signal \(\vert\pm\rangle\) becomes \((\vert0\rangle\vert e_0\rangle\pm\vert1\rangle\vert e_1\rangle)/\sqrt2\). Projecting the signal of \(\vert+\rangle\) onto the wrong state \(\vert-\rangle=(\vert0\rangle- \vert1\rangle)/\sqrt2\) leaves the probe vector \((\vert e_0\rangle-\vert e_1\rangle)/2\), whose squared norm is the error probability, \((2-2{\rm Re}\langle e_0\vert e_1\rangle)/4=(1-c)/2\); the sign \(-\) gives the same. The probe’s reduced state is \(\tfrac12(\vert e_0\rangle\langle e_0\vert+\vert e_1\rangle\langle e_1\vert)\) for both signs, so Eve learns nothing.

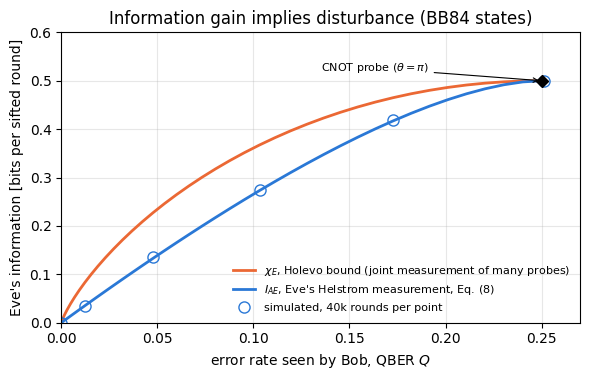

Averaged over the two bases, the error rate seen by Bob, the quantum bit error rate (QBER), and Eve’s information about Alice’s bit per sifted round are
\(I_{AE}\) is the mutual information between Alice’s bit and the result of Eve’s best single measurement, a binary symmetric channel. For two equiprobable pure probe states no single-probe measurement does better. \(\chi_E\) is the Holevo quantity of her probe states (Eq. (15) below), the upper bound on what a measurement can reveal. In \(Z\) rounds the probe states are pure and their average \(\tfrac12(\vert e_0\rangle\langle e_0\vert+\vert e_1\rangle\langle e_1\vert)\) has eigenvalues \((1\pm c)/2\), so \(\chi=h\big((1+c)/2\big)\) there and \(0\) in \(X\) rounds. Eve approaches \(\chi_E\) only if she stores many probes and measures them jointly, after Alice and Bob have published the messages of error correction and privacy amplification. Both quantities vanish at \(c=1\), where \(Q=0\), as the theorem demands. At \(\theta=\pi\) Eve’s probe is a perfect copy of the \(Z\) bit and \(Q=1/4\): the CNOT attack has the same numbers as the intercept-resend attack.
The next cell implements Eq. (7) with apply_gate on a two-qubit tensor, computes Bob’s error and Eve’s reduced states with rdm, and evaluates Eq. (8) from them, and it tries \(2000\) random four-outcome measurements on one probe against the Helstrom measurement. It then simulates \(40\,000\) rounds of the protocol for six coupling strengths: Alice chooses a random basis and bit, the joint distribution of Bob’s result and of Eve’s Helstrom measurement is computed exactly from the state, and the rounds are sampled from it. The printed “plug-in” \(I_{AE}\) is the classical mutual information evaluated on the observed frequencies of Alice’s bit and Eve’s guess. The wrong control sends only \(Z\)-basis states, which are orthogonal: the CNOT then gives Eve the full bit without a single error.
Code
# ==============================================================================# Eqs. (6)-(8): a controlled-rotation probe on BB84 states -- Eve's information vs Bob's errors# ==============================================================================def attack(psi_signal, theta):"""Eq. (7): signal (qubit 0) controls R_y(theta) on Eve's probe (qubit 1), probe starts in |0>.""" psi = jnp.einsum("a,b->ab", psi_signal, KET0)return apply_gate(psi, controlled(ry(theta)), [0, 1])def bob_error(psi_out, sent):"""Probability that Bob, measuring in Alice's basis, finds the state orthogonal to the one sent.""" wrong = {"0": KET1, "1": KET0, "+": KETM, "-": KETP}[sent]returnfloat(jnp.real(jnp.vdot(wrong, rdm(psi_out, [0]) @ wrong)))def tradeoff(theta):"""QBER, Eve's Helstrom information and her Holevo quantity per sifted round, from the engine states.""" out = {s: attack(v, theta) for s, (v, _b) in BB84.items()} Q = np.mean([bob_error(out[s], s) for s in BB84]) I_E, chi_E =0.0, 0.0for pair in (("0", "1"), ("+", "-")): # one basis at a time rE = [rdm(out[s], [1]) for s in pair] D =float(trace_distance(*rE)) I_E +=0.5* (1- h2((1- D) /2)) # Helstrom measurement = BSC, Eq. (3) chi_E +=0.5* (S_vn(0.5* (rE[0] + rE[1])) -0.5* (S_vn(rE[0]) + S_vn(rE[1])))return Q, I_E, chi_Etheta_grid = np.linspace(0, np.pi, 41)curve = np.array([tradeoff(t) for t in theta_grid])c_grid = np.cos(theta_grid /2)Q_th = (1- c_grid) /4# Eq. (8)I_th =0.5* (1- h2((1- np.sqrt(1- c_grid**2)) /2))chi_th =0.5* h2((1+ c_grid) /2)assert np.max(np.abs(curve[:, 0] - Q_th)) < TOLassert np.max(np.abs(curve[:, 1] - I_th)) <1e-7# h near 1/2 amplifies rounding of Dassert np.max(np.abs(curve[:, 2] - chi_th)) <1e-7assert curve[0, 1] <1e-7and curve[0, 2] <1e-7and curve[0, 0] < TOL # theorem: no disturbance, no informationprint(" theta/pi | QBER Q | I_AE (Helstrom) | chi_E (Holevo)")for t in (0, 10, 20, 30, 40):print(f" {theta_grid[t] / np.pi:4.2f} | {curve[t, 0]:.4f} | {curve[t, 1]:.4f} | {curve[t, 2]:.4f}")# one probe, any measurement: 2000 random four-outcome measurements on the Z-basis probe states at theta = pi/2# (rows of a random 4x2 isometry W give the measurement operators |w_k><w_k|) never beat the Helstrom measurementpr = {s: rdm(attack(BB84[s][0], np.pi /2), [1]) for s in ("0", "1")}rng_m = np.random.default_rng(int(jax.random.randint(key_for(5), (), 0, 2**31-1)))W, _r = np.linalg.qr(rng_m.normal(size=(2_000, 4, 2)) +1j* rng_m.normal(size=(2_000, 4, 2)))joint =0.5* np.stack([np.real(np.einsum("nki,ij,nkj->nk", W.conj(), np.asarray(pr[s]), W)) for s in ("0", "1")], 1)I_rand =max(mutual_info(t) for t in joint)print(f"\ntheta = pi/2, Z-basis rounds only: best of 2000 random measurements I = {I_rand:.4f} bit, "f"Helstrom {2* curve[20, 1]:.4f}, Holevo {2* curve[20, 2]:.4f}")assert I_rand <=2* curve[20, 1] +1e-9# Monte Carlo: rounds sampled from the exact joint distribution of (Bob's result, Eve's Helstrom guess)def simulate(theta, n_rounds, key): out = {s: attack(v, theta) for s, (v, _b) in BB84.items()} errors, eve_tables =0, {} k_choice, k_out = jax.random.split(key) choice = np.asarray(jax.random.randint(k_choice, (n_rounds,), 0, 4)) # 0, 1, +, - with probability 1/4 each u = np.asarray(jax.random.uniform(k_out, (n_rounds,))) labels =list(BB84)for basis_pair in (("0", "1"), ("+", "-")): rE = [rdm(out[s], [1]) for s in basis_pair] w, v = jnp.linalg.eigh(rE[0] - rE[1]) Pi_e = proj(v[:, 1]) # Eve says "first state" for this outcome tab = np.zeros((2, 2)) # rows: Alice's bit, cols: Eve's guessfor a, s inenumerate(basis_pair): right = BB84[s][0] wrong = BB84[basis_pair[1- a]][0]# joint probabilities of (Bob correct/wrong, Eve guess 0/1): <psi| P_bob (x) P_eve |psi> probs = []for bob_vec in (right, wrong):for Pe in (Pi_e, I2 - Pi_e): amp = apply_gate(apply_gate(out[s], proj(bob_vec), [0]), Pe, [1]) probs.append(float(jnp.sum(jnp.abs(amp) **2))) cum = np.cumsum(probs) idx = np.where(choice == labels.index(s))[0] outcome = np.searchsorted(cum, u[idx] * cum[-1]) # 0,1: Bob right; 2,3: Bob wrong errors +=int(np.sum(outcome >=2)) eve_guess = outcome %2 np.add.at(tab, (np.full(idx.size, a), eve_guess), 1) eve_tables[basis_pair] = tab / tab.sum()return errors / n_rounds, 0.5*sum(mutual_info(t) for t in eve_tables.values())N_ROUNDS =40_000mc_thetas = np.pi * np.array([0.0, 0.2, 0.4, 0.6, 0.8, 1.0])mc = np.array([simulate(t, N_ROUNDS, key_for(10+ i)) for i, t inenumerate(mc_thetas)])for (Qs, Is), t inzip(mc, mc_thetas): c = np.cos(t /2) Qe, Ie = (1- c) /4, 0.5* (1- h2((1- np.sqrt(1- c**2)) /2))print(f"simulated theta = {t / np.pi:.1f} pi: QBER {Qs:.4f} (Eq. (8) {Qe:.4f}), "f"plug-in I_AE {Is:.4f} (Eq. (8) {Ie:.4f})")assertabs(Qs - Qe) <5* np.sqrt(max(Qe * (1- Qe), 1e-6) / N_ROUNDS) +1e-12assertabs(Is - Ie) <0.01# wrong control: only Z-basis signals (orthogonal) -- the CNOT copies them without any errorout_Z = {s: attack(BB84[s][0], np.pi) for s in ("0", "1")}Q_Z = np.mean([bob_error(out_Z[s], s) for s in ("0", "1")])D_Z =float(trace_distance(rdm(out_Z["0"], [1]), rdm(out_Z["1"], [1])))print(f"\nwrong control, Z-basis signals only, CNOT probe: QBER = {Q_Z:.4f}, "f"Eve's information = {1- h2((1- D_Z) /2):.4f} bit")assert Q_Z < TOL andabs(D_Z -1) < TOL
# ==============================================================================# FIGURE: the information-disturbance trade-off of the probe attack# ==============================================================================fig, ax = plt.subplots(figsize=(6.0, 3.9))ax.plot(curve[:, 0], curve[:, 2], color=PALETTE[1], lw=2, label="$\\chi_E$, Holevo bound (joint measurement of many probes)")ax.plot(curve[:, 0], curve[:, 1], color=PALETTE[0], lw=2, label="$I_{AE}$, Eve's Helstrom measurement, Eq. (8)")ax.plot(mc[:, 0], mc[:, 1], MARKERS[0], color=PALETTE[0], mfc="none", ms=8, label=f"simulated, {N_ROUNDS //1000}k rounds per point")ax.plot([0.25], [0.5], MARKERS[3], color="k", ms=6)ax.annotate("CNOT probe ($\\theta=\\pi$)", (0.25, 0.5), xytext=(0.135, 0.52), fontsize=8, arrowprops=dict(arrowstyle="->", lw=0.8))ax.set_xlabel("error rate seen by Bob, QBER $Q$"); ax.set_ylabel("Eve's information [bits per sifted round]")ax.set_xlim(0, 0.27); ax.set_ylim(0, 0.6)ax.set_title("Information gain implies disturbance (BB84 states)"); ax.legend(fontsize=8, loc="lower right")plt.tight_layout(); plt.show()
The engine reproduces Eq. (8) at every coupling strength, and the simulated rounds lie on the curve within their statistical spread. Eve’s information starts at zero exactly when Bob sees no errors and grows with the error rate: at \(Q=1.9\,\%\) (\(\theta=\pi/4\)) her best measurement yields \(0.054\) bits per sifted round, at \(Q=7.3\,\%\) (\(\theta= \pi/2\)) \(0.20\) bits, and the full CNOT gives her half a bit per round, all of it from the \(Z\)-basis rounds, at the price of \(Q=25\,\%\). The Holevo curve lies above: probes kept in a quantum memory and measured jointly are worth up to \(0.30\) bits per round to Eve at \(\theta=\pi/2\), but still nothing at \(Q=0\). Near the origin \(c=1-4Q\) gives \(1-c^2\approx8Q\), and with \(1-h(\tfrac12-x)\approx2x^2/\ln2\) the measured information grows linearly, \(I_{AE}\approx2Q/\ln2\), while the Holevo quantity, \(\chi_E=\tfrac12h(1-2Q)=\tfrac12h(2Q)\), rises with infinite slope. A small error rate does not mean a negligible leak, which is why the security analysis of quantum key distribution subtracts a bound on Eve’s information instead of ignoring small error rates. The wrong control makes the role of nonorthogonality visible: with \(Z\)-basis signals only, the CNOT gives Eve the whole bit and Bob sees no error at all.
6. Entanglement, LOCC and monogamy
6.1 Bell states, ebits and LOCC
The four Bell states \(\vert\Phi^\pm\rangle=(\vert00\rangle\pm\vert11\rangle)/\sqrt2\) and \(\vert\Psi^\pm\rangle=(\vert01\rangle\pm\vert10\rangle)/\sqrt2\) form an orthonormal basis of two qubits, and each half of a Bell pair alone is maximally mixed, \(\mathbb 1/2\). A shared copy of \(\vert\Phi^+\rangle\) is called one ebit. Its outcomes agree in the \(Z\) basis and in the \(X\) basis at once, which no pair of classically correlated bits can do. These correlations are derived in notebook 19, Bell states and CHSH, Sections 3–4, and the Bell measurement circuit in notebook 21, entanglement swapping and superdense coding, Section 3.
Two separated laboratories that may each do anything to their own qubits and talk over a telephone line, but cannot exchange qubits, are restricted to local operations and classical communication, LOCC. LOCC cannot create entanglement from product states and cannot increase it on average, so shared entanglement is a resource that must be distributed by sending quantum systems, and that protocols such as teleportation use up.
No-signalling. Whatever Alice does to her half, a channel with Kraus operators \(K_k\) or a measurement whose outcome Bob does not learn, Bob’s reduced state is unchanged, as shown in [8] for any measurement process:
by the cyclic property of the trace on \(A\) and \(\sum_kK_k^\dagger K_k=\mathbb 1\). Entanglement creates correlations without any signal.
6.2 Monogamy of entanglement
Maximal entanglement cannot be shared. Theorem. If the state \(\rho_{AB}\) of Alice and Bob is pure, every state \(\rho_{ABE}\) of a larger system that reduces to it is a product, \(\rho_{ABE}=\rho_{AB}\otimes\rho_E\).
Proof idea. Every mixed state is the reduced state of a pure state of a larger system, its purification (notebook 07, density matrices and quantum channels, Section 4). Purify \(\rho_{ABE}\) with a further system \(R\) into a pure state \(\vert\Omega\rangle_{ABER}\). Its reduced state on \(AB\) is the pure state \(\vert\phi\rangle_{AB}\), so the Schmidt decomposition of \(\vert\Omega\rangle\) across the cut \(AB\,\vert\,ER\) has a single term (notebook 06, states, observables and entanglement, Section 6):
Tracing out \(R\) gives \(\vert\phi\rangle\langle\phi\vert\otimes\rho_E\). \(\square\)
If Alice and Bob verify that they hold exactly \(\vert\Phi^+\rangle\), Eve is therefore uncorrelated with their pair, whatever she did while it was distributed. In practice they verify only that the pair is close to \(\vert\Phi^+\rangle\), with a fidelity\(F=\langle\Phi^+\vert\rho_{AB}\vert\Phi^+\rangle\) slightly below one, and the statement must become quantitative. Assume the worst case, in which Eve holds the purification of \(\rho_{AB}\), so that \(\rho_{ABE}\) is pure. Then \(S(E)=S(AB)\), because the two halves of a pure state have the same Schmidt coefficients. The quantum mutual information\(I(X{:}Y)=S(X)+S(Y)-S(XY)\) is Eq. (10) of notebook 50, entropy and noisy channels with von Neumann entropies, and Eve’s mutual information with the pair is \(I(AB{:}E)=S(AB)+S(E)-S(ABE)=2S(AB)\). The largest eigenvalue of \(\rho_{AB}\) is at least \(F=\langle\Phi^+\vert\rho_{AB}\vert\Phi^+\rangle\), and among four probabilities whose largest is at least \(F\geq1/4\) the entropy is maximal when the largest equals \(F\) and the other three share \(1-F\) equally. Hence
where the first inequality says that discarding \(B\) cannot increase the correlations with \(E\). The bound vanishes as \(F\to1\). A finer, entanglement-based version of monogamy for three qubits is the inequality of [9]. The next cell builds random extensions: a four-qubit pure state of \(A\), \(B\) and a two-qubit Eve (enough to purify any two-qubit state), \(\vert\Omega\rangle\propto\cos t\,\vert\Phi^+\rangle_{AB}\vert00\rangle_E+ \sin t\,\vert\xi\rangle\) with a Haar-random \(\vert\xi\rangle\), for \(40\) random \(\vert\xi\rangle\) and \(25\) values of \(t\). The wrong control is the GHZ state \((\vert000\rangle+\vert111\rangle)/\sqrt2\) with Eve holding the third qubit: Alice and Bob agree perfectly in the \(Z\) basis, but their pair has \(F=1/2\), and Eve knows everything.
Code
# ==============================================================================# Eqs. (10)-(11): monogamy -- random extensions of a near-Bell pair to a 2-qubit Eve# ==============================================================================PHI_PLUS = bell_state("phi+")base = jnp.einsum("ab,cd->abcd", PHI_PLUS, product_state("00")) # |Phi+>_AB |00>_E, qubits A, B, E1, E2@jax.jitdef _correlations(omega): r_ab = rdm(omega, [0, 1]) F = jnp.real(jnp.vdot(PHI_PLUS.reshape(-1), r_ab @ PHI_PLUS.reshape(-1))) S_A, S_E, S_AE, S_AB = (von_neumann_entropy(rdm(omega, k)) for k in ([0], [2, 3], [0, 2, 3], [0, 1]))return jnp.stack([F, S_A + S_E - S_AE, 2* S_AB])def correlations_with_eve(omega):"""F, I(A:E), I(AB:E) for a pure state of A, B, E1, E2 (qubits 0, 1, 2, 3), compiled with jax.jit."""returntuple(float(x) +0.0for x in _correlations(jnp.asarray(omega, dtype=CDTYPE)))rows = []for j inrange(40): xi = haar_state(key_for(100+ j), 4)for t in np.linspace(0, np.pi /2, 25): omega = np.cos(t) * base + np.sin(t) * xi rows.append(correlations_with_eve(omega / jnp.linalg.norm(omega)))rows = np.array(rows)F_r, IAE_r, IABE_r = rows.Tbound =2* (h2(F_r) + (1- F_r) * np.log2(3)) # Eq. (11)ok = F_r >=0.25assert np.all(IAE_r <= IABE_r +1e-9) # discarding B cannot increase Iassert np.all(IABE_r[ok] <= bound[ok] +1e-9) # Eq. (11)assert np.all(IABE_r[F_r >1-1e-12] <1e-9) # exact Bell pair: Eve uncorrelated, Eq. (10)for lo, hi in [(0.99, 1.0), (0.95, 0.99), (0.9, 0.95), (0.7, 0.9), (0.5, 0.7)]: sel = (F_r >= lo) & (F_r < hi +1e-12)print(f"F in [{lo:.2f}, {hi:.2f}]: {sel.sum():4d} states, largest I(A:E) = {IAE_r[sel].max():.4f}, "f"largest I(AB:E) = {IABE_r[sel].max():.4f}, bound Eq. (11) at F = {lo:.2f}: "f"{2* (h2(lo) + (1- lo) * np.log2(3)):.4f}")# wrong control: GHZ, Eve holds the third qubit (and E2 is idle)ghz4 = jnp.zeros((2,) *4, dtype=CDTYPE).at[0, 0, 0, 0].set(2**-0.5).at[1, 1, 1, 0].set(2**-0.5)F_g, IAE_g, IABE_g = correlations_with_eve(ghz4)print(f"\nwrong control, GHZ shared with Eve: F = {F_g:.3f}, I(A:E) = {IAE_g:.3f} bit, I(AB:E) = {IABE_g:.3f} bits")assertabs(F_g -0.5) < TOL andabs(IAE_g -1) <1e-9fig, ax = plt.subplots(figsize=(8.4, 3.6))ax.plot(F_r, IABE_r, ".", color=PALETTE[1], ms=3, alpha=0.6, label="$I(AB{:}E)=2S(AB)$, random extensions")ax.plot(F_r, IAE_r, ".", color=PALETTE[0], ms=3, alpha=0.6, label="$I(A{:}E)$")Fg = np.linspace(0.25, 1, 301)ax.plot(Fg, 2* (h2(Fg) + (1- Fg) * np.log2(3)), "--", color="gray", lw=1.5, label="bound, Eq. (11)")ax.plot([F_g], [IAE_g], MARKERS[3], color="k", ms=6, label="GHZ shared with Eve: $I(A{:}E)=1$")ax.set_xlabel("fidelity $F$ of the AB pair with $\\vert\\Phi^+\\rangle$"); ax.set_ylabel("mutual information [bits]")ax.set_xlim(0.25, 1.0); ax.set_ylim(0, 4.1)ax.set_title("Monogamy: a pair close to a Bell state leaves Eve little")ax.legend(fontsize=8, loc="upper left", bbox_to_anchor=(1.02, 1.0))plt.tight_layout(); plt.show()
F in [0.99, 1.00]: 85 states, largest I(A:E) = 0.0753, largest I(AB:E) = 0.1503, bound Eq. (11) at F = 0.99: 0.1933
F in [0.95, 0.99]: 93 states, largest I(A:E) = 0.2940, largest I(AB:E) = 0.5832, bound Eq. (11) at F = 0.95: 0.7313
F in [0.90, 0.95]: 75 states, largest I(A:E) = 0.5334, largest I(AB:E) = 1.0596, bound Eq. (11) at F = 0.90: 1.2550
F in [0.70, 0.90]: 189 states, largest I(A:E) = 1.1139, largest I(AB:E) = 2.1880, bound Eq. (11) at F = 0.70: 2.7136
F in [0.50, 0.70]: 169 states, largest I(A:E) = 1.4313, largest I(AB:E) = 2.8158, bound Eq. (11) at F = 0.50: 3.5850
wrong control, GHZ shared with Eve: F = 0.500, I(A:E) = 1.000 bit, I(AB:E) = 2.000 bits

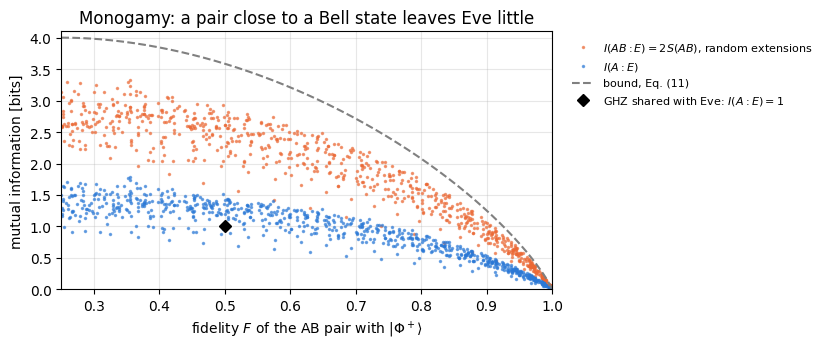

For the exact Bell pair Eve’s correlations vanish to machine precision, as Eq. (10) requires, and every one of the \(1000\) random extensions obeys Eq. (11). As the fidelity approaches one, both mutual informations are squeezed to zero. Above \(F=0.99\) no extension gives Eve more than \(0.075\) bits of mutual information with Alice’s half and \(0.15\) bits with the pair, against the bound \(0.19\) of Eq. (11); between \(F=0.9\) and \(0.95\) she can still hold up to \(0.53\) bits with Alice’s half. Near \(F=1\) the bound is about \(30\,\%\) above the largest value found, and at low fidelity it is loose. The GHZ control shows what the fidelity test protects against. Alice’s and Bob’s \(Z\) results agree perfectly, yet Eve holds a third perfect copy of the same bit, \(I(A{:}E)=1\). The pair fails the fidelity test, \(F=1/2\), because its \(X\) results are uncorrelated. Agreement in two complementary bases is what excludes a third party; entanglement-based quantum key distribution checks exactly this.
7. Resource accounting
Teleportation, introduced in [10], sends an unknown qubit with one ebit and two classical bits, and superdense coding, introduced in [11], sends two classical bits with one ebit and one qubit. Written as resource inequalities, “the left side can simulate the right side”,
The ebit is used up in both. Neither classical bits alone (no-cloning, Section 4) nor entanglement alone (no-signalling, Eq. (9)) can replace a qubit. Teleportation is derived in notebook 20, quantum teleportation, Sections 4–7, and superdense coding with its resource ledger in notebook 21, entanglement swapping and superdense coding, Section 12. The second inequality returns in Section 9.3 as the entanglement-assisted capacity of a noiseless qubit.
8. Quantum channels
8.1 Definition and Kraus form
A classical channel (notebook 50, entropy and noisy channels, Section 5.1) is a matrix of transition probabilities that maps input distributions to output distributions. A quantum channel maps density matrices to density matrices: a linear map \(\rho\mapsto\mathcal E(\rho)\) that keeps every state a state, including when it acts on one half of an entangled pair. Every such map can be written with Kraus operators\(K_k\)[12],
The Kraus form follows from Figure 1b: the signal interacts unitarily with an environment that starts in a fixed state, and the environment is then traced out. Eq. (13) is derived this way in notebook 07, density matrices and quantum channels, Section 7. For communication the environment has a second role: whatever information leaks out of the signal goes into it, and the cautious assumption is that Eve holds the environment.
8.2 Four channels and their Bloch pictures
A qubit state is \(\rho=\tfrac12(\mathbb 1+\mathbf r\cdot\boldsymbol\sigma)\) with Bloch vector \(\mathbf r\), and a one-qubit channel acts on \(\mathbf r\) as an affine map (notebook 07, density matrices and quantum channels, Section 9.3). Four channels matter in this chapter.
Depolarising, \(\mathcal E(\rho)=(1-p)\rho+\frac p3(X\rho X+Y\rho Y+Z\rho Z)\): each Pauli error with probability \(p/3\). The Bloch ball shrinks uniformly, \(\mathbf r\to(1-\tfrac{4p}3)\mathbf r\), and is a point at \(p=3/4\).
Dephasing, \(\mathcal E(\rho)=(1-p)\rho+pZ\rho Z\): a phase error with probability \(p\). Coherences shrink, \((r_x,r_y,r_z)\to((1-2p)r_x,(1-2p)r_y,r_z)\), and the poles \(\vert0\rangle\), \(\vert1\rangle\) are untouched.
Amplitude damping: the excited state \(\vert1\rangle\) decays to \(\vert0\rangle\) with probability \(\gamma\), as in spontaneous emission of a photon. The Kraus operators are the no-decay operator \(K_0=\vert0\rangle\langle0\vert+ \sqrt{1-\gamma}\,\vert1\rangle\langle1\vert\) and the jump \(K_1=\sqrt\gamma\,\vert0\rangle\langle1\vert\), which takes \(\vert1\rangle\) to \(\vert0\rangle\); these are the same operators as the engine’s kraus_amplitude_damping. The ball shrinks and moves towards the north pole, \((r_x,r_y,r_z)\to(\sqrt{1-\gamma}\,r_x,\sqrt{1-\gamma}\,r_y,\gamma+(1-\gamma)r_z)\).
Erasure, the channel studied in [13]: with probability \(e\) the qubit is lost, and the receiver is told so. The output lives in a larger space, the qubit plus an orthogonal “erased” flag:
The erasure channel is the quantum version of the binary erasure channel: a photon that is absorbed in the fibre never reaches the detector, and the missing click tells Bob that it was lost. On the qubits that arrive, the Bloch vector is intact. Equation (14) is a channel from one qubit to two (data and flag) with three Kraus operators acting on the data qubit and a flag qubit prepared in \(\vert0\rangle\): \(K_0=\sqrt{1-e}\;\mathbb 1\otimes\mathbb 1\), \(K_1=\sqrt e\,\vert0\rangle\langle0\vert\otimes X\) and \(K_2=\sqrt e\,\vert0\rangle\langle1\vert\otimes X\). The flag \(X\) marks the erasure, and the data qubit is reset to \(\vert0\rangle\); one checks \(\sum_kK_k^\dagger K_k=(1-e)\mathbb 1+e\,(\vert0\rangle\langle0\vert+\vert1\rangle \langle1\vert)\otimes X^2=\mathbb 1\).
The next cell builds the four channels, the first two from the engine and the last two explicitly, checks completeness, applies them with apply_kraus_dm to pure states around the \(x\)–\(z\) great circle of the Bloch sphere, and compares the output Bloch vectors with the formulas above.
Code
# ==============================================================================# Eqs. (13)-(14): four channels, their completeness and their Bloch maps# ==============================================================================DECAY = jnp.array([[0, 1], [0, 0]], dtype=CDTYPE) # |0><1|: takes |1> to |0>def kraus_amp_damp(g):"""Amplitude damping: K0 = |0><0| + sqrt(1-g)|1><1| (no decay), K1 = sqrt(g)|0><1| (decay |1> -> |0>).""" K0 = jnp.array([[1, 0], [0, np.sqrt(1- g)]], dtype=CDTYPE)return jnp.stack([K0, np.sqrt(g) * DECAY])def kraus_erasure(e):"""Eq. (14) as three 4x4 Kraus operators on (data, flag), flag prepared in |0>: sqrt(1-e) 1, sqrt(e) |0><0| (x) X, sqrt(e) |0><1| (x) X.""" P0_ = jnp.array([[1, 0], [0, 0]], dtype=CDTYPE)return jnp.stack([np.sqrt(1- e) * jnp.eye(4, dtype=CDTYPE), np.sqrt(e) * jnp.kron(P0_, X), np.sqrt(e) * jnp.kron(DECAY, X)])def completeness(K): d = K.shape[-1]returnfloat(jnp.max(jnp.abs(jnp.einsum("kji,kjl->il", jnp.conj(K), K) - jnp.eye(d))))for name, K in [("depolarising", kraus_depolarizing(0.3)), ("dephasing", kraus_dephasing(0.3)), ("amplitude damping", kraus_amp_damp(0.3)), ("erasure", kraus_erasure(0.3))]:print(f"{name:18s}: {K.shape[0]} Kraus operators of size {K.shape[1]}, "f"max |sum K^dag K - 1| = {completeness(K):.1e}")assert completeness(K) < TOLdef through_erasure(rho_data, e):"""Send a one-qubit density matrix through Eq. (14); returns the (data, flag) density tensor.""" rho = jnp.einsum("ab,cd->acbd", rho_data, proj(KET0)) # data (x) |0><0|_flag, tensor (2,2,2,2)return kraus_apply(rho, kraus_erasure(e), [0, 1])P_NOISE, G_AD, E_ER =0.3, 0.5, 0.4angles = np.linspace(0, 2* np.pi, 73)images = {k: [] for k in ("depolarising", "dephasing", "amplitude damping", "erasure")}max_err =0.0for a in angles: r_in = np.array([np.sin(a), 0.0, np.cos(a)]) rho_in = proj(ket(a)) r_dep = bloch(kraus_apply(rho_in, kraus_depolarizing(P_NOISE), [0])) r_dph = bloch(kraus_apply(rho_in, kraus_dephasing(P_NOISE), [0])) r_ad = bloch(kraus_apply(rho_in, kraus_amp_damp(G_AD), [0])) out_er = through_erasure(rho_in, E_ER) p_kept =float(jnp.real(dm_matrix(rdm_dm(out_er, [1]))[0, 0])) # probability of the flag |0> rho_kept = dm_matrix(out_er)[0::2, 0::2] / p_kept # data qubit given flag 0 (rows: data, flag) r_er = bloch(rho_kept) expected = [(1-4* P_NOISE /3) * r_in, np.array([(1-2* P_NOISE) * r_in[0], 0.0, r_in[2]]), np.array([np.sqrt(1- G_AD) * r_in[0], 0.0, G_AD + (1- G_AD) * r_in[2]]), r_in]for key_, r_out, r_exp inzip(images, (r_dep, r_dph, r_ad, r_er), expected): images[key_].append(r_out) max_err =max(max_err, float(np.max(np.abs(r_out - r_exp))))assertabs(p_kept - (1- E_ER)) < TOLprint(f"Bloch maps of Section 8.2 reproduced on 73 pure states: largest deviation {max_err:.1e}")assert max_err < TOLfig, axes = plt.subplots(1, 4, figsize=(12, 3.3))titles = [f"depolarising, $p={P_NOISE}$", f"dephasing, $p={P_NOISE}$", f"amplitude damping, $\\gamma={G_AD}$",f"erasure, $e={E_ER}$"]for ax, (name, pts), title, col inzip(axes, images.items(), titles, PALETTE): pts = np.array(pts) ax.plot(np.sin(angles), np.cos(angles), color="0.6", lw=1, ls="--") ax.fill(pts[:, 0], pts[:, 2], color=col, alpha=0.3, lw=0) ax.plot(pts[:, 0], pts[:, 2], color=col, lw=2) ax.plot([0], [1], "o", color="k", ms=4); ax.plot([0], [-1], "o", color="k", ms=4) ax.set_aspect("equal"); ax.set_xlim(-1.15, 1.15); ax.set_ylim(-1.15, 1.15) ax.set_xlabel("$r_x$"); ax.set_title(title, fontsize=10)axes[0].set_ylabel("$r_z$")axes[3].text(0, 0, f"kept with prob. {1- E_ER:.1f}:\nBloch vector intact\nerased with prob. {E_ER}:\nflag tells Bob", ha="center", va="center", fontsize=8)fig.suptitle("Image of the x-z great circle of the Bloch sphere (dashed) under each channel", y=1.0)plt.tight_layout(); plt.show()
depolarising : 4 Kraus operators of size 2, max |sum K^dag K - 1| = 0.0e+00
dephasing : 2 Kraus operators of size 2, max |sum K^dag K - 1| = 0.0e+00
amplitude damping : 2 Kraus operators of size 2, max |sum K^dag K - 1| = 0.0e+00
erasure : 3 Kraus operators of size 4, max |sum K^dag K - 1| = 0.0e+00
Bloch maps of Section 8.2 reproduced on 73 pure states: largest deviation 2.2e-16

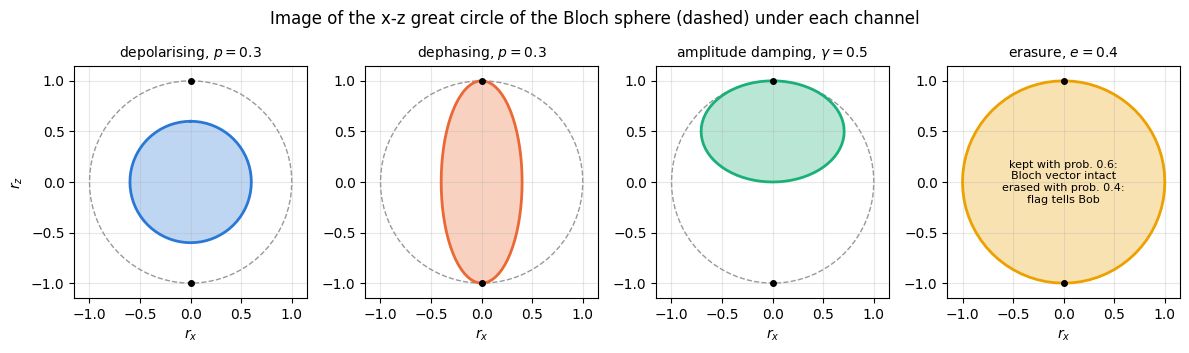

All four channels are complete, and the Bloch vectors of \(73\) pure inputs follow the affine maps of Section 8.2 to machine precision. The pictures show four different kinds of damage. The depolarising channel shrinks the circle uniformly, by \(1-4p/3=0.6\) at \(p=0.3\), so every direction is equally degraded. Dephasing squeezes it into an ellipse along \(z\): the poles, which carry a classical bit, survive untouched, while superpositions lose their phase. Amplitude damping shrinks the circle and moves it towards \(\vert0\rangle\); at \(\gamma=0.5\) the image of \(\vert1\rangle\) sits at the centre. The erasure channel either delivers the state intact or announces the loss. Section 9 shows that these differences decide how many classical bits and how many qubits each channel carries.
9. Capacities of quantum channels
The capacity of a classical channel is the largest rate, in bits per use, at which information can be sent with an error probability that goes to zero over many uses, and Shannon’s theorem equates it to the maximal mutual information (notebook 50, entropy and noisy channels, Section 5.3). A quantum channel has several capacities, because it can be asked to carry different things: classical bits, qubits, or classical bits with the help of entanglement shared in advance. Each is defined operationally in the same way, as the best rate with vanishing error over many uses of the channel, and each has its own formula.
9.1 Classical capacity and the Holevo bound
To send a classical message, Alice encodes the letter \(i\), chosen with probability \(p_i\), into a state \(\rho_i\) and sends it through the channel; Bob receives \(\mathcal E(\rho_i)\) and measures. Ref. [14] proved that the mutual information between Alice’s letter and any measurement result of Bob is bounded by the Holevo quantity of the received ensemble,
where \(S\) is the von Neumann entropy and \(d\) the dimension of the output. For a qubit \(d=2\), so one qubit carries at most one classical bit. The Holevo quantity is also achievable: if Alice uses product states over many channel uses and Bob measures the whole block collectively, the maximum of \(\chi\) over ensembles is an achievable rate, the Holevo–Schumacher–Westmoreland theorem [15], [16]. In general the classical capacity requires a further maximisation over entangled inputs across many uses; for the channels below the single-use value is already the answer.
We write \(\chi^\ast\) for the maximum of \(\chi\) over all input ensembles. For the depolarising channel it can be found by hand. Every pure input has a Bloch vector of length one, so every output has length \(\lambda=1-4p/3\) and eigenvalues \((1\pm\lambda)/2\); its entropy is \(h\big((1-\lambda)/2 \big)=h(2p/3)\), and mixed inputs give at least as much. The average output has entropy at most \(1\). Hence \(\chi\leq1-h(2p/3)\) for every ensemble, and the ensemble \(\{\vert0\rangle,\vert1\rangle\}\) with equal weights reaches it, because the average output is \(\mathbb 1/2\):
This is the capacity of a binary symmetric channel with flip probability \(2p/3\): sending \(\vert0\rangle\) or \(\vert1\rangle\) and measuring \(Z\), the bit flips when the error is \(X\) or \(Y\). Ref. [17] proved that no entangled input and no collective measurement does better, so Eq. (16) is the classical capacity of the depolarising channel. For the dephasing channel \(\chi^\ast=1\) at every \(p\), the largest value Eq. (15) allows, since \(\vert0\rangle\) and \(\vert1\rangle\) pass unchanged. For the erasure channel the inputs \(\vert0\rangle\), \(\vert1\rangle\) give \(\chi=1-e\), the capacity of the classical erasure channel, and Ref. [18] showed that this is the classical capacity. The next cell computes \(\chi\) with the engine for pairs of pure input states at every angle and weight, and for \(500\) random ensembles of four mixed states, and checks Eqs. (15)–(16). The wrong control is a pair of nonorthogonal inputs, \(\vert0\rangle\) and \(\vert+\rangle\), which stays below the maximum.
Code
# ==============================================================================# Eqs. (15)-(16): Holevo quantity of the depolarising channel, scanned over input ensembles# ==============================================================================def holevo_chi(states, probs, channel):"""Eq. (15): chi = S(sum_i p_i E(rho_i)) - sum_i p_i S(E(rho_i)); `channel` maps a 2x2 matrix to a matrix.""" outs = [channel(r) for r in states] avg =sum(p * o for p, o inzip(probs, outs))return S_vn(avg) -sum(p * S_vn(o) for p, o inzip(probs, outs))def depol(p):returnlambda r: kraus_apply(r, kraus_depolarizing(p), [0])p_dep =0.1chi_star =1- h2(2* p_dep /3) # Eq. (16)best =0.0for ang in np.linspace(0, np.pi, 37): # angle between the two Bloch vectorsfor w in np.linspace(0.05, 0.95, 19): best =max(best, holevo_chi([proj(KET0), proj(ket(ang))], [w, 1- w], depol(p_dep)))print(f"depolarising p = {p_dep}: Eq. (16) chi* = 1 - h(2p/3) = {chi_star:.6f}; "f"best two-state ensemble on the grid: {best:.6f}")assertabs(best - chi_star) < TOL # reached by |0>, |1> at weight 1/2rng = np.random.default_rng(int(jax.random.randint(key_for(3), (), 0, 2**31-1)))worst_gap = np.infkeys4 = jax.vmap(lambda j: jax.random.fold_in(key_for(4), j))(jnp.arange(2_000))haar_kets = jax.vmap(lambda k: haar_state(k, 1))(keys4) # 2000 Haar-random qubit states at oncefor i inrange(500): sts = []for k inrange(4): s_mix = rng.uniform(0.5, 1) sts.append(s_mix * proj(haar_kets[4* i + k]) + (1- s_mix) * I2 /2) # a random mixed state pr = rng.dirichlet(np.ones(4)) chi = holevo_chi(sts, pr, depol(p_dep)) worst_gap =min(worst_gap, chi_star - chi)print(f"500 random ensembles of four mixed states: smallest gap chi* - chi = {worst_gap:.4f} (must be >= 0)")assert worst_gap >=-TOLchi_bad = holevo_chi([proj(KET0), proj(KETP)], [0.5, 0.5], depol(p_dep))print(f"wrong control, inputs |0> and |+>: chi = {chi_bad:.4f} < chi* = {chi_star:.4f}")assert chi_bad < chi_star -0.1# dephasing and erasure: chi* = 1 and 1 - e with the inputs |0>, |1>for p in (0.1, 0.3, 0.5): c_dph = holevo_chi([proj(KET0), proj(KET1)], [0.5, 0.5], lambda r: kraus_apply(r, kraus_dephasing(p), [0])) c_er = holevo_chi([proj(KET0), proj(KET1)], [0.5, 0.5], lambda r: dm_matrix(through_erasure(r, p)))print(f"p = e = {p}: chi(dephasing) = {c_dph:.6f}, chi(erasure) = {c_er:.6f} (1 - e = {1- p:.6f})")assertabs(c_dph -1) < TOL andabs(c_er - (1- p)) < TOL
depolarising p = 0.1: Eq. (16) chi* = 1 - h(2p/3) = 0.646641; best two-state ensemble on the grid: 0.646641
500 random ensembles of four mixed states: smallest gap chi* - chi = 0.1418 (must be >= 0)
wrong control, inputs |0> and |+>: chi = 0.3556 < chi* = 0.6466
p = e = 0.1: chi(dephasing) = 1.000000, chi(erasure) = 0.900000 (1 - e = 0.900000)
p = e = 0.3: chi(dephasing) = 1.000000, chi(erasure) = 0.700000 (1 - e = 0.700000)
p = e = 0.5: chi(dephasing) = 1.000000, chi(erasure) = 0.500000 (1 - e = 0.500000)
The best of the \(703\) two-state ensembles gives exactly \(1-h(2p/3)=0.6466\) bits at \(p=0.1\), reached by \(\vert0\rangle\) and \(\vert1\rangle\) with equal weights, and none of the \(500\) random ensembles of mixed states exceeds it. Two nonorthogonal inputs such as \(\vert0\rangle\) and \(\vert+\rangle\) are a poor code, since they start out partly indistinguishable (Section 3). Dephasing does not reduce the classical capacity at all, and erasure reduces it exactly as in the classical erasure channel. None of these numbers exceeds one bit per qubit, as Eq. (15) requires.
9.2 Quantum capacity and the coherent information
The quantum capacity\(Q_{\rm cap}\) is the largest rate, in qubits per channel use, at which unknown quantum states can be sent with fidelity approaching one. (The subscript keeps it apart from the error rate \(Q\) of Section 5.) Whether a channel preserves unknown states is tested best with entanglement. Alice prepares a pure state \(\vert\psi\rangle_{RA}\) of the signal \(A\) and a reference qubit \(R\) that never leaves her laboratory, and sends \(A\) through the channel to Bob, who receives \(B\). If \(R\) and \(B\) are still entangled, the pair can carry a qubit by teleportation (Eq. (12)); the classical messages that teleportation needs do not raise the quantum capacity [19]. The amount of quantum information that survives is measured by the coherent information[20],
\[I_c(\rho_A,\mathcal E)=S(B)-S(RB). \tag{17}\]
Two limits show its meaning. For a noiseless channel and a Bell pair, \(RB\) is pure and \(B\) is maximally mixed, so \(I_c=1-0=1\). For a channel that replaces every input by \(\vert0\rangle\), \(B\) is pure and \(RB\) is the product of \(\mathbb 1/2\) and \(\vert0\rangle\langle0\vert\), so \(I_c=0-1=-1\). If the environment \(E\) of Figure 1b is included, the state of \(R\), \(B\) and \(E\) is pure, so \(S(RB)=S(E)\) as in Section 6.2, and \(I_c=S(B)-S(E)\): what reaches Bob minus what leaks to the environment, which in cryptography is Eve.
The quantum capacity is the largest coherent information per channel use. In general the inputs must be allowed to be entangled across \(n\) uses of the channel, so that \(Q_{\rm cap}=\lim_{n\to\infty}\frac1n\max_\rho I_c(\rho, \mathcal E^{\otimes n})\)[21], [22], [23]. One use gives a lower bound, \(Q_{\rm cap}\geq \max_{\rho_A}I_c(\rho_A,\mathcal E)\), and for two of our channels this bound is already the capacity: Ref. [18] found the erasure capacity, and Ref. [24] showed that for dephasing the formula reduces to a single use. A capacity cannot be negative, while \(I_c\) can, hence the \(\max(0,\cdot)\):
Both follow from Eq. (17) with a Bell pair as input. We use that a mixture with weights \(1-e\) and \(e\) of two states with orthogonal supports has entropy \(h(e)+(1-e)S_1+eS_2\). For erasure, \(\rho_{RB}\) is \(\vert\Phi^+\rangle\langle\Phi^+\vert\) with an unset flag with probability \(1-e\) (\(S_1=0\)), and \(\tfrac12\mathbb 1_R\otimes\vert0\rangle\langle0\vert\otimes\vert1\rangle\langle1\vert_{\rm flag}\) otherwise (\(S_2=1\)); the flag makes the two parts orthogonal, so \(S(RB)=h(e)+e\). In the same way \(S(B)=h(e)+(1-e)\), and \(I_c=1-2e\). For dephasing, \(\rho_{RB}=(1-p)\vert\Phi^+\rangle\langle\Phi^+\vert+p\,\vert\Phi^-\rangle\langle\Phi^- \vert\) has entropy \(h(p)\) and \(\rho_B=\mathbb 1/2\) has entropy \(1\). The erasure capacity vanishes at \(e=1/2\) for a reason that is a direct consequence of no-cloning. At \(e=1/2\) the environment receives the qubit exactly as often as Bob does, so the channel treats Bob and the environment symmetrically; if Bob could recover the quantum information, the environment could recover it too, by the same procedure, and two copies of an unknown state would exist.
For the depolarising channel the quantum capacity is not known. The Bell-pair input gives a lower bound, the hashing bound[19]. A Pauli error on one half of \(\vert\Phi^+\rangle\) turns it into another Bell state (notebook 21, entanglement swapping and superdense coding, Section 3.1), so \(\rho_{RB}\) is a mixture of the four Bell states with weights \((1-p,p/3,p/3,p/3)\), and
with \(H\) the Shannon entropy of the four weights. It vanishes at \(p\approx0.189\). The bound is not the capacity: codes that use the channel many times at once keep a positive rate slightly beyond this point [25], which is why the maximisation over \(n\) uses cannot be dropped. The next cell computes the coherent information with the engine: the input is \(\sqrt{1-a}\,\vert00\rangle+\sqrt a\,\vert11\rangle\) on \(R\) and \(A\), the channel acts on \(A\) (with a flag qubit for erasure), and the entropies come from rdm_dm. It scans the input weight \(a\) to check that the Bell pair, \(a=1/2\), is the best single-use input for these channels, and compares with Eqs. (18)–(19). As a wrong control, an input without entanglement with \(R\) (\(a=0\)) gives \(I_c\leq0\): a classical state carries no quantum information.
Code
# ==============================================================================# Eqs. (17)-(19): coherent information with a reference qubit, for three channels# ==============================================================================def coherent_info(a, channel_name, p):"""Eq. (17): I_c = S(B) - S(RB) for the input sqrt(1-a)|00> + sqrt(a)|11> on (R, A), channel on A.""" psi_ra = jnp.zeros((2, 2), dtype=CDTYPE).at[0, 0].set(np.sqrt(1- a)).at[1, 1].set(np.sqrt(a))if channel_name =="erasure": psi = jnp.einsum("ab,c->abc", psi_ra, KET0) # qubits R, A, flag rho = kraus_apply(to_dm(psi), kraus_erasure(p), [1, 2]) B, RB = [1, 2], [0, 1, 2]else: K = {"dephasing": kraus_dephasing, "depolarising": kraus_depolarizing}[channel_name](p) rho = kraus_apply(to_dm(psi_ra), K, [1]) B, RB = [1], [0, 1]return S_vn(dm_matrix(rdm_dm(rho, B))) - S_vn(dm_matrix(rdm_dm(rho, RB)))def hashing(p):"""Eq. (19): 1 - H(1-p, p/3, p/3, p/3)."""return1- shannon([1- p, p /3, p /3, p /3])a_grid = np.linspace(0, 1, 41)for name, p, closed in [("erasure", 0.2, 1-2*0.2), ("dephasing", 0.1, 1- h2(0.1)), ("depolarising", 0.1, hashing(0.1))]: vals = np.array([coherent_info(a, name, p) for a in a_grid])print(f"{name:12s} p = {p}: max_a I_c = {vals.max():.6f} at a = {a_grid[vals.argmax()]:.3f}; "f"closed form {closed:.6f}; unentangled input a = 0: I_c = {vals[0]:.2e}")assertabs(vals.max() - closed) < TOL andabs(a_grid[vals.argmax()] -0.5) <1e-12assert vals[0] <= TOL # wrong control: no entanglement, no Q_capp_curve = np.linspace(0, 0.5, 11)Ic_er = np.array([coherent_info(0.5, "erasure", p) for p in p_curve])Ic_dph = np.array([coherent_info(0.5, "dephasing", p) for p in p_curve])Ic_dep = np.array([coherent_info(0.5, "depolarising", p) for p in p_curve])assert np.max(np.abs(Ic_er - (1-2* p_curve))) < TOLassert np.max(np.abs(Ic_dph - (1- h2(p_curve)))) <1e-9assert np.max(np.abs(Ic_dep - np.array([hashing(p) for p in p_curve]))) <1e-9lo, hi =0.15, 0.25# bisection for the zero of Eq. (19)for _ inrange(60): mid =0.5* (lo + hi) lo, hi = (mid, hi) if hashing(mid) >0else (lo, mid)print(f"hashing bound of the depolarising channel vanishes at p = {lo:.4f}")assertabs(lo -0.18929) <1e-4
erasure p = 0.2: max_a I_c = 0.600000 at a = 0.500; closed form 0.600000; unentangled input a = 0: I_c = -2.13e-14
dephasing p = 0.1: max_a I_c = 0.531004 at a = 0.500; closed form 0.531004; unentangled input a = 0: I_c = -1.06e-14
depolarising p = 0.1: max_a I_c = 0.372508 at a = 0.500; closed form 0.372508; unentangled input a = 0: I_c = -1.06e-14
hashing bound of the depolarising channel vanishes at p = 0.1893
For all three channels the single-use coherent information is largest for the Bell-pair input, \(a=1/2\), and equals the closed forms: \(1-2e=0.6\) for erasure at \(e=0.2\), \(1-h(0.1)=0.531\) for dephasing at \(p=0.1\), and the hashing value \(0.373\) for the depolarising channel at \(p=0.1\). An input that is not entangled with the reference, \(a=0\), gives \(I_c=0\) for every channel, because Bob then receives the known pure state \(\vert0\rangle\) and no quantum information at all. The coherent information can also be negative, which happens beyond \(e=1/2\) for erasure and beyond \(p=0.189\) for the depolarising channel. For erasure the capacity is then zero; for the depolarising channel the hashing bound gives nothing there, but the true capacity is not known.
9.3 Entanglement-assisted classical capacity
If Alice and Bob share unlimited ebits in advance, the classical capacity grows. Superdense coding already shows this for a noiseless qubit: two bits per qubit instead of one, the second inequality of Eq. (12). Refs. [26] and [27] proved that the entanglement-assisted capacity is given by a single-use formula, the quantum mutual information between the reference and the output, maximised over inputs:
For the depolarising channel the maximum is at the Bell-pair input, which is how Eq. (20) follows from the same Bell-diagonal state as Eq. (19), with \(S(R)=S(B)=1\). The same number, \(2-H\), is the dense-coding capacity of a depolarised shared pair derived in notebook 21, entanglement swapping and superdense coding, Section 14.2; here the pair is perfect and the noise sits in the channel. For the erasure channel the same input gives \(C_E=2(1-e)\), twice the unassisted value.
The last cell of this section evaluates all capacities on one grid and draws them against the noise parameter, with Shannon’s capacity \(1-h(q)\) of the binary symmetric channel for comparison.
Code
# ==============================================================================# Eq. (20) and FIGURE: classical, quantum and entanglement-assisted capacities against the noise# ==============================================================================def C_E_engine(channel_name, p):"""Eq. (20) at the Bell-pair input: S(R) + S(B) - S(RB) = 1 + I_c."""return1+ coherent_info(0.5, channel_name, p)CE_dep = np.array([C_E_engine("depolarising", p) for p in p_curve])CE_er = np.array([C_E_engine("erasure", p) for p in p_curve])assert np.max(np.abs(CE_dep - (2- np.array([shannon([1- p, p /3, p /3, p /3]) for p in p_curve])))) <1e-9assert np.max(np.abs(CE_er -2* (1- p_curve))) < TOLchi_dep = np.array([holevo_chi([proj(KET0), proj(KET1)], [0.5, 0.5], depol(p)) for p in p_curve])assert np.max(np.abs(chi_dep - (1- h2(2* p_curve /3)))) <1e-9print(" p | BSC 1-h(p) | chi depol | C_E depol | Q_cap deph | Q_cap erasure | hashing depol")for i inrange(0, 11, 2): p = p_curve[i] q_dph, q_er, q_dep = (max(float(v[i]), 0.0) +0.0for v in (Ic_dph, Ic_er, Ic_dep)) # capacities are >= 0print(f" {p:.2f} | {1- h2(p):.4f} | {chi_dep[i]:.4f} | {CE_dep[i]:.4f} | {q_dph:.4f} | "f"{q_er:.4f} | {q_dep:.4f}")pf = np.linspace(0, 0.5, 201)fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(11, 3.9))ax1.plot(pf, 1- h2(pf), color="gray", lw=1.5, ls=":", label="classical BSC, $1-h(q)$, $q=p$")ax1.plot(pf, np.ones_like(pf), color=PALETTE[2], lw=2, label="dephasing, $\\chi^\\ast=1$")ax1.plot(pf, 1- h2(2* pf /3), color=PALETTE[0], lw=2, label="depolarising, $1-h(2p/3)$, Eq. (16)")ax1.plot(pf, 1- pf, color=PALETTE[1], lw=2, label="erasure, $1-e$")ax1.plot(pf, 2- np.array([shannon([1- p, p /3, p /3, p /3]) for p in pf]), color=PALETTE[0], lw=2, ls="--", label="depolarising, entanglement-assisted, Eq. (20)")ax1.plot(pf, 2* (1- pf), color=PALETTE[1], lw=2, ls="--", label="erasure, entanglement-assisted")ax1.plot(p_curve, chi_dep, MARKERS[0], color=PALETTE[0], mfc="none", ms=6)ax1.plot(p_curve, CE_dep, MARKERS[1], color=PALETTE[0], mfc="none", ms=6)ax1.set_xlabel("noise parameter $p$ (error or erasure probability)"); ax1.set_ylabel("classical bits per use")ax1.set_title("Classical capacities"); ax1.legend(fontsize=7.5, loc="upper right"); ax1.set_ylim(0, 2.95)ax2.plot(pf, 1- h2(pf), color=PALETTE[2], lw=2, label="dephasing, $1-h(p)$, Eq. (18)")ax2.plot(pf, np.maximum(1-2* pf, 0), color=PALETTE[1], lw=2, label="erasure, $\\max(0,1-2e)$, Eq. (18)")ax2.plot(pf, np.maximum([hashing(p) for p in pf], 0), color=PALETTE[0], lw=2, ls="--", label="depolarising, hashing lower bound, Eq. (19)")ax2.plot(p_curve, Ic_dph, MARKERS[0], color=PALETTE[2], mfc="none", ms=6, label="coherent information, engine")ax2.plot(p_curve, np.maximum(Ic_er, 0), MARKERS[0], color=PALETTE[1], mfc="none", ms=6)ax2.plot(p_curve, np.maximum(Ic_dep, 0), MARKERS[0], color=PALETTE[0], mfc="none", ms=6)ax2.set_xlabel("noise parameter $p$ (error or erasure probability)")ax2.set_ylabel("$Q_{\\rm cap}$ [qubits per use]"); ax2.set_title("Quantum capacities")ax2.legend(fontsize=7.5, loc="upper right"); ax2.set_ylim(0, 1.05)plt.tight_layout(); plt.show()

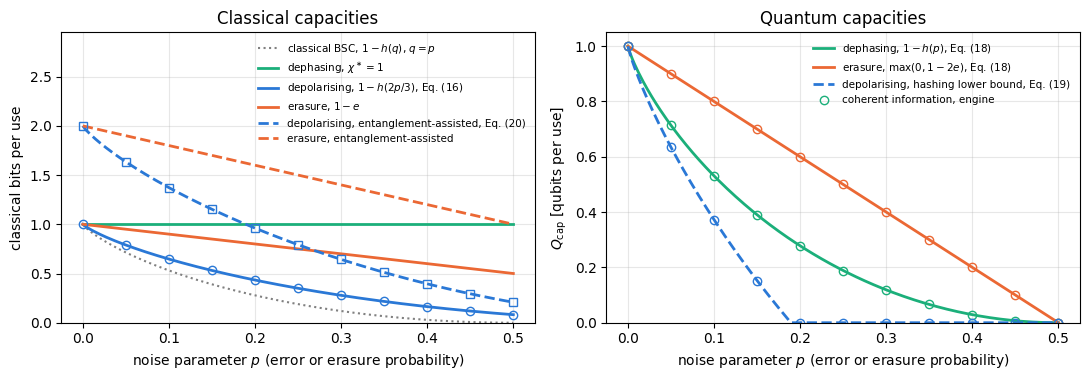

The two panels summarise the section. On the left, the classical capacities of the three quantum channels never exceed one bit per qubit without help, and the depolarising channel at error probability \(p\) behaves exactly like a binary symmetric channel with flip probability \(2p/3\), because only two of the three Pauli errors flip a \(Z\) bit. Dephasing leaves the classical capacity at one bit for every \(p\). Shared entanglement doubles the noiseless value to two bits and raises every curve: at \(p=0.1\) the depolarising channel carries \(0.647\) bits alone and \(1.373\) bits with entanglement assistance. On the right, the quantum capacities fall much faster: dephasing at \(p=0.1\) still carries a full classical bit per use but only \(0.53\) qubits, \(1-h(p)\), and at \(p=1/2\) it carries a full classical bit and no qubits at all. Erasure loses its quantum capacity at \(e=1/2\), where the no-cloning argument applies, and for the depolarising channel only the lower bound is drawn. A quantum signal is fragile in a way a classical bit is not: every error that is invisible on the \(Z\) basis still destroys superpositions, and every bit that leaks to the environment counts against Bob.
10. From these rules to quantum key distribution
Quantum key distribution combines two of the rules derived here. Section 5 showed that Eve cannot learn about nonorthogonal signal states without creating errors; Alice and Bob therefore estimate the error rate on a sample of their data and bound her information by it. Section 6 showed the same from the side of entanglement: a pair close to a Bell state, checked in two complementary bases, leaves no room for a third party. The coherent information of Section 9.2, “what Bob receives minus what leaks to the environment”, has the same structure as the secret-key rate of BB84, \(1-2h(Q)\): one bit per sifted round, minus the bits spent on error correction, minus the bits that Eve may know.
11. Key takeaways
Nonorthogonal states cannot be told apart with certainty. The best success probability for two equiprobable states is \((1+D)/2\) with the trace distance \(D\); for \(\vert0\rangle\) against \(\vert+\rangle\) it is \(0.854\), and no projective or general measurement in the numerical search did better.
No-cloning has practical consequences. Eve cannot keep a copy of a qubit in transit, and quantum signals cannot be amplified. A measure-and-prepare copier reaches fidelity \(3/4\) on the BB84 states and no more.
Information gain implies disturbance. An interaction that leaves two nonorthogonal states undisturbed leaves the probe in the same state for both. For a controlled-rotation probe on BB84 states Eve’s information grows from zero with the error rate \(Q\), about \(2Q/\ln2\) bits per round for small \(Q\) (and faster, up to the Holevo quantity, for probes stored and measured jointly), up to half a bit per round at \(Q=1/4\).
Entanglement is monogamous. A pure state of Alice and Bob is uncorrelated with everything else, and a pair with fidelity \(F\) to a Bell state gives Eve at most \(2[h(F)+(1-F)\log_23]\) bits of mutual information.
Quantum channels have Kraus operators and Bloch pictures. Depolarising, dephasing, amplitude damping and erasure shrink, squeeze, shift or delete the Bloch ball.
One qubit carries at most one classical bit[14]; the depolarising channel carries \(1-h(2p/3)\) bits per use. Shared entanglement raises this, up to two bits for a noiseless qubit.
Quantum capacities are smaller. They are given by the coherent information \(S(B)-S(RB)\): \(1-2e\) for erasure, \(1-h(p)\) for dephasing, and only bounds for the depolarising channel.
12. Exercises
★ A pair at overlap 3/4. Bob receives \(\vert0\rangle\) or \(\cos\frac\pi6\vert0\rangle+\sin\frac\pi6\vert1\rangle\) with equal probability. Compute the trace distance and the best success probability, and check them with the cell of Section 3.2.
★ Preparing along the wrong axis. In the copier of Section 4.1, Eve measures in the \(Z\) basis but prepares \(\vert+\rangle\) after outcome \(0\) and \(\vert-\rangle\) after outcome \(1\). Use Eq. (5) to predict the mean copy fidelity on the BB84 states, and confirm it with the engine by changing the prepared state in measure_prepare_copies (ket(np.pi / 2) is \(\vert+\rangle\) and ket(-np.pi / 2) is \(\vert-\rangle\)).
★★ A half-strength probe. For the attack of Section 5.2 at \(\theta=\pi/2\), compute \(Q\), \(I_{AE}\) and \(\chi_E\) from Eq. (8) by hand, and read them off the cell.
★★ No-signalling under decay. Alice and Bob share \(\vert\Phi^+\rangle\), and Alice’s qubit passes through the amplitude-damping channel. Show with Eq. (9) and with the engine that Bob’s state stays \(\mathbb 1/2\) for every \(\gamma\), and compute Alice’s Bloch vector.
★★ Classical bits through dephasing. Explain why the dephasing channel at \(p=1/2\) carries one classical bit per use and no qubits. Which classical channel does it reduce to on the inputs \(\vert0\rangle\), \(\vert1\rangle\)?
★★ Amplitude damping. Add kraus_amp_damp of Section 8.2 to the dictionary of channels in coherent_info and find the maximum over \(a\) of the single-use coherent information for \(\gamma=0.2\) and \(\gamma=0.3\). Show, using \(S(RB)=S(E)\) and the environment state with entries \({\rm Tr}[K_i\rho_AK_j^\dagger]\), that it is \(\max_a[h((1-\gamma)a)-h(\gamma a)]\) and that it is zero for \(\gamma\geq1/2\).
★★★ Erasure in three numbers. For the erasure channel at \(e=0.25\), compute the classical capacity, the quantum capacity and the entanglement-assisted capacity, each from its formula and with the engine, and order them. Explain with Eq. (12) where the advantage of \(C_E\) over the unassisted classical capacity comes from.
Check values. 1: overlap \(\vert\langle0\vert\psi\rangle\vert^2=3/4\), \(D=1/2\), \(P_{\rm succ}=3/4\). 2: with \(\mathbf n=\hat z\) and \(\mathbf m=\hat x\), \(n_zm_z+n_xm_x=0\), so \(\bar F=1/2\): the copies are useless. 3: \(c= \cos(\pi/4)=0.7071\), \(Q=0.0732\), \(I_{AE}=\tfrac12[1-h(0.1464)]=0.1996\), \(\chi_E=\tfrac12h(0.8536)=0.3004\) bits. 4: \(\rho_B=\mathbb 1/2\) for every \(\gamma\); Alice’s Bloch vector is \((0,0,\gamma)\). 5: \(\vert0\rangle\) and \(\vert1\rangle\) pass unchanged, so the channel restricted to them is noiseless and \(\chi^\ast=1\); at \(p=1/2\) the output of any input is diagonal in the \(Z\) basis, the channel destroys every superposition, and \(Q_{\rm cap}=1-h(1/2)=0\); on \(\vert0\rangle\), \(\vert1\rangle\) it is the noiseless binary channel, a binary symmetric channel with \(q=0\). 6: \(0.506\) at \(a\approx0.449\) for \(\gamma=0.2\), \(0.328\) at \(a\approx0.441\) for \(\gamma=0.3\); for \(\gamma=1/2\) the two entropies coincide and for \(\gamma>1/2\) the difference is negative. 7: \(C=1-e=0.75\), \(Q_{\rm cap}=1-2e=0.5\), \(C_E=2(1-e)=1.5\), so \(Q_{\rm cap}<C<C_E\); the advantage is superdense coding, \(1\ \text{ebit}+1\ \text{qubit}\geq2\) bits, applied to the fraction \(1-e\) of qubits that arrive, and the ebits are consumed.
References
[1] C. E. Shannon, A mathematical theory of communication, Bell Syst. Tech. J. 27, 379 (1948) — the Shannon entropy and the capacity of a noisy channel.
[2] C. H. Bennett and G. Brassard, Quantum cryptography: Public key distribution and coin tossing, in Proceedings of the IEEE International Conference on Computers, Systems and Signal Processing (Bangalore, 1984), p. 175; reprinted in Theor. Comput. Sci. 560, 7 (2014), doi:10.1016/j.tcs.2014.05.025 — the BB84 protocol.
[3] C. W. Helstrom, Quantum Detection and Estimation Theory (Academic Press, New York,
— the optimal measurement for discriminating two quantum states and its success probability.
[4] W. K. Wootters and W. H. Zurek, A single quantum cannot be cloned, Nature 299, 802 (1982), doi:10.1038/299802a0 — the no-cloning theorem.
[5] D. Dieks, Communication by EPR devices, Phys. Lett. A 92, 271 (1982), doi:10.1016/0375-9601(82)90084-6 — the no-cloning theorem, found independently.
[6] C. H. Bennett, Quantum cryptography using any two nonorthogonal states, Phys. Rev. Lett. 68, 3121 (1992), doi:10.1103/PhysRevLett.68.3121 — any two nonorthogonal states suffice for quantum key distribution.
[7] C. A. Fuchs and A. Peres, Quantum-state disturbance versus information gain: Uncertainty relations for quantum information, Phys. Rev. A 53, 2038 (1996), doi:10.1103/PhysRevA.53.2038 — the trade-off between information gain and disturbance, with the optimal detection for two equiprobable nonorthogonal pure states.
[8] G. C. Ghirardi, A. Rimini and T. Weber, A general argument against superluminal transmission through the quantum mechanical measurement process, Lett. Nuovo Cimento 27, 293 (1980), doi:10.1007/BF02817189 — no-signalling: a measurement on one subsystem does not change the statistics of the other.
[9] V. Coffman, J. Kundu and W. K. Wootters, Distributed entanglement, Phys. Rev. A 61, 052306 (2000), doi:10.1103/PhysRevA.61.052306 — the trade-off between the entanglement of one qubit with two others.
[10] C. H. Bennett, G. Brassard, C. Crépeau, R. Jozsa, A. Peres and W. K. Wootters, Teleporting an unknown quantum state via dual classical and Einstein-Podolsky-Rosen channels, Phys. Rev. Lett. 70, 1895 (1993), doi:10.1103/PhysRevLett.70.1895 — quantum teleportation.
[11] C. H. Bennett and S. J. Wiesner, Communication via one- and two-particle operators on Einstein-Podolsky-Rosen states, Phys. Rev. Lett. 69, 2881 (1992), doi:10.1103/PhysRevLett.69.2881 — superdense coding: two bits encoded in one particle of an entangled pair.
[12] K. Kraus, States, Effects, and Operations: Fundamental Notions of Quantum Theory, Lecture Notes in Physics 190 (Springer, Berlin, 1983), doi:10.1007/3-540-12732-1 — the operator-sum (Kraus) representation of quantum operations.
[13] M. Grassl, T. Beth and T. Pellizzari, Codes for the quantum erasure channel, Phys. Rev. A 56, 33 (1997), doi:10.1103/PhysRevA.56.33 — the quantum erasure channel, with errors at known positions, and codes for it.
[14] A. S. Holevo, Bounds for the quantity of information transmitted by a quantum communication channel, Problems of Information Transmission 9(3), 177–183 (1973) — the Holevo bound.
[15] A. S. Holevo, The capacity of the quantum channel with general signal states, IEEE Trans. Inf. Theory 44, 269 (1998), doi:10.1109/18.651037 — the classical capacity with product inputs equals the maximal Holevo quantity.
[16] B. Schumacher and M. D. Westmoreland, Sending classical information via noisy quantum channels, Phys. Rev. A 56, 131 (1997), doi:10.1103/PhysRevA.56.131 — the same result, obtained independently.
[17] C. King, The capacity of the quantum depolarizing channel, IEEE Trans. Inf. Theory 49, 221 (2003), doi:10.1109/TIT.2002.806153 — the classical capacity of the depolarising channel, achieved with orthonormal product states and product measurements.
[18] C. H. Bennett, D. P. DiVincenzo and J. A. Smolin, Capacities of quantum erasure channels, Phys. Rev. Lett. 78, 3217 (1997), doi:10.1103/PhysRevLett.78.3217 — the quantum and classical capacities of the erasure channel, and the remark that only bounds are known for the depolarising channel.
[19] C. H. Bennett, D. P. DiVincenzo, J. A. Smolin and W. K. Wootters, Mixed-state entanglement and quantum error correction, Phys. Rev. A 54, 3824 (1996), doi:10.1103/PhysRevA.54.3824 — hashing codes that reach the rate \(1-S\), with \(S\) the entropy of the errors, and the result that forward classical communication does not raise the quantum capacity.
[20] B. Schumacher and M. A. Nielsen, Quantum data processing and error correction, Phys. Rev. A 54, 2629 (1996), doi:10.1103/PhysRevA.54.2629 — the coherent information.
[21] S. Lloyd, Capacity of the noisy quantum channel, Phys. Rev. A 55, 1613 (1997), doi:10.1103/PhysRevA.55.1613 — the quantum capacity and codes that attain it.
[22] P. W. Shor, The quantum channel capacity and coherent information, lecture notes, MSRI Workshop on Quantum Computation (Berkeley, 2002) — an independent proof that the regularised coherent information is achievable.
[23] I. Devetak, The private classical capacity and quantum capacity of a quantum channel, IEEE Trans. Inf. Theory 51, 44 (2005), doi:10.1109/TIT.2004.839515 — a proof of the quantum channel coding theorem through the private capacity.
[24] I. Devetak and P. W. Shor, The capacity of a quantum channel for simultaneous transmission of classical and quantum information, Commun. Math. Phys. 256, 287 (2005), doi:10.1007/s00220-005-1317-6 — single-letter formulas for dephasing channels.
[25] D. P. DiVincenzo, P. W. Shor and J. A. Smolin, Quantum-channel capacity of very noisy channels, Phys. Rev. A 57, 830 (1998), doi:10.1103/PhysRevA.57.830 — codes that beat the hashing bound of the depolarising channel.
[26] C. H. Bennett, P. W. Shor, J. A. Smolin and A. V. Thapliyal, Entanglement-assisted classical capacity of noisy quantum channels, Phys. Rev. Lett. 83, 3081 (1999), doi:10.1103/PhysRevLett.83.3081 — entanglement doubles the classical capacity of a noiseless channel; exact entanglement-assisted capacities of the depolarising and erasure channels.
[27] C. H. Bennett, P. W. Shor, J. A. Smolin and A. V. Thapliyal, Entanglement-assisted capacity of a quantum channel and the reverse Shannon theorem, IEEE Trans. Inf. Theory 48, 2637 (2002), doi:10.1109/TIT.2002.802612 — the general formula of Eq. (20).
[28] M. M. Wilde, Quantum Information Theory, 2nd ed. (Cambridge University Press, 2017), doi:10.1017/9781316809976 — a textbook treatment of all capacities of this notebook.
Marcin Płodzień, PhD
Citation: M. Płodzień, Quantum Many-Body Simulation: from a single spin to quantum machine learning (2026), https://marcinplodzien.github.io/quantum-many-body-simulation/
