Quantum Many-Body Simulation — Chapter 5 — Ground states and unitary dynamics
1. Introduction
The problem. We want \(|\psi(t)\rangle=e^{-iHt}|\psi(0)\rangle\) for a chain of \(N\) spins, with the state stored as a tensor of \(2^N\) amplitudes and the Hamiltonian available only through its action \(|\phi\rangle\mapsto H|\phi\rangle\) (notebook 05, matrix-free operators). Three ways to do it are derived elsewhere in the course:
TEBD / Trotter–Suzuki (notebook 12, Trotter–Suzuki evolution): split \(e^{-iH\,dt}\) into local gates with the product formula introduced in [1]; exactly unitary, error \(\mathcal O(dt^p)\) with \(p=1,2,4\) (fourth order: [2]);
Chebyshev expansion (notebook 13, Chebyshev propagation): a fixed, near-optimal polynomial in \(H\) with Bessel-function coefficients [3]; machine precision for \(\approx a t\) applications of \(H\) (\(a\) = half the spectral width), but it needs bounds on the spectrum.
This notebook has two parts.
Part A — the Krylov (Lanczos) propagator. Chebyshev uses the same polynomial for every initial state. The Krylov method asks a sharper question: given this particular state \(|\psi\rangle\) and a budget of \(m\) applications of \(H\), what is the best approximation to \(e^{-iHt}|\psi\rangle\) that can be built from the vectors \(|\psi\rangle, H|\psi\rangle,\dots,H^{m-1}|\psi\rangle\)? The answer — project the Schrödinger equation onto the space spanned by these vectors and solve the tiny \(m\times m\) problem exactly — is not literally the optimal element of that space (§2.5 says in which sense it is nearly optimal, and measures how nearly). It needs no knowledge of the spectrum, conserves norm and energy exactly, and comes with a computable error bound that lets the algorithm choose its own time step. It was introduced for quantum dynamics in [4] and is the engine behind general-purpose “matrix exponential times vector” software ([5]; “Method 20” in the survey [6]); it is also the standard time-evolution method of large-scale exact-diagonalisation studies of quantum chaos and many-body localisation.
Part B — the shoot-out. With four integrator families in hand, we do what a practitioner must do before a production run: measure accuracy versus cost — against a dense exact reference, with compilation time separated from run time, as a function of the accuracy target and of the system size \(N\) — and condense the outcome into a guidance table, which integrator when.
Road map. §2 the Krylov idea and its derivation; §3 a jit-compiled Lanczos with lax.scan, validated; §4 the Krylov step, convergence in \(m\) and \(dt\), comparison with Chebyshev; §5 the a-posteriori error bound and adaptive time stepping; §6 the exact dense reference and its cost; §7 the Loschmidt echo as a test of integrators; §8 work–precision diagram of all integrators; §9 scaling with \(N\) at fixed accuracy, memory and compile time; §10 guidance table; then summary, exercises, references.
cost models (time, memory) of exact, TEBD, Chebyshev and Krylov propagation and their measured crossovers.
Implementation practice
a fixed-size, jit-able Lanczos iteration with lax.scan and full re-orthogonalisation (no Python-side convergence checks);
lax.while_loop for adaptive stepping with a data-dependent number of steps;
benchmarking: block_until_ready, compile time vs run time, best-of-\(n\) timing, equal-accuracy comparisons, validated references for sizes where no exact answer exists.
Configuration
Every notebook of this course starts with the same cell. Choose where to run (DEVICE) and the floating-point precision (PRECISION): "double" = float64/complex128 (default, recommended for physics), "single" = float32/complex64 (half the memory, faster on consumer GPUs, but watch the round-off). All code below derives its dtypes from RDTYPE/CDTYPE and its check tolerances from TOL, so nothing else needs to change.
Code
# ==============================================================================# CONFIGURATION -- adapt to your hardware, then run the notebook top to bottom# ==============================================================================DEVICE ="auto"# "auto": use a GPU if JAX finds one, else CPU | "cpu" | "gpu"PRECISION ="double"# "double": float64/complex128 | "single": float32/complex64import osif DEVICE =="cpu": os.environ["JAX_PLATFORMS"] ="cpu"# must be set BEFORE jax is importedimport stringfrom functools import partialimport mathimport numpy as npimport jaximport jax.numpy as jnpfrom jax import lax# Precision is configurable: "double" = float64/complex128 (default; needed for long time evolutions and# tight validation), "single" = float32/complex64 (half the memory, faster on consumer GPUs).jax.config.update("jax_enable_x64", PRECISION =="double")RDTYPE = jnp.float64 if PRECISION =="double"else jnp.float32 # real dtypeCDTYPE = jnp.complex128 if PRECISION =="double"else jnp.complex64 # complex dtype of all states/operatorsTOL =1e-10if PRECISION =="double"else1e-4# tolerance for sanity checks (asserts)_LETTERS = string.ascii_letters # the 52 einsum index labels a-z, A-Zimport timeimport matplotlib.pyplot as pltif DEVICE =="gpu"and jax.default_backend() =="cpu":print("WARNING: DEVICE='gpu' requested but JAX found no GPU -- running on CPU.")print(f"JAX {jax.__version__} | backend: {jax.default_backend()} | devices: {jax.devices()}")print(f"precision: {PRECISION} -> real {RDTYPE.__name__}, complex {CDTYPE.__name__}, check tolerance TOL={TOL:g}")
JAX 0.11.0 | backend: cpu | devices: [CpuDevice(id=0)]
precision: double -> real float64, complex complex128, check tolerance TOL=1e-10
Engine recap
The folded cell holds the primitives used below: apply_gate, heisenberg_terms, apply_hamiltonian, energy, the dense validation tools dense_hamiltonian and exact_evolve, the TEBD gate builder tebd_gates, spectral_bounds (for Chebyshev), and the engine’s reference implementations lanczos and krylov_evolve, against which we check the jit-able versions developed in this notebook.
Engine recap — the simulator primitives used in this notebook (click to expand)
# ==============================================================================# ENGINE RECAP: the functions of quantum_engine.py (SmoQ.jax) used in this notebook.# All of them are collected, with their mathematics, in the notebook# 'Building the quantum simulator engine'.# States are rank-N tensors of shape (2,)*N; every operator acts through ONE einsum.# ==============================================================================# ----------------------------------------------------------------------------# Elementary matrices: Paulis, Clifford generators, rotations# ----------------------------------------------------------------------------X = jnp.array([[0, 1], [1, 0]], dtype=CDTYPE)Y = jnp.array([[0, -1j], [1j, 0]], dtype=CDTYPE)Z = jnp.array([[1, 0], [0, -1]], dtype=CDTYPE)XX = jnp.kron(X, X)YY = jnp.kron(Y, Y)ZZ = jnp.kron(Z, Z)# ----------------------------------------------------------------------------# THE core primitive: a k-qubit operator acting on a tensor through ONE einsum# ----------------------------------------------------------------------------def apply_gate(psi, U, qubits):"""Apply a k-qubit operator U to the axes `qubits` of the tensor `psi`. MATH ---- One qubit (k=1), target q: psi'[s_0,..,a,..,s_{N-1}] = sum_b U[a,b] psi[s_0,..,b,..,s_{N-1}] Two qubits (k=2), targets (q1,q2); the 4x4 matrix is reshaped to U[a1,a2,b1,b2]: psi'[.., a1, .., a2, ..] = sum_{b1,b2} U[a1,a2,b1,b2] psi[.., b1, .., b2, ..] This IS the action of (1 x .. x U x .. x 1) -- written without ever building it. EINSUM TRANSLATION (generated automatically below) ------------------ N=3, q=1 : "db,abc->adc" d = new (output) index of qubit 1 N=4, q=(1,3) : "efbd,abcd->aecf" e,f = new indices of qubits 1 and 3 Recipe: label the axes of psi with letters a,b,c,...; give every target qubit a NEW letter (the next unused ones); U carries (new letters)+(old letters of the targets); the output is psi's labels with the target letters replaced by the new ones. IMPLEMENTATION NOTES -------------------- * reshape of U: (2^k,2^k) -> (2,)*2k. Row index = (a1..ak), column = (b1..bk), and the FIRST qubit in `qubits` is the most significant bit of the small matrix, i.e. it corresponds to the LEFT factor of kron(A,B). * `qubits` may be any distinct axes in any order: non-neighbouring gates cost the same. * U need not be unitary: projectors, Kraus operators and Hamiltonian terms reuse this. * psi may be ANY tensor with those axes of size 2: a state (rank N), a density tensor (rank 2N: ket axes 0..N-1, bra axes N..2N-1), ... COST O(2^k * 2^N) operations, O(2^N) memory (dense matrix: O(4^N) both). JAX `qubits` must be static Python ints (they define the einsum string); psi and U are traced, so the function can sit inside jit / grad / vmap / scan. """ qubits =tuple(int(q) for q in qubits) k, n =len(qubits), psi.ndim U = jnp.asarray(U, dtype=psi.dtype).reshape((2,) * (2* k)) # matrix -> rank-2k tensor inp =list(_LETTERS[:n]) # labels of psi's axes new = _LETTERS[n:n + k] # fresh labels for the outputs out = inp.copy()for a, q inzip(new, qubits): out[q] = a # target axes get the new labels sub =f"{''.join(new)}{''.join(inp[q] for q in qubits)},{''.join(inp)}->{''.join(out)}"return jnp.einsum(sub, U, psi)# ----------------------------------------------------------------------------# State preparation# ----------------------------------------------------------------------------def zero_state(N):"""|00...0>: a rank-N tensor of zeros with a single 1 at index (0,0,...,0). JAX arrays are immutable: `.at[idx].set(v)` returns an updated COPY (functional style)."""return jnp.zeros((2,) * N, dtype=CDTYPE).at[(0,) * N].set(1.0)def haar_state(key, N):"""Haar-random pure state: a complex Gaussian vector, normalised. (The Gaussian measure is unitarily invariant, so the direction is uniformly distributed.) `key` is an explicit JAX PRNG key -- same key, same state: reproducible science.""" k1, k2 = jax.random.split(key) v = jax.random.normal(k1, (2,) * N) +1j* jax.random.normal(k2, (2,) * N)return (v / jnp.linalg.norm(v)).astype(CDTYPE)# ----------------------------------------------------------------------------# Hamiltonians as lists of local terms; H|psi> matrix-free# ----------------------------------------------------------------------------def heisenberg_terms(N, Jxx=1.0, Jyy=1.0, Jzz=1.0, hx=0.0, hy=0.0, hz=0.0, periodic=False, bonds=None):"""Spin-1/2 Hamiltonian in Pauli convention H = sum_<ij> (Jxx X_i X_j + Jyy Y_i Y_j + Jzz Z_i Z_j) + sum_i (hx X_i + hy Y_i + hz Z_i) returned as a LIST of local terms [(qubits, small_matrix), ...] -- this list *is* our Hamiltonian. Heisenberg: Jxx=Jyy=Jzz XXZ: Jxx=Jyy!=Jzz XY: Jzz=0 TFIM: only Jzz and hx. `bonds` overrides the default open chain (any graph: ladders, 2D lattices, all-to-all, ...)."""if bonds isNone: bonds = [(i, i +1) for i inrange(N -1)] + ([(N -1, 0)] if periodic and N >2else []) terms = [((i, j), Jxx * XX + Jyy * YY + Jzz * ZZ) for (i, j) in bonds]if hx !=0or hy !=0or hz !=0: terms += [((i,), hx * X + hy * Y + hz * Z) for i inrange(N)]return termsdef apply_hamiltonian(terms, psi):"""H|psi> = sum_k h_k|psi>, every term applied with `apply_gate` (h_k is Hermitian, not unitary -- the einsum does not care). Cost O(#terms * 2^N). This matrix-vector product is ALL that Lanczos, Chebyshev and Krylov methods need, which is why they scale to N ~ 25-30.""" out = jnp.zeros_like(psi)for qubits, h in terms: out = out + apply_gate(psi, h, qubits)return outdef energy(terms, psi):"""<psi|H|psi> = Re <psi | (H psi)>."""return jnp.real(jnp.vdot(psi, apply_hamiltonian(terms, psi)))def dense_hamiltonian(terms, N):"""Dense 2^N x 2^N matrix for VALIDATION on small N -- built from the matrix-free action: column j of H is H|e_j>. `jax.vmap` applies H to all basis vectors at once.""" eye = jnp.eye(2** N, dtype=CDTYPE).reshape((2** N,) + (2,) * N) cols = jax.vmap(lambda e: apply_hamiltonian(terms, e).reshape(-1))(eye)return cols.T# ----------------------------------------------------------------------------# Time evolution: TEBD / Trotter-Suzuki, Chebyshev, Krylov, exact# ----------------------------------------------------------------------------def _expm_herm(h, tau):"""exp(-i tau h) for a SMALL Hermitian matrix: h = V w V^dag => V exp(-i tau w) V^dag.""" w, v = jnp.linalg.eigh(jnp.asarray(h, dtype=CDTYPE))return (v * jnp.exp(-1j* tau * w)) @ v.conj().Tdef tebd_gates(terms, dt, order=2):"""Gate sequence of ONE Trotter-Suzuki (TEBD) step for H = sum_k h_k. MATH exp(-i H dt) cannot be split exactly because [h_k, h_l] != 0, but (BCH formula): order 1: prod_k e^{-i h_k dt} local error O(dt^2), global O(dt) order 2: prod_k e^{-i h_k dt/2} * prod_k(reversed) e^{-i h_k dt/2} local O(dt^3), global O(dt^2) order 4: S2(s dt)^2 S2((1-4s) dt) S2(s dt)^2, s = 1/(4 - 4^{1/3}) (Suzuki) global O(dt^4) Each factor is a 2x2 or 4x4 unitary -> applied by einsum; this is TEBD on a full state vector. Every order is exactly unitary: the norm is conserved to machine precision; the ERROR is in the phase /direction of the state, and it is controlled by dt. """if order ==1:return [(q, _expm_herm(h, dt)) for q, h in terms]if order ==2: half = [(q, _expm_herm(h, dt /2)) for q, h in terms]return half + half[::-1]if order ==4: s =1.0/ (4.0-4.0** (1.0/3.0)) seq = []for w in (s, s, 1-4* s, s, s): seq += tebd_gates(terms, w * dt, order=2)return seqraiseValueError("order must be 1, 2 or 4")def apply_gates(psi, gates):"""Apply a list [(qubits, U), ...] in order -- a quantum circuit is a Python loop over einsums. Under `jax.jit` the loop is unrolled at trace time and XLA fuses it into one program."""for qubits, U in gates: psi = apply_gate(psi, U, qubits)return psidef lanczos(matvec, v0, m=60, reorth=True):"""m-step Lanczos iteration: orthonormal basis V of the Krylov space span{v, Hv, H^2 v, ...} in which H is TRIDIAGONAL: T = V^dag H V = tridiag(beta, alpha, beta). Recurrence w = H v_j - alpha_j v_j - beta_{j-1} v_{j-1}, alpha_j = <v_j|H|v_j>, beta_j = ||w||. `reorth=True` re-orthogonalises against all previous vectors (cures the loss of orthogonality of floating-point Lanczos at the price of O(m^2) inner products). Only `matvec` (H|psi>) is needed -> matrix-free. Returns (alphas, betas, V[m, 2,..,2]). """ v = v0 / jnp.linalg.norm(v0) V, alphas, betas = [v], [], [] w = matvec(v)for j inrange(m): a = jnp.real(jnp.vdot(V[j], w)) alphas.append(a) w = w - a * V[j] - (betas[-1] * V[j -1] if j >0else0.0)if reorth:for u in V: w = w - jnp.vdot(u, w) * u b = jnp.linalg.norm(w)if j == m -1orfloat(b) <1e-12:break betas.append(b) V.append(w / b) w = matvec(V[-1])return np.array(alphas, dtype=float), np.array(betas, dtype=float), jnp.stack(V)def spectral_bounds(terms, N, m=40, key=None):"""Cheap estimate of (E_min, E_max) from a short Lanczos run -- needed to rescale H into [-1,1] for the Chebyshev expansion.""" key = jax.random.PRNGKey(1) if key isNoneelse key a, b, _ = lanczos(jax.jit(lambda p: apply_hamiltonian(terms, p)), haar_state(key, N), m) w = np.linalg.eigvalsh(np.diag(a) + np.diag(b, 1) + np.diag(b, -1))returnfloat(w[0]), float(w[-1])def krylov_evolve(psi, terms, t, m=30):"""exp(-iHt)|psi> in an m-dimensional Krylov space: |psi(t)> ~ ||psi|| * V exp(-i T t) e_1 , T = V^dag H V (tridiagonal, from Lanczos). Exact for polynomials of degree < m in H; accurate as long as |t| * (spectral width) <~ m. For long times: chain several short Krylov steps.""" nrm = jnp.linalg.norm(psi) a, b, V = lanczos(jax.jit(lambda p: apply_hamiltonian(terms, p)), psi, m) w, S_ = np.linalg.eigh(np.diag(a) + np.diag(b, 1) + np.diag(b, -1)) c = S_ @ (np.exp(-1j* t * w) * S_[0, :])return nrm * jnp.tensordot(jnp.asarray(c, dtype=CDTYPE), V, axes=1)def exact_evolve(psi, terms, t):"""Dense reference for small N: full diagonalisation H = V w V^dag, |psi(t)> = V e^{-i w t} V^dag |psi>. O(8^N) time, O(4^N) memory -- the wall that matrix-free methods avoid; used only to validate them.""" N = psi.ndim w, v = jnp.linalg.eigh(dense_hamiltonian(terms, N))return ((v * jnp.exp(-1j* t * w)) @ (v.conj().T @ psi.reshape(-1))).reshape((2,) * N)
2. The Krylov idea
2.1 Everything we can compute lives in a Krylov space
With \(m-1\) applications of \(H\) to a normalised start vector \(|v_1\rangle=|\psi\rangle/\|\psi\|\) we can reach exactly the vectors of the Krylov subspace
Truncated Taylor series, Chebyshev sums — every polynomial method picks some element of this space. The Krylov method lets the Schrödinger equation itself choose the element.
2.2 An orthonormal basis: the Lanczos iteration
The raw vectors \(H^k|\psi\rangle\) are a terrible basis (they all turn towards the eigenvector with the largest \(|E|\) and become numerically parallel). The Lanczos iteration, derived in notebook 11, Hamiltonians and ground states[7], orthonormalises them on the fly. For Hermitian \(H\) each new vector needs to be orthogonalised only against the previous two:
Collect the vectors as the columns of the \(2^N\times m\) matrix \(V_m=[v_1,\dots,v_m]\). The recurrence, written for all \(j=1..m\) at once, is the Lanczos relation
with \(e_m=(0,\dots,0,1)^T\). In words: inside the Krylov space \(H\) acts as the small real symmetric tridiagonal matrix \(T_m\); the only way \(H\) leads out of the space is from the last vector \(v_m\) into the next one \(v_{m+1}\), with amplitude \(\beta_m\).
2.3 Projecting the Schrödinger equation
Make the ansatz that the state stays in the Krylov space, \(|\psi_m(t)\rangle=V_m\,c(t)\) with \(c(t)\in\mathbb C^m\), and demand that the Schrödinger equation holds within that space (a Galerkin condition: the residual must be orthogonal to all basis vectors): \(V_m^\dagger\big(i\partial_t-H\big)V_mc=0\). With \(V_m^\dagger V_m=1\) and \(V_m^\dagger HV_m=T_m\):
The \(2^N\)-dimensional exponential has been replaced by an \(m\times m\) one (\(m\sim10\)–\(50\)), which we compute exactly by diagonalising \(T_m=S\,\mathrm{diag}(\theta)\,S^{T}\): \(e^{-iT_mt}e_1=S\,\big(e^{-i\theta t}\odot S^{T}e_1\big)\).
2.4 Three exact properties
(a) Exact through order \(t^{m-1}\). Claim: \(H^jv_1=V_mT_m^je_1\) for \(j=0,1,\dots,m-1\). Proof by induction: true for \(j=0\); if true for \(j\), then using (1) \(H^{j+1}v_1=HV_mT_m^je_1=V_mT_m^{j+1}e_1+\beta_mv_{m+1}\,\big(e_m^TT_m^je_1\big)\). Since \(T_m\) is tridiagonal, \(T_m^j\) has non-zero entries only within \(j\) places from the diagonal, so its \((m,1)\) entry vanishes for \(j<m-1\). \(\blacksquare\) Hence (2) reproduces the Taylor series of \(e^{-iHt}|\psi\rangle\) up to and including the term \(t^{m-1}\), and the error of one step is \(\mathcal O(t^m)\): a Krylov step of dimension \(m\) is an integrator of order \(m-1\). Unlike a Taylor polynomial it does not suffer from cancellation (we never sum large terms; \(e^{-iT_mt}\) is an exactly unitary small matrix) and — as we will measure — it converges for large steps too, once \(m\) exceeds roughly \(a\,t\), just like Chebyshev. The first term the identity misses is the one with \(j=m\), where the defect is exactly \(\beta_m\,\beta_1\cdots\beta_{m-1}=\beta_1\cdots\beta_m\) (Exercise 1).
(b) Norm is conserved exactly, for any \(m\) and \(t\): \(\|\psi_m(t)\|=\|c(t)\|=\|\psi\|\), because \(V_m\) has orthonormal columns and \(e^{-iT_mt}\) is unitary. In floating point the statement is worth exactly as much as the orthonormality of \(V_m\). The implementation of §3 re-orthogonalises fully and keeps \(\max|V_m^\dagger V_m-1|\sim10^{-15}\) (measured below), so the norm is conserved to rounding. A plain three-term recurrence loses orthogonality as soon as a Ritz pair converges (notebook 11, Hamiltonians and ground states) and loses this guarantee with it: at \(N=10\), \(m=80\), \(dt=8\) the norm then drifts far above the rounding level (by how much depends on the rounding pattern), while the re-orthogonalised version stays at the \(10^{-16}\) level (Exercise 3).
(c) Energy is conserved exactly:\(\langle\psi_m(t)|H|\psi_m(t)\rangle=c^\dagger V_m^\dagger HV_mc=c^\dagger T_mc\), which is constant under \(i\dot c=T_mc\).
Common pitfall. Properties (b) and (c) hold even when the approximation is completely wrong (too small \(m\), too large \(t\)). For the Krylov method, norm and energy conservation are therefore useless as accuracy diagnostics — the opposite of the Chebyshev method, where a drifting norm was the first alarm signal. We need a different error indicator; §5 derives one.
2.5 The sense in which this is the best approximation
The Galerkin state (2) is not the best element of \(\mathcal K_m\). The best element is the orthogonal projection \(V_mV_m^\dagger e^{-iHt}|\psi\rangle\) of the exact state onto the subspace, and forming it requires the answer we are trying to compute. What can be proved is that (2) is never much worse. Let \(p\) be any polynomial of degree \(\le m-1\) and write \(f(E)=e^{-iEt}\). By property (a), \(p(H)|\psi\rangle=\|\psi\|\,V_m\,p(T_m)e_1\), so the two polynomial pieces cancel in
using \(\|V_m\|=1\) and, for each Hermitian matrix, that the norm of a function of it is the largest value of that function on its spectrum. The eigenvalues of \(T_m=V_m^\dagger HV_m\) are Rayleigh quotients of \(H\) and therefore lie in \([E_{\min},E_{\max}]\): both maxima are bounded by the maximum over the same interval. Minimising over \(p\),
The Krylov approximation is thus within a factor \(2\) of the best possible polynomial of degree \(m-1\) — it is quasi-optimal. (The cancellation of the polynomial pieces rests on property (a), which is Lemma 3.1 of [8]; a priori bounds of this type are the subject of [8] and [9].) Three consequences, all of them practical.
Only the spectral width matters, not \(\|H\|\). Replacing \(H\) by \(H+c\,\mathbb 1\) leaves every \(v_j\) and every \(\beta_j\) unchanged and shifts every \(\alpha_j\) by \(c\), so \(T_m\to T_m+c\,\mathbb 1\) and \(|\psi_m\rangle\to e^{-ict}|\psi_m\rangle\): the approximation error is untouched. The right-hand side of (2a) is shift invariant for the same reason. The scale that controls everything is therefore the spectral half-width\(a=(E_{\max}-E_{\min})/2\); \(\|H\|\) can be made arbitrarily large by adding a constant to \(H\) without changing the physics or the difficulty of the problem.
The Chebyshev estimate carries over unchanged. Take for \(p\) the Chebyshev expansion of \(e^{-iEt}\) truncated after degree \(m-1\). Its error is at most the sum of the omitted coefficients, \(\sum_{k\ge m}2|J_k(a\,t)|\le4\big(e\,a\,t/2m\big)^{m}\) for \(m\ge a\,t\) (notebook 13, Chebyshev propagation, Stirling form of the Bessel bound), so (2a) gives
The right-hand side starts to fall once \(m>e\,a\,t/2\approx1.36\,a\,t\) and then drops by a further factor \(e\,a\,t/2m\) with every extra Lanczos vector — super-exponential convergence, with the same threshold \(m\sim a\,t\) as Chebyshev. The sharp version of the same statement is Theorem 4 of [9]: for a skew-Hermitian generator \(-iH\) whose spectrum fills an interval of length \(4\rho=E_{\max}-E_{\min}\) (so that \(\rho=a/2\)),
The geometric factor is the same as in (2b); the Gaussian in front makes the decay set in faster. The same paper states the negative half of the result: for a skew-Hermitian generator with eigenvalues spread over the whole interval, no super-linear decay can be proved below \(m\approx\rho t\). The threshold in (2b) is not an artefact of our elementary derivation.
The practical rule. Choose \(m\) and \(dt\) together so that \(m\) exceeds \(a\,dt\) by a safety margin. Over the whole range measured in §4.2 (\(a\,dt=1.7\) to \(35\)) ten digits of accuracy are reached once
\[ m\;\gtrsim\;a\,dt+15 . \qquad (2c) \]
Read backwards: with a memory budget of \(m\) vectors the longest useful step is \(dt\approx(m-15)/a\); steps longer than that spend applications of \(H\) on an approximation that has not converged. The adaptive algorithm of §5.2 enforces the same discipline automatically, from the error bound rather than from a rule of thumb.
3. A jit-compiled Lanczos iteration
3.1 Design decisions
The engine’s lanczos (see the recap) is a Python loop that stops early when \(\beta_j\) becomes tiny — this requires pulling a number from the device to Python at every iteration (float(b)), so it cannot be compiled as a whole. For time evolution the Lanczos iteration sits inside the time loop and is executed thousands of times, so we want a version that compiles into a single XLA program:
the basis is a pre-allocated arrayV of shape \((m,2^N)\), filled row by row with the functional update V.at[j+1].set(v) (JAX arrays are immutable; under jit XLA performs the update in place);
full re-orthogonalisation in matrix form. In exact arithmetic the three-term recurrence suffices; in floating point orthogonality is gradually lost (notebook 11, Hamiltonians and ground states). We therefore subtract from \(w=Hv_j\) its projection onto all rows stored so far, \(w\leftarrow w-V^{T}(V^{*}w)\) — two matrix–vector products. Rows not yet filled are zero and contribute nothing, so no masking is needed. This also removes the \(\alpha_jv_j\) and \(\beta_{j-1}v_{j-1}\) terms automatically. We do it twice (“twice is enough”: two passes of classical Gram–Schmidt give orthogonality at the level of the unit round-off [10]; for re-orthogonalised Lanczos in general see [11], §10.3);
no early exit: if \(\beta_j\approx0\) (the Krylov space is invariant — the state lives in fewer than \(m\) eigenvectors, and the projection is already exact) we must not divide by it. jnp.where replaces the next vector by zero; all later \(\alpha,\beta\) are then zero, \(T_m\) becomes block-diagonal and the result (2) is unaffected.
From formula to code. With V of shape (m, dim) holding the basis vectors as rows: V.conj() @ w is the vector of overlaps \(\langle v_i|w\rangle\), shape (m,); V.T @ overlaps is \(\sum_i\langle v_i|w\rangle\,v_i\), shape (dim,). The state tensor of shape \((2,)^N\) is flattened for these products and reshaped only to apply \(H\).
Code
# ==============================================================================# PARAMETERS of the model used in the whole notebook: XXZ chain in a transverse field (non-integrable)# H = sum_j (Jxx X_j X_j+1 + Jyy Y_j Y_j+1 + Jzz Z_j Z_j+1) + hx sum_j X_j (Pauli convention, open chain)# ==============================================================================JXX, JYY, JZZ, HX =1.0, 1.0, 0.5, 1.0def model_terms(N):"""The Hamiltonian as a list of local terms [(qubits, matrix), ...]."""return heisenberg_terms(N, Jxx=JXX, Jyy=JYY, Jzz=JZZ, hx=HX)def make_matvec(terms):"""Return the function |phi> -> H|phi> (matrix-free: one einsum per local term)."""returnlambda phi: apply_hamiltonian(terms, phi)# ==============================================================================# STEP 1: Lanczos iteration as a lax.scan (fixed m, full re-orthogonalisation, jit-able)# ==============================================================================def lanczos_basis(matvec, psi, m):"""m steps of Lanczos started from psi/||psi||. Returns (alphas[m], betas[m], V[m, 2^N]). MATH beta_j v_{j+1} = H v_j - alpha_j v_j - beta_{j-1} v_{j-1}, alpha_j = <v_j|H|v_j> => H V_m = V_m T_m + beta_m v_{m+1} e_m^T, T_m = tridiag(beta, alpha, beta) [Eq. (1)] `betas[j]` is the norm of the (j+1)-th residual; the LAST one, betas[m-1] = beta_m, does not enter T_m but measures the leakage out of the Krylov space (needed for the error bound of section 5). IMPLEMENTATION V is pre-allocated (rows = basis vectors, unused rows are zero). Re-orthogonalisation against ALL stored vectors, twice: w <- w - V^T (V^* w). Breakdown (beta ~ 0) is handled with jnp.where. COST m applications of H + O(m^2 2^N) for the re-orthogonalisation; memory m + 2 state vectors. JAX m is static (array shapes depend on it); psi is traced -> usable inside jit / scan / while_loop. """ shape, dim = psi.shape, psi.size v0 = (psi / jnp.linalg.norm(psi)).reshape(-1) V0 = jnp.zeros((m, dim), dtype=psi.dtype).at[0].set(v0)def body(carry, j): V, v = carry w = matvec(v.reshape(shape)).reshape(-1) # H v_j alpha = jnp.real(jnp.vdot(v, w)) # <v_j|H|v_j> w = w - V.T @ (V.conj() @ w) # remove the components along all stored v_i ... w = w - V.T @ (V.conj() @ w) # ... twice (cures rounding errors of the first pass) beta = jnp.linalg.norm(w) ok = beta >1e3* jnp.finfo(RDTYPE).eps # invariant subspace reached? then stop adding vectors v_next = jnp.where(ok, w / jnp.where(ok, beta, 1.0), 0.0) V = V.at[j +1].set(v_next, mode="drop") # row m does not exist: that update is droppedreturn (V, v_next), (alpha, jnp.where(ok, beta, 0.0)) (V, _), (alphas, betas) = lax.scan(body, (V0, v0), jnp.arange(m))return alphas, betas, Vdef tridiagonal(alphas, betas):"""T_m = tridiag(betas[:-1], alphas, betas[:-1]) (m x m, real symmetric)."""return jnp.diag(alphas) + jnp.diag(betas[:-1], 1) + jnp.diag(betas[:-1], -1)# ------------------------------------------------------------------------------# CHECKPOINT (N = 10, dense reference): orthonormality, T = V^+ H V, the Lanczos relation, agreement with the engine# ------------------------------------------------------------------------------N_val =10terms_val = model_terms(N_val)matvec_val = make_matvec(terms_val)psi0_val = zero_state(N_val) # |00...0>: all spins up along zH_dense = dense_hamiltonian(terms_val, N_val) # validation only (1024 x 1024)m_chk =40alphas, betas, V = jax.jit(lanczos_basis, static_argnums=(0, 2))(matvec_val, psi0_val, m_chk)T_m = tridiagonal(alphas, betas)err_orth =float(jnp.max(jnp.abs(V.conj() @ V.T - jnp.eye(m_chk))))err_proj =float(jnp.max(jnp.abs(V.conj() @ H_dense @ V.T - T_m)))# Lanczos relation (1), row convention: H V^T = V^T T + beta_m v_{m+1} e_m^T => the residual has ONLY a last column, of norm beta_mR = H_dense @ V.T - V.T @ T_m.astype(CDTYPE)err_rel =float(jnp.max(jnp.abs(R[:, :-1])))a_eng, b_eng, _ = lanczos(jax.jit(matvec_val), psi0_val, m=m_chk)print(f"orthonormality max|V^+ V - 1| = {err_orth:.1e}")print(f"projection max|V^+ H V - T_m| = {err_proj:.1e}")print(f"Lanczos relation max|(H V - V T)[:, :m-1]| = {err_rel:.1e}")print(f"last column ||(H V - V T)[:, m-1]|| = {float(jnp.linalg.norm(R[:, -1])):.6f} vs beta_m = {float(betas[-1]):.6f}")print(f"engine lanczos max|alpha - alpha_engine| = {np.max(np.abs(np.asarray(alphas) - a_eng)):.1e}, "f"max|beta - beta_engine| = {np.max(np.abs(np.asarray(betas[:-1]) - b_eng)):.1e}")assertmax(err_orth, err_proj, err_rel) <100* TOLassertabs(float(jnp.linalg.norm(R[:, -1])) -float(betas[-1])) <100* TOL
orthonormality max|V^+ V - 1| = 4.4e-16
projection max|V^+ H V - T_m| = 5.3e-15
Lanczos relation max|(H V - V T)[:, :m-1]| = 1.0e-15
last column ||(H V - V T)[:, m-1]|| = 6.315188 vs beta_m = 6.315188
engine lanczos max|alpha - alpha_engine| = 4.8e-14, max|beta - beta_engine| = 2.5e-14
Interpretation. The basis is orthonormal to \(\sim10^{-15}\), the projected Hamiltonian is the tridiagonal matrix, and the residual \(HV_m-V_mT_m\) vanishes in all columns but the last, whose norm equals \(\beta_m\) — Eq. (1), verified entry by entry. The coefficients agree with the engine’s Python-loop Lanczos to rounding accuracy.
JAX practice.jax.jit(f, static_argnums=(0, 2)) declares the arguments matvec (a Python function) and m (which fixes array shapes) as static: they are baked into the compiled program, and a new value triggers a new compilation. Everything else (psi) is traced.
Numerical practice. Full re-orthogonalisation costs \(\mathcal O(m\,2^N)\) per iteration, comparable to one application of \(H\) (which is \(\sim 4\cdot2N\cdot2^N\) multiplications here) when \(m\sim30\). For short Krylov spaces this is a fair price for robustness. The memory, \(m\) vectors, is the real limitation of the method.
4. The Krylov step: implementation, validation, convergence
4.1 From formula to code
Eq. (2) in four lines: build \((\alpha,\beta,V)\); diagonalise \(T_m=S\,\mathrm{diag}(\theta)S^T\) with jnp.linalg.eigh (an \(m\times m\) tridiagonal problem — negligible cost; [12], §11.4); form the coefficient vector \(c=S\,(e^{-i\theta\,dt}\odot S_{0,:})\), where S[0, :]\(=S^Te_1\) is the first row of \(S\); return \(\|\psi\|\sum_jc_jv_j\) = c @ V. Everything is traced, so dt can be changed without recompiling.
Code
# ==============================================================================# STEP 2: one Krylov step |psi> -> exp(-i H dt)|psi># ==============================================================================def krylov_coefficients(alphas, betas, dt):"""c(dt) = exp(-i T_m dt) e_1 via the eigendecomposition of the small tridiagonal matrix T_m = S diag(theta) S^T.""" theta, S = jnp.linalg.eigh(tridiagonal(alphas, betas))return S.astype(CDTYPE) @ (jnp.exp(-1j* dt * theta) * S[0, :])def krylov_step(matvec, psi, dt, m):"""exp(-i H dt)|psi> approximated in the m-dimensional Krylov space: ||psi|| V_m exp(-i T_m dt) e_1 [Eq. (2)] PROPERTIES exact through order dt^(m-1); norm and energy conserved exactly; accurate when m >~ (spectral half-width)*dt. COST m applications of H + O(m^2 2^N) re-orthogonalisation + O(m^3) small eigenproblem; memory m+2 vectors. JAX `matvec` and `m` static, (psi, dt) traced. """ alphas, betas, V = lanczos_basis(matvec, psi, m) c = krylov_coefficients(alphas, betas, dt)return jnp.linalg.norm(psi) * (c @ V).reshape(psi.shape)krylov_step_jit = jax.jit(krylov_step, static_argnums=(0, 3))# ------------------------------------------------------------------------------# CHECKPOINT: against the dense exact propagator and against the engine's krylov_evolve (N = 10, dt = 0.5, m = 30)# ------------------------------------------------------------------------------E_d, V_d = jnp.linalg.eigh(H_dense) # dense eigen-decomposition: validation onlydef exact_state(psi0, t):"""Dense reference V exp(-i E t) V^+ |psi0> (re-uses the single diagonalisation above)."""return (V_d @ (jnp.exp(-1j* E_d * t) * (V_d.conj().T @ psi0.reshape(-1)))).reshape(psi0.shape)dt_chk, m_chk =0.5, 30psi_k = krylov_step_jit(matvec_val, psi0_val, dt_chk, m_chk)err_exact =float(jnp.linalg.norm(psi_k - exact_state(psi0_val, dt_chk)))err_engine =float(jnp.linalg.norm(psi_k - krylov_evolve(psi0_val, terms_val, dt_chk, m=m_chk)))err_engine_exact =float(jnp.linalg.norm(exact_state(psi0_val, dt_chk) - exact_evolve(psi0_val, terms_val, dt_chk)))print(f"|| krylov_step - exact || = {err_exact:.2e}")print(f"|| krylov_step - engine krylov || = {err_engine:.2e}")print(f"|| our dense reference - engine exact_evolve || = {err_engine_exact:.2e}")assertmax(err_exact, err_engine, err_engine_exact) <100* TOL
Interpretation. Thirty applications of \(H\) give \(e^{-0.5\,iH}|\psi\rangle\) to machine precision, in agreement with the engine’s (non-jitted) krylov_evolve and with the dense propagator.
4.2 Convergence in the subspace dimension \(m\) — and a comparison with Chebyshev
We now measure the error of a single step as a function of \(m\) for several step lengths, and for three different initial states: the product state \(|0\dots0\rangle\), a Haar-random state (spread over the whole spectrum) and a local excitation of the ground state, \(X_{N/2}|E_0\rangle\) (concentrated at the bottom of the spectrum; this is the kind of state that appears in the calculation of dynamical structure factors). For reference we overlay the error of the Chebyshev expansion of equal cost: \(m\) applications of \(H\) build the Chebyshev polynomial up to degree \(m\), whose leading omitted term is \(2|J_{m+1}(a\,dt)|\) (notebook 13, Chebyshev propagation). The spectral half-width \(a\) that Chebyshev needs is taken from the dense spectrum here; Krylov needs no such input. The cell also prints, for one step length, how far the Galerkin state (2) is from the best element of the same Krylov space — the numerical counterpart of §2.5.
A trick that saves almost all the work: Krylov spaces are nested. The first \(m\) Lanczos vectors do not depend on how many more we compute afterwards. So a single run with \(m_{\max}=64\) contains every smaller Krylov approximation: \(V_m\) = the first \(m\) rows of V, \(T_m\) = the leading \(m\times m\) block of \(T_{64}\). And since \(V_m,T_m\) do not depend on \(dt\) either, each initial state needs exactly one Lanczos run for the whole figure; everything else is small-matrix algebra, done here in NumPy.
JAX practice. The three Lanczos runs differ only in the initial state, which is exactly what jax.vmap is for: jax.vmap(lanczos_basis, in_axes=(None, 0, None)) maps over the batch axis of psi and leaves matvec and m alone, so one compiled program produces all three bases, with the matrix–vector products of the different states batched into single XLA calls. The same wrapper serves disorder realisations, quench parameters or a set of trial states without a Python loop.
Code
# ==============================================================================# EXPERIMENT: single-step error versus Krylov dimension m (N = 10), compared with Chebyshev at equal number of H applications# ==============================================================================from scipy.special import jv # Bessel functions J_k(z): coefficients of the Chebyshev expansion (previous notebook)M_MAX =64def krylov_state_nested(basis, m, dt):"""Krylov approximation of dimension m <= M_MAX from a LONGER Lanczos run (nestedness): uses alphas[:m], betas[:m-1], V[:m].""" alphas, betas, V = basis theta, S = np.linalg.eigh(np.diag(alphas[:m]) + np.diag(betas[:m -1], 1) + np.diag(betas[:m -1], -1)) c = S @ (np.exp(-1j* dt * theta) * S[0, :])return (jnp.asarray(c, dtype=CDTYPE) @ V[:m]).reshape((2,) * N_val)a_true =float(E_d[-1] - E_d[0]) /2# spectral half-width (dense: validation only)ground = V_d[:, 0].reshape((2,) * N_val)psi_local = apply_gate(ground, X, [N_val //2]) # local spin flip on top of the ground statestates = {r"$|0\dots0\rangle$": psi0_val,"Haar random": haar_state(jax.random.PRNGKey(7), N_val),r"$X_{N/2}|E_0\rangle$": psi_local / jnp.linalg.norm(psi_local)}# one compiled program, all three initial states at once: vmap maps over the batch axis of `psi` onlylanczos_batched = jax.jit(jax.vmap(lanczos_basis, in_axes=(None, 0, None)), static_argnums=(0, 2))al_b, be_b, V_b = lanczos_batched(matvec_val, jnp.stack(list(states.values())), M_MAX)bases = {name: (np.asarray(al_b[i]), np.asarray(be_b[i]), V_b[i]) for i, name inenumerate(states)}for name, st in states.items(): H_st = matvec_val(st) E_mean =float(jnp.real(jnp.vdot(st, H_st))) E_std =float(jnp.sqrt(jnp.real(jnp.vdot(H_st, H_st)) - E_mean **2))print(f"{name:24s}: <H> = {E_mean:8.3f}, energy spread = {E_std:.3f} (spectrum: [{float(E_d[0]):.2f}, {float(E_d[-1]):.2f}], a = {a_true:.2f})")# --- how far is the Galerkin state (2) from the BEST element of the same Krylov space? [quasi-optimality, Eq. (2a)]name0 =r"$|0\dots0\rangle$"exact_flat = exact_state(psi0_val, 1.0).reshape(-1)print("\nquasi-optimality at dt = 1 (the best element of K_m is the orthogonal projection V_m V_m^+ |psi_exact>):")for m in (10, 20, 30, 40): V_m = bases[name0][2][:m] err_best =float(jnp.linalg.norm(exact_flat - V_m.T @ (V_m.conj() @ exact_flat))) err_gal =float(jnp.linalg.norm(krylov_state_nested(bases[name0], m, 1.0).reshape(-1) - exact_flat))print(f" m = {m:2d}: Galerkin error {err_gal:.3e} best element of K_m {err_best:.3e} ratio {err_gal / err_best:.2f}")m_list = np.arange(2, M_MAX +1)fig, axes = plt.subplots(1, 2, figsize=(13, 4.3))# --- left: |0...0>, several dt, Krylov (solid) vs the Chebyshev expansion of EQUAL COST (dotted)for col, dt inzip(("C0", "C1", "C2", "C3"), (0.1, 0.5, 1.0, 2.0)): exact_dt = exact_state(psi0_val, dt) errs = np.array([float(jnp.linalg.norm(krylov_state_nested(bases[name0], m, dt) - exact_dt)) for m in m_list]) axes[0].semilogy(m_list, errs, "o-", ms=3, color=col, label=f"Krylov, $dt={dt:g}$ ($a\\,dt={a_true * dt:.1f}$)")# m applications of H build the Chebyshev polynomial up to degree m; the leading omitted term is then 2|J_{m+1}| axes[0].semilogy(m_list, 2* np.abs(jv(m_list +1, a_true * dt)) +1e-300, ":", color=col) axes[0].axvline(a_true * dt, color=col, lw=0.5, alpha=0.5) m_ok =int(m_list[np.argmax(errs <1e-10)]) ks = np.arange(1, 200) K_ok =int(ks[np.argmax((2* np.abs(jv(ks, a_true * dt)) <1e-10) & (ks > a_true * dt))]) -1# degree kept = costprint(f"dt = {dt:3.1f} (a dt = {a_true * dt:5.1f}): error < 1e-10 needs m = {m_ok:2d} applications of H (Krylov)"f" vs K = {K_ok:2d} (Chebyshev) -> Krylov saves {100* (1- m_ok / K_ok):4.1f} %")axes[0].plot([], [], "k:", label="Chebyshev at the same cost: $2|J_{m+1}(a\\,dt)|$")axes[0].set_title(r"One step from $|0\dots0\rangle$: error vs number of $H$ applications")# --- right: dt = 2, three initial statesexact_cache = {name: exact_state(st, 2.0) for name, st in states.items()}for col, name inzip(("C3", "C4", "C5"), states): errs = [float(jnp.linalg.norm(krylov_state_nested(bases[name], m, 2.0) - exact_cache[name])) for m in m_list] axes[1].semilogy(m_list, errs, "o-", ms=3, color=col, label=name)axes[1].set_title("$dt=2$: dependence on the initial state")for ax in axes: ax.set_ylim(1e-16, 10); ax.set_xlabel("Krylov dimension $m$"); ax.set_ylabel(r"$\|\psi_m(dt)-\psi_{\rm exact}(dt)\|$") ax.grid(alpha=0.3); ax.legend(fontsize=8)plt.tight_layout(); plt.show()
$|0\dots0\rangle$ : <H> = 4.500, energy spread = 3.162 (spectrum: [-15.18, 19.33], a = 17.25)
Haar random : <H> = -0.244, energy spread = 5.329 (spectrum: [-15.18, 19.33], a = 17.25)
$X_{N/2}|E_0\rangle$ : <H> = -11.700, energy spread = 2.201 (spectrum: [-15.18, 19.33], a = 17.25)
quasi-optimality at dt = 1 (the best element of K_m is the orthogonal projection V_m V_m^+ |psi_exact>):
m = 10: Galerkin error 6.649e-01 best element of K_m 5.319e-01 ratio 1.25
m = 20: Galerkin error 1.235e-03 best element of K_m 1.163e-03 ratio 1.06
m = 30: Galerkin error 3.902e-09 best element of K_m 3.809e-09 ratio 1.02
m = 40: Galerkin error 4.570e-15 best element of K_m 3.468e-15 ratio 1.32
dt = 0.1 (a dt = 1.7): error < 1e-10 needs m = 11 applications of H (Krylov) vs K = 12 (Chebyshev) -> Krylov saves 8.3 %
dt = 0.5 (a dt = 8.6): error < 1e-10 needs m = 23 applications of H (Krylov) vs K = 25 (Chebyshev) -> Krylov saves 8.0 %
dt = 1.0 (a dt = 17.3): error < 1e-10 needs m = 33 applications of H (Krylov) vs K = 38 (Chebyshev) -> Krylov saves 13.2 %
dt = 2.0 (a dt = 34.5): error < 1e-10 needs m = 50 applications of H (Krylov) vs K = 60 (Chebyshev) -> Krylov saves 16.7 %
Interpretation.
Quasi-optimality. The printed table compares the Galerkin state with the best element of the same Krylov space. The ratio is \(1.25\) at \(m=10\) and falls to \(1.02\) by \(m=30\) (the last row, \(m=40\), is already at the rounding floor, where the comparison measures nothing): the Galerkin condition, which costs nothing, is almost as good as an orthogonal projection onto \(\mathcal K_m\), which we could not compute. This is the numerical content of Eq. (2a).
Left. The Krylov error has the same anatomy as the Chebyshev error (notebook 13, Chebyshev propagation): no convergence at all while \(m\lesssim a\,dt\) (vertical lines), then a super-exponential collapse onto the rounding floor. This is Eq. (2b) — the Krylov approximation is within a factor \(2\) of any polynomial approximation of degree \(m-1\), so it inherits the Chebyshev convergence law. It reaches a given accuracy with somewhat fewer applications of \(H\) than a Chebyshev expansion of the same cost (dotted — a truncation estimate, which is why it continues below the rounding floor at which the solid curves stop; see the printed comparison, where the saving grows from about 8 % at \(a\,dt\approx2\) to about 17 % at \(a\,dt\approx35\)) — it adapts the polynomial to the state and needs no safety margin on the spectrum — but the gain is a matter of per cent, not an order of magnitude. At fixed\(m\) in the transition region the vertical gap between the two curves is much larger than that (orders of magnitude at \(a\,dt=35\)); it shrinks to a few per cent in the horizontal direction, which is the one that costs money, precisely because both curves fall so steeply there.
Right. The adaptation to the state is visible but modest: the low-energy local excitation, which has the narrowest energy distribution, converges with a somewhat smaller \(m\) than the Haar-random state, which populates the whole spectrum. The spectral width of \(H\), more than that of the state, sets the scale.
What the figure does not show is the price: the Krylov method stores all \(m\) vectors (Chebyshev: four) and spends \(\mathcal O(m^22^N)\) on re-orthogonalisation. For that reason one does not take one huge Krylov step; one fixes a moderate \(m\) (10–40, depending on memory) and chains steps of suitable length \(dt\).
4.3 Convergence in the step length at fixed \(m\): an integrator of order \(m-1\)
Code
# ==============================================================================# EXPERIMENT: single-step error versus dt at fixed m (expect slope m on a log-log plot)# ==============================================================================dts = np.logspace(-2, 0.5, 26)exact_dts = [exact_state(psi0_val, float(dt)) for dt in dts]fig, ax = plt.subplots(figsize=(7, 4.3))for col, m inzip(("C0", "C1", "C2", "C3"), (4, 8, 12, 20)): errs = np.array([float(jnp.linalg.norm(krylov_state_nested(bases[name0], m, dt) - ex)) for dt, ex inzip(dts, exact_dts)]) ax.loglog(dts, errs, "o-", ms=3, color=col, label=f"$m={m}$") good = (errs >1e-12) & (errs <1e-3)if good.sum() >=3: slope = np.polyfit(np.log(dts[good]), np.log(errs[good]), 1)[0]print(f"m = {m:2d}: fitted slope of log(error) vs log(dt) = {slope:5.2f} (theory: m = {m})")ax.set_ylim(1e-16, 10); ax.set_xlabel("step length $dt$"); ax.set_ylabel("error of one step")ax.set_title(f"Krylov step, N = {N_val}: error $\\propto dt^{{\\,m}}$"); ax.legend(); ax.grid(alpha=0.3, which="both")plt.show()

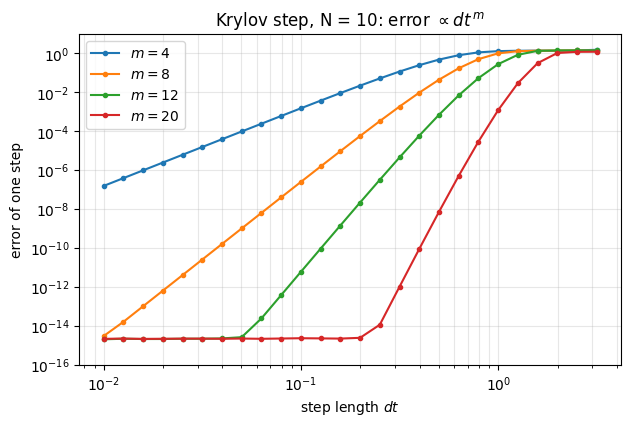

m = 4: fitted slope of log(error) vs log(dt) = 3.99 (theory: m = 4)
m = 8: fitted slope of log(error) vs log(dt) = 7.92 (theory: m = 8)
m = 12: fitted slope of log(error) vs log(dt) = 11.56 (theory: m = 12)
m = 20: fitted slope of log(error) vs log(dt) = 18.66 (theory: m = 20)
Interpretation. On the log–log plot the one-step error is a straight line of slope \(\approx m\) until it hits the rounding floor: property (a) of §2.4. Compare with TEBD, whose one-step error has slope 2, 3 or 5: with \(m=12\), halving the step reduces the error by \(2^{12}=4096\). This is why Krylov steps can be so much longer than Trotter steps.
5. An a-posteriori error bound and adaptive steps
5.1 Derivation
Insert the Krylov state (2) into the Schrödinger equation and see what is left over — the residual. With \(c(t)=\|\psi\|e^{-iT_mt}e_1\) and the Lanczos relation (1),
The residual points along the next Lanczos vector, and its size is \(\beta_m\) times the amplitude \(c_m(t)\) on the last basis vector: the approximation fails when the wave packet, which starts on site 1 of the “Lanczos chain” \(T_m\) and hops along it, arrives at the end of the chain. The error \(|e(t)\rangle=|\psi_m(t)\rangle-|\psi(t)\rangle\) obeys \(i\partial_t|e\rangle=H|e\rangle+|r\rangle\) with \(|e(0)\rangle=0\), which is solved by Duhamel’s formula (variation of constants): \(|e(t)\rangle=-i\int_0^te^{-iH(t-s)}|r(s)\rangle\,ds\). Since \(e^{-iH(t-s)}\) is unitary,
Everything on the right-hand side is known from the small matrix: the bound costs \(\mathcal O(m^2)\) per evaluation point and no additional application of \(H\). For short times \(c_m(s)\approx(-is)^{m-1}\beta_1\cdots\beta_{m-1}/(m-1)!\), so the bound behaves as \(t^{m}\,\beta_1\cdots\beta_m/m!\) — the \(\mathcal O(t^m)\) law of §4.3 — and the integral is \(\approx t\,|c_m(t)|/m\), giving the cheaper estimate\(\;\varepsilon_{\rm est}=\beta_m|c_m(t)|\,t/m\). Keep the two apart: (3) is a bound, valid for every \(t\); \(\varepsilon_{\rm est}\) is an estimate, valid while the leading term dominates. Up to the factor \(1/m\), \(\varepsilon_{\rm est}\) is the classical stopping criterion of [8] and the local error estimate on which the step-size controller of Expokit [5] is built. The same quantity \(\beta_m\) that measured the convergence of a Ritz pair for free in notebook 11, Hamiltonians and ground states measures the accuracy of the propagator for free here: in both cases it is the single number in the Lanczos relation (1) that quantifies how far \(H\) pushes the state out of the subspace.
From formula to code. In the eigenbasis of \(T_m\), \(c_m(s)=\sum_jS_{m-1,j}\,e^{-i\theta_js}\,S_{0,j}\): for a whole grid of \(s\) values this is one einsum "j,sj,j->s". The integral is a cumulative trapezoidal sum, which yields the bound for every\(t\) on the grid at once.
Code
# ==============================================================================# STEP 3: a-posteriori error bound, Eq. (3), on a grid of times -- from the small matrix only# ==============================================================================def krylov_error_bound(alphas, betas, s_grid, norm_psi=1.0):"""Cumulative bound B(s) = beta_m * int_0^s |c_m(s')| ds' on the grid s_grid (s_grid[0] = 0). MATH c_m(s) = ||psi|| [exp(-i T_m s)]_{m,1} = ||psi|| sum_j S[m-1,j] exp(-i theta_j s) S[0,j] [Eq. (3)] COST O(m^3) + O(m * len(s_grid)); NO application of H. """ theta, S = jnp.linalg.eigh(tridiagonal(alphas, betas)) c_last = norm_psi * jnp.abs(jnp.einsum("j,sj,j->s", S[-1, :], jnp.exp(-1j* s_grid[:, None] * theta[None, :]), S[0, :])) increments =0.5* (c_last[1:] + c_last[:-1]) * jnp.diff(s_grid) # trapezoidal rulereturn betas[-1] * jnp.concatenate([jnp.zeros(1, dtype=RDTYPE), jnp.cumsum(increments)]), c_last# ------------------------------------------------------------------------------# CHECKPOINT: bound and cheap estimate versus the TRUE error (dense reference)# ------------------------------------------------------------------------------s_grid = jnp.linspace(0.0, 3.0, 301, dtype=RDTYPE)fig, ax = plt.subplots(figsize=(7.5, 4.3))for col, m inzip(("C0", "C1", "C2"), (10, 20, 30)): al, be, Vm = (jnp.asarray(x[:m]) for x in bases[name0]) # nested: first m Lanczos vectors; be[-1] = beta_m bound, c_last = krylov_error_bound(al, be, s_grid) estimate = be[-1] * c_last * s_grid / m# true error at a subset of times: re-use the SAME basis, only the small exponential changes with t idx = np.arange(5, 301, 5) true_err = np.array([float(jnp.linalg.norm((krylov_coefficients(al, be, s_grid[i]) @ Vm).reshape(psi0_val.shape)- exact_state(psi0_val, float(s_grid[i])))) for i in idx]) ax.semilogy(np.asarray(s_grid)[idx], true_err, "o", ms=3, color=col, label=f"true error, $m={m}$") ax.semilogy(s_grid, bound +1e-300, "-", color=col, lw=1.2) ax.semilogy(s_grid, estimate +1e-300, ":", color=col, lw=1.2) ratio, ratio_est = np.asarray(bound)[idx] / true_err, np.asarray(estimate)[idx] / true_err sel = true_err >1e-11print(f"m = {m:2d}, where the error exceeds 1e-11: bound / true error in [{ratio[sel].min():.2f}, {ratio[sel].max():.2f}],"f" estimate / true error in [{ratio_est[sel].min():.3f}, {ratio_est[sel].max():.3f}]")assert ratio[sel].min() >0.99# it IS a boundassert ratio_est[sel].max() <1# the estimate is NOT: it lies below the true errorax.plot([], [], "k-", label=r"bound (3): $\beta_m\int_0^t|c_m|ds$"); ax.plot([], [], "k:", label=r"estimate $\beta_m|c_m(t)|\,t/m$")ax.set_ylim(1e-16, 10); ax.set_xlabel("time $t$ reached with ONE Krylov basis"); ax.set_ylabel("error")ax.set_title(f"A-posteriori error control, N = {N_val}"); ax.legend(fontsize=8); ax.grid(alpha=0.3)plt.show()
m = 10, where the error exceeds 1e-11: bound / true error in [1.04, 3.28], estimate / true error in [0.012, 0.999]
m = 20, where the error exceeds 1e-11: bound / true error in [1.04, 3.13], estimate / true error in [0.035, 0.981]
m = 30, where the error exceeds 1e-11: bound / true error in [1.04, 2.27], estimate / true error in [0.216, 0.958]
Interpretation. The bound (solid) sits just above the true error (dots) over fifteen orders of magnitude — it over-estimates by a factor between 1 and about 3 only — and never fails. The cheap estimate (dotted) lies below the true error at every printed point: by a few per cent while the error is small, by tens of per cent once it reaches \(10^{-2}\), and by up to two orders of magnitude when the error is \(\mathcal O(1)\) and the wave packet on the Lanczos chain has been reflected from the end, where the estimate oscillates. A controller built on the estimate alone therefore overshoots its tolerance slightly unless the step is shortened by a safety factor; the bound is monotonic in \(t\) and never too small, so it is the quantity used below.
Numerical practice. An error bound that is computed from the same data as the approximation itself, at negligible cost, is a luxury few algorithms offer. TEBD has nothing comparable (one has to repeat the run with a smaller step); Chebyshev has an a-priori estimate (the first omitted Bessel coefficient), which requires the spectral bounds to be right.
5.2 Adaptive time stepping
The basis \(V_m\) and \(T_m\)do not depend on \(dt\). After building them we may ask the small matrix: how far can I go with this basis before the bound exceeds my tolerance? That is a one-dimensional search on a grid — no further applications of \(H\). The algorithm, to reach a final time \(T\) with total error \(\le\)tol:
build the \(m\)-dimensional basis from the current state;
evaluate the bound \(B(s)\) on a grid \(s\in[0,T-t]\) and take the largest \(s\) for which \(B(s)\le\texttt{tol}\cdot s/T\) (each step may use up its proportional share of the error budget). Errors committed in different steps are propagated by the exact, unitary \(e^{-iH\tau}\) of the later steps, so they add at worst in norm: the total error is bounded by the sum of the per-step bounds, which is \(\le\texttt{tol}\sum_ks_k/T=\texttt{tol}\);
advance by that \(s\) with Eq. (2); repeat until \(t=T\).
The number of steps now depends on the data. A Python while loop cannot be jit-compiled with a traced condition; the JAX primitive for this is lax.while_loop(cond_fun, body_fun, init), which keeps iterating body_fun on a carry while cond_fun(carry) is true — all inside the compiled program. (Its limitation: it cannot stack per-iteration outputs like scan, and it cannot be differentiated in reverse mode; neither matters here.)
Code
# ==============================================================================# STEP 4: adaptive Krylov propagation to a final time T with a prescribed error budget# ==============================================================================def krylov_adaptive_evolve(matvec, psi0, T, m, tol, n_grid=256):"""Evolve to time T by Krylov steps of dimension m whose lengths are chosen from the error bound (3). Returns (psi(T), number of steps, accumulated error bound). ALGORITHM per step: Lanczos basis -> bound B(s) on a grid s in [0, T-t] -> largest s with B(s) <= tol * s / T. (if even the first grid point violates the budget, that smallest step is taken anyway -> the returned accumulated bound tells the truth about what was achieved.) JAX lax.while_loop: the number of steps is data dependent; carry = (psi, t, n_steps, accumulated bound). COST n_steps * m applications of H. """ fractions = jnp.arange(n_grid +1, dtype=RDTYPE) / n_griddef not_done(carry): _, t, _, _ = carryreturn t < T * (1-1e-12)def one_step(carry): psi, t, n, acc = carry alphas, betas, V = lanczos_basis(matvec, psi, m) nrm = jnp.linalg.norm(psi) s_grid = (T - t) * fractions # candidate step lengths (up to "finish now") bound, _ = krylov_error_bound(alphas, betas, s_grid, nrm) within_budget = bound <= tol * s_grid / T first_bad = jnp.where(jnp.all(within_budget), n_grid +1, jnp.argmin(within_budget)) i = jnp.maximum(first_bad -1, 1) # last grid point before the budget is exceeded c = krylov_coefficients(alphas, betas, s_grid[i])return nrm * (c @ V).reshape(psi.shape), t + s_grid[i], n +1, acc + bound[i] psi, _, n_steps, acc = lax.while_loop(not_done, one_step, (psi0, jnp.zeros((), RDTYPE), 0, jnp.zeros((), RDTYPE)))return psi, n_steps, acckrylov_adaptive_jit = jax.jit(krylov_adaptive_evolve, static_argnums=(0, 3, 5))# ------------------------------------------------------------------------------# CHECKPOINT: does the controller deliver what it promises? (N = 10, T = 5, dense reference)# ------------------------------------------------------------------------------T_chk =5.0psi_exact_T = exact_state(psi0_val, T_chk)print(" m | tol | steps | H applications | true error | accumulated bound | bound respected, error <= tol")for m in (12, 30):for tol in (1e-3, 1e-6, 1e-9, 1e-12): psi_a, n_a, bound_a = krylov_adaptive_jit(matvec_val, psi0_val, T_chk, m, tol) err_a =float(jnp.linalg.norm(psi_a - psi_exact_T)) ok = (err_a <=1.05*float(bound_a) +1e-13) and (err_a <= tol +1e-13)print(f" {m:3d} | {tol:7.0e} | {int(n_a):5d} | {int(n_a) * m:14d} | {err_a:10.2e} | {float(bound_a):17.2e} | {ok}")assert ok
m | tol | steps | H applications | true error | accumulated bound | bound respected, error <= tol
Interpretation. For every subspace dimension and tolerance the controller lands just below the requested error — the bound is tight enough that almost nothing of the budget is wasted — with no knowledge of the spectrum, no trial and error, and no reference solution. The table also shows the trade-off in \(m\): small subspaces need many short steps, larger ones need far fewer applications of \(H\) but more memory and re-orthogonalisation work. For comparison, a single Chebyshev step to \(T=5\) at machine precision costs 129 applications of \(H\) (measured in §8): at very high accuracy and long times Chebyshev is the more economical of the two; Krylov’s restart overhead is larger than Chebyshev’s.
6. The exact dense reference and what it costs
All validation in this course rests on the dense solution: diagonalise \(H=V\,\mathrm{diag}(E)\,V^\dagger\) once, then \(|\psi(t)\rangle=V\big(e^{-iEt}\odot V^\dagger|\psi(0)\rangle\big)\) for any\(t\) — no time-step error, and arbitrarily long times at no extra cost. Its price: the matrix has \(4^N\) entries (\(16\cdot4^N\) bytes; together with the eigenvectors and work space about three times that) and the diagonalisation takes \(\mathcal O\big((2^N)^3\big)=\mathcal O(8^N)\) operations: each additional spin multiplies the time by 8 and the memory by 4. Let us measure it (the engine’s exact_evolve does exactly this: dense_hamiltonian via vmap over basis vectors, then eigh).
Code
# ==============================================================================# BENCHMARK: cost of the exact dense propagation versus N# ==============================================================================def timed(f, *args, repeats=2):"""Returns (time of first call [incl. compilation], best time of `repeats` later calls, result). jax.block_until_ready: JAX dispatches asynchronously -- without it we would time the dispatch, not the work.""" t0 = time.perf_counter(); out = jax.block_until_ready(f(*args)); t_first = time.perf_counter() - t0 best = np.inffor _ inrange(repeats): t0 = time.perf_counter(); out = jax.block_until_ready(f(*args)); best =min(best, time.perf_counter() - t0)return t_first, best, out# NOTE on timing: the FIRST call at every N also traces and compiles the einsums and the `eigh` kernel for that# array shape, which at small N costs far more than the linear algebra itself. We therefore report the warm time# (`timed` above: first call separately, then the best of two repeats) -- only that number follows the 8^N law.exact_times, exact_first = {}, {}print(" N | matrix size | memory of H [MB] | first call (incl. compile) [s] | warm exact_evolve [s]")for N in (4, 6, 8, 9, 10, 11): terms_N, psi0_N = model_terms(N), zero_state(N) reps =5if N <=9else (3if N ==10else2) # best-of-k; cheap where the run is cheap t_first, t_ex, _ = timed(lambda p, t: exact_evolve(p, terms_N, t), psi0_N, 1.0, repeats=reps) exact_times[N], exact_first[N] = t_ex, t_firstprint(f" {N:2d} | {2** N:5d}^2 | {16*4** N /1e6:16.1f} | {t_first:30.3f} | {t_ex:21.4f}")print("\nratios of the warm times: "+", ".join(f"N={b}/N={a}: {exact_times[b] / exact_times[a]:.1f}"for a, b in ((8, 9), (9, 10), (10, 11)))+f" (asymptotic theory: 8 per spin); overall N=8 -> 11: {exact_times[11] / exact_times[8]:.0f}x")print(f"Extrapolation from N=11 with a factor 8 per spin (an ESTIMATE, not a measurement): "f"N=14: {exact_times[11] *8**3/60:.0f} min and {16*4**14/1e9:.1f} GB per matrix; "f"N=16: {exact_times[11] *8**5/3600:.0f} h and {16*4**16/1e9:.0f} GB per matrix.")
N | matrix size | memory of H [MB] | first call (incl. compile) [s] | warm exact_evolve [s]
4 | 16^2 | 0.0 | 0.958 | 0.0061
6 | 64^2 | 0.1 | 1.249 | 0.0090
8 | 256^2 | 1.0 | 1.218 | 0.0235
9 | 512^2 | 4.2 | 1.396 | 0.0872
10 | 1024^2 | 16.8 | 0.691 | 0.6296
11 | 2048^2 | 67.1 | 6.966 | 5.6438
ratios of the warm times: N=9/N=8: 3.7, N=10/N=9: 7.2, N=11/N=10: 9.0 (asymptotic theory: 8 per spin); overall N=8 -> 11: 240x
Extrapolation from N=11 with a factor 8 per spin (an ESTIMATE, not a measurement): N=14: 48 min and 4.3 GB per matrix; N=16: 51 h and 69 GB per matrix.
Interpretation. Read the last column. At the smallest sizes the warm time is per-operation overhead and hardly changes with \(N\); from \(N\approx8\) on it rises steeply. The ratios per spin approach the asymptotic 8 (and three spins the factor \(8^3=512\)) only once the \(\mathcal O\big((2^N)^3\big)\) diagonalisation dominates over the cheaper \(\mathcal O(N4^N)\) construction of the matrix. At these sizes they also scatter by a factor of a few, because wall times on a shared machine do: in different executions of this cell the factor for \(N=8\to11\) has ranged from about 10 to about 300, while the memory column, which is arithmetic, does not change. The first call adds the tracing and compilation of every operation for the new array shape, which dominates it at small \(N\). Up to \(N\approx10\) the dense route is nevertheless the most convenient method there is. The extrapolation in the last line (an estimate, labelled as such in the print) shows why nobody diagonalises beyond \(N\approx14\)–\(16\) without exploiting symmetries. The matrix-free integrators below need \(\mathcal O(2^N)\) memory and, for a fixed evolution time, \(\mathcal O(N^{1\text{–}2}2^N)\) operations.
7. The Loschmidt echo as a test of integrators
Before the systematic benchmark, let us see what integrator errors do to a physical observable. Prepare \(|\psi_0\rangle=|0\dots0\rangle\) (all spins up), switch on \(H\) suddenly (a quench) and ask: what is the probability to find the system back in its initial state?
This Loschmidt echo (return probability; the fidelity decay introduced in [13] and named in [14]) is the central quantity of dynamical quantum phase transitions[15] — its rate function \(-\tfrac1N\ln\mathcal L(t)\) stays finite as \(N\to\infty\) and can become non-analytic in time — and it is measured in trapped-ion [16] and cold-atom [17] quantum simulators. Numerically it is demanding for a simple reason: for a many-body system \(\mathcal L\) becomes exponentially small in \(N\). Write the numerical state as \(|\psi\rangle+|\delta\rangle\) with \(\|\delta\|=\varepsilon\) and the exact amplitude as \(A=\langle\psi_0|\psi\rangle\), \(|A|=\sqrt{\mathcal L}\). Then
The relative error of the echo is the relative error of the state amplified by \(1/\sqrt{\mathcal L}\). The bound is attained only if the error vector happens to point along \(|\psi_0\rangle\); what enters is \(\langle\psi_0|\delta\rangle=\eta\,\varepsilon\) with \(0\le\eta\le1\), and we measure \(\eta\) below. Even with \(\eta<1\), an error of \(10^{-3}\) in the state, invisible in a magnetisation curve, can be 100 % of an echo of \(10^{-6}\).
We compute \(\mathcal L(t)\) on the \(N=10\) chain with every integrator at the same step \(dt=0.05\) (TEBD orders 1, 2, 4; Krylov with a small subspace \(m=8\)) plus Chebyshev, recording the full state at every step so that we can also plot the state error against the dense solution.
From formula to code. Every trajectory is a lax.scan over time steps whose body applies one step and emits the flattened state; the echo is then a single matrix–vector product of the stored states with \(\langle\psi_0|\). The compact Chebyshev step below is the algorithm derived in the previous notebook: coefficients \(c_k=(2-\delta_{k0})(-i)^kJ_k(a\,dt)\) from SciPy, the recurrence \(\phi_{k+1}=2\tilde H\phi_k-\phi_{k-1}\) as an inner scan.
Code
# ==============================================================================# STEP 5: uniform "step" interface for all integrators + trajectories with lax.scan# ==============================================================================def make_tebd_step(terms, dt, order):"""One Trotter-Suzuki step of the given order as a function psi -> psi (gates pre-computed for this dt).""" gates = tebd_gates(terms, dt, order)returnlambda psi: apply_gates(psi, gates)def make_chebyshev_step(terms, bounds, dt, tol=1e-13, safety=1.02):"""exp(-i H dt) by the Chebyshev/Jacobi-Anger expansion (derived in the previous notebook). Returns (step, K). MATH H~ = (H - b)/a in [-1,1]; exp(-iH dt) = e^{-i b dt} sum_k c_k T_k(H~), c_k = (2-delta_k0)(-i)^k J_k(a dt), truncated after the last |J_k(a dt)| >= tol; T_{k+1} = 2 H~ T_k - T_{k-1} as a lax.scan.""" a, b = safety * (bounds[1] - bounds[0]) /2.0, (bounds[1] + bounds[0]) /2.0 z = a * dt J = jv(np.arange(int(abs(z) +12*abs(z) ** (1/3) +40)), z) K =max(1, int(np.max(np.nonzero(np.abs(J) >= tol)[0], initial=1))) k = np.arange(K +1) coef = jnp.asarray(np.where(k ==0, 1.0, 2.0) * (-1j) ** k * J[:K +1], dtype=CDTYPE) phase = jnp.asarray(np.exp(-1j* b * dt), dtype=CDTYPE)def Ht(phi):return (apply_hamiltonian(terms, phi) - b * phi) / adef step(psi): phi_prev, phi_curr = psi, Ht(psi) acc = coef[0] * phi_prev + coef[1] * phi_currdef body(carry, c_k): p_prev, p_curr, acc = carry p_next =2* Ht(p_curr) - p_prevreturn (p_curr, p_next, acc + c_k * p_next), None (_, _, acc), _ = lax.scan(body, (phi_prev, phi_curr, acc), coef[2:])return phase * accreturn step, Kdef trajectory(step, psi0, n_steps):"""Apply `step` n_steps times, returning all intermediate states as an array (n_steps, 2^N). One jitted scan."""def body(psi, _): psi = step(psi)return psi, psi.reshape(-1)return jax.jit(lambda p: lax.scan(body, p, None, length=n_steps)[1])(psi0)# ==============================================================================# PARAMETERS of the echo experiment# ==============================================================================T_echo, dt_echo =5.0, 0.05n_echo =int(round(T_echo / dt_echo))times_echo = dt_echo * np.arange(1, n_echo +1)bounds_val = spectral_bounds(terms_val, N_val) # short Lanczos run (for Chebyshev only)steppers = {"TEBD-1": make_tebd_step(terms_val, dt_echo, 1),"TEBD-2": make_tebd_step(terms_val, dt_echo, 2),"TEBD-4": make_tebd_step(terms_val, dt_echo, 4),"Krylov m=8": lambda psi: krylov_step(matvec_val, psi, dt_echo, 8),"Chebyshev": make_chebyshev_step(terms_val, bounds_val, dt_echo)[0]}amp0 = V_d.conj().T @ psi0_val.reshape(-1)states_exact = (V_d @ (jnp.exp(-1j* E_d[:, None] * jnp.asarray(times_echo)[None, :]) * amp0[:, None])).T # (n_times, 2^N)echo_exact = np.abs(np.asarray(states_exact @ psi0_val.reshape(-1).conj())) **2E_psi0 =float(jnp.real(jnp.vdot(psi0_val, matvec_val(psi0_val)))) # the conserved energy of the initial stateecho, state_err = {}, {}for name, stp in steppers.items(): traj = trajectory(stp, psi0_val, n_echo) echo[name] = np.abs(np.asarray(traj @ psi0_val.reshape(-1).conj())) **2 state_err[name] = np.asarray(jnp.linalg.norm(traj - states_exact, axis=1)) rel = np.abs(echo[name] - echo_exact) / echo_exact i_rel =int(np.argmax(rel))# how the state error grows with time, and how much of it points along |psi0> (the factor eta of the introduction) late = times_echo >=1.0 slope = np.polyfit(np.log(times_echo[late]), np.log(state_err[name][late] +1e-300), 1)[0] delta = np.asarray(traj - states_exact) eta = np.abs(delta @ np.asarray(psi0_val).reshape(-1).conj()) / (state_err[name] +1e-300)# conserved quantities: norm (all schemes) and energy (Krylov by construction -- section 2.4) traj_np = np.asarray(traj) energy_t = np.real(np.einsum("ni,ij,nj->n", traj_np.conj(), np.asarray(H_dense), traj_np))print(f"{name:11s}: state error at T = {state_err[name][-1]:.2e} (growing as t^{slope:.2f}); max_t |L - L_exact| = {np.max(np.abs(echo[name] - echo_exact)):.2e};"f" max_t | ||psi|| - 1 | = {float(jnp.max(jnp.abs(jnp.linalg.norm(traj, axis=1) -1))):.1e};"f" max_t |<H> - <H>(0)| = {np.max(np.abs(energy_t - E_psi0)):.2e}")print(f"{'':11s} worst RELATIVE echo error {rel[i_rel]:.2e} at t = {times_echo[i_rel]:.2f} (where L = {echo_exact[i_rel]:.1e}); "f"state error there {state_err[name][i_rel]:.2e} -> ratio {rel[i_rel] / state_err[name][i_rel]:.1f}"f" (worst case 2/sqrt(L) = {2/ np.sqrt(echo_exact[i_rel]):.0f}, realised because eta = {eta[i_rel]:.3f})")print(f"smallest value of the exact echo on the grid: {echo_exact.min():.3e}")assert state_err["Chebyshev"].max() <100* TOL
TEBD-1 : state error at T = 2.86e-01 (growing as t^1.01); max_t |L - L_exact| = 7.01e-04; max_t | ||psi|| - 1 | = 2.4e-13; max_t |<H> - <H>(0)| = 2.20e-01
worst RELATIVE echo error 1.86e-01 at t = 4.65 (where L = 4.9e-04); state error there 2.68e-01 -> ratio 0.7 (worst case 2/sqrt(L) = 90, realised because eta = 0.008)
TEBD-2 : state error at T = 1.14e-02 (growing as t^0.97); max_t |L - L_exact| = 3.77e-04; max_t | ||psi|| - 1 | = 1.4e-13; max_t |<H> - <H>(0)| = 1.45e-02
worst RELATIVE echo error 1.80e-02 at t = 1.90 (where L = 2.4e-04); state error there 3.56e-03 -> ratio 5.1 (worst case 2/sqrt(L) = 130, realised because eta = 0.039)
TEBD-4 : state error at T = 1.99e-06 (growing as t^0.78); max_t |L - L_exact| = 1.07e-07; max_t | ||psi|| - 1 | = 2.7e-12; max_t |<H> - <H>(0)| = 2.92e-06
worst RELATIVE echo error 6.23e-06 at t = 4.60 (where L = 1.1e-03); state error there 1.84e-06 -> ratio 3.4 (worst case 2/sqrt(L) = 61, realised because eta = 0.076)
Krylov m=8 : state error at T = 1.02e-07 (growing as t^1.00); max_t |L - L_exact| = 3.02e-09; max_t | ||psi|| - 1 | = 8.4e-15; max_t |<H> - <H>(0)| = 6.13e-14
worst RELATIVE echo error 6.49e-07 at t = 1.80 (where L = 2.8e-04); state error there 3.68e-08 -> ratio 17.6 (worst case 2/sqrt(L) = 121, realised because eta = 0.159)
Chebyshev : state error at T = 5.25e-13 (growing as t^1.00); max_t |L - L_exact| = 3.14e-14; max_t | ||psi|| - 1 | = 5.9e-15; max_t |<H> - <H>(0)| = 1.61e-13
worst RELATIVE echo error 6.75e-12 at t = 4.65 (where L = 4.9e-04); state error there 4.87e-13 -> ratio 13.8 (worst case 2/sqrt(L) = 90, realised because eta = 0.156)
smallest value of the exact echo on the grid: 2.313e-04
Code
# ==============================================================================# FIGURE: Loschmidt echo and state error for all integrators at the same step dt = 0.05# ==============================================================================colors = {"TEBD-1": "C3", "TEBD-2": "C0", "TEBD-4": "C1", "Krylov m=8": "C4", "Chebyshev": "C2"}fig, axes = plt.subplots(1, 3, figsize=(16, 4.3))axes[0].semilogy(times_echo, echo_exact, "k-", lw=2.5, alpha=0.4, label="exact (dense)")for name in steppers: axes[0].semilogy(times_echo, echo[name], "-", lw=1, color=colors[name], label=name) axes[1].semilogy(times_echo, np.abs(echo[name] - echo_exact) / echo_exact +1e-300, "-", color=colors[name], label=name) axes[2].semilogy(times_echo, state_err[name] +1e-300, "-", color=colors[name], label=name)axes[0].set_ylabel(r"$\mathcal{L}(t)$"); axes[0].set_title(f"Loschmidt echo, N = {N_val}, all integrators at $dt={dt_echo}$")axes[1].set_ylabel(r"relative error $|\mathcal{L}-\mathcal{L}_{\rm exact}|/\mathcal{L}_{\rm exact}$"); axes[1].set_title("Relative error of the echo"); axes[1].set_ylim(1e-16, 1e2)axes[2].set_ylabel(r"$\|\psi(t)-\psi_{\rm exact}(t)\|$"); axes[2].set_title("State error"); axes[2].set_ylim(1e-16, 1e1)for ax in axes: ax.set_xlabel("time $t$"); ax.grid(alpha=0.3); ax.legend(fontsize=8)plt.tight_layout(); plt.show()
Interpretation.
Left. The echo drops by several orders of magnitude within a time of order one and then fluctuates at a small value set by the (large but finite) number of eigenstates involved. On this scale only first-order TEBD can be told apart from the exact curve, and only near the dip at \(t\approx4.7\), where its relative error reaches about 20 % (middle panel); the other curves coincide with the exact one to the eye.
Middle and right. The error panels reveal the hierarchy. At \(T=5\) the state errors are \(\sim10^{-1}\) (TEBD-1), \(\sim10^{-2}\) (TEBD-2) and \(\sim10^{-6}\) (TEBD-4) for this \(dt\); Krylov with a mere \(m=8\) vectors sits at \(10^{-7}\) and Chebyshev at \(10^{-13}\) — for them \(dt=0.05\) is a tiny step. All of them grow linearly in time after an initial transient: the fitted exponents printed above are \(1.0\) for every scheme except fourth-order TEBD (\(0.8\)). Linear growth is what one expects when the same error operator is committed at every step and the individual contributions add up without cancelling.
The relative error of the echo (middle) is not a constant multiple of the state error: it peaks exactly where the echo dips, at the minima of \(\mathcal L\) around \(t\approx1.9\) and \(t\approx4.7\), as the printed ratio “relative echo error / state error at the same time” shows — between 3 and 18 for every scheme except first-order TEBD, whose state error is of order one, so that the linearised argument above no longer applies to it at all. These ratios are well below the worst case \(2/\sqrt{\mathcal L}\approx60\)–\(130\) printed next to them, and the reason is in the same column: the overlap fraction \(\eta=|\langle\psi_0|\delta\rangle|/\|\delta\|\) is only \(0.04\)–\(0.16\), so most of the error vector is invisible to this observable. Since \(\eta\) is a property of the particular integrator, state and time, it cannot be relied upon; the ratio is \(2\eta/\sqrt{\mathcal L}\), and \(\eta\le1\) is the only guarantee. On this grid \(\mathcal L\) never falls below \(\sim2\times10^{-4}\), so the amplification stays modest; push \(N\) or \(T\) up, let \(\mathcal L\) reach \(10^{-8}\), and the factor \(1/\sqrt{\mathcal L}\) of the introduction turns a state error of \(10^{-3}\) into a meaningless echo.
Conserved quantities as diagnostics. Every integrator conserves the norm to rounding accuracy (printed above), including the one whose state is wrong by 30 %. The energy column makes the pitfall of §2.4 concrete from the other side: Krylov with \(m=8\) holds \(\langle H\rangle\) to \(6\times10^{-14}\) while its state is wrong by \(10^{-7}\), and Chebyshev holds it to \(1.6\times10^{-13}\) while being right to \(5\times10^{-13}\) — the same diagnostic, opposite information. TEBD, which conserves the norm but not the energy, drifts by \(1.5\times10^{-2}\) (order 2) and \(2.9\times10^{-6}\) (order 4), that is by about its own state error: for a Trotter scheme the energy drift is a useful diagnostic, for a Krylov scheme it is not.
Physics insight. Whether an integrator is “accurate enough” depends on the observable. Local observables of a generic (non-integrable) chain are forgiving: a slightly wrong state has nearly the same local expectation values. Overlaps (echoes, fidelities, fidelity susceptibilities [18], [19], out-of-time-order correlators [20] built from forward and backward evolution) are unforgiving, because they are sensitive to the global phase relationships of all \(2^N\) amplitudes.
8. Head-to-head I: work–precision diagram at fixed \(N\)
8.1 Rules of the game
Task:\(|0\dots0\rangle\to e^{-iHT}|0\dots0\rangle\), \(T=5\), \(N=10\), the model of §3. Error:\(\|\psi-\psi_{\rm exact}\|\) against the dense solution — the most demanding measure, including the global phase.
Contestants: TEBD of order 1, 2, 4 for a range of \(dt\); Chebyshev in one step for a range of tolerances; adaptive Krylov with \(m=12\) and \(m=30\) for a range of tolerances.
Timing: every integrator is compiled into one XLA program; we report the first call (dominated by compilation) separately from the best of three subsequent calls, with block_until_ready. To keep compilation out of the \(dt\)-scan, the TEBD programs take the gate matrices and the number of steps as traced arguments (the loop is a lax.fori_loop, which accepts a traced trip count), so one compilation per order serves every \(dt\).
Work is also counted in a machine-independent currency, \(H\)-equivalents: one application of \(H\) costs one einsum per local term (\(2N-1\) of them). A TEBD step of order 1 applies \(2N-1\) gates (1 \(H\)-equivalent), order 2: two sweeps (2), order 4: five second-order steps (10). Chebyshev: \(K\); Krylov: \(m\) per step (its re-orthogonalisation is extra and shows up only in the wall time).
Numerical practice. Absolute wall times depend on the hardware and on whatever else the machine is doing (this notebook was executed on a shared multi-core CPU); conclusions should be drawn from ratios and slopes, which are robust. Re-run the cell on your machine — and on a GPU, where the large-\(N\) numbers change considerably.
Code
# ==============================================================================# STEP 6: the benchmark harness# ==============================================================================def make_tebd_runner(terms, order):"""jit-compiled (psi, gate_matrices, n_steps) -> psi for a fixed gate LAYOUT; matrices and n_steps are traced, so a single compilation serves every dt. Returns (runner, number of gates per step).""" layout = [q for q, _ in tebd_gates(terms, 0.1, order)]@jax.jitdef run(psi, mats, n_steps):def one_step(_, p):for q, U inzip(layout, mats): p = apply_gate(p, U, q)return preturn lax.fori_loop(0, n_steps, one_step, psi)return run, len(layout)def tebd_matrices(terms, dt, order):return [U for _, U in tebd_gates(terms, dt, order)]T_wp =5.0psi_exact_wp = exact_state(psi0_val, T_wp)n_terms_H =len(terms_val)records = [] # rows: (method, parameter label, H-equivalents, error, run time, first-call time)# --- TEBD, orders 1, 2, 4# (the grids stop where the curve is already a clean power law; the smallest first-order step below would need 5000 steps# and several seconds per timing repetition, for one more point on a straight line)tebd_grid = {1: (0.02, 0.01, 0.005, 0.002), 2: (0.1, 0.05, 0.02, 0.01, 0.005), 4: (0.25, 0.1, 0.05, 0.025, 0.0125)}for order, dts in tebd_grid.items(): runner, n_gates = make_tebd_runner(terms_val, order)for i, dt inenumerate(dts): n_steps =int(round(T_wp / dt)) t_first, t_run, out = timed(runner, psi0_val, tebd_matrices(terms_val, dt, order), n_steps, repeats=3) records.append((f"TEBD-{order}", f"dt={dt:g}", n_steps * n_gates / n_terms_H, float(jnp.linalg.norm(out - psi_exact_wp)), t_run, t_first if i ==0else np.nan)) # only the first dt of each order compiles# --- Chebyshev, single step of length Tfor tol in (1e-2, 1e-4, 1e-6, 1e-8, 1e-10, 1e-13): step, K = make_chebyshev_step(terms_val, bounds_val, T_wp, tol) t_first, t_run, out = timed(jax.jit(step), psi0_val, repeats=3) records.append(("Chebyshev", f"tol={tol:g}", K, float(jnp.linalg.norm(out - psi_exact_wp)), t_run, t_first))# --- adaptive Krylov, two subspace sizesfor m in (12, 30):for i, tol inenumerate((1e-2, 1e-4, 1e-6, 1e-8, 1e-10, 1e-12)): t_first, t_run, (out, n_a, _) = timed(krylov_adaptive_jit, matvec_val, psi0_val, T_wp, m, tol, repeats=3) records.append((f"Krylov m={m}", f"tol={tol:g}", int(n_a) * m, float(jnp.linalg.norm(out - psi_exact_wp)), t_run, t_first if i ==0else np.nan))print(f"{'method':12s} | {'parameter':10s} | H-equiv. | error | run [ms] | first call incl. compile [s]")for meth, par, work, err, t_run, t_first in records:print(f"{meth:12s} | {par:10s} | {work:8.0f} | {err:9.2e} | {1e3* t_run:8.1f} | "+ (""if np.isnan(t_first) elsef"{t_first:6.2f}"))
# ==============================================================================# FIGURE: work-precision diagram (left: operation count, right: measured wall time)# ==============================================================================style = {"TEBD-1": ("C3", "v"), "TEBD-2": ("C0", "o"), "TEBD-4": ("C1", "s"), "Chebyshev": ("C2", "D"), "Krylov m=12": ("C4", "^"), "Krylov m=30": ("C5", "P")}fig, axes = plt.subplots(1, 2, figsize=(14, 4.8))for meth, (col, mk) in style.items(): rows = [r for r in records if r[0] == meth] work, err, t_run = (np.array([r[i] for r in rows]) for i in (2, 3, 4)) axes[0].loglog(work, err, mk +"-", color=col, ms=5, label=meth) axes[1].loglog(1e3* t_run, err, mk +"-", color=col, ms=5, label=meth)w = np.array([1e2, 3e4])for meth, p in (("TEBD-1", 1), ("TEBD-2", 2), ("TEBD-4", 4)): r = [r for r in records if r[0] == meth][1] axes[0].loglog(w, r[3] * (w / r[2]) ** (-float(p)), ":", color=style[meth][0], lw=0.9)axes[0].plot([], [], "k:", lw=0.9, label="slopes $-1,-2,-4$")axes[0].set_xlabel("work [$H$-equivalents]"); axes[1].set_xlabel("wall time of the compiled run [ms]")for ax in axes: ax.set_ylim(1e-14, 10); ax.set_ylabel(r"error $\|\psi(T)-\psi_{\rm exact}(T)\|$"); ax.grid(alpha=0.3, which="both"); ax.legend(fontsize=8)axes[0].set_title(f"Work–precision diagram: N = {N_val}, T = {T_wp:g}"); axes[1].set_title("The same, in measured wall time")plt.show()
Interpretation. Pick an accuracy on the vertical axis and read off the cost horizontally.
TEBD follows its power laws (dotted: error \(\propto\) work\(^{-p}\)): every digit costs a factor \(10\) (order 1), \(\sqrt{10}\) (order 2), \(10^{1/4}\) (order 4) more work. First order is never competitive. Second order is the cheapest Trotter route to a rough answer (error \(\gtrsim10^{-2}\)); fourth order takes over below that and remains respectable down to \(\sim10^{-6}\)–\(10^{-8}\). Note, though, that even at \(10^{-2}\) the TEBD curves are not below the other two families — the polynomial methods are already at their threshold cost there.
Chebyshev and Krylov have nearly vertical curves: a threshold cost of about \(aT\approx90\) applications of \(H\), after which additional digits are almost free. Chebyshev is the cheapest of all below \(\sim10^{-4}\); Krylov with \(m=30\) costs up to about twice as many \(H\) applications (restart overhead: every step must again “fill” its subspace) and with \(m=12\), whose steps are much shorter, up to nine times as many at the tightest tolerance — still far ahead of TEBD at high accuracy.
In wall time Krylov pays additionally for re-orthogonalisation and for handling \(m\) vectors, and Chebyshev, a single scan with no restarts, gains. At the roughest accuracy (\(\gtrsim10^{-2}\)) second-order TEBD is level with Chebyshev or faster; below that the ranking is the same as in the operation count.
Compilation (last column of the table) costs between a few hundredths of a second and about a second — comparable to, and for most entries larger than, the compiled run itself at \(N=10\). At small \(N\) compile time is what you wait for, and it matters only that we compile once. TEBD-4, whose step contains \(10(2N-1)\) gates, produces the largest program to compile; the Krylov entries look cheap only because the identical program (same static \(m\)) was already compiled in §5.2 and comes straight from JAX’s cache.
9. Head-to-head II: scaling with the system size at fixed accuracy
9.1 Protocol
The second question is how the contestants scale with \(N\). We fix the task (\(T=2\), the same quench) and an accuracy target of \(10^{-4}\) in the state norm, a level at which TEBD is still in the game. The TEBD steps are calibrated on the \(N=10\) chain, where the error is measured against the dense solution and the step is set from the known error law \(\varepsilon\propto dt^{p}\); the same steps are then used for all \(N\) (the Trotter error grows slowly with \(N\), which we monitor). Chebyshev and adaptive Krylov (\(m=20\)) are simply given the tolerance. For \(N\le10\) errors are measured against the dense solution; for larger \(N\), where no dense solution is affordable, we use as reference a Chebyshev run at tolerance \(10^{-13}\) — legitimate because that propagator has been validated to \(\sim10^{-13}\) against exact results and its accuracy does not depend on \(N\) — and we cross-check it against the independent Krylov result. (Timing here: first call separately, then one timed repetition per entry — six sizes times four methods times the \(N=16\) runs would otherwise cost several extra minutes. The wall times therefore carry more noise than those of §8.)
# ==============================================================================# FIGURE: run time and first-call (compile) time versus N, plus the dense reference of section 6# ==============================================================================fig, axes = plt.subplots(1, 2, figsize=(14, 4.6))style_sc = {"TEBD-2": ("C0", "o"), "TEBD-4": ("C1", "s"), "Chebyshev": ("C2", "D"), f"Krylov m={M_SC}": ("C4", "^")}for meth, (col, mk) in style_sc.items(): rows = [r for r in scaling if r[1] == meth] Ns = np.array([r[0] for r in rows]) axes[0].semilogy(Ns, [r[3] for r in rows], mk +"-", color=col, label=meth) axes[1].semilogy(Ns, [r[4] for r in rows], mk +"--", color=col, label=meth)Ns_ex = np.array(sorted(exact_times))axes[0].semilogy(Ns_ex, [exact_times[n] for n in Ns_ex], "k*-", ms=8, label="exact (dense), any $T$")ref_rows = [r for r in scaling if r[1] =="Chebyshev"]N_hi, t_hi = ref_rows[-1][0], ref_rows[-1][3]Ns_line = np.arange(10, SIZES[-1] +1)axes[0].semilogy(Ns_line, t_hi * (Ns_line / N_hi) **2*2.0** (Ns_line - N_hi), "k:", lw=0.9, label=r"$\propto N^2 2^N$")axes[0].semilogy(Ns_ex[-3:], exact_times[Ns_ex[-1]] *8.0** (Ns_ex[-3:] - Ns_ex[-1]), "k--", lw=0.9, label=r"$\propto 8^N$")axes[0].set_title(f"Run time to reach T = {T_sc:g} with error $\\leq 10^{{-4}}$"); axes[1].set_title("First call = compilation + run")for ax in axes: ax.set_xlabel("number of spins $N$"); ax.set_ylabel("time [s]"); ax.grid(alpha=0.3, which="both"); ax.legend(fontsize=8)plt.show()
Interpretation.
Accuracy. All contestants land at the \(10^{-4}\) level at every size (Chebyshev overshoots it by about 10 %, because its tolerance is imposed on the last Bessel coefficient kept, not directly on the state error). The TEBD error at fixed \(dt\) creeps up with \(N\) (more bonds, more commutators) but stays below the target thanks to the calibration margin; Chebyshev and Krylov control their error themselves, independently of \(N\). The two independent tight references agree to \(\sim10^{-12}\) at every \(N\), which is what entitles us to use one of them where no dense solution exists.
Small systems (\(N\lesssim10\)). Run times are dominated by per-operation overheads rather than arithmetic, and are all in the millisecond range. A single propagation is much faster with Chebyshev or Krylov than with the dense solution even at \(N=8\). The dense solution keeps one unique advantage: after one diagonalisation, any further time \(t\) costs one matrix–vector product, which makes it the natural reference for whole trajectories at \(N\lesssim10\).
Large systems. From \(N\approx12\) on the four matrix-free curves are roughly parallel straight lines on the logarithmic plot — the exponential \(2^N\) growth of the state vector, mildly enhanced by the extra factors of \(N\) in the cost model — while the dense solution follows its much steeper \(8^N\) law and leaves the plot. The individual factors are noisy: the measured jump per two added spins scatters by up to a factor of a few in either direction around the value \(4\) that \(2^N\) alone would give, because at these sizes the state still fits in the processor caches and wall times on a shared machine are noisy. The ratios between the methods at a given \(N\), which is what this comparison is about, are far more stable. At this modest accuracy target Chebyshev, fourth-order TEBD and Krylov end up within a small factor of each other, with Chebyshev and fourth-order TEBD the fastest and second-order TEBD — which needs by far the most steps — the slowest. Tightening the target by four orders of magnitude would shift the two TEBD curves up by factors \(\sim100\) (order 2) and \(\sim10\) (order 4) and leave the other two almost unchanged (§8). Note also the different growth with \(N\) at fixed \(T\): a TEBD step costs \(\propto N2^N\), whereas Chebyshev and Krylov need \(\propto a\,T\propto N\) applications of \(H\), so their cost grows as \(N^22^N\) — an extra factor \(N\), the price of resolving the growing spectral width. The extra factor is smaller than it looks, because the number of TEBD steps here is \(N\)-independent only by construction: the step was calibrated once at \(N=10\), and the error column shows it creeping up with \(N\). The Trotter error is extensive (notebook 12, Trotter–Suzuki evolution, Section 7.3), so holding the accuracy fixed requires \(dt\propto N^{-1/p}\) and TEBD-\(p\) costs \(\propto N^{1+1/p}2^N\). At equal accuracy, the asymptotic advantage of TEBD over the polynomial methods in \(N\) is therefore \(N^{1-1/p}\), that is \(\sqrt N\) at order 2 and \(N^{3/4}\) at order 4.
Compilation. The first call (right panel) traces and compiles the whole program before running it once. Up to \(N\approx12\) that dominates: for most contestants the first call costs several times the run that follows. The compile times themselves all sit within a factor of a few of each other (a fraction of a second at small \(N\), one to a few seconds at \(N=16\)) and grow slowly with \(N\) — what matters in practice is only that you compile once and then loop.
9.2 Memory
Memory, not time, is what finally limits state-vector methods. In units of one state vector (\(16\cdot2^N\) bytes in double precision):
Code
# ==============================================================================# TABLE: memory footprint of the integrators (in state vectors and in GB)# ==============================================================================vec_GB =lambda N: 16*2.0** N /1e9print(f"{'method':28s} | state vectors | "+" | ".join(f"N={N:2d} [GB]"for N in (16, 20, 24, 28, 30)))for name, nvec in (("TEBD (in/out)", 2), ("Chebyshev (3 carry + 1 tmp)", 4), ("Krylov m=12 (m + 2)", 14), ("Krylov m=30 (m + 2)", 32)):print(f"{name:28s} | {nvec:13d} | "+" | ".join(f"{nvec * vec_GB(N):10.3f}"for N in (16, 20, 24, 28, 30)))print(f"{'exact: H, V, work (3 x 4^N)':28s} | {'--':>13s} | "+" | ".join(f"{3*16*4.0** N /1e9:10.3g}"for N in (16, 20, 24, 28, 30)))
Interpretation. In 16 GB TEBD reaches \(N=28\) (\(8.6\) GB; \(N=29\) would need \(17.2\)), Chebyshev \(N=27\) and Krylov with \(m=30\) only \(N=24\): three to four spins fewer. (These are counts of full-size arrays that the algorithm must hold; the XLA compiler may add temporaries.) This is the main practical argument for Chebyshev over Krylov at the largest sizes, and for keeping \(m\) small in Krylov codes.
short steps with the midpoint \(H\); the time dependence then caps the accuracy at \(\mathcal O(dt^2)\) whatever \(m\)
beyond state vectors
no
yes: matrix-product states (truncation after each gate), noisy circuits, hardware
awkward (many MPS additions)
possible but costly (MPS Krylov)
sweet spot
\(N\le10\)–\(12\); every validation
rough-to-moderate accuracy (\(10^{-2}\)–\(10^{-6}\)), dense output in time, time-dependent protocols, circuits, MPS
high accuracy, long times, largest \(N\) that fits in memory, time-independent \(H\)
high accuracy with guaranteed error, unknown spectrum, moderate \(N\), time-dependent \(H\) with short steps, non-unitary generalisations (Arnoldi)
The row beyond state vectors draws on the review [21], which compares TEBD, global and local Krylov methods and the time-dependent variational principle for matrix-product states ([22]; Chebyshev methods for MPS are only referenced there); every other entry is measured in this notebook or in the two preceding ones. A comparison of the same kind for wave-packet dynamics on a grid is Ref. [23].
Rules of thumb.
Always validate a new simulation against the dense solution at \(N\le10\) — for all the methods above this costs seconds.
Need only local observables of a generic chain at percent accuracy? Second-order TEBD with \(dt\approx0.05\)–\(0.1\) (in units of the inverse coupling) is simple, robust and hard to beat; use fourth order if you need \(10^{-4}\)–\(10^{-6}\) in the state. The distinction matters: at \(dt=0.05\) the TEBD-2 state error at \(T=5\) is \(10^{-2}\) (§8), while the error of a local expectation value is about an order of magnitude smaller and does not grow with \(N\) (notebook 12, Trotter–Suzuki evolution, Section 7.3).
Need echoes, overlaps, long times, or a reference solution? Chebyshev (largest \(N\), time-independent \(H\)) or adaptive Krylov (automatic error control, no spectral bounds).
The Hamiltonian depends on time? TEBD, or Krylov with short steps; Chebyshev only if \(H\) is piecewise constant. Freezing \(H\) at the step midpoint is the lowest-order Magnus [24] or midpoint rule with a local error \(\mathcal O(dt^3)\) and a global error \(\mathcal O(dt^2)\), so \(dt\) is again set by accuracy and the long steps of §5 are wasted (Exercise 7).
\(N>30\)? None of the above in state-vector form — go to matrix-product states with TEBD, which works as long as the entanglement stays moderate.
Open systems with a non-Hermitian generator? The Chebyshev expansion as presented requires a real spectrum; the Krylov idea survives with the Arnoldi iteration [25] (full orthogonalisation, upper-Hessenberg instead of tridiagonal matrix); Trotterised Kraus steps and Runge–Kutta are the simple alternatives used in this course.
11. Summary — key takeaways
All polynomial propagators live in the Krylov space \(\mathrm{span}\{\psi,H\psi,\dots,H^{m-1}\psi\}\). Projecting the Schrödinger equation onto it (Galerkin) gives \(|\psi_m(t)\rangle=\|\psi\|V_me^{-iT_mt}e_1\) with the tridiagonal Lanczos matrix \(T_m\): a \(2^N\)-dimensional exponential is replaced by an \(m\times m\) one.
The Krylov step is exact through order \(t^{m-1}\) (one-step error \(\propto dt^m\), measured slopes \(\approx m\)) and is quasi-optimal: within a factor \(2\) of the best polynomial of degree \(m-1\), Eq. (2a). Hence super-exponential convergence once \(m\gtrsim a\,dt\), Eq. (2b), with \(a\) the spectral half-width — the bound is invariant under \(H\to H+c\), so \(\|H\|\) is irrelevant. For ten digits, \(m\gtrsim a\,dt+15\) (measured). Per step this costs 8–17 % fewer \(H\) applications than Chebyshev and needs no spectral bounds, but it stores \(m\) vectors and must re-orthogonalise.
Norm and energy are conserved exactly by construction — and are therefore no accuracy diagnostics. The right diagnostic is the residual: \(\|\text{error}\|\le\beta_m\int_0^t|c_m(s)|ds\), computable from the small matrix alone, tight within a factor \(\sim1\)–\(3\), and the basis of automatic step-size control with lax.while_loop.
The exact dense solution costs \(\mathcal O(8^N)\) time and \(\mathcal O(4^N)\) memory: unbeatable for \(N\le8\)–\(10\) and indispensable for validation, hopeless beyond \(N\approx14\).
Integrators are compared at equal accuracy in work–precision diagrams: TEBD follows power laws (a fixed factor of work per digit); Chebyshev and Krylov have a threshold cost \(\approx aT\) applications of \(H\) and then give digits almost for free. For our chain the polynomial methods are already level with TEBD at a state error of \(10^{-2}\) and pull ahead with every further digit.
At fixed modest accuracy all matrix-free methods scale as \(\sim N^{1\text{–}2}2^N\) in time; memory (2, 4, \(m+2\) vectors) decides the largest reachable \(N\).
Whether an integrator is accurate enough depends on the observable: local expectation values are forgiving, overlaps such as the Loschmidt echo are not.
Benchmark practice: compile once, time the second call, block_until_ready, best of several runs, equal accuracy, validated references — and state clearly what was measured and what was extrapolated.
12. Exercises
★ Exactness for polynomials. Verify numerically property (a) of §2.4: for \(m=6\) compare \(V_mT_m^je_1\) with \(H^jv_1\) for \(j=0,\dots,7\) (use lanczos_basis and repeated matvec_val). For which \(j\) does the identity fail first, and by how much? Relate the size of the failure to \(\beta_1\cdots\beta_m\). (Compare absolute norms: \(\|H^j v_1\|\) grows like \(\|H\|^j\), so for \(j\le m-1\) the agreement is limited by rounding to about \(\|H\|^{j}\varepsilon\), not by the identity.)
★ Invariant subspaces. Start lanczos_basis from a state that is a superposition of only three eigenvectors of \(H\) (take them from the dense diagonalisation at \(N=8\)) with \(m=10\). Print betas: where does the iteration break down? Check that krylov_step is nevertheless exact for any \(dt\).
★★ No re-orthogonalisation. Write a variant of lanczos_basis using only the three-term recurrence. Plot \(\max|V^\dagger V-1|\) versus \(m\) up to \(m=80\) and the error of the Krylov step at \(dt=1\) with and without re-orthogonalisation. Is the propagated state as sensitive as the orthogonality? (This is a classical and somewhat surprising observation about Lanczos.) Then repeat at \(dt=8\), where \(m=80\) is still far from convergence, and record \(\big|\,\|\psi_m\|-1\big|\) in both cases: in which regime does the exact norm conservation of §2.4(b) actually break down?
★★ Energy conservation versus accuracy (physics/numerics). Run chained Krylov steps with \(m=4\), \(dt=0.2\) up to \(T=5\) at \(N=10\) and record energy, norm and the state error against exact_state. Do the same with TEBD-2. Which diagnostics reveal the error of which method?
★★ Observables on a time grid (extend the code). Combine krylov_adaptive_evolve with output at prescribed times \(t_n=n\,\Delta t\): an outer lax.scan over \(n\) whose body calls the adaptive evolution for the interval \(\Delta t\) and then measures \(\langle Z_j\rangle\). Compare the number of \(H\) applications with a fixed-step Krylov trajectory of the same accuracy.
★★ Dynamical quantum phase transition (physics). For the transverse-field Ising chain (heisenberg_terms(N, Jxx=0, Jyy=0, Jzz=-1, hx=h)) quench from \(|0\dots0\rangle\) (the \(h=0\) ground state) to \(h=0.5\) and to \(h=2\). Compute the rate function \(\lambda(t)=-\tfrac1N\ln\mathcal L(t)\) for \(N=8,12,16\) up to \(t=5\) with Chebyshev or Krylov. For which quench do sharp features (cusps in the limit \(N\to\infty\)) develop, and at what times? (Compare with [15], which predicts cusps only for quenches across the critical point \(h=1\).) Repeat with TEBD-2 at \(dt=0.1\): can you trust its cusps?
★★★ Time-dependent Hamiltonian (extend the code). Let \(h_x(t)=1+0.5\sin(\omega t)\). Implement a Krylov integrator that uses the midpoint Hamiltonian \(H(t+dt/2)\) in every step (pass \(h_x\) as a traced argument of the matvec), and the analogous TEBD-2. Both are second order in \(dt\) because of the time dependence — verify the slope, and explain why the large Krylov step is of no use here unless \(\omega\,dt\ll1\).
★★★ GPU shoot-out. If you have a GPU, set DEVICE = "gpu" and repeat §9 up to the largest \(N\) that fits. How do the ratios between methods change? (Hint: the re-orthogonalisation of Krylov is a dense matrix–vector product, which GPUs love; the many small einsums of TEBD at small \(N\) are dominated by kernel-launch overhead.)
13. References
[1] H. F. Trotter, On the product of semi-groups of operators, Proc. Amer. Math. Soc. 10, 545 (1959) — the product formula behind Trotterised time evolution.
[2] M. Suzuki, Fractal decomposition of exponential operators with applications to many-body theories and Monte Carlo simulations, Phys. Lett. A 146, 319 (1990) — higher-order Trotter–Suzuki formulas.
[3] H. Tal-Ezer and R. Kosloff, An accurate and efficient scheme for propagating the time dependent Schrödinger equation, J. Chem. Phys. 81, 3967 (1984) — Chebyshev propagator.
[4] T. J. Park and J. C. Light, Unitary quantum time evolution by iterative Lanczos reduction, J. Chem. Phys. 85, 5870 (1986) — the Krylov/Lanczos propagator.
[5] R. B. Sidje, Expokit: a software package for computing matrix exponentials, ACM Trans. Math. Softw. 24, 130 (1998) — adaptive Krylov time stepping in practice: the local error estimate of §5.1 and a step-size controller \(\tau_{k}=0.9\,(\texttt{tol}/\varepsilon_k)^{1/(m-1)}\tau_{k-1}\).
[6] C. Moler and C. Van Loan, Nineteen dubious ways to compute the exponential of a matrix, twenty-five years later, SIAM Review 45, 3 (2003) — the survey of all the alternatives; its “Method 20” is the Krylov approach of this notebook.
[7] C. Lanczos, An iteration method for the solution of the eigenvalue problem of linear differential and integral operators, J. Res. Natl. Bur. Stand. 45, 255 (1950).
[8] Y. Saad, Analysis of some Krylov subspace approximations to the matrix exponential operator, SIAM J. Numer. Anal. 29, 209 (1992) — a priori and a posteriori error estimates for Krylov approximations of \(e^{A}v\), and the error expansion series on which Expokit’s estimates are built.
[9] M. Hochbruck and C. Lubich, On Krylov subspace approximations to the matrix exponential operator, SIAM J. Numer. Anal. 34, 1911 (1997) — sharp convergence bounds; their Theorem 4 (skew-Hermitian generator, spectral interval of length \(4\rho\)) is Eq. (2b’) above, and they note that for such generators super-linear decay cannot be shown below \(m\approx\rho t\).
[10] L. Giraud, J. Langou, M. Rozložník and J. van den Eshof, Rounding error analysis of the classical Gram–Schmidt orthogonalization process, Numer. Math. 101, 87 (2005) — two passes of classical Gram–Schmidt are enough.
[11] G. H. Golub and C. F. Van Loan, Matrix Computations, 4th ed., Johns Hopkins University Press (2013) — Lanczos, Arnoldi, Gram–Schmidt and re-orthogonalisation (Ch. 10).
[12] W. H. Press, S. A. Teukolsky, W. T. Vetterling and B. P. Flannery, Numerical Recipes: The Art of Scientific Computing, 3rd ed., Cambridge University Press (2007) — §11.3–11.4 for the tridiagonal eigenproblem solved at every Krylov step, §2.7 for sparse matrix–vector products; the same algorithms in Numerical Recipes in Fortran 90, 2nd ed., CUP (1996).
[13] A. Peres, Stability of quantum motion in chaotic and regular systems, Phys. Rev. A 30, 1610 (1984).
[14] R. A. Jalabert and H. M. Pastawski, Environment-independent decoherence rate in classically chaotic systems, Phys. Rev. Lett. 86, 2490 (2001).
[15] M. Heyl, A. Polkovnikov and S. Kehrein, Dynamical quantum phase transitions in the transverse-field Ising model, Phys. Rev. Lett. 110, 135704 (2013) — Loschmidt echo and its non-analyticities.
[16] P. Jurcevic et al., Direct observation of dynamical quantum phase transitions in an interacting many-body system, Phys. Rev. Lett. 119, 080501 (2017).
[17] N. Fläschner et al., Observation of dynamical vortices after quenches in a system with topology, Nat. Phys. 14, 265 (2018).
[18] P. Zanardi and N. Paunković, Ground state overlap and quantum phase transitions, Phys. Rev. E 74, 031123 (2006).
[19] W.-L. You, Y.-W. Li and S.-J. Gu, Fidelity, dynamic structure factor, and susceptibility in critical phenomena, Phys. Rev. E 76, 022101 (2007).
[20] A. I. Larkin and Yu. N. Ovchinnikov, Quasiclassical method in the theory of superconductivity, Sov. Phys. JETP 28, 1200 (1969) — out-of-time-order correlators.
[21] S. Paeckel, T. Köhler, A. Swoboda, S. R. Manmana, U. Schollwöck and C. Hubig, Time-evolution methods for matrix-product states, Ann. Phys. 411, 167998 (2019) — the same family of integrators in the MPS world.
[22] J. Haegeman, J. I. Cirac, T. J. Osborne, I. Pižorn, H. Verschelde and F. Verstraete, Time-dependent variational principle for quantum lattices, Phys. Rev. Lett. 107, 070601 (2011).
[23] C. Leforestier et al., A comparison of different propagation schemes for the time dependent Schrödinger equation, J. Comput. Phys. 94, 59 (1991) — the classic integrator shoot-out.
[24] W. Magnus, On the exponential solution of differential equations for a linear operator, Commun. Pure Appl. Math. 7, 649–673 (1954).
[25] W. E. Arnoldi, The principle of minimized iterations in the solution of the matrix eigenvalue problem, Q. Appl. Math. 9, 17–29 (1951).
Marcin Płodzień, PhD
Citation: M. Płodzień, Quantum Many-Body Simulation: from a single spin to quantum machine learning (2026), https://marcinplodzien.github.io/quantum-many-body-simulation/
