1. Introduction
Alice and Bob want to encrypt their messages with the one-time pad, and for that they need a long secret key: a string of uniformly random bits that both of them hold and that nobody else knows. They are far apart. Between them runs an optical fibre that Eve may tap, cut, or replace by equipment of her own, and a public line on which they can talk but on which Eve hears every word. On classical signals this problem has no solution without assumptions on Eve’s computing power, because Eve can copy every bit in transit and nobody would notice. The task of this notebook is to show how the rules of quantum mechanics derived in notebook 52, quantum rules, channels and capacities solve it: how Alice and Bob grow a secret key over a channel that Eve controls.
BB84 from end to end: Alice sends random states in random bases through a channel that Eve controls, Bob measures in random bases, and four public steps (sifting, parameter estimation, error correction, privacy amplification) turn the raw data into a shared secret key
Figure 1. The BB84 protocol from end to end. In the quantum stage Alice encodes a random bit in a randomly chosen basis, \(Z\) or \(X\), and sends the qubit; Eve may do anything to it; Bob measures in a basis of his own random choice (Section 4). The classical stage runs over the public authenticated channel, where Eve reads every message but cannot change any. Alice and Bob keep the rounds in which their bases agree (sifting), estimate the error rate \(Q\) on a random sample and abort if it is too large (parameter estimation), remove the remaining errors with public parity checks (error correction), and compress the corrected string with a random hash to remove whatever Eve may know (privacy amplification). The final key has about \(n\,[1-2h(Q)]\) bits for \(n\) sifted rounds (Section 7).
The idea. Alice encodes each key bit in one of two bases chosen at random, and she reveals the basis only after Bob has measured. While the qubit is in flight, Eve faces a state from a set of four nonorthogonal states and cannot read it without disturbing it (notebook 52, quantum rules, channels and capacities, Section 5). Every disturbance turns into errors between Alice’s and Bob’s bits, so by comparing a random sample of their bits in public, Alice and Bob measure the error rate and from it bound what Eve can know. Two classical steps then finish the job: parity checks remove the errors, and hashing removes Eve’s partial knowledge. The same protocol can be run with entangled pairs, and in that picture the security argument becomes transparent: a pair that is strongly correlated in two complementary bases, \(Z\) and \(X\), whose states overlap with probability \(1/2\), is close to a pure entangled state, and by monogamy such a pair leaves no room for Eve. A quantitative version of this argument, an uncertainty relation with quantum memory, gives the secret-key rate \(1-2h(Q)\), which is positive up to an error rate of \(11\,\%\).
Section 3 states what Alice and Bob want and what they have.
Section 4 builds the BB84 protocol with the engine: states and measurements, a vectorised simulation of many rounds, a worked table of ten rounds, sifting and error-rate estimation, error correction with public parity checks, privacy amplification with a random hash, and the final key.
Section 5 derives the error rate \(Q=1/4\) and Eve’s information of \(1/2\) bit of the intercept–resend attack, simulates it, and places it next to a probe attack of tunable strength.
Section 6 turns to entangled pairs: the BBM92 protocol, the source-replacement picture that shows its equivalence with BB84, and Ekert’s protocol with the CHSH test.
Section 7 derives the secret-key rate: bit and phase errors, the Devetak–Winter rate, the uncertainty relation with quantum memory, the rate \(1-2h(Q)\) and its threshold, the Werner-pair version, and a comparison with the key that the simulated protocol actually extracts at several error rates.
Section 8 gives an outlook on device-independent key distribution and its rate.
Section 9 lists the practical issues: loss, multi-photon pulses and decoy states, and attacks on detectors.
What you will learn
Physics and information
how BB84 turns random bases, sifting and public discussion into a shared secret key;
why intercepting and resending causes a \(25\,\%\) error rate, and how Eve’s information grows with the error rate;
why a BB84 sender is equivalent to a source of entangled pairs, and what the CHSH test adds;
the difference between bit errors and phase errors, and why phase errors bound Eve’s knowledge;
the key rate \(r=H(Z_A\vert E)-H(Z_A\vert B)\), the uncertainty relation \(H(Z_A\vert E)+H(X_A\vert B)\geq1\), and the BB84 rate \(1-2h(Q)\) with its \(11\,\%\) threshold;
what device independence means, and which imperfections of real devices have been exploited.
Numerical methods
a vectorised Monte Carlo simulation of protocol rounds with the engine’s measurement and noise functions;
conditional entropies with quantum side information from reduced density matrices;
statistical error bars on an estimated error rate, and their effect on the key length.
Implementation practice
states prepared with gates, measurements with measure_qubit, noise with apply_kraus_mcwf, all compiled with jax.jit and mapped over rounds with jax.vmap;
wrong controls that must fail: an Eve who knows the basis, a classically correlated source, uncorrected keys fed to the hash, and the uncertainty relation applied to a single party.
Configuration
Every notebook of this course starts with the same cell. Choose where to run (DEVICE) and the floating-point precision (PRECISION): "double" = float64/complex128 (default, recommended for physics), "single" = float32/complex64 (half the memory, faster on consumer GPUs, but watch the round-off). All code below derives its dtypes from RDTYPE/CDTYPE and its check tolerances from TOL, so nothing else needs to change.
Code
# ==============================================================================# CONFIGURATION -- adapt to your hardware, then run the notebook top to bottom# ==============================================================================DEVICE ="auto"# "auto": use a GPU if JAX finds one, else CPU | "cpu" | "gpu"PRECISION ="double"# "double": float64/complex128 | "single": float32/complex64import osif DEVICE =="cpu": os.environ["JAX_PLATFORMS"] ="cpu"# must be set BEFORE jax is importedimport stringfrom functools import partialimport mathimport numpy as npimport jaximport jax.numpy as jnpfrom jax import lax# Precision is configurable: "double" = float64/complex128 (default; needed for long time evolutions and# tight validation), "single" = float32/complex64 (half the memory, faster on consumer GPUs).jax.config.update("jax_enable_x64", PRECISION =="double")RDTYPE = jnp.float64 if PRECISION =="double"else jnp.float32 # real dtypeCDTYPE = jnp.complex128 if PRECISION =="double"else jnp.complex64 # complex dtype of all states/operatorsTOL =1e-10if PRECISION =="double"else1e-4# tolerance for sanity checks (asserts)_LETTERS = string.ascii_letters # the 52 einsum index labels a-z, A-Zimport timeimport matplotlib.pyplot as pltif DEVICE =="gpu"and jax.default_backend() =="cpu":print("WARNING: DEVICE='gpu' requested but JAX found no GPU -- running on CPU.")print(f"JAX {jax.__version__} | backend: {jax.default_backend()} | devices: {jax.devices()}")print(f"precision: {PRECISION} -> real {RDTYPE.__name__}, complex {CDTYPE.__name__}, check tolerance TOL={TOL:g}")
JAX 0.11.0 | backend: cpu | devices: [CpuDevice(id=0)]
precision: double -> real float64, complex complex128, check tolerance TOL=1e-10
2. Engine recap and helpers
A qubit is a tensor of shape \((2,)\) and two qubits a tensor of shape \((2,2)\); density matrices are density tensors. Alice prepares her states with apply_gate, Eve and Bob measure with measure_qubit, which returns a random outcome and the collapsed state, and channel noise acts with apply_kraus_mcwf, which applies one randomly chosen Kraus operator to a pure state, so that the average over many rounds is the channel. The helper cell repeats in compact form the entropy functions (the Shannon entropy was introduced in [1]) and the parity-check reconciliation of notebook 50, entropy and noisy channels, Section 6.3, and the random linear hash of notebook 51, secrecy and authentication, Section 9.2. Experiment \(i\) draws its random numbers from its own key jax.random.fold_in(MASTER, i).
Engine recap — the simulator primitives used in this notebook (click to expand)
# ==============================================================================# ENGINE RECAP: the functions of quantum_engine.py (SmoQ.jax) used in this notebook.# All of them are collected, with their mathematics, in the notebook# 'Building the quantum simulator engine'.# States are rank-N tensors of shape (2,)*N; every operator acts through ONE einsum.# ==============================================================================# ----------------------------------------------------------------------------# Elementary matrices: Paulis, Clifford generators, rotations# ----------------------------------------------------------------------------I2 = jnp.eye(2, dtype=CDTYPE)X = jnp.array([[0, 1], [1, 0]], dtype=CDTYPE)Y = jnp.array([[0, -1j], [1j, 0]], dtype=CDTYPE)Z = jnp.array([[1, 0], [0, -1]], dtype=CDTYPE)H = jnp.array([[1, 1], [1, -1]], dtype=CDTYPE) / jnp.sqrt(2.0) # Hadamard: Z-basis <-> X-basisS = jnp.array([[1, 0], [0, 1j]], dtype=CDTYPE) # phase gate, S^2 = ZSDG = S.conj().TP0 = jnp.array([[1, 0], [0, 0]], dtype=CDTYPE) # projector |0><0|P1 = jnp.array([[0, 0], [0, 1]], dtype=CDTYPE) # projector |1><1|CNOT = jnp.array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 0, 1], [0, 0, 1, 0]], dtype=CDTYPE)def ry(theta):"""Rotation about y: Ry(theta) = exp(-i theta Y/2) = [[cos, -sin], [sin, cos]](theta/2) (real matrix).""" c, s = jnp.cos(theta /2), jnp.sin(theta /2)return jnp.array([[c, -s], [s, c]], dtype=CDTYPE)def controlled(U):"""Controlled-U = |0><0| (x) 1 + |1><1| (x) U as a 4x4 block matrix (control = first qubit)."""return jnp.block([[jnp.eye(2, dtype=CDTYPE), jnp.zeros((2, 2), CDTYPE)], [jnp.zeros((2, 2), CDTYPE), U]])# ----------------------------------------------------------------------------# THE core primitive: a k-qubit operator acting on a tensor through ONE einsum# ----------------------------------------------------------------------------def apply_gate(psi, U, qubits):"""Apply a k-qubit operator U to the axes `qubits` of the tensor `psi`. MATH ---- One qubit (k=1), target q: psi'[s_0,..,a,..,s_{N-1}] = sum_b U[a,b] psi[s_0,..,b,..,s_{N-1}] Two qubits (k=2), targets (q1,q2); the 4x4 matrix is reshaped to U[a1,a2,b1,b2]: psi'[.., a1, .., a2, ..] = sum_{b1,b2} U[a1,a2,b1,b2] psi[.., b1, .., b2, ..] This IS the action of (1 x .. x U x .. x 1) -- written without ever building it. EINSUM TRANSLATION (generated automatically below) ------------------ N=3, q=1 : "db,abc->adc" d = new (output) index of qubit 1 N=4, q=(1,3) : "efbd,abcd->aecf" e,f = new indices of qubits 1 and 3 Recipe: label the axes of psi with letters a,b,c,...; give every target qubit a NEW letter (the next unused ones); U carries (new letters)+(old letters of the targets); the output is psi's labels with the target letters replaced by the new ones. IMPLEMENTATION NOTES -------------------- * reshape of U: (2^k,2^k) -> (2,)*2k. Row index = (a1..ak), column = (b1..bk), and the FIRST qubit in `qubits` is the most significant bit of the small matrix, i.e. it corresponds to the LEFT factor of kron(A,B). * `qubits` may be any distinct axes in any order: non-neighbouring gates cost the same. * U need not be unitary: projectors, Kraus operators and Hamiltonian terms reuse this. * psi may be ANY tensor with those axes of size 2: a state (rank N), a density tensor (rank 2N: ket axes 0..N-1, bra axes N..2N-1), ... COST O(2^k * 2^N) operations, O(2^N) memory (dense matrix: O(4^N) both). JAX `qubits` must be static Python ints (they define the einsum string); psi and U are traced, so the function can sit inside jit / grad / vmap / scan. """ qubits =tuple(int(q) for q in qubits) k, n =len(qubits), psi.ndim U = jnp.asarray(U, dtype=psi.dtype).reshape((2,) * (2* k)) # matrix -> rank-2k tensor inp =list(_LETTERS[:n]) # labels of psi's axes new = _LETTERS[n:n + k] # fresh labels for the outputs out = inp.copy()for a, q inzip(new, qubits): out[q] = a # target axes get the new labels sub =f"{''.join(new)}{''.join(inp[q] for q in qubits)},{''.join(inp)}->{''.join(out)}"return jnp.einsum(sub, U, psi)def apply_gate_dm(rho, U, qubits):"""Unitary on a density tensor: rho -> U rho U^dagger. MATH rho'[a..;a'..] = sum_{b,b'} U[a,b] rho[b..;b'..] U^*[a',b'] i.e. U acts on the KET axis q and the complex conjugate U^* on the BRA axis N+q. (A density matrix is "a state vector of 2N qubits": vectorisation |rho>> and U (x) U^* acting on it.) IMPLEMENTATION two calls of `apply_gate` -- the same einsum machinery, no new code. COST O(2^k 4^N). """ N = rho.ndim //2 rho = apply_gate(rho, U, qubits) # U on ket axesreturn apply_gate(rho, jnp.conj(jnp.asarray(U)), [N + q for q in qubits]) # U^* on bra axes# ----------------------------------------------------------------------------# State preparation# ----------------------------------------------------------------------------_KETS = {"0": [1, 0], "1": [0, 1], "+": [1, 1], "-": [1, -1], "r": [1, 1j], "l": [1, -1j]}def product_state(spec):"""Product state from a string, one character per qubit: product_state('01+-') = |0>|1>|+>|->. ('r','l' = the +1/-1 eigenstates of Y.) MATH psi[s_0,...,s_{N-1}] = v0[s_0] v1[s_1] ... v_{N-1}[s_{N-1}] EINSUM an outer product = einsum with NO summed index: "a,b,c->abc". A product state needs only 2N numbers; entanglement is what makes all 2^N necessary. """ vecs = [jnp.array(_KETS[c], dtype=CDTYPE) / jnp.linalg.norm(jnp.array(_KETS[c], dtype=CDTYPE))for c in spec] n =len(vecs) sub =",".join(_LETTERS[i] for i inrange(n)) +"->"+ _LETTERS[:n]return jnp.einsum(sub, *vecs)def bell_state(kind="phi+"):"""The four Bell states as (2,2) tensors: phi+- = (|00> +- |11>)/sqrt2, psi+- = (|01> +- |10>)/sqrt2.""" a =1/ np.sqrt(2) v = {"phi+": [a, 0, 0, a], "phi-": [a, 0, 0, -a], "psi+": [0, a, a, 0], "psi-": [0, a, -a, 0]}[kind]return jnp.array(v, dtype=CDTYPE).reshape(2, 2)def haar_state(key, N):"""Haar-random pure state: a complex Gaussian vector, normalised. (The Gaussian measure is unitarily invariant, so the direction is uniformly distributed.) `key` is an explicit JAX PRNG key -- same key, same state: reproducible science.""" k1, k2 = jax.random.split(key) v = jax.random.normal(k1, (2,) * N) +1j* jax.random.normal(k2, (2,) * N)return (v / jnp.linalg.norm(v)).astype(CDTYPE)def to_dm(psi):"""Pure state -> density TENSOR rho[s..; s'..] = psi[s..] psi^*[s'..] (rank 2N). An outer product: einsum "ab,AB->abAB" -- here via the equivalent tensordot(axes=0)."""return jnp.tensordot(psi, jnp.conj(psi), axes=0)def dm_matrix(rho):"""View a rank-2N density tensor as an ordinary 2^N x 2^N matrix (a reshape, no copy of meaning).""" d =int(round(np.sqrt(rho.size)))return rho.reshape(d, d)# ----------------------------------------------------------------------------# Reduced density matrices & observables (matrix-free)# ----------------------------------------------------------------------------def rdm(psi, keep):"""Reduced density matrix of the qubits `keep` from a PURE state: rho_A = Tr_B |psi><psi|. MATH rho_A[a, a'] = sum_{b} psi[a, b] psi^*[a', b] (a: indices of A, b: of the rest B) EINSUM TRANSLATION N=3, keep=(0,): "abc,Abc->aA" with operands psi, psi^* * letters of B (b,c) appear in BOTH operands and not in the output -> summed = traced out * the kept axis gets a different letter in the second operand -> stays open (a and A) The full |psi><psi| (4^N numbers) is never formed; cost O(2^N 2^|A|). Returns a (2^|A|, 2^|A|) matrix with row/column order following `keep`. """ keep =tuple(int(q) for q in keep) n, k = psi.ndim, len(keep) a =list(_LETTERS[:n]) b = a.copy()for new, q inzip(_LETTERS[n:n + k], keep): b[q] = new sub =f"{''.join(a)},{''.join(b)}->{''.join(a[q] for q in keep)}{''.join(b[q] for q in keep)}"return jnp.einsum(sub, psi, jnp.conj(psi)).reshape(2** k, 2** k)def rdm_dm(rho, keep):"""Partial trace of a density TENSOR (rank 2N), keeping the qubits `keep`. MATH rho_A[a,a'] = sum_b rho[a,b ; a',b] EINSUM N=2, keep=(0,): "abAb->aA" -- the letter b is REPEATED inside one operand and absent from the output: that is a trace over that pair of axes. """ keep =tuple(int(q) for q in keep) N = rho.ndim //2 ket =list(_LETTERS[:N]) bra = [(_LETTERS[N + q] if q in keep else ket[q]) for q inrange(N)] sub =f"{''.join(ket)}{''.join(bra)}->{''.join(ket[q] for q in keep)}{''.join(bra[q] for q in keep)}"return jnp.einsum(sub, rho).reshape(2**len(keep), 2**len(keep))# ----------------------------------------------------------------------------# State characteristics: entropies, fidelity, negativity# ----------------------------------------------------------------------------def von_neumann_entropy(rho_mat, base=2.0):"""S(rho) = -Tr(rho log rho) = -sum_i lambda_i log lambda_i (in bits for base=2). Eigenvalues are clipped at 1e-16 because 0*log(0) := 0 but log(0) = -inf numerically.""" lam = jnp.clip(jnp.linalg.eigvalsh(rho_mat), 1e-16, None)return-jnp.sum(lam * jnp.log(lam)) / jnp.log(base)def trace_distance(rho, sigma):"""D = (1/2)||rho - sigma||_1 = (1/2) sum_i |eigenvalue_i(rho - sigma)| (Hermitian difference)."""return0.5* jnp.sum(jnp.abs(jnp.linalg.eigvalsh(rho - sigma)))# ----------------------------------------------------------------------------# Measurements (Born rule, collapse, sampling)# ----------------------------------------------------------------------------_BASIS_ROT = {"Z": I2, "X": H, "Y": H @ SDG} # U maps the eigenbasis of the Pauli to |0>,|1>: P = U^dag Z Udef measure_qubit(key, psi, q, basis="Z"):"""Projective measurement of qubit q in the eigenbasis of X, Y or Z. Returns (outcome, post-state). MATH Born rule p(0) = <psi|P0_q|psi> = (rho_q)[0,0] (only the 1-qubit RDM is needed) collapse |psi> -> P_m|psi> / sqrt(p(m)) other bases measuring P = U^dag Z U == rotate with U, measure Z, rotate back with U^dag (X: U = H; Y: U = H S^dag). outcome 0 <-> eigenvalue +1, outcome 1 <-> eigenvalue -1. JAX no Python `if` on random data: `jnp.where` selects the projector, so the function is jit/vmap-able (vmap over keys = many independent shots). """ U = _BASIS_ROT[basis] psi = apply_gate(psi, U, [q]) p0 = jnp.real(rdm(psi, [q])[0, 0]) outcome = (jax.random.uniform(key) >= p0).astype(jnp.int32) proj = jnp.where(outcome ==0, P0, P1) psi = apply_gate(psi, proj, [q]) psi = psi / jnp.linalg.norm(psi)return outcome, apply_gate(psi, U.conj().T, [q])# ----------------------------------------------------------------------------# Noise channels (Kraus operators): density matrix and quantum-trajectory forms# ----------------------------------------------------------------------------def kraus_depolarizing(p):"""Depolarising channel rho -> (1-p) rho + (p/3)(X rho X + Y rho Y + Z rho Z). Kraus: sqrt(1-p) 1, sqrt(p/3) X, sqrt(p/3) Y, sqrt(p/3) Z. Bloch vector shrinks by 1 - 4p/3."""return jnp.stack([jnp.sqrt(1- p) * I2, jnp.sqrt(p /3) * X, jnp.sqrt(p /3) * Y, jnp.sqrt(p /3) * Z])def apply_kraus_mcwf(key, psi, kraus, qubits):"""Apply a channel to a PURE state stochastically (quantum trajectory / Monte-Carlo wave function). MATH choose branch m with probability p_m = ||K_m psi||^2 = Tr(K_m rho_A K_m^dag) then |psi> -> K_m|psi> / sqrt(p_m). Averaging |psi><psi| over many trajectories gives exactly sum_m K_m rho K_m^dag. WHY memory O(2^N) instead of O(4^N): open systems at the price of closed ones (times #trajectories, which are embarrassingly parallel -> jax.vmap over keys). IMPLEMENTATION probabilities come from the SMALL reduced density matrix (einsum "mab,bc,mac->m"); `K[m]` with a traced integer m is a gather, so everything stays jit-compatible. """ K = jnp.asarray(kraus, dtype=CDTYPE) r = rdm(psi, qubits) probs = jnp.real(jnp.einsum("mab,bc,mac->m", K, r, jnp.conj(K))) m = jax.random.categorical(key, jnp.log(jnp.clip(probs, 1e-300, None))) psi = apply_gate(psi, K[m], qubits)return psi / jnp.linalg.norm(psi)
Code
# ==============================================================================# PLOT STYLE + small helpers (entropies, reconciliation, hashing)# ==============================================================================PALETTE = ["#2a78d6", "#eb6834", "#1baf7a", "#eda100", "#e87ba4", "#4a3aa7"] # colour-blind-friendly, fixed orderMARKERS = ["o", "s", "^", "D", "v", "P"]plt.rcParams.update({"axes.prop_cycle": plt.cycler(color=PALETTE), "axes.grid": True,"grid.alpha": 0.3, "font.size": 10, "legend.frameon": False})MASTER = jax.random.PRNGKey(53) # one master key per run; experiment i uses fold_in(MASTER, i)def key_for(i):"""Independent key for experiment number i."""return jax.random.fold_in(MASTER, i)def numpy_rng(i):"""numpy Generator seeded from experiment key i (for public random choices: samples, permutations, hashes)."""return np.random.default_rng(int(jax.random.randint(key_for(i), (), 0, 2**31-1)))def h2(q):"""Binary entropy h(q) in bits; scalars and arrays, 0 log 0 = 0.""" q = np.asarray(q, dtype=float)with np.errstate(divide="ignore", invalid="ignore"): out =-q * np.log2(np.where(q >0, q, 1.0)) - (1- q) * np.log2(np.where(q <1, 1- q, 1.0))return out if out.ndim elsefloat(out)def shannon(probs):"""Shannon entropy in bits of a probability vector or table.""" p = np.asarray(probs, dtype=float).ravel() p = p[p >1e-15]returnfloat(-(p * np.log2(p)).sum()) +0.0def mutual_info(table):"""Mutual information I(X:Y) in bits of a joint table of counts or probabilities.""" t = np.asarray(table, dtype=float) t = t / t.sum()return shannon(t.sum(1)) + shannon(t.sum(0)) - shannon(t)def binom_se(p, n):"""Standard error of an observed frequency p from n independent trials."""returnfloat(np.sqrt(max(p * (1- p), 1e-300) / n))_vn_entropy = jax.jit(von_neumann_entropy)def S_vn(rho_mat):"""Von Neumann entropy S(rho) = -Tr rho log2 rho of a density MATRIX, as a Python float."""returnfloat(_vn_entropy(jnp.asarray(rho_mat, dtype=CDTYPE))) +0.0# ---- error correction: block parities + binary search in shuffled passes ----------def parity(v):returnint(np.sum(v) %2)def binary_search(a_blk, b_blk):"""Locate one error in a block whose parities differ; returns (index, number of parities revealed).""" lo, hi, revealed =0, len(a_blk), 0while hi - lo >1: mid = (lo + hi) //2 revealed +=1# Alice announces the parity of a[lo:mid] lo, hi = (lo, mid) if parity(a_blk[lo:mid]) != parity(b_blk[lo:mid]) else (mid, hi)return lo, revealeddef reconcile(a, b, L, passes, perm_rng):"""Shuffled passes of block parities + binary search. Returns (corrected b, number of parities revealed).""" b = b.copy(); n =len(a); leak =0for p inrange(passes): perm = np.arange(n) if p ==0else perm_rng.permutation(n) # public random permutation Lp = L *2**pfor start inrange(0, n, Lp): idx = perm[start:start + Lp] leak +=1# block parityif parity(a[idx]) != parity(b[idx]): j, r = binary_search(a[idx], b[idx]) leak += r b[idx[j]] ^=1return b, leak# ---- privacy amplification: k = G x mod 2 with a public random binary matrix G -------def random_hash(x, ell, seed, chunk=256):"""MATH k = G x (mod 2), G a uniformly random ell x n binary matrix generated from the public `seed`. IMPLEMENTATION G is generated in blocks of `chunk` rows and multiplied in floating point with RDTYPE (sums <= n < 2^24 are exact in single and double precision), so memory stays O(chunk * n). Alice and Bob call it with the same seed and get the same G. """ g = np.random.default_rng(seed) xf = np.asarray(x, dtype=RDTYPE) out = [np.zeros(0)]for start inrange(0, ell, chunk): G = g.integers(0, 2, (min(chunk, ell - start), len(x)), dtype=np.uint8).astype(RDTYPE) out.append((G @ xf) %2)return np.concatenate(out).astype(np.uint8)KET0, KET1 = product_state("0"), product_state("1")KETP, KETM = product_state("+"), product_state("-")
3. The task and the resources
Alice and Bob want a key with three properties: their two copies agree, the bits are uniformly random, and Eve knows essentially nothing about them. They have two resources.
A quantum channel from Alice to Bob, for example an optical fibre that carries single photons. Eve controls it completely: she may measure the photons, entangle them with probes of her own, or replace them.
A public authenticated classical channel. Eve reads every message on it but cannot change, insert or suppress messages. Authentication costs a short secret key shared in advance (notebook 51, secrecy and authentication, Sections 3.2 and 8.3), so the protocol grows a key from a shorter one.
The protocol may abort: if Alice and Bob see too much disturbance, they output no key. Eve can always force an abort, for instance by cutting the fibre, and no protocol can prevent that. What she must never achieve is a key that Alice and Bob accept and she knows. Security is a statement about this second event only.
4. The BB84 protocol
4.1 Four states in two bases
The first protocol of quantum key distribution was introduced in 1984 [2] and is called BB84 after the initials of its authors and its year. It uses the four states of two bases,
Alice prepares the state for bit \(a\) in basis \(x\) (\(x=0\) for \(Z\), \(x=1\) for \(X\)) as \(\vert\psi_{a,x}\rangle=H^x X^a\vert0\rangle\): an \(X\) gate writes the bit, and a Hadamard gate \(H\) turns the \(Z\) basis into the \(X\) basis. Bob measures in basis \(y\); a measurement in the \(X\) basis is a Hadamard followed by a \(Z\) measurement, since \(H\vert\pm\rangle\) equals \(\vert0\rangle\) or \(\vert1\rangle\). The Born rule gives the probability that Bob finds bit \(b\):
States of the same basis are orthogonal, so a measurement in the right basis returns Alice’s bit with certainty. States of different bases have overlap \(\vert\langle0\vert+\rangle\vert^2=1/2\), so a measurement in the wrong basis returns a uniformly random bit and carries no information about \(a\). The next cell prepares the four states with gates, checks them against the engine’s product states, and evaluates Eq. (2) for all sixteen combinations.
Code
# ==============================================================================# Eqs. (1)-(2): the four BB84 states prepared with gates, and Bob's outcome probabilities# ==============================================================================def prepare(a, x):"""Eq. (1): |psi_{a,x}> = H^x X^a |0> (a = bit, x = 0 for the Z basis, 1 for the X basis). a and x may be traced integers: jnp.where selects the gate, so the function can be jitted and vmapped.""" psi = apply_gate(KET0, jnp.where(a ==1, X, I2), [0])return apply_gate(psi, jnp.where(x ==1, H, I2), [0])for (a, x), ref, name in [((0, 0), KET0, "|0>"), ((1, 0), KET1, "|1>"), ((0, 1), KETP, "|+>"), ((1, 1), KETM, "|->")]:assertfloat(jnp.max(jnp.abs(prepare(a, x) - ref))) < TOLprint(f"bit {a}, basis {'ZX'[x]}: H^{x} X^{a}|0> = {name}")print("\nP(Bob finds b = a) Bob: Z X")for a in (0, 1):for x in (0, 1): row = []for y in (0, 1): psi_rot = apply_gate(prepare(a, x), jnp.where(y ==1, H, I2), [0]) # rotate to Bob's basis row.append(float(jnp.abs(psi_rot[a]) **2)) # Born rule, Eq. (2)assertabs(row[-1] - (1.0if x == y else0.5)) < TOLprint(f" Alice bit {a}, basis {'ZX'[x]}: {row[0]:.3f}{row[1]:.3f}")
bit 0, basis Z: H^0 X^0|0> = |0>
bit 1, basis Z: H^0 X^1|0> = |1>
bit 0, basis X: H^1 X^0|0> = |+>
bit 1, basis X: H^1 X^1|0> = |->
P(Bob finds b = a) Bob: Z X
Alice bit 0, basis Z: 1.000 0.500
Alice bit 0, basis X: 0.500 1.000
Alice bit 1, basis Z: 1.000 0.500
Alice bit 1, basis X: 0.500 1.000
Same basis: Bob finds Alice’s bit with probability \(1\); different bases: with probability \(1/2\), a coin toss. This table is the whole physics of BB84, and everything below is bookkeeping around it.
4.2 The protocol and a simulation of its rounds
The protocol has a quantum stage and a classical stage (Figure 1).
Preparation. In each round Alice draws a random bit \(a\) and a random basis \(x\) and sends \(\vert\psi_{a,x}\rangle\).
Measurement. Bob draws his own random basis \(y\), independently of Alice, measures, and records his bit \(b\).
Sifting. After all qubits have arrived, Alice and Bob announce their bases, but not their bits, and keep only the rounds with \(x=y\), about half of them. The kept bits form the sifted key.
Parameter estimation. They choose a random subset of the sifted rounds, announce those bits and compare them. The fraction of disagreements is the quantum bit error rate (QBER) \(Q\). The announced bits are discarded.
Abort test. If \(Q\) exceeds a threshold, they abort.
The order of the steps matters. The bases are announced only after Bob has measured, so while the qubit is in flight nobody except Alice knows its basis. If Eve knew the basis, she could measure in it, learn the bit, and resend an exact copy without causing any error; Section 5.2 runs this as a wrong control.
The function one_round below is one round of the quantum stage as a circuit. Alice prepares her state with prepare; Eve, with probability \(f\), measures in a basis \(x_E\) of her own choice and passes on the collapsed state (the intercept–resend attack of Section 5); the channel applies depolarising noise of strength \(p_{\rm dep}\) through apply_kraus_mcwf; Bob measures in his basis. A measurement in a basis given by a traced bit is done by measuring in both bases with the same random key and selecting one result with jnp.where, which keeps the function free of Python branches. simulate_rounds compiles the round with jax.jit and maps it over many independent keys with jax.vmap, so that, once compiled, \(10^5\) rounds take a fraction of a second.
For the depolarising channel two of the three Pauli errors flip a bit in either basis (\(X\) and \(Y\) flip a \(Z\) bit, \(Z\) and \(Y\) flip an \(X\) bit), so without Eve the error rate of the sifted rounds is
\[Q=\tfrac23\,p_{\rm dep}. \tag{3}\]
The cell ends with a check of Eqs. (2) and (3) on \(10^5\) rounds.
Code
# ==============================================================================# One round of BB84 with the engine; many rounds with jit + vmap# ==============================================================================ROUND_FIELDS = ("a", "x", "y", "b", "xE", "e", "attacked") # Alice bit/basis, Bob basis/bit, Eve basis/outcome/flagdef measure_in(key, psi, basis):"""Measure qubit 0 of psi in the Z basis (basis = 0) or the X basis (basis = 1); returns (bit, collapsed state).""" oz, pz = measure_qubit(key, psi, 0, "Z") ox, px = measure_qubit(key, psi, 0, "X")return jnp.where(basis ==1, ox, oz), jnp.where(basis ==1, px, pz)def one_round(key, f, p_dep, eve_knows_basis):"""One BB84 round: preparation, intercept-resend with probability f, depolarising noise p_dep, Bob's measurement. Returns the integers (a, x, y, b, xE, e, attacked).""" ka, kx, ky, kxe, kf, ke, kn, kb = jax.random.split(key, 8) a = jax.random.bernoulli(ka).astype(jnp.int32) # Alice's bit x = jax.random.bernoulli(kx).astype(jnp.int32) # Alice's basis y = jax.random.bernoulli(ky).astype(jnp.int32) # Bob's basis, independent of x xE = x if eve_knows_basis else jax.random.bernoulli(kxe).astype(jnp.int32) attacked = jax.random.uniform(kf) < f psi = prepare(a, x) e, psi_eve = measure_in(ke, psi, xE) # Eve measures ... psi = jnp.where(attacked, psi_eve, psi) # ... and resends the collapsed state psi = apply_kraus_mcwf(kn, psi, kraus_depolarizing(p_dep), [0]) # channel noise, one Kraus branch per round b, _ = measure_in(kb, psi, y) # Bob's measurementreturn jnp.stack([a, x, y, b, xE, e, attacked.astype(jnp.int32)])@partial(jax.jit, static_argnums=(1, 4))def _simulate(key, n, f, p_dep, eve_knows_basis):return jax.vmap(lambda k: one_round(k, f, p_dep, eve_knows_basis))(jax.random.split(key, n))def simulate_rounds(key, n, f=0.0, p_dep=0.0, eve_knows_basis=False):"""n independent BB84 rounds; returns a dict of numpy int arrays, one entry per field of ROUND_FIELDS.""" out = np.asarray(_simulate(key, n, float(f), float(p_dep), eve_knows_basis))return {name: out[:, i] for i, name inenumerate(ROUND_FIELDS)}# check Eq. (2) and Eq. (3) on 10^5 roundsP_DEP_CHECK =0.06r = simulate_rounds(key_for(1), 100_000, p_dep=P_DEP_CHECK)same = r["x"] == r["y"]Q_sim, Q_wrong = np.mean(r["a"][same] != r["b"][same]), np.mean(r["a"][~same] != r["b"][~same])print(f"fraction of rounds with equal bases: {same.mean():.4f} (expected 1/2)")print(f"error rate, equal bases: {Q_sim:.4f} +- {binom_se(Q_sim, same.sum()):.4f} (Eq. (3): 2 p_dep/3 = "f"{2* P_DEP_CHECK /3:.4f})")print(f"disagreement, unequal bases: {Q_wrong:.4f} (Eq. (2): 1/2)")assertabs(same.mean() -0.5) <5* binom_se(0.5, 100_000)assertabs(Q_sim -2* P_DEP_CHECK /3) <5* binom_se(2* P_DEP_CHECK /3, same.sum())assertabs(Q_wrong -0.5) <5* binom_se(0.5, (~same).sum())
Half of the rounds have equal bases, as expected for two independent fair choices. In those rounds the error rate is \(2p_{\rm dep}/3\), and in the other half Bob’s bit agrees with Alice’s only by chance. The unequal-basis rounds are discarded in sifting, which is why BB84 with equal basis probabilities loses half of its raw data.
4.3 Ten rounds by hand
The next cell follows ten noiseless rounds through preparation, measurement and sifting. An r marks Bob’s bit in a round with unequal bases, a uniformly random result of a wrong-basis measurement.
Code
# ==============================================================================# Ten rounds of BB84 without an eavesdropper# ==============================================================================r10 = simulate_rounds(key_for(511), 10) # a draw in which six of the ten rounds survive siftingstate_name = {(0, 0): "|0>", (1, 0): "|1>", (0, 1): "|+>", (1, 1): "|->"}kept = r10["x"] == r10["y"]rows = [("round", [str(i +1) for i inrange(10)]), ("Alice's bit a", [str(v) for v in r10["a"]]), ("Alice's basis", ["ZX"[v] for v in r10["x"]]), ("state sent", [state_name[(a, x)] for a, x inzip(r10["a"], r10["x"])]), ("Bob's basis", ["ZX"[v] for v in r10["y"]]), ("Bob's bit b", [f"{b}"if k elsef"{b} r"for b, k inzip(r10["b"], kept)]), ("kept after sifting", ["yes"if k else"-"for k in kept])]for label, cells in rows:print(f"{label:19s}"+"".join(f"{c:>6s}"for c in cells))sifted_a, sifted_b = r10["a"][kept], r10["b"][kept]print(f"\nsifted key: Alice {''.join(map(str, sifted_a))}, Bob {''.join(map(str, sifted_b))}")assert np.array_equal(sifted_a, sifted_b) # no noise, no Eve: the sifted keys agree
round 1 2 3 4 5 6 7 8 9 10
Alice's bit a 1 1 1 1 0 1 1 0 1 1
Alice's basis Z X X X X X X Z Z Z
state sent |1> |-> |-> |-> |+> |-> |-> |0> |1> |1>
Bob's basis Z Z Z X X X X X X Z
Bob's bit b 1 0 r 0 r 1 0 1 1 1 r 0 r 1
kept after sifting yes - - yes yes yes yes - - yes
sifted key: Alice 110111, Bob 110111
In the six rounds with equal bases Bob’s bit equals Alice’s. In the four others it is random; here all four happen to differ from Alice’s bit, an accident of a small sample, since on average half of them agree. Either way they carry no information about Alice’s bit, which is why sifting discards them. After sifting, Alice and Bob hold the same short string. Nobody else does: the bases were announced only after Bob’s measurement, and the bits themselves were never sent over the public channel.
4.4 Sifting and parameter estimation
From here on the protocol runs on a realistic number of rounds. Alice sends \(N=4\times10^4\) qubits through a depolarising channel with \(p_{\rm dep}=0.045\), so that Eq. (3) predicts \(Q=3\,\%\); at this point Alice and Bob do not know where the errors come from, and they attribute all of them to Eve. After sifting they pick a random \(10\,\%\) of the sifted rounds as test rounds, announce those bits, and count the disagreements. If \(k\) test rounds contain \(m\) errors, the estimate and its standard error are
because every test round is an independent trial with error probability \(Q\). The test rounds are chosen after all quantum signals have been measured, so Eve cannot know in advance which rounds will be checked; if she disturbs some fraction of the rounds, the test sample sees roughly the same fraction. Alice and Bob estimate the error rate separately in the two bases, \(\hat Q_Z\) from the test rounds in which both used \(Z\) and \(\hat Q_X\) from those in which both used \(X\), because the two numbers play different roles in Section 7. The pipeline below is written as a function of the noise strength, since Section 7.7 runs it again at several error rates.
Code
# ==============================================================================# Eq. (4): sifting and parameter estimation on 4 x 10^4 rounds# ==============================================================================N_SENT, TEST_FRACTION =40_000, 0.10def sift_and_estimate(rounds, rng):"""Sifting + parameter estimation. Returns the remaining key bits of Alice and Bob and the estimates.""" keep = np.where(rounds["x"] == rounds["y"])[0] # public: the bases agree n_test =int(round(TEST_FRACTION * keep.size)) test = np.zeros(keep.size, dtype=bool) test[rng.choice(keep.size, n_test, replace=False)] =True# public random choice, made afterwards a_s, b_s, basis_s = rounds["a"][keep], rounds["b"][keep], rounds["x"][keep] err = a_s != b_s est = {"n_sent": len(rounds["a"]), "n_sifted": keep.size, "k": n_test,"Q": err[test].mean(), "Q_Z": err[test & (basis_s ==0)].mean(), "Q_X": err[test & (basis_s ==1)].mean(),"k_Z": int(np.sum(test & (basis_s ==0))), "k_X": int(np.sum(test & (basis_s ==1)))} est["sigma"] = binom_se(est["Q"], n_test) # Eq. (4)return a_s[~test].astype(np.uint8), b_s[~test].astype(np.uint8), estP_DEP_MAIN =0.045# Eq. (3): Q = 0.03rounds = simulate_rounds(key_for(3), N_SENT, p_dep=P_DEP_MAIN)a_key, b_key, est = sift_and_estimate(rounds, numpy_rng(4))print(f"sent {est['n_sent']}, sifted {est['n_sifted']} ({est['n_sifted'] / est['n_sent']:.3f}), "f"test rounds k = {est['k']}, remaining key bits n = {a_key.size}")print(f"Q_hat = {est['Q']:.4f} +- {est['sigma']:.4f} (Q_Z = {est['Q_Z']:.4f} from {est['k_Z']} rounds, "f"Q_X = {est['Q_X']:.4f} from {est['k_X']} rounds; channel value 2 p_dep/3 = {2* P_DEP_MAIN /3:.4f})")print(f"true error rate of the remaining key bits (unknown to Alice and Bob): {np.mean(a_key != b_key):.4f}")assertabs(est["n_sifted"] / N_SENT -0.5) <5* binom_se(0.5, N_SENT)assertabs(est["Q"] -2* P_DEP_MAIN /3) <5* est["sigma"]assertabs(np.mean(a_key != b_key) - est["Q"]) <5* est["sigma"]
sent 40000, sifted 19779 (0.494), test rounds k = 1978, remaining key bits n = 17801
Q_hat = 0.0319 +- 0.0039 (Q_Z = 0.0369 from 1002 rounds, Q_X = 0.0266 from 976 rounds; channel value 2 p_dep/3 = 0.0300)
true error rate of the remaining key bits (unknown to Alice and Bob): 0.0303
Half of the \(4\times10^4\) rounds survive sifting, and the \(1978\) test rounds give an error rate within its standard error of \(0.4\,\%\) of the channel value \(3\,\%\); the error rate of the remaining key bits, which Alice and Bob cannot see, agrees with the estimate within the same margin. The test costs a tenth of the sifted rounds; Section 7.8 shows what a smaller sample would cost in another currency, the precision of \(\hat Q\).
4.5 Error correction
The remaining \(n\) key bits of Alice and Bob differ in a fraction \(Q\) of positions. Alice and Bob remove these errors with the parity-check reconciliation of notebook 50, entropy and noisy channels, Section 6.3: block parities, a binary search in each block whose parities differ, and several passes after public random permutations, with first-pass blocks of about \(0.73/\hat Q\) bits. Every announced parity is a bit that Eve hears, and the total, the leak, is at least \(n\,h(Q)\) (Eq. (24) there). To make sure that no error survived, Alice and Bob finally compare a \(64\)-bit random hash of their corrected strings, computed with the random linear hash; the \(64\) announced bits are added to the leak. Both parties announce parities here, so the exchange is interactive, while the key rate of Section 7.2 is stated for one-way error correction. The simulation counts every parity of Alice’s string that is announced as known to Eve; a full security analysis of interactive error correction is beyond this chapter.
All errors are gone, and the verification hashes agree. The reconciliation revealed somewhat more than the minimum \(n\,h(\hat Q)\), with an efficiency \(f_{\rm EC}=\text{leak}/[n\,h(\hat Q)]\) (the \(64\) verification bits not counted), in the range found in notebook 50, entropy and noisy channels, Section 6.3. Bob’s corrected string is now identical to Alice’s, but it is not yet secret: Eve heard every parity, and she may have learned something on the quantum channel.
4.6 Privacy amplification and the final key
The last step hashes the corrected string \(x\) of \(n\) bits to a key \(k=G\,x\bmod2\) of \(\ell\) bits with a public random binary matrix \(G\) (Eq. (15) of notebook 51, secrecy and authentication). The hash removes Eve’s knowledge if the key is shortened by an upper bound on what she knows plus a safety margin of \(s\) bits, Eq. (17) there. Eve’s knowledge has two parts: the leak of error correction, which Alice and Bob counted exactly, and what she learned on the quantum channel. Section 7 proves that the second part is at most \(n\,h(Q_X)\) bits for key bits from the \(Z\) basis, and \(n\,h(Q_Z)\) for key bits from the \(X\) basis. With \(\hat Q_X\approx\hat Q_Z\approx\hat Q\) the final key length is
In this section we take the bound \(n\,h(\hat Q)\) on trust; Section 7 derives it, and Section 7.8 explains why a careful protocol inserts a pessimistic value \(\hat Q+\mu\) instead of \(\hat Q\). We use \(s=50\). The wrong control hashes the strings without error correction: a single remaining error changes about half of the output bits, because each output bit is the parity of a random half of the input.
Code
# ==============================================================================# Eq. (5): privacy amplification and the final key# ==============================================================================S_MARGIN =50ell = n_key - leak -int(np.ceil(n_key * h2(est["Q"]))) - S_MARGIN # Eq. (5)seed_pa =int(rng_ec.integers(2**31)) # public seed, announced after ECk_alice = random_hash(a_key, ell, seed_pa)k_bob = random_hash(b_fixed, ell, seed_pa)print(f"n = {n_key} reconciled bits -> final key of l = {ell} bits ({ell / n_key:.3f} per key bit; "f"asymptotic 1 - 2h(Q_hat) = {1-2* h2(est['Q']):.3f})")print(f"Alice's key starts {''.join(map(str, k_alice[:40]))}")print(f"Bob's key starts {''.join(map(str, k_bob[:40]))}")print(f"keys identical: {np.array_equal(k_alice, k_bob)}; fraction of ones {k_alice.mean():.4f}")assert ell >0and np.array_equal(k_alice, k_bob)assertabs(k_alice.mean() -0.5) <5* binom_se(0.5, ell)# wrong control: hash the uncorrected stringsk_bob_raw = random_hash(b_key, ell, seed_pa)frac_diff = np.mean(k_alice != k_bob_raw)print(f"\nwrong control, no error correction: the hashed keys differ in {frac_diff:.3f} of their bits")assertabs(frac_diff -0.5) <5* binom_se(0.5, ell)
n = 17801 reconciled bits -> final key of l = 9632 bits (0.541 per key bit; asymptotic 1 - 2h(Q_hat) = 0.593)
Alice's key starts 0100001100011010010001011111111100100100
Bob's key starts 0100001100011010010001011111111100100100
keys identical: True; fraction of ones 0.5004
wrong control, no error correction: the hashed keys differ in 0.500 of their bits
From \(4\times10^4\) qubits sent, Alice and Bob end with a shared key of about \(10^4\) bits, \(0.54\) bits per reconciled bit, and the two copies agree bit for bit. Without error correction the hashed keys differ in half of their bits, which is the reason why the steps come in this order. The extracted fraction lies below the asymptotic value \(1-2h(\hat Q)\), because the reconciliation leaked more than \(n\,h(\hat Q)\) and the margin costs \(s\) bits; Section 7.7 compares the two over a range of error rates. What remains to be justified is the term \(n\,h(\hat Q)\) for Eve’s knowledge, and the rest of the notebook is about it.
5. The intercept–resend attack
5.1 The 25 % error rate
The simplest attack is for Eve to measure every qubit and send Bob a new one in the state she found. She does not know the basis, so she guesses it. Consider one sifted round, in which Alice and Bob use the same basis, and follow the two branches of Eve’s guess.
Right basis, probability \(1/2\). Eve finds Alice’s bit with certainty, resends exactly Alice’s state, and Bob, measuring in Alice’s basis, gets the right bit. No error.
Wrong basis, probability \(1/2\). Eve’s result is random, and she resends a state of the wrong basis. Bob measures in Alice’s basis and, by Eq. (2), gets a random bit: wrong with probability \(1/2\).
Only the second branch produces errors, so the error rate on the sifted key is
What does Eve learn? After the bases are announced she knows in which rounds she guessed right. In those she knows the bit exactly, and in the others her result is independent of it. Her information and Bob’s, per sifted round, are
where Bob’s value is the mutual information of a binary symmetric channel with flip probability \(1/4\). Eve knows more about the key than Bob. The attack is nevertheless harmless: it causes an error rate of \(25\,\%\), which Alice and Bob detect in parameter estimation, and they abort. If Eve attacks only a fraction \(f\) of the rounds, both numbers scale with \(f\),
The next cell runs the attack with the round simulator of Section 4.2 at \(f=0,\tfrac14,\tfrac12,\tfrac34,1\), with \(2\times10^4\) rounds each. Eve’s measurement is the engine’s measure_qubit, and what she resends is its collapsed state. Eve’s knowledge per sifted round is the plug-in mutual information, Eq. (10) of notebook 50, entropy and noisy channels evaluated on the observed frequencies, between Alice’s bit and Eve’s record, which is her outcome in the rounds that she attacked in the right basis and a blank symbol otherwise, since after the announcement of the bases she knows that her other results are worthless. The wrong control gives Eve the basis in advance: she then reads every bit without a single error, which is why the bases must stay secret until Bob has measured.
Code
# ==============================================================================# Eqs. (6)-(8): intercept-resend on a fraction f of the rounds# ==============================================================================def attack_statistics(rounds):"""QBER, Eve's and Bob's plug-in mutual information per sifted round, and the number of sifted rounds.""" s = rounds["x"] == rounds["y"] a, b = rounds["a"][s], rounds["b"][s] useful = (rounds["attacked"][s] ==1) & (rounds["xE"][s] == rounds["x"][s]) eve_record = np.where(useful, rounds["e"][s], 2) # 2 = blank: no information t_ae = np.zeros((2, 3)); np.add.at(t_ae, (a, eve_record), 1) t_ab = np.zeros((2, 2)); np.add.at(t_ab, (a, b), 1)return np.mean(a != b), mutual_info(t_ae), mutual_info(t_ab), s.sum()N_IR =20_000f_values = np.array([0.0, 0.25, 0.5, 0.75, 1.0])ir = np.array([attack_statistics(simulate_rounds(key_for(20+ i), N_IR, f=f)) for i, f inenumerate(f_values)])print(" f | QBER (Eq. (8): f/4) | I(A:E) (Eq. (8): f/2) | I(A:B) (1 - h(Q))")for f, (Qs, IAE, IAB, ns) inzip(f_values, ir):print(f" {f:.2f} | {Qs:.4f} ({f /4:.4f}) | {IAE:.4f} ({f /2:.4f}) | {IAB:.4f} ({1- h2(f /4):.4f})")assertabs(Qs - f /4) <5* binom_se(max(f /4, 1e-3), ns)assertabs(IAE - f /2) <0.02andabs(IAB - (1- h2(f /4))) <0.02assertabs(ir[-1, 0] -0.25) <5* binom_se(0.25, ir[-1, 3]) # Eq. (6)# wrong control: Eve knows the basis before she measuresQ_kb, IAE_kb, _, _ = attack_statistics(simulate_rounds(key_for(30), N_IR, f=1.0, eve_knows_basis=True))print(f"\nwrong control, Eve knows the basis: QBER = {Q_kb:.4f}, I(A:E) = {IAE_kb:.4f} bit per sifted round")assert Q_kb ==0.0and IAE_kb >0.999# plug-in I = empirical H(A), slightly below 1
wrong control, Eve knows the basis: QBER = 0.0000, I(A:E) = 1.0000 bit per sifted round
The simulated error rates follow \(f/4\) and Eve’s information follows \(f/2\) within their statistical spread, and the full attack gives the \(25\,\%\) of Eq. (6). Bob’s mutual information with Alice falls as \(1-h(Q)\), to \(0.19\) bits at \(f=1\), below Eve’s \(0.5\) bits; the two are equal near \(f=0.68\), where \(Q=17\,\%\). The wrong control shows the role of the secret basis: an Eve who knows it copies every bit perfectly, and Alice and Bob see nothing.

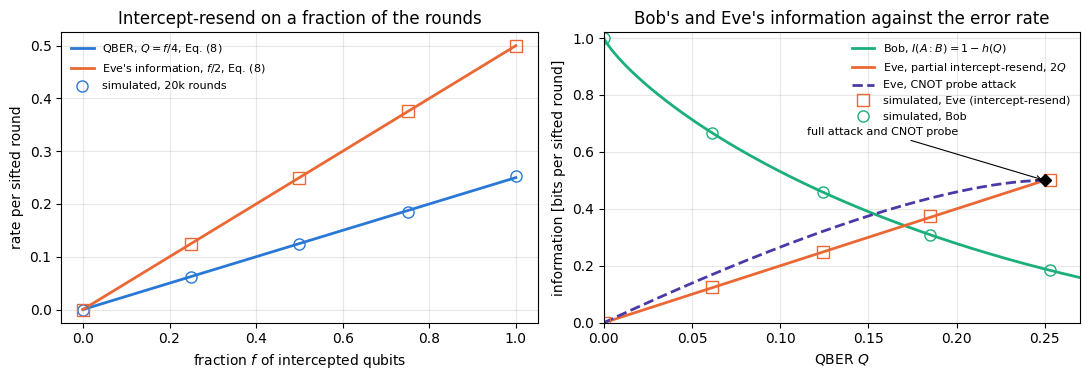

5.3 Intercept–resend and a probe attack of tunable strength
Intercept–resend is a crude attack: Eve learns everything about some rounds and nothing about the others. A gentler family, derived in notebook 52, quantum rules, channels and capacities, Section 5.2, is one in which Eve couples a probe to every qubit by a controlled rotation of strength \(\theta\) and measures the probe after the bases are announced; Eq. (8) there gives the error rate and Eve’s information as functions of \(\theta\). At \(\theta=\pi\) the controlled rotation is a CNOT, which copies the \(Z\) bit of the signal into the probe; Bob then sees \(Q=1/4\) and Eve holds \(1/2\) bit per sifted round, the same numbers as full intercept–resend. For weak coupling the probe attack is more efficient: there Eve’s information grows as \(2Q/\ln2\approx2.9\,Q\), against \(2Q\) for partial intercept–resend. The next cell checks the CNOT point with the engine and evaluates both curves for the figure.
Code
# ==============================================================================# The CNOT probe at theta = pi and the two attack curves# ==============================================================================def cnot_probe_attack():"""QBER and Eve's Helstrom information per sifted round when a CNOT copies the Z bit into a blank probe.""" Q_list, I_list = [], []for basis_states, wrong in (((KET0, KET1), (KET1, KET0)), ((KETP, KETM), (KETM, KETP))): out = [apply_gate(jnp.einsum("a,b->ab", s, KET0), CNOT, [0, 1]) for s in basis_states] Q_list.append(np.mean([float(jnp.real(jnp.vdot(w, rdm(o, [0]) @ w))) for o, w inzip(out, wrong)])) D =float(trace_distance(rdm(out[0], [1]), rdm(out[1], [1]))) # Eve's probes, Helstrom I_list.append(1- h2((1- D) /2))return np.mean(Q_list), np.mean(I_list)Q_cnot, I_cnot = cnot_probe_attack()print(f"CNOT probe: QBER = {Q_cnot:.4f}, Eve's information = {I_cnot:.4f} bit per sifted round (intercept-resend: "f"0.25, 0.5)")assertabs(Q_cnot -0.25) < TOL andabs(I_cnot -0.5) < TOLtheta = np.linspace(0, np.pi, 201)c = np.cos(theta /2)Q_probe = (1- c) /4# error rate caused by the CNOT probeI_probe =0.5* (1- h2((1- np.sqrt(1- c**2)) /2))small = (Q_probe >0) & (Q_probe <0.003)print(f"small-Q slope of the probe curve: {np.mean(I_probe[small] / Q_probe[small]):.3f} "f"(2/ln 2 = {2/ np.log(2):.3f}); partial intercept-resend: 2")assert np.all(I_probe[1:] >=2* Q_probe[1:] -1e-12) # the probe beats partial intercept-resendq_cross = np.linspace(1e-4, 0.25, 20001)Q_eq = q_cross[np.argmin(np.abs(1- h2(q_cross) -2* q_cross))] # Bob's = Eve's information, Eq. (8)print(f"partial intercept-resend: Eve knows more than Bob above Q = {Q_eq:.4f}")fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(11, 3.9))ff = np.linspace(0, 1, 101)ax1.plot(ff, ff /4, color=PALETTE[0], lw=2, label="QBER, $Q=f/4$, Eq. (8)")ax1.plot(ff, ff /2, color=PALETTE[1], lw=2, label="Eve's information, $f/2$, Eq. (8)")ax1.plot(f_values, ir[:, 0], MARKERS[0], color=PALETTE[0], mfc="none", ms=8, label=f"simulated, {N_IR //1000}k rounds")ax1.plot(f_values, ir[:, 1], MARKERS[1], color=PALETTE[1], mfc="none", ms=8)ax1.set_xlabel("fraction $f$ of intercepted qubits"); ax1.set_ylabel("rate per sifted round")ax1.set_title("Intercept-resend on a fraction of the rounds"); ax1.legend(fontsize=8, loc="upper left")qq = np.linspace(0, 0.27, 271)ax2.plot(qq, 1- h2(qq), color=PALETTE[2], lw=2, label="Bob, $I(A{:}B)=1-h(Q)$")ax2.plot(qq[qq <=0.25], 2* qq[qq <=0.25], color=PALETTE[1], lw=2, label="Eve, partial intercept-resend, $2Q$")ax2.plot(Q_probe, I_probe, color=PALETTE[5], lw=2, ls="--", label="Eve, CNOT probe attack")ax2.plot(ir[:, 0], ir[:, 1], MARKERS[1], color=PALETTE[1], mfc="none", ms=8, label="simulated, Eve (intercept-resend)")ax2.plot(ir[:, 0], ir[:, 2], MARKERS[0], color=PALETTE[2], mfc="none", ms=8, label="simulated, Bob")ax2.plot([0.25], [0.5], MARKERS[3], color="k", ms=6)ax2.annotate("full attack and CNOT probe", (0.25, 0.5), xytext=(0.115, 0.66), fontsize=8, arrowprops=dict(arrowstyle="->", lw=0.8))ax2.set_xlabel("QBER $Q$"); ax2.set_ylabel("information [bits per sifted round]")ax2.set_xlim(0, 0.27); ax2.set_ylim(0, 1.02)ax2.set_title("Bob's and Eve's information against the error rate"); ax2.legend(fontsize=8, loc="upper right")plt.tight_layout(); plt.show()
CNOT probe: QBER = 0.2500, Eve's information = 0.5000 bit per sifted round (intercept-resend: 0.25, 0.5)
small-Q slope of the probe curve: 2.883 (2/ln 2 = 2.885); partial intercept-resend: 2
partial intercept-resend: Eve knows more than Bob above Q = 0.1705
The engine reproduces the CNOT point exactly: \(Q=1/4\) and \(1/2\) bit, the same as full intercept–resend. In the right panel Bob’s information falls and Eve’s rises with the error rate. For partial intercept–resend the two cross at \(Q\approx17\,\%\), and the probe attack gives Eve more at every error rate below \(25\,\%\), with a slope near zero of \(2.9\) instead of \(2\). A small error rate therefore still means some leak, and the two attacks shown are only two of infinitely many. Alice and Bob cannot know which attack Eve used. They need a bound on Eve’s knowledge that holds for every attack compatible with the error rates they observe, and Section 7 derives it.
6. Entanglement-based key distribution
6.1 BBM92 and the source-replacement picture
Suppose that a source, which could be a third party Charlie or Eve herself, distributes pairs of qubits that should be in the Bell state \(\vert\Phi^+\rangle=(\vert00\rangle+\vert11\rangle)/\sqrt2\). Alice and Bob each measure their qubit in a randomly chosen basis, \(Z\) or \(X\), and sift as in BB84. In the \(Z\) basis the outcomes of \(\vert\Phi^+\rangle\) are equal; and since \(H\otimes H\) leaves \(\vert\Phi^+\rangle\) unchanged,
the outcomes are equal in the \(X\) basis too. Each outcome by itself is uniformly random. This is the protocol of [5], called BBM92.
Equation (9) says more. When Alice measures her half in the \(Z\) basis and finds \(a\), Bob’s qubit is left in \(\vert a\rangle\); when she measures in the \(X\) basis, Bob’s qubit is left in \(\vert+\rangle\) or \(\vert-\rangle\). In both cases each outcome has probability \(1/2\). Alice’s measurement therefore prepares exactly the four BB84 states, with a random bit in a basis of her choice, on Bob’s side. A BB84 sender is equivalent to a source of \(\vert\Phi^+\rangle\) in Alice’s own laboratory, followed by a measurement of her half: from outside the laboratory the two cannot be told apart. This is the source-replacement picture. Ref. [5] showed this equivalence, and its use is that security can be analysed for the entanglement-based protocol, where monogamy (notebook 52, quantum rules, channels and capacities, Section 6.2) is directly applicable, and then holds for prepare-and-measure BB84 as well.
The next cell measures Alice’s half of \(\vert\Phi^+\rangle\) with projectors, computes Bob’s conditional state with rdm, and compares it with the BB84 state of Eq. (1). It also checks that Bob’s state averaged over Alice’s outcomes is \(\mathbb 1/2\) for both of Alice’s bases, so that Bob cannot learn the basis from his qubit (no-signalling, Eq. (9) of notebook 52, quantum rules, channels and capacities). The wrong control is the classically correlated source \(\tfrac12(\vert00\rangle\langle00\vert+ \vert11\rangle\langle11\vert)\), which gives perfect \(Z\) correlations as well: an \(X\) measurement by Alice leaves Bob’s qubit maximally mixed, so this source cannot replace a BB84 sender.
Code
# ==============================================================================# Eq. (9): Alice's measurement on |Phi+> prepares the BB84 states on Bob's side# ==============================================================================PHI_PLUS = bell_state("phi+")bb84_state = {(0, 0): KET0, (1, 0): KET1, (0, 1): KETP, (1, 1): KETM}def alice_projector(a, x):"""Projector onto Alice's outcome a in basis x: |psi_{a,x}><psi_{a,x}|.""" v = prepare(a, x)return jnp.outer(v, jnp.conj(v))rho_cl = to_dm(jnp.einsum("a,b->ab", KET0, KET0)) /2+ to_dm(jnp.einsum("a,b->ab", KET1, KET1)) /2print("Alice's basis, outcome | prob. | fidelity of Bob's state with the BB84 state | classical source")for x in (0, 1): rho_B_avg = jnp.zeros((2, 2), dtype=CDTYPE)for a in (0, 1): phi = apply_gate(PHI_PLUS, alice_projector(a, x), [0]) # unnormalised post-measurement state prob =float(jnp.real(jnp.vdot(phi, phi))) rho_B = rdm(phi / np.sqrt(prob), [1]) # Bob's conditional state target = bb84_state[(a, x)] F =float(jnp.real(jnp.vdot(target, rho_B @ target))) rho_B_avg = rho_B_avg + prob * rho_B# wrong control: the same measurement on the classically correlated mixture r_cl = apply_gate_dm(rho_cl, alice_projector(a, x), [0]) r_cl_B = dm_matrix(rdm_dm(r_cl, [1])) F_cl =float(jnp.real(jnp.vdot(target, r_cl_B @ target) / jnp.trace(r_cl_B)))print(f" {'ZX'[x]}, a = {a} | {prob:.3f} |{F:28.6f} | {F_cl:.3f}")assertabs(prob -0.5) < TOL andabs(F -1) < TOLassertabs(F_cl - (1.0if x ==0else0.5)) < TOLassertfloat(jnp.max(jnp.abs(rho_B_avg - I2 /2))) < TOL # no-signalling: Bob sees 1/2 for both bases
Alice's basis, outcome | prob. | fidelity of Bob's state with the BB84 state | classical source
Z, a = 0 | 0.500 | 1.000000 | 1.000
Z, a = 1 | 0.500 | 1.000000 | 1.000
X, a = 0 | 0.500 | 1.000000 | 0.500
X, a = 1 | 0.500 | 1.000000 | 0.500
Alice’s four outcomes leave Bob’s qubit in the four BB84 states with fidelity one and probability \(1/2\) each, and Bob’s average state is \(\mathbb 1/2\) whichever basis Alice chose. The classical source passes the \(Z\) test but fails the \(X\) test: after an \(X\) measurement by Alice, Bob’s qubit has fidelity \(1/2\) with the expected state. Perfect correlations in one basis can come from a classical mechanism, and a copy of such a mechanism could sit with Eve (the GHZ control in notebook 52, quantum rules, channels and capacities, Section 6.2); correlations in two complementary bases cannot.
6.2 E91 and the CHSH test
The first entanglement-based protocol, in which the pairs are tested with a Bell inequality, was introduced in [6]. Alice measures \(\pm1\)-valued observables \(A_0\) or \(A_1\) and Bob \(B_0\) or \(B_1\), chosen at random, and from the rounds with each pair of settings they estimate the combination introduced in [7], derived in notebook 19, Bell states and CHSH,
Every local hidden-variable model, any mechanism in which the outcomes are fixed in advance by shared classical data, obeys \(\vert S\vert\leq2\) (Section 5 there), and quantum mechanics reaches \(2\sqrt2\) (Sections 7–8 there). With \(A_0=Z\), \(A_1=X\) and \(B_{0,1}=(Z\pm X)/\sqrt2\) the CHSH operator is
because \(B_0+B_1=\sqrt2Z\) and \(B_0-B_1=\sqrt2X\). For \(\vert\Phi^+\rangle\), \(\langle ZZ\rangle=\langle XX\rangle=1\) and \(S=2\sqrt2\). For the Werner pair of visibility \(v\)[8], \(\rho_W(v)=v\,\vert\Phi^+\rangle\langle\Phi^+\vert+(1-v)\,\mathbb 1/4\), the noise term has zero correlators, so \(\langle ZZ\rangle=\langle XX\rangle=v\) and \(S=2\sqrt2\,v\). The error rate in either basis is the probability of unequal outcomes, \(Q=(1-\langle ZZ\rangle)/2=(1-v)/2\), hence
\[S=2\sqrt2\,v=2\sqrt2\,(1-2Q). \tag{12}\]
A violation of the CHSH inequality, \(S>2\), shows that the outcomes were not all fixed in advance, so nobody, Eve included, could have known all of them before the measurement; Section 8 makes this quantitative. In E91 the key comes from rounds in which Alice and Bob measure along the same axis (for example a third setting \(B_2=Z\) for Bob that matches \(A_0\)), and the CHSH rounds serve as the test. The next cell computes \(S\) for Werner pairs with the engine, exactly from the density tensor and by sampling \(10^4\) shots per setting, measuring each observable \(\cos\theta\,Z+\sin\theta\,X\) by a rotation \(R_y(-\theta)\) followed by a \(Z\) measurement. The wrong control is again the classically correlated source, for which \(\langle ZZ\rangle=1\) and \(\langle XX\rangle=0\) give \(S=\sqrt2\).
Code
# ==============================================================================# Eqs. (10)-(12): CHSH for Werner pairs, exact and sampled# ==============================================================================CHSH_ANGLES = {"A0": 0.0, "A1": np.pi /2, "B0": np.pi /4, "B1": -np.pi /4} # A(theta) = cos Z + sin Xdef werner(v):"""Werner pair of visibility v, v |Phi+><Phi+| + (1 - v) 1/4, as a density tensor of shape (2, 2, 2, 2)."""return v * to_dm(PHI_PLUS) + (1- v) * jnp.eye(4, dtype=CDTYPE).reshape(2, 2, 2, 2) /4def outcome_probs(rho, theta_a, theta_b):"""p(s_A, s_B) for the observables A(theta_a), A(theta_b): rotate with R_y(-theta), read the diagonal.""" r_ = apply_gate_dm(apply_gate_dm(rho, ry(-theta_a), [0]), ry(-theta_b), [1])return np.clip(np.real(np.diag(np.asarray(dm_matrix(r_)))), 0, None) # order 00, 01, 10, 11SIGNS = np.array([1, -1, -1, 1]) # product of the two +-1 outcomesdef chsh(rho, shots=None, rng=None):"""Eq. (10) from exact probabilities, or from `shots` sampled outcomes per setting pair.""" S =0.0for (A, B), sign inzip((("A0", "B0"), ("A0", "B1"), ("A1", "B0"), ("A1", "B1")), (1, 1, 1, -1)): p = outcome_probs(rho, CHSH_ANGLES[A], CHSH_ANGLES[B])if shots isnotNone: p = rng.multinomial(shots, p / p.sum()) / shots S += sign *float(SIGNS @ p)return Srng_chsh = numpy_rng(40)SHOTS =10_000print(" v | S exact | 2 sqrt2 v | S sampled | QBER (1-v)/2 | 2 sqrt2 (1-2Q)")for v in (1.0, 0.9, 0.8, 0.7071, 0.6): S_ex, S_mc = chsh(werner(v)), chsh(werner(v), SHOTS, rng_chsh) Q_w =float(outcome_probs(werner(v), 0.0, 0.0)[[1, 2]].sum()) # unequal Z outcomesprint(f" {v:.4f} | {S_ex:.4f} | {2* np.sqrt(2) * v:.4f} | {S_mc:.3f} | {Q_w:.4f} | "f"{2* np.sqrt(2) * (1-2* Q_w):.4f}")assertabs(S_ex -2* np.sqrt(2) * v) <1e3* TOL andabs(Q_w - (1- v) /2) < TOL # Eq. (12)assertabs(S_mc - S_ex) <5*2/ np.sqrt(SHOTS) # 4 independent correlators, each with se <= 1/sqrt(shots)S_cl = chsh(rho_cl)print(f"\nwrong control, classically correlated source: S = {S_cl:.4f} (sqrt 2 = {np.sqrt(2):.4f})")assertabs(S_cl - np.sqrt(2)) <1e3* TOL
v | S exact | 2 sqrt2 v | S sampled | QBER (1-v)/2 | 2 sqrt2 (1-2Q)
The exact values follow \(S=2\sqrt2\,v\), and \(10^4\) shots per setting reproduce them within the sampling error. A Werner pair violates the CHSH inequality for \(v>1/\sqrt2\approx0.707\), equivalently for an error rate below \((1-1/\sqrt2)/2=14.6\,\%\). The classical source stays at \(\sqrt2\), far inside the local bound. The CHSH value does more than detect noise: Section 8 shows that it can bound Eve’s knowledge even when nothing is known about the devices.
7. Security from monogamy and the secret-key rate
7.1 Bit errors and phase errors
Monogamy gives the qualitative argument. Suppose Alice and Bob find perfect correlations in both bases, \(\langle ZZ\rangle=\langle XX\rangle=1\). The Bell states are the common eigenvectors of \(Z\otimes Z\) and \(X\otimes X\), with eigenvalues
A state with \(\langle ZZ\rangle=1\) lives in the span of \(\vert\Phi^+\rangle\) and \(\vert\Phi^-\rangle\), and \(\langle XX\rangle=1\) then forces it onto \(\vert\Phi^+\rangle\), a pure state. By monogamy (notebook 52, quantum rules, channels and capacities, Section 6.2) a pure state of Alice and Bob is uncorrelated with every other system, so Eve knows nothing, and the \(Z\) outcomes are perfectly random and private.
With noise the argument becomes quantitative. It helps to give the two kinds of errors names. If Alice and Bob share a mixture of Bell states with weights \(\lambda_{\Phi^+},\lambda_{\Phi^-},\lambda_{\Psi^+},\lambda_{\Psi^-}\), Eq. (13) gives
Errors in the \(Z\) basis are bit errors: they make the \(Z\) keys of Alice and Bob differ and must be corrected, at a cost of \(h(Q_Z)\) bits per key bit. Errors in the \(X\) basis are phase errors: a \(\vert\Phi^-\rangle\) component, for example, is \(\vert\Phi^+\rangle\) with a \(Z\) error on one qubit, which changes no \(Z\) outcome. Phase errors therefore do not touch the \(Z\) key at all. What they measure is how far the pair is from the pure state \(\vert\Phi^+\rangle\), and hence how much room is left for Eve to be correlated with the \(Z\) key. The CNOT probe of Section 5.3 shows this at work: it copies the \(Z\) bit into Eve’s probe and leaves every \(Z\) round free of errors, but Bob’s \(X\) outcome becomes random, \(Q_X=1/2\) (notebook 52, quantum rules, channels and capacities, Section 5.2, with \(c=0\)). Eve’s knowledge of the \(Z\) key appears as phase errors. The next cell builds random Bell-diagonal states, computes both error rates from the engine’s outcome probabilities, and checks Eq. (14).
Code
# ==============================================================================# Eqs. (13)-(14): bit and phase error rates of Bell-diagonal states# ==============================================================================BELL = {k: bell_state(k) for k in ("phi+", "phi-", "psi+", "psi-")}ZZ_op, XX_op = jnp.kron(Z, Z), jnp.kron(X, X)for k, v in BELL.items(): vv = v.reshape(-1) zz, xx = (float(jnp.real(jnp.vdot(vv, O @ vv))) for O in (ZZ_op, XX_op))print(f"|{k}>: <ZZ> = {zz:+.0f}, <XX> = {xx:+.0f}")def bell_mixture(lam):"""sum_k lam_k |B_k><B_k| as a density tensor, k in (phi+, phi-, psi+, psi-)."""returnsum(l * to_dm(BELL[k]) for l, k inzip(lam, BELL))rng_bd = numpy_rng(41)worst =0.0for _ inrange(200): lam = rng_bd.dirichlet(np.ones(4)) rho = bell_mixture(lam) QZ =float(outcome_probs(rho, 0.0, 0.0)[[1, 2]].sum()) # unequal Z outcomes QX =float(outcome_probs(rho, np.pi /2, np.pi /2)[[1, 2]].sum()) # unequal X outcomes worst =max(worst, abs(QZ - (lam[2] + lam[3])), abs(QX - (lam[1] + lam[3])))print(f"Eq. (14) on 200 random Bell mixtures: largest deviation {worst:.1e}")assert worst < TOL
Eq. (14) on 200 random Bell mixtures: largest deviation 3.3e-16
Each Bell state has definite values of \(ZZ\) and \(XX\), and the error rates of random Bell mixtures follow Eq. (14) to machine precision. The \(\vert\Psi^-\rangle\) component, which flips both \(Z\) and \(X\) correlations, counts as a bit error and as a phase error at once.
7.2 The Devetak–Winter rate
How many secret bits can Alice and Bob extract per key round, in the limit of many rounds? Consider the entanglement-based picture, and assume that every round is independent and identical, so that Alice, Bob and Eve share many copies of one state \(\rho_{ABE}\); Section 7.6 comments on this assumption. Alice’s key bit is her \(Z\) outcome \(Z_A\). Ref. [9] proved that one-way error correction and privacy amplification, with messages from Alice to Bob only, achieve the rate
\[r=H(Z_A\vert E)-H(Z_A\vert B). \tag{15}\]
The conditional entropies are those of notebook 50, entropy and noisy channels, Section 4, with Eve’s or Bob’s knowledge in the condition. The first term is Eve’s uncertainty about the key, which privacy amplification turns into secrecy; it is the number of bits per round that remain hidden from her. The second term is Bob’s uncertainty, which error correction must remove by public messages that Eve hears too; it is the cost of the leak. When Eve holds quantum systems, \(H(Z_A\vert E)\) is the conditional entropy with quantum side information: if measuring \(Z_A\) leaves the joint state \(\rho_{Z_AE}=\sum_a p_a\,\vert a\rangle\langle a\vert\otimes\rho_E^a\), then
the chain rule, Eq. (9) of notebook 50, entropy and noisy channels, with von Neumann entropies. For Bob, who measures his qubit, \(H(Z_A\vert B)\) is at most the classical value \(H(Z_A\vert Z_B)\), since processing his system can only lose information.
Two limits of Eq. (16) show its meaning. If Eve’s states \(\rho_E^0\) and \(\rho_E^1\) are orthogonal, she can read the bit, and \(H(Z_A\vert E)=0\); if they are equal, she has nothing, and \(H(Z_A\vert E)=H(Z_A)\). For a uniformly random key bit, \(H(Z_A)=1\), and the definition of the mutual information turns Eq. (15) into \(r=I(Z_A{:}B)-I(Z_A{:}E)\): a secret key can be distilled at the rate by which Bob knows more about Alice’s bit than Eve does. For intercept–resend the two curves in the right panel of the figure in Section 5.3 cross at \(Q\approx17\,\%\); the threshold derived below is lower, because it must hold against every attack.
Eve’s system is unknown, so \(H(Z_A\vert E)\) cannot be measured. Alice and Bob observe only their own outcomes. The missing link is a relation that bounds Eve’s uncertainty by quantities that Alice and Bob can estimate.
7.3 The uncertainty relation with quantum memory
Ref. [10] proved an uncertainty relation that includes quantum memories. For a qubit of Alice measured either in \(Z\) or in \(X\), and for any state \(\rho_{ABE}\), it reads
In words: Alice’s qubit cannot be predicted well in both bases by two different parties. If Bob can predict Alice’s \(X\) outcome well, Eve cannot predict her \(Z\) outcome well, whatever Eve holds. The bound concerns two different parties for a reason. A single party with a quantum memory can predict both: Bob, holding the other half of \(\vert\Phi^+\rangle\), predicts \(Z_A\) and \(X_A\) perfectly, so \(H(Z_A\vert B)+H(X_A\vert B)=0\). Entanglement with Bob is exactly what excludes Eve, and Eq. (17) is the quantitative form of monogamy that security needs.
Bob’s prediction of \(X_A\) can be tested: in the \(X\) rounds his outcome differs from Alice’s with probability \(Q_X\), so \(H(X_A\vert B)\leq H(X_A\vert X_B)\leq h(Q_X)\). The last step holds because, once Bob’s bit is known, Alice’s bit is fixed by the error bit \(X_A\oplus X_B\), which is \(1\) with probability \(Q_X\), and conditioning cannot increase its entropy \(h(Q_X)\). Equation (17) then gives the bound on Eve’s uncertainty,
\[H(Z_A\vert E)\;\geq\;1-h(Q_X). \tag{18}\]
The \(X\) rounds are not the key rounds, yet they bound Eve’s knowledge of the \(Z\) key. The reason is that Eve does not know in which rounds Alice will measure \(Z\) and in which \(X\), so the key rounds and the \(X\) rounds come from the same state \(\rho_{ABE}\). Equation (17) is a property of that state, valid whichever basis Alice then measures, and the \(X\) rounds serve to estimate \(Q_X\) for it.
The next cell implements Eq. (16) for pure states of four qubits, \(A\), \(B\) and a two-qubit Eve, which suffices to purify any state of Alice and Bob. The conditional entropy is computed from the reduced density matrix of Alice’s qubit and the memory, after a rotation to the measured basis, by deleting the off-diagonal blocks in Alice’s index, which is the effect of the measurement. On \(400\) Haar-random states it checks Eq. (17) and the step \(H(X_A\vert B)\leq h(Q_X)\), and the wrong control evaluates the single-party sum for \(\vert\Phi^+\rangle\).
Code
# ==============================================================================# Eqs. (16)-(18): conditional entropies with quantum memory and the uncertainty relation# ==============================================================================@partial(jax.jit, static_argnums=(1, 2))def _cond_entropy(omega, basis, memory):"""Eq. (16): H(K_A | M) for Alice's outcome K_A in `basis` ('Z' or 'X') and memory qubits `memory`, from a pure state omega of shape (2,)*n with Alice = qubit 0. IMPLEMENTATION rotate qubit 0 so that the measured basis becomes Z; rho_{A M} = rdm; the measurement keeps only the two diagonal blocks in Alice's index (A is the most significant index of the matrix).""" psi = apply_gate(omega, H, [0]) if basis =="X"else omega r_am = rdm(psi, [0, *memory]) d = r_am.shape[0] //2 mask = jnp.kron(jnp.eye(2), jnp.ones((d, d))) # keeps the blocks |a><a| (x) rho_M^areturn von_neumann_entropy(r_am * mask) - von_neumann_entropy(rdm(psi, list(memory)))def cond_entropy(omega, basis, memory):returnfloat(_cond_entropy(jnp.asarray(omega, dtype=CDTYPE), basis, tuple(memory))) +0.0def error_rate(omega, basis):"""Probability that Alice and Bob (qubits 0, 1) find unequal outcomes in the same basis.""" psi = apply_gate(apply_gate(omega, H, [0]), H, [1]) if basis =="X"else omega r_ab = np.real(np.diag(np.asarray(rdm(psi, [0, 1]))))returnfloat(r_ab[1] + r_ab[2])EVE, BOB = (2, 3), (1,)sums, gaps = [], []for j inrange(400): omega = haar_state(key_for(1000+ j), 4) # qubits A, B, E1, E2 sums.append(cond_entropy(omega, "Z", EVE) + cond_entropy(omega, "X", BOB)) gaps.append(h2(error_rate(omega, "X")) - cond_entropy(omega, "X", BOB))print(f"400 random states: min of H(Z_A|E) + H(X_A|B) = {min(sums):.4f} (Eq. (17): >= 1)")print(f" min of h(Q_X) - H(X_A|B) = {min(gaps):.4f} (must be >= 0)")assertmin(sums) >=1-1e-9andmin(gaps) >=-1e-9# wrong control: one party with a quantum memory predicts both outcomesomega_bell = jnp.einsum("ab,cd->abcd", PHI_PLUS, product_state("00"))single = cond_entropy(omega_bell, "Z", BOB) + cond_entropy(omega_bell, "X", BOB)print(f"wrong control, |Phi+>: H(Z_A|B) + H(X_A|B) = {single:.2e}; with Eve: "f"H(Z_A|E) + H(X_A|B) = {cond_entropy(omega_bell, 'Z', EVE) + cond_entropy(omega_bell, 'X', BOB):.4f}")assertabs(single) <1e-9
400 random states: min of H(Z_A|E) + H(X_A|B) = 1.0149 (Eq. (17): >= 1)
min of h(Q_X) - H(X_A|B) = 0.0023 (must be >= 0)
No random state comes below one in Eq. (17), and Bob’s quantum uncertainty about \(X_A\) never exceeds \(h(Q_X)\). For the Bell pair, Bob predicts both outcomes perfectly, and the sum over a single party is zero, while Eve, who holds a product state, has one full bit of uncertainty.
7.4 The BB84 key rate
Inserting Eq. (18) and \(H(Z_A\vert B)\leq h(Q_Z)\) into Eq. (15) gives the secret-key rate per key round,
The first \(h\) is the price of Eve’s possible knowledge, paid in privacy amplification, and the second is the price of error correction. This chain of inequalities is the argument of [10], and it recovers the rate proved in [11] for BB84 with a different argument based on quantum error-correcting codes. It vanishes when \(h(Q)=1/2\), at
\[Q^\ast=11.0\,\% . \tag{20}\]
Below this error rate Alice and Bob can extract a secret key; above it this protocol, with one-way error correction and privacy amplification, gives none, and they abort. Intercept–resend, at \(Q=25\,\%\), is far above the threshold. Under the assumption of independent rounds stated in Section 7.2, Eq. (19) holds for every state that Eve may have prepared, which Alice and Bob need since they never learn which attack she used. The bound is also tight: some state that Eve can prepare reaches it. The next cell purifies Bell-diagonal states with \(Q_X=Q_Z=Q\), giving Eve the purifying system (the worst case), \(\vert\Omega\rangle=\sum_k\sqrt{\lambda_k}\,\vert B_k\rangle_{AB}\vert k\rangle_E\), and scans the one free weight \(\lambda_{\Psi^-}=t\) (by Eq. (14), \(\lambda_{\Psi^+}=\lambda_{\Phi^-}=Q-t\)). The smallest \(H(Z_A\vert E)\) equals \(1-h(Q)\) and is reached at \(t=Q^2\), the state produced by independent bit and phase flips with probability \(Q\) each, with weights \(\big((1-Q)^2,Q(1-Q),Q(1-Q),Q^2\big)\). The Werner pair with the same error rate, \(t=Q/2\), gives Eve less. A bisection then locates the threshold of Eq. (20).
Code
# ==============================================================================# Eqs. (19)-(20): Eve's uncertainty for purified Bell mixtures, the key rate and its threshold# ==============================================================================def purified_bell_mixture(lam):"""|Omega> = sum_k sqrt(lam_k) |B_k>_AB |k>_E with Eve's two qubits E1 E2 (qubits A, B, E1, E2).""" eve = [product_state(s) for s in ("00", "01", "10", "11")]returnsum(np.sqrt(l) * jnp.einsum("ab,cd->abcd", BELL[k], e) for l, k, e inzip(lam, BELL, eve))print(" Q | min_t H(Z_A|E) | at t (Q^2) | 1 - h(Q) | Werner (t = Q/2) | r = 1 - 2h(Q)")for Q in (0.02, 0.05, 0.08, 0.11): ts = np.sort(np.append(np.linspace(0, Q, 81), Q * Q)) # the grid plus the point t = Q^2 HZE = np.array([cond_entropy(purified_bell_mixture([1-2* Q + t, Q - t, Q - t, t]), "Z", EVE) for t in ts]) H_werner = cond_entropy(purified_bell_mixture([1-1.5* Q, Q /2, Q /2, Q /2]), "Z", EVE) i = HZE.argmin()print(f" {Q:.2f} | {HZE[i]:.6f} | {ts[i]:.6f} ({Q * Q:.6f}) | {1- h2(Q):.6f} | {H_werner:.6f} | "f"{1-2* h2(Q):+.4f}")assert np.all(HZE >=1- h2(Q) -1e-9) # Eq. (18) on the whole scanassertabs(HZE.min() - (1- h2(Q))) <1e-9andabs(ts[i] - Q * Q) <1e-12# reached at t = Q^2assert H_werner >1- h2(Q) +1e-3lo, hi =0.05, 0.2# bisection for 1 - 2h(Q) = 0for _ inrange(60): mid =0.5* (lo + hi) lo, hi = (mid, hi) if1-2* h2(mid) >0else (lo, mid)Q_STAR = loprint(f"\nthreshold of Eq. (20): Q* = {Q_STAR:.5f}")assertabs(Q_STAR -0.110028) <1e-5

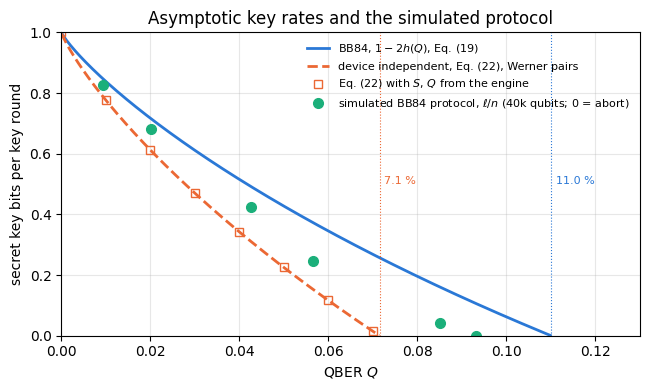

Q | min_t H(Z_A|E) | at t (Q^2) | 1 - h(Q) | Werner (t = Q/2) | r = 1 - 2h(Q)
For every error rate in the table the smallest value of Eve’s uncertainty over the scan is exactly \(1-h(Q)\), at \(t=Q^2\), so the uncertainty bound of Eq. (18) is reached by an attack that produces independent bit and phase flips. Werner pairs with the same error rate leave Eve less: their weight \(Q/2\) on \(\vert\Psi^-\rangle\), which carries a bit error and a phase error together, is larger than \(Q^2\), and correlated errors leave less room for Eve. Alice and Bob, who measure only in \(Z\) and \(X\), cannot tell the two states apart and must assume the worst case. The rate \(1-2h(Q)\) falls from \(0.72\) at \(2\,\%\) to \(0.43\) at \(5\,\%\) and crosses zero at \(Q^\ast=11.0\,\%\).
7.5 Werner pairs as the source
If the source emits Werner pairs \(\rho_W(v)\), Eq. (12) gives \(Q_Z=Q_X=(1-v)/2\), and their fidelity with \(\vert\Phi^+\rangle\) is \(F=v+(1-v)/4=(1+3v)/4\). The key threshold \(Q^\ast\) translates into
Werner pairs are entangled for \(v>1/3\) (notebook 19, Bell states and CHSH, Section 11) and violate the CHSH inequality for \(v>1/\sqrt2\). Pairs with \(1/3<v<0.78\) are entangled but give no key with the post-processing used here. Other post-processing tolerates more noise: if Alice flips each of her key bits at random before error correction, one-way communication still gives a key up to \(Q=12.4\,\%\)[12], and the two-way protocol of [13] tolerates \(18.9\,\%\).
Code
# ==============================================================================# Eq. (21): the thresholds of Werner pairs# ==============================================================================v_star =1-2* Q_STARF_star = (1+3* v_star) /4F_engine =float(jnp.real(jnp.vdot(PHI_PLUS.reshape(-1), dm_matrix(werner(v_star)) @ PHI_PLUS.reshape(-1))))print(f"key threshold v* = {v_star:.4f}, fidelity F* = {F_star:.4f} (engine: {F_engine:.4f})")print(f"CHSH violation for v > {1/ np.sqrt(2):.4f} (Q < {(1-1/ np.sqrt(2)) /2:.4f}); entangled for v > 1/3 "f"(Q < {1/3:.4f})")assertabs(v_star -0.77994) <1e-4andabs(F_engine - F_star) < TOLassert1/3<1/ np.sqrt(2) < v_star # entangled < CHSH < key
key threshold v* = 0.7799, fidelity F* = 0.8350 (engine: 0.8350)
CHSH violation for v > 0.7071 (Q < 0.1464); entangled for v > 1/3 (Q < 0.3333)
The three thresholds are ordered: a Werner pair must be entangled (\(v>1/3\)) to be useful at all, it violates CHSH from \(v=0.707\) on, and it gives a BB84 key from \(v=0.780\) on, with fidelity \(0.835\).
7.6 Efficient BB84 and the classes of attacks
With equal basis probabilities, half of the rounds are lost in sifting. Ref. [14] showed that the bases may be chosen with very different probabilities, \(Z\) almost always and \(X\) only rarely, if the error rate is estimated separately for each basis; the fraction of sifted rounds then approaches one.
Security proofs distinguish three classes of attacks. In individual attacks Eve treats every qubit separately with a fresh probe and measures each probe separately; intercept–resend and the probe attack of Section 5.3 measured one probe at a time are examples. In collective attacks she still attacks every qubit separately and in the same way, but stores all her probes in a quantum memory and measures them jointly at the end, after hearing all public messages. In coherent attacks she does the most general thing quantum mechanics allows, entangling all qubits with one large probe. The rate of Eq. (19) was derived above for collective attacks, where the rounds are independent and identical; for BB84 it holds against coherent attacks as well, as proved in [11] with an argument based on quantum error-correcting codes. A route that works for many protocols uses symmetry: Alice and Bob may permute their rounds at random, and a state that is symmetric under permutations of many subsystems is close to a mixture of independent and identical ones [15], so the general case reduces to the independent one at the price of finite-size corrections. A key that passes the full analysis is secure in a strong sense: it may be used in any later protocol, such as the one-time pad, as if it were a perfectly random key unknown to Eve, up to a failure probability that Alice and Bob choose, for example \(10^{-10}\).
7.7 The simulated protocol against the asymptotic rate
The pipeline of Section 4 can now be compared with Eq. (19). The next cell runs it at error rates from \(1\) to \(10\,\%\), each time with \(4\times10^4\) rounds through a depolarising channel with \(p_{\rm dep}=3Q/2\) (Eq. (3)), and records the extracted key length per reconciled bit, \(\ell/n\) from Eq. (5). The extracted fraction is
with the reconciliation efficiency \(f_{\rm EC}\) of Section 4.5, so it lies below \(1-2h(Q)\) by \((f_{\rm EC}-1)h(\hat Q)+s/n\), the cost of an error correction that is not optimal and of the safety margin. When Eq. (5) gives \(\ell\leq0\), the protocol aborts.
Code
# ==============================================================================# The full protocol at several error rates (Eqs. (3)-(5)) against Eq. (19)# ==============================================================================def run_protocol(i, Q_target, n_sent=N_SENT):"""BB84 end to end through a depolarising channel with Q = Q_target. Returns a dict of results.""" rounds = simulate_rounds(key_for(200+ i), n_sent, p_dep=1.5* Q_target) # Eq. (3) rng = numpy_rng(300+ i) a_k, b_k, est = sift_and_estimate(rounds, rng) b_c, leak, verified = correct_errors(a_k, b_k, est["Q"], rng) n = a_k.size ell = n - leak -int(np.ceil(n * h2(est["Q"]))) - S_MARGIN # Eq. (5) res =dict(est, n=n, leak=leak, ell=ell, verified=verified, f_ec=(leak - N_VERIFY) /max(n * h2(est["Q"]), 1))if ell >0: seed =int(rng.integers(2**31)) res["equal"] = np.array_equal(random_hash(a_k, ell, seed), random_hash(b_c, ell, seed))return resQ_TARGETS = (0.01, 0.02, 0.04, 0.06, 0.08, 0.10)runs = [run_protocol(i, Q) for i, Q inenumerate(Q_TARGETS)]print(" Q chan | Q_hat +- sigma | leak/n | f | l/n | 1 - 2h(Q_hat) | result")for Q, res inzip(Q_TARGETS, runs): frac = res["ell"] / res["n"] outcome =f"key of {res['ell']} bits, identical: {res['equal']}"if res["ell"] >0else"abort (l <= 0)"print(f" {Q:.2f} | {res['Q']:.4f} +- {res['sigma']:.4f} | {res['leak'] / res['n']:.4f} | {res['f_ec']:.2f} | "f"{frac:+.4f} | {1-2* h2(res['Q']):+.4f} | {outcome}")assert res["verified"] andabs(res["Q"] - Q) <5* binom_se(Q, res["k"])assert frac <1-2* h2(res["Q"]) # below the asymptotic rate expected_gap = (res["leak"] - res["n"] * h2(res["Q"]) + S_MARGIN) / res["n"]assertabs((1-2* h2(res["Q"]) - frac) - expected_gap) <2/ res["n"] # the gap is the excess leak + marginif res["ell"] >0:assert res["equal"]assert runs[0]["ell"] >0and runs[-1]["ell"] <=0# key at 1 %, abort at 10 %
At every error rate the keys of Alice and Bob came out identical, and the extracted fraction lies below \(1-2h(Q)\) by the excess leak of the parity-check reconciliation plus the margin. At \(1\,\%\) the protocol keeps \(98\,\%\) of the asymptotic rate, at \(6\,\%\) two thirds of it and at \(8\,\%\) only a quarter, because the excess leak \((f-1)h(Q)\) grows with \(h(Q)\) while the rate shrinks. In the last run, with an estimated error rate of \(9.3\,\%\) and an asymptotic rate of \(0.11\), the leak of \(1.39\,h(\hat Q)\) makes Eq. (5) negative, and the protocol aborts although the error rate is below the threshold \(Q^\ast\). Real systems use long low-density parity-check codes with \(f\) close to one (notebook 50, entropy and noisy channels, Section 5.3) to come closer to Eq. (19).
7.8 A finite number of rounds
Equation (19) is an asymptotic statement. With a finite number of rounds three corrections appear. The error rate is estimated from \(k\) test rounds and is uncertain by about \(\sigma_{\hat Q}\) of Eq. (4), so a careful protocol inserts a pessimistic value \(\hat Q+\mu\), with \(\mu\) a few standard errors, into the term for Eve’s knowledge; error correction on finite blocks leaks more than \(n\,h(Q)\), as in Section 7.7; and privacy amplification needs a margin \(s\) that grows with the required security level. For small numbers of rounds these corrections exceed the rate itself, and no key can be extracted at all. Tight finite-key analyses of BB84 are given in [16]. The next cell shows the first correction with the engine: one simulation of \(8\times10^5\) rounds at \(Q=5\,\%\) is cut into many independent test samples of size \(k\), and the spread of \(\hat Q\) is compared with Eq. (4); the last column shows the rate \(1-2h\) evaluated at \(\hat Q+3\sigma_{\hat Q}\) instead of \(Q\).
Code
# ==============================================================================# Eq. (4): spread of the estimated error rate, and its cost in the key rate# ==============================================================================Q_FS =0.05r_fs = simulate_rounds(key_for(400), 800_000, p_dep=1.5* Q_FS)s_fs = r_fs["x"] == r_fs["y"]err_fs = (r_fs["a"][s_fs] != r_fs["b"][s_fs]).astype(float)print(f"{err_fs.size} sifted rounds, overall error rate {err_fs.mean():.4f}")print(" k | samples | std of Q_hat | Eq. (4) | 1 - 2h(Q + 3 sigma) (asymptotic 1 - 2h(Q) = "f"{1-2* h2(Q_FS):.4f})")for k in (100, 1_000, 10_000): m = err_fs.size // k Q_hats = err_fs[: m * k].reshape(m, k).mean(1) # m independent test samples of size k sig = np.sqrt(Q_FS * (1- Q_FS) / k) std = Q_hats.std(ddof=1)print(f" {k:6d} | {m:7d} | {std:.4f} | {sig:.4f} | {1-2* h2(Q_FS +3* sig):+.4f}")assertabs(std - sig) <5* sig / np.sqrt(2* (m -1)) # standard error of a standard deviation
The spread of the estimate follows \(\sqrt{Q(1-Q)/k}\): \(2.2\,\%\) for \(100\) test rounds, \(0.7\,\%\) for \(1000\) and \(0.2\,\%\) for \(10^4\). With a margin of three standard errors, \(100\) test rounds at \(Q=5\,\%\) already push the pessimistic error rate above the threshold, so no key at all; \(10^3\) test rounds cost \(40\,\%\) of the rate and \(10^4\) test rounds about an eighth. The end-to-end runs of Sections 4 and 7.7 used \(\hat Q\) itself in Eq. (5), without this margin, and therefore illustrate the protocol without the statistical guarantee that a deployed system needs.
8. Device-independent key distribution
Every argument above assumes that Alice’s and Bob’s devices measure exactly \(Z\) and \(X\) on qubits. Real devices deviate from their models, and Section 9 shows that such deviations have been exploited. Device-independent key distribution drops this assumption. The idea goes back to [17], which proposed to test untrusted apparatus through its EPR correlations, and to [18], which derived security from a Bell violation alone, against an eavesdropper limited only by the impossibility of signalling faster than light. The devices are black boxes with a setting as input and a bit as output, and security is derived from the observed CHSH value \(S\) of Eq. (10) alone. A value above \(2\) certifies that the outcomes were not fixed in advance, and a value near \(2\sqrt2\) certifies a nearly maximally entangled pair, whatever the devices do inside. For collective attacks Ref. [19] derived the bound on Eve’s information as a function of \(S\), which gives the rate
The structure is that of Eq. (19): \(h(Q)\) is the cost of error correction on the key rounds, and the second entropy replaces \(h(Q_X)\) as the bound on Eve’s knowledge. For \(S=2\sqrt2\) the square root is one and the second term vanishes; for \(S=2\) it is \(h(1/2)=1\) and no key is possible. For Werner pairs, \(S=2\sqrt2(1-2Q)\) by Eq. (12), and the rate vanishes at \(Q\approx7.1\,\%\), lower than the \(11\,\%\) of BB84: fewer assumptions cost noise tolerance. Security against general attacks was proved in [20]. Device-independent protocols need Bell tests without loopholes over long distances, which makes them much harder to run than BB84.
An intermediate option is measurement-device-independent key distribution [21]: Alice and Bob send states to an untrusted relay in the middle, which performs Bell measurements, so that every attack on the detectors is removed while the sources must still be trusted.
The next cell evaluates Eq. (22) for Werner pairs, with \(S\) and \(Q\) computed by the engine, locates the threshold, and draws both rates together with the key fractions extracted by the simulated protocol of Section 7.7.
Code
# ==============================================================================# Eq. (22): the device-independent rate for Werner pairs, and the key-rate figure# ==============================================================================def r_di(S, Q):"""Eq. (22); S <= 2 gives no key."""if S <=2:return-1.0return1- h2(Q) - h2((1+ np.sqrt((S /2) **2-1)) /2)Qg = np.linspace(0.0, 0.13, 131)rate_di_engine = []for Q in Qg[::10]: rho = werner(1-2* Q) S_w, Q_w = chsh(rho), float(outcome_probs(rho, 0.0, 0.0)[[1, 2]].sum()) rate_di_engine.append(r_di(S_w, Q_w))assertabs(rate_di_engine[-1] - r_di(2* np.sqrt(2) * (1-2* Q), Q)) <1e-9# Eq. (12) inside Eq. (22)lo, hi =0.01, 0.1for _ inrange(60): mid =0.5* (lo + hi) lo, hi = (mid, hi) if r_di(2* np.sqrt(2) * (1-2* mid), mid) >0else (lo, mid)Q_STAR_DI = loprint(f"device-independent threshold: Q = {Q_STAR_DI:.4f}; BB84 threshold: Q* = {Q_STAR:.4f}")print(f"at Q = 2 %: BB84 rate {1-2* h2(0.02):.4f}, device-independent rate "f"{r_di(2* np.sqrt(2) *0.96, 0.02):.4f}")assertabs(Q_STAR_DI -0.0715) <5e-4and r_di(2.0, 0.0) <0fig, ax = plt.subplots(figsize=(6.6, 4.0))qf = np.linspace(1e-4, 0.13, 600)bb84_curve =1-2* h2(qf)di_curve = np.array([r_di(2* np.sqrt(2) * (1-2* q), q) for q in qf])ax.plot(qf[bb84_curve >0], bb84_curve[bb84_curve >0], color=PALETTE[0], lw=2, label="BB84, $1-2h(Q)$, Eq. (19)")ax.plot(qf[di_curve >0], di_curve[di_curve >0], color=PALETTE[1], lw=2, ls="--", label="device independent, Eq. (22), Werner pairs")ax.plot(Qg[::10][np.array(rate_di_engine) >0], np.array(rate_di_engine)[np.array(rate_di_engine) >0], MARKERS[1], color=PALETTE[1], mfc="none", ms=6, label="Eq. (22) with $S$, $Q$ from the engine")sim_Q = [res["Q"] for res in runs]sim_frac = [max(res["ell"] / res["n"], 0.0) for res in runs]ax.plot(sim_Q, sim_frac, MARKERS[0], color=PALETTE[2], ms=7, label=f"simulated BB84 protocol, $\\ell/n$ ({N_SENT //1000}k qubits; 0 = abort)")ax.axvline(Q_STAR, color=PALETTE[0], lw=0.8, ls=":"); ax.axvline(Q_STAR_DI, color=PALETTE[1], lw=0.8, ls=":")ax.text(Q_STAR +0.001, 0.5, "11.0 %", color=PALETTE[0], fontsize=8)ax.text(Q_STAR_DI +0.001, 0.5, "7.1 %", color=PALETTE[1], fontsize=8)ax.set_xlim(0, 0.13); ax.set_ylim(0, 1.0)ax.set_xlabel("QBER $Q$"); ax.set_ylabel("secret key bits per key round")ax.set_title("Asymptotic key rates and the simulated protocol"); ax.legend(fontsize=8, loc="upper right")plt.tight_layout(); plt.show()
The device-independent rate, with \(S\) and \(Q\) taken from the engine’s Werner pairs, lies below the BB84 rate at every error rate and vanishes at \(7.1\,\%\), against \(11.0\,\%\) for BB84. The simulated BB84 points lie under their curve, by the excess leak of the reconciliation, and the last point sits at zero, where the protocol aborted. The vertical lines mark the two thresholds.
9. Practical issues
Loss. Most photons sent into a long fibre never arrive. With a source of single photons, lost photons do not open a door for Eve, since Alice and Bob simply discard the rounds without a detection, but they do not contribute to the key either. The key rate is therefore proportional to the transmission \(\eta\) of the link, and since a fibre attenuates the signal by a fixed number of decibels per kilometre, \(\eta\) and the rate fall exponentially with distance. No-cloning forbids amplifying the quantum signal; long distances need trusted relay stations or quantum repeaters, which are built from entanglement swapping and purification.
Multi-photon pulses and decoy states. Practical sources are attenuated lasers. Each pulse contains a random number of photons, and occasionally two or more. Eve can then keep one photon and forward the others, and once the basis is announced she measures her photon in the right basis, learning the bit without causing any error. On a lossy line she can also block single-photon pulses, so that Bob’s detection rate stays at its expected value. This is the photon-number-splitting attack, with which Ref. [22] showed that weak-pulse systems over lossy lines can be totally insecure. The decoy-state method defeats it [23], [24], [25]. Alice varies the intensity of her pulses at random and reveals the intensities only afterwards. Eve cannot treat pulses differently without knowing their intensity, and from the detection rates at each intensity Alice and Bob estimate how many detections came from single-photon pulses; only those enter the key-rate formula.
Imperfect detectors. Detectors and modulators deviate from their models, and each deviation is a potential side channel. The authors of [26] blinded the single-photon detectors of two commercial systems with bright light and controlled their clicks remotely, which makes it possible to acquire the full key without leaving a trace. The answer is either to model and patch every such side channel, or to remove the assumptions that the attack exploits: the measurement-device-independent protocol removes all detector attacks, and device-independent protocols remove the assumptions on the devices altogether. The review [27] treats the security of practical systems in detail.
10. Key takeaways
BB84 encodes bits in two bases and reveals the basis only after the measurement. A measurement in the right basis returns Alice’s bit, one in the wrong basis a coin toss, Eq. (2); sifting keeps the half of the rounds with equal bases. The simulated protocol turned \(4\times10^4\) qubits at \(Q=3\,\%\) into a key of about \(10^4\) bits that Alice and Bob share bit for bit.
The classical stage uses only classical tools. The error rate is estimated on a random sample, with a standard error \(\sqrt{Q(1-Q)/k}\); parity checks correct the errors at a cost of \(f_{\rm EC}\,h(Q)\) bits per key bit; a random hash removes Eve’s knowledge, Eq. (5). Hashing before correcting leaves keys that differ in half of their bits.
Intercept–resend causes a \(25\,\%\) error rate and gives Eve half a bit per sifted round, Eqs. (6)–(8); the CNOT probe of Section 5.3 gives the same numbers, and weaker probes give more information per error.
A BB84 sender is a source of \(\vert\Phi^+\rangle\) with a measurement in Alice’s laboratory. This source replacement links BB84 with the entanglement-based protocols BBM92 and E91; Werner pairs of visibility \(v\) have \(S=2\sqrt2\,v\) and \(Q=(1-v)/2\).
Phase errors bound Eve’s knowledge. The Devetak–Winter rate \(H(Z_A\vert E)-H(Z_A\vert B)\), together with the uncertainty relation \(H(Z_A\vert E)+H(X_A\vert B)\geq1\), gives the BB84 rate \(1-h(Q_X)-h(Q_Z)=1-2h(Q)\), positive below \(Q^\ast=11.0\,\%\) (\(v^\ast=0.78\) for Werner pairs). Independent bit and phase flips reach the bound.
Real keys are shorter. Error correction above the Shannon limit, the safety margin and the statistical uncertainty of \(\hat Q\) all cost key; the simulated protocol aborted at \(10\,\%\).
Device independence trades noise tolerance for fewer assumptions. The CHSH-based rate vanishes at \(7.1\,\%\). Real devices have been attacked through multi-photon pulses (answered by decoy states) and through their detectors (answered by measurement-device-independent protocols).
11. Exercises
★ Partial intercept–resend. Eve attacks a fraction \(f\) of the rounds. What is the largest \(f\) that keeps the error rate below \(Q^\ast\)? How much does Eve learn per sifted round at that \(f\), and why does this not endanger the key? Check the error rate with simulate_rounds.
★ A key at 5 %. Compute the asymptotic rate per key round at \(Q=5\,\%\). How many secret bits does one obtain from \(10^6\) sent qubits with equal basis probabilities, and how many if both Alice and Bob choose \(Z\) with probability \(0.9\) and the key is taken from the rounds in which both chose \(Z\)? Ignore the test rounds and loss.
★★ CHSH and the error rate. Show with Eq. (11) that \(S=2\sqrt2\,v\) for \(\rho_W(v)\). For which \(v\) is the inequality violated, and which error rate does that correspond to? Confirm with chsh(werner(v)).
★★ The only state with perfect correlations. Show that \(\vert\Phi^+\rangle\) is the only two-qubit state, pure or mixed, with \(\langle ZZ\rangle=\langle XX\rangle=1\). Then draw \(10^4\) random density matrices of rank two (mixtures of two Haar-random states) and check numerically that \(\langle ZZ\rangle+\langle XX\rangle\leq2F_{\Phi^+}\), with \(F_{\Phi^+}\) the fidelity with \(\vert\Phi^+\rangle\), so that a sum close to \(2\) forces a fidelity close to one.
★★ Intercept–resend in the intermediate basis. Eve measures every qubit along the Bloch direction halfway between \(+z\) and \(+x\) (the observable \((Z+X)/\sqrt2\)) and resends the eigenstate she found. Extend one_round: rotate with ry(-np.pi / 4), measure \(Z\), rotate back with ry(np.pi / 4). Compute the error rate, the probability with which Eve guesses Alice’s bit, and her mutual information per sifted round. Compare with Eqs. (6)–(7).
★★ Thresholds of Werner pairs. For \(\rho_W(v)\) list the values of \(v\), the fidelity \(F\) and the error rate \(Q\) at which the pair becomes entangled, violates the CHSH inequality, gives a device-independent key, and gives a BB84 key. Which range of \(v\) is entangled but useless for both protocols?
★★★ The probe attack inside the protocol. Replace intercept–resend in one_round by the controlled rotation of notebook 52, quantum rules, channels and capacities, Eq. (7), with \(\theta=\pi/2\): let the signal control \(R_y(\theta)\) on a second qubit in \(\vert0\rangle\) before Bob measures. Measure the error rate, run run_protocol’s steps on the result, and compare the number of bits removed for Eve, \(n\,h(\hat Q)\), with Eve’s information from Eq. (8) of that notebook, \(n\,I_{AE}\) for single-probe measurements and \(n\,\chi_E\) for joint measurements.
Check values. 1: \(f<4Q^\ast=0.440\); Eve learns \(f/2=0.220\) bit per sifted round, which privacy amplification removes: Eq. (19) already subtracts \(h(Q^\ast)=1/2\) bit per round, the worst case compatible with the error rate. 2: \(h(0.05)=0.286\), \(r=0.427\); \(5\times10^5\) sifted rounds give \(2.1\times10^5\) secret bits; with \(p_Z=0.9\) a fraction \(0.81\) of the rounds has \(Z\) on both sides, giving \(3.5\times10^5\) bits. 3: violated for \(v>1/\sqrt2=0.707\), that is \(Q<14.6\,\%\). 4: \(\langle ZZ\rangle=1\) restricts the support to the span of \(\vert\Phi^\pm\rangle\), where \(XX=\pm1\); \(\langle XX\rangle=1\) then excludes \(\vert\Phi^-\rangle\). The inequality follows from Eq. (13): \(\langle ZZ\rangle+\langle XX\rangle=2\lambda_{\Phi^+}-2\lambda_{\Psi^-}\leq2F\) for the Bell diagonal elements \(\lambda_k=\langle B_k\vert\rho\vert B_k\rangle\) of \(\rho\) in the Bell basis, with \(F=\lambda_{\Phi^+}\). 5: \(Q=0.25\) again; Eve guesses right with probability \(\cos^2(\pi/8)=0.854\) in every round, so her mutual information is \(1-h(0.146)=0.399\) bit per sifted round, less than the \(0.5\) of standard intercept–resend although her guessing probability is higher. 6: entangled for \(v>1/3\) (\(F>1/2\), \(Q<33.3\,\%\)); CHSH violation for \(v>0.707\) (\(F>0.780\), \(Q<14.6\,\%\)); BB84 key for \(v>0.780\) (\(F>0.835\), \(Q<11.0\,\%\)); device-independent key for \(v>0.857\) (\(F>0.893\), \(Q<7.1\,\%\)); entangled but useless for \(1/3<v<0.780\). 7: \(Q=(1-\cos(\pi/4))/4=0.0732\); per key bit Alice and Bob remove \(h(0.0732)=0.378\) bit, more than Eve’s \(I_{AE}=0.200\) and \(\chi_E=0.300\) bit per sifted round, so the hash removes all of her knowledge.
References
[1] C. E. Shannon, A mathematical theory of communication, Bell Syst. Tech. J. 27, 379 (1948) — the Shannon entropy.
[2] C. H. Bennett and G. Brassard, Quantum cryptography: Public key distribution and coin tossing, in Proceedings of the IEEE International Conference on Computers, Systems and Signal Processing (Bangalore, 1984), p. 175; reprinted in Theor. Comput. Sci. 560, 7 (2014), doi:10.1016/j.tcs.2014.05.025 — the BB84 protocol.
[3] G. Brassard and L. Salvail, Secret-key reconciliation by public discussion, in Advances in Cryptology — EUROCRYPT ’93, Lecture Notes in Computer Science 765, 410 (Springer, 1994), doi:10.1007/3-540-48285-7_35 — reconciliation of a shared key by public parity checks.
[4] C. H. Bennett, G. Brassard and J.-M. Robert, Privacy amplification by public discussion, SIAM J. Comput. 17, 210 (1988), doi:10.1137/0217014 — privacy amplification.
[5] C. H. Bennett, G. Brassard and N. D. Mermin, Quantum cryptography without Bell’s theorem, Phys. Rev. Lett. 68, 557 (1992), doi:10.1103/PhysRevLett.68.557 — the entanglement-based protocol BBM92, proved secure without Bell’s theorem, and its equivalence with BB84.
[6] A. K. Ekert, Quantum cryptography based on Bell’s theorem, Phys. Rev. Lett. 67, 661 (1991), doi:10.1103/PhysRevLett.67.661 — key distribution with entangled pairs tested by a Bell inequality.
[7] J. F. Clauser, M. A. Horne, A. Shimony and R. A. Holt, Proposed experiment to test local hidden-variable theories, Phys. Rev. Lett. 23, 880 (1969), doi:10.1103/PhysRevLett.23.880 — the CHSH inequality.
[8] R. F. Werner, Quantum states with Einstein-Podolsky-Rosen correlations admitting a hidden-variable model, Phys. Rev. A 40, 4277 (1989), doi:10.1103/PhysRevA.40.4277 — the Werner states.
[9] I. Devetak and A. Winter, Distillation of secret key and entanglement from quantum states, Proc. R. Soc. A 461, 207 (2005), doi:10.1098/rspa.2004.1372 — the secret-key rate achievable with one-way public communication from correlations shared with an eavesdropper.
[10] M. Berta, M. Christandl, R. Colbeck, J. M. Renes and R. Renner, The uncertainty principle in the presence of quantum memory, Nat. Phys. 6, 659 (2010), doi:10.1038/nphys1734 — the uncertainty relation with quantum memory and its application to quantum key distribution.
[11] P. W. Shor and J. Preskill, Simple proof of security of the BB84 quantum key distribution protocol, Phys. Rev. Lett. 85, 441 (2000), doi:10.1103/PhysRevLett.85.441 — security of BB84 against general attacks through entanglement purification and quantum error-correcting codes, with the rate \(1-2h(Q)\).
[12] B. Kraus, N. Gisin and R. Renner, Lower and upper bounds on the secret-key rate for quantum key distribution protocols using one-way classical communication, Phys. Rev. Lett. 95, 080501 (2005), doi:10.1103/PhysRevLett.95.080501 — security against general attacks reduced to collective attacks for one-way protocols, and the improvement of the BB84 threshold to 12.4 % by adding noise before error correction.
[13] D. Gottesman and H.-K. Lo, Proof of security of quantum key distribution with two-way classical communications, IEEE Trans. Inf. Theory 49, 457 (2003), doi:10.1109/TIT.2002.807289 — two-way post-processing that lets BB84 tolerate a bit error rate of up to 18.9 %.
[14] H.-K. Lo, H. F. Chau and M. Ardehali, Efficient quantum key distribution scheme and a proof of its unconditional security, J. Cryptol. 18, 133 (2005), doi:10.1007/s00145-004-0142-y — biased basis choice with separate error-rate estimation for each basis.
[15] R. Renner, Symmetry of large physical systems implies independence of subsystems, Nat. Phys. 3, 645 (2007), doi:10.1038/nphys684 — permutation symmetry of a many-part state implies that almost all parts are nearly independent and identical, which justifies the reduction to independent rounds.
[16] M. Tomamichel, C. C. W. Lim, N. Gisin and R. Renner, Tight finite-key analysis for quantum cryptography, Nat. Commun. 3, 634 (2012), doi:10.1038/ncomms1631 — security of BB84 for a finite number of signals.
[17] D. Mayers and A. Yao, Quantum cryptography with imperfect apparatus, in Proceedings of the 39th Annual Symposium on Foundations of Computer Science (IEEE, 1998), p. 503, doi:10.1109/SFCS.1998.743501 — self-checking sources: apparatus whose adequacy for key distribution is certified by tests of its EPR correlations.
[18] J. Barrett, L. Hardy and A. Kent, No signaling and quantum key distribution, Phys. Rev. Lett. 95, 010503 (2005), doi:10.1103/PhysRevLett.95.010503 — key distribution secure against an eavesdropper limited only by no-signalling, with security from the violation of a Bell inequality.
[19] A. Acín, N. Brunner, N. Gisin, S. Massar, S. Pironio and V. Scarani, Device-independent security of quantum cryptography against collective attacks, Phys. Rev. Lett. 98, 230501 (2007), doi:10.1103/PhysRevLett.98.230501 — the bound on Eve’s information as a function of the CHSH violation, and the device-independent key rate.
[20] U. Vazirani and T. Vidick, Fully device-independent quantum key distribution, Phys. Rev. Lett. 113, 140501 (2014), doi:10.1103/PhysRevLett.113.140501 — device-independent security against general attacks with noisy devices.
[21] H.-K. Lo, M. Curty and B. Qi, Measurement-device-independent quantum key distribution, Phys. Rev. Lett. 108, 130503 (2012), doi:10.1103/PhysRevLett.108.130503 — key distribution through an untrusted relay, which removes all detector side channels.
[22] G. Brassard, N. Lütkenhaus, T. Mor and B. C. Sanders, Limitations on practical quantum cryptography, Phys. Rev. Lett. 85, 1330 (2000), doi:10.1103/PhysRevLett.85.1330 — the photon-number-splitting attack, which makes weak-pulse systems over lossy lines insecure.
[23] W.-Y. Hwang, Quantum key distribution with high loss: toward global secure communication, Phys. Rev. Lett. 91, 057901 (2003), doi:10.1103/PhysRevLett.91.057901 — the decoy-state idea against the photon-number-splitting attack.
[24] H.-K. Lo, X. Ma and K. Chen, Decoy state quantum key distribution, Phys. Rev. Lett. 94, 230504 (2005), doi:10.1103/PhysRevLett.94.230504 — decoy states as a practical method that makes weak-pulse systems secure.
[25] X.-B. Wang, Beating the photon-number-splitting attack in practical quantum cryptography, Phys. Rev. Lett. 94, 230503 (2005), doi:10.1103/PhysRevLett.94.230503 — a decoy-state protocol with vacuum and two intensities.
[26] L. Lydersen, C. Wiechers, C. Wittmann, D. Elser, J. Skaar and V. Makarov, Hacking commercial quantum cryptography systems by tailored bright illumination, Nat. Photon. 4, 686 (2010), doi:10.1038/nphoton.2010.214 — remote control of the detectors of two commercial systems by bright illumination.
[27] V. Scarani, H. Bechmann-Pasquinucci, N. J. Cerf, M. Dušek, N. Lütkenhaus and M. Peev, The security of practical quantum key distribution, Rev. Mod. Phys. 81, 1301 (2009), doi:10.1103/RevModPhys.81.1301 — review of quantum key distribution and of the security of its experimental platforms.
Marcin Płodzień, PhD
Citation: M. Płodzień, Quantum Many-Body Simulation: from a single spin to quantum machine learning (2026), https://marcinplodzien.github.io/quantum-many-body-simulation/
